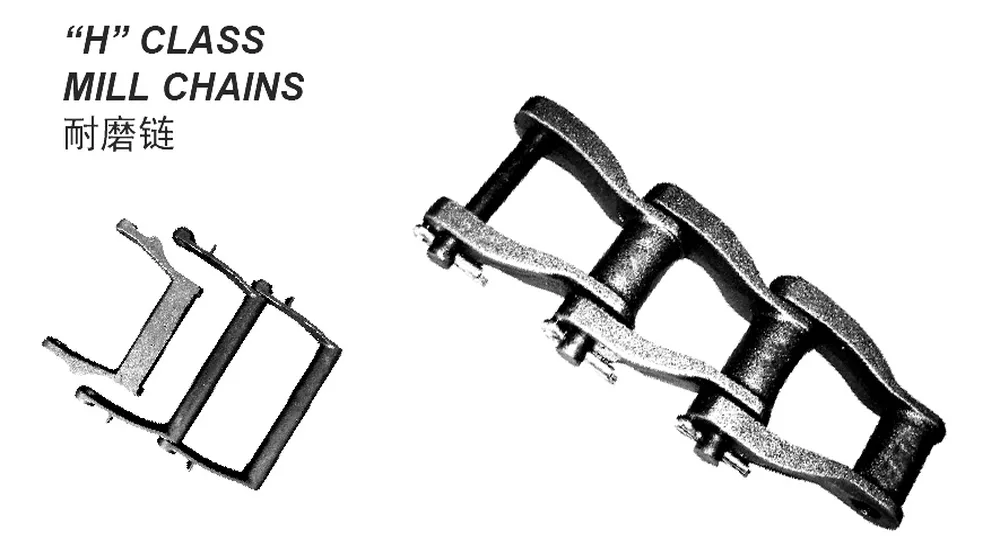

H74 Mill Chain

H74 Mill Chain for Lumber and Paper Industries

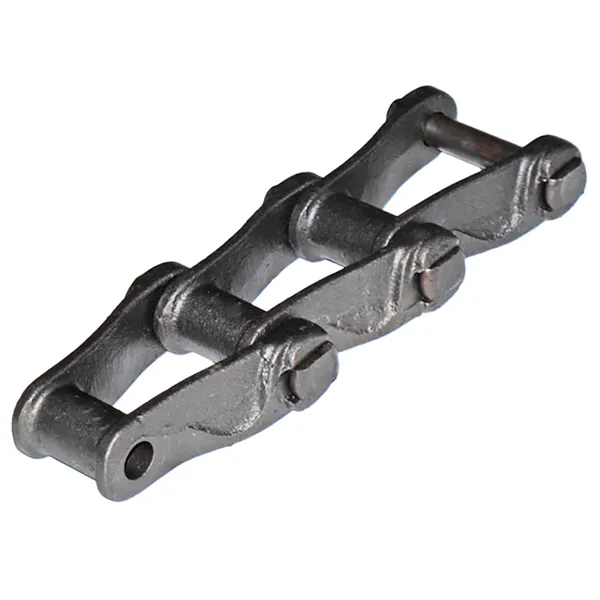

The H74 Mill Chain is a type of chain that is used in a variety of industrial applications, including drag conveyors, transfer conveyors, and heavy-duty drives. It is made of cast iron and has a one-piece offset link construction. The links are joined together by steel-clipped heads. H74 Mill Chains are available in riveted and cottered construction.

H74 Mill Chains are designed for moderate duty in abrasive atmospheres. They are also suitable for use in the lumber, pulp and paper, and water industries. The maximum speed of this chain is generally 450 FPM but depends upon the size of the sprockets.

Here are some of the key features of the H74 Mill Chain:

• Made of cast iron for strength and durability
• One-piece offset link construction for smooth operation
• Steel clipped heads for secure jointing
• Available in riveted and cottered construction
• Suitable for moderate duty in abrasive atmospheres
• Used in a variety of industrial applications, including drag conveyors, transfer conveyors, and heavy-duty drives

If you are looking for a strong and durable chain for your industrial application, the H74 Mill Chain is a great option. It is well-suited for moderate duty in abrasive atmospheres and is available in a variety of sizes and configurations to meet your specific needs.

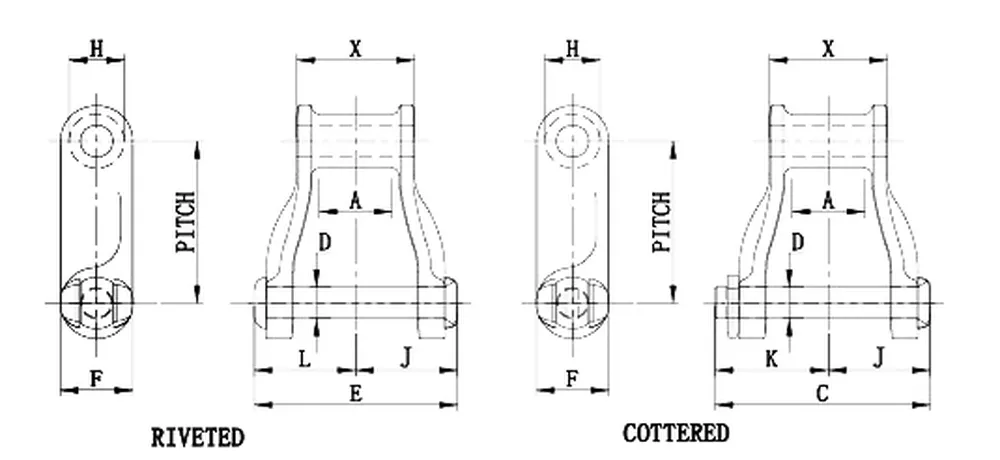

H74 Mill Chain Dimensions:

Chain No.	H74 Mill Chain
Pitch in Inches	2.609
Weight Per Foot LBS.	3
Average Ultimate Strength LBS.	10000
Maximum Working Load LBS.	1850
A	1
C	3.12
D	0.375
E	2.88
F	1
H	0.88
X	1.66
Available Attachments	F4

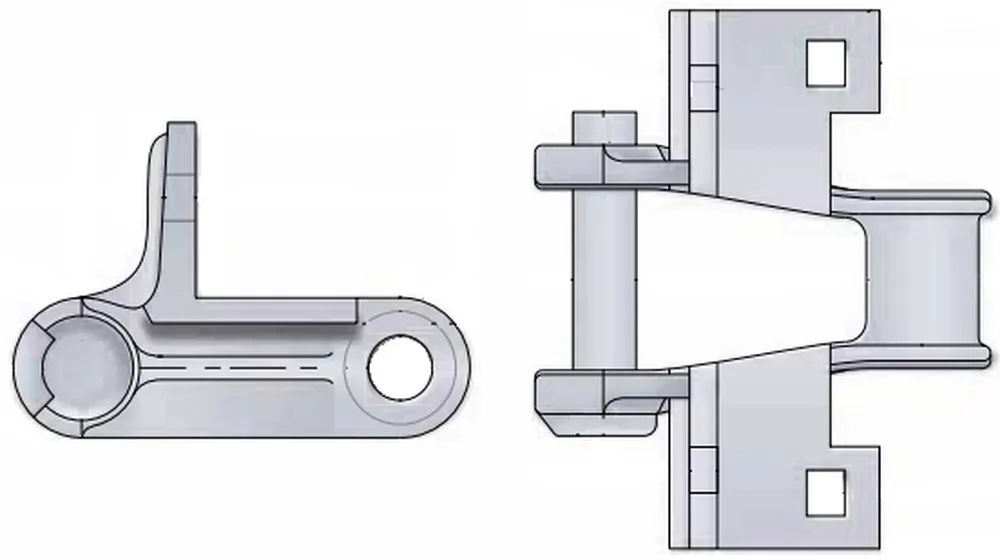

H74 Mill Chain Attachments:

This H74 F4 attachment is a high-quality precision attachment that is a common stock item and can be assembled onto the H74 Mill Chain in any configuration needed or sold as an individual H74 F4 attachment link.

H74 Mill Chain F4 Attachment

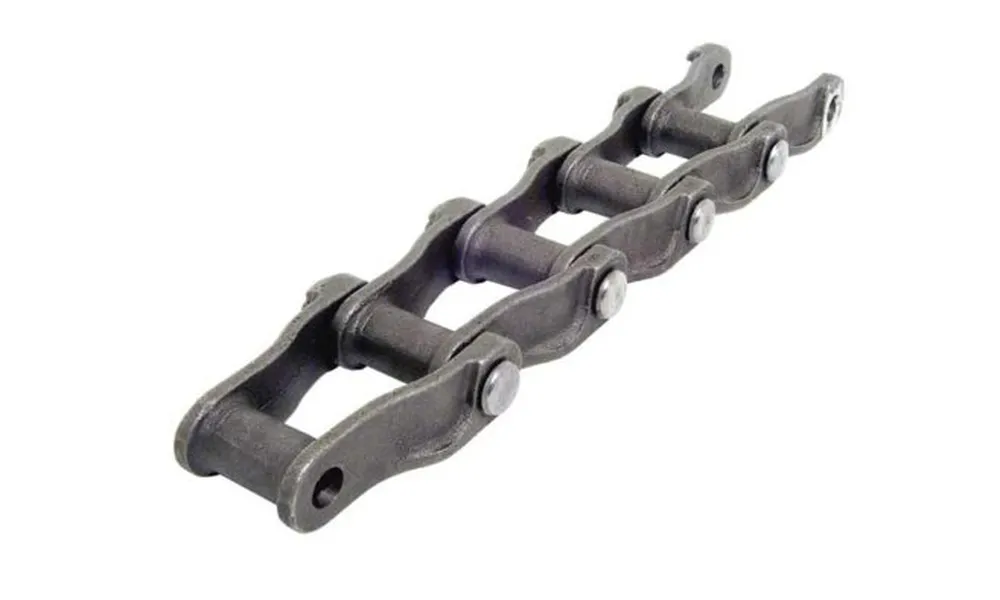

H74 Mill Chain Advantages:

The H74 Mill Chain is a specific type of roller chain commonly used in heavy-duty industrial applications, particularly in the forestry industry for sawmill operations. While I couldn't find specific information on an H74 Mill Chain, I can provide you with the general advantages of mill chains:1. Durability: H74 Mill Chains are designed to withstand heavy loads and harsh operating conditions. They are built to be highly durable, resistant to wear, and capable of handling substantial shock loads commonly encountered in sawmill operations.2. High strength: H74 Mill Chains are typically constructed using high-quality materials such as alloy steel. This allows them to have high tensile strength, making them suitable for heavy-duty applications where significant force and power transmission are required.3. Precision engineering: H74 Mill Chains are engineered with precision to ensure smooth and reliable operation. They have accurately manufactured components that fit together seamlessly, minimizing the risk of chain failure or malfunction.4. Flexibility: H74 Mill Chains can be customized and adapted to different applications and operating conditions. They come in various sizes and configurations, allowing them to be tailored to specific machinery and production requirements.5. Easy maintenance: H74 Mill Chains are designed for easy maintenance and replacement. They often feature removable pins or quick-connect links that simplify the disassembly and reassembly process, reducing downtime during maintenance or repairs.6. Cost-effective: H74 Mill Chains offer a cost-effective solution for heavy-duty power transmission needs. Their durability and long service life help minimize the frequency of replacements and reduce overall maintenance costs over time.

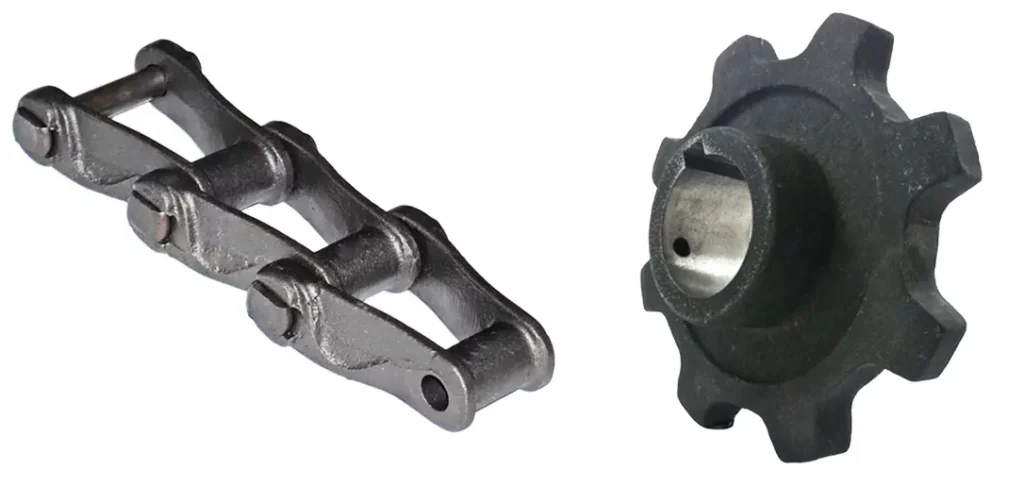

H74 Chain Sprockets for H74 Mill Chains:

H74 chain sprockets are designed to work specifically with H74 Mill Chains. H74 Mill Chains are commonly used in various industrial applications, such as lumber mills, paper mills, and other heavy-duty conveying systems. When selecting chain sprockets for H74 Mill Chains, it's important to consider a few key factors:1. Chain Size: The H74 Mill Chain has a specific pitch size, which refers to the distance between adjacent chain links. The H74 chain sprocket you choose must have compatible tooth spacing to effectively engage with the chain. Make sure to match the sprocket's pitch diameter and tooth count with the chain's specifications.2. Tooth Profile: H74 chain sprockets can have different tooth profiles, such as standard or special tooth shapes. It's crucial to select a sprocket with the appropriate tooth profile that matches the design of the H74 Mill Chain. This ensures smooth engagement and minimizes wear and tear.3. Material and Hardness: Consider the operating conditions and environment in which the sprockets will be used. Choose H74 chain sprockets made from durable materials, such as hardened steel or alloy steel, to withstand the high loads and abrasive conditions typically encountered in H74 Mill Chain applications.4. Hub Style: H74 chain sprockets may have different hub configurations, such as a plain bore, keyway, or tapered bore. Select a hub style that is compatible with your H74 Mill Chain drive system and allows for easy installation and secure attachment.

China H Class Mill Chains?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain, welded steel chain, drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
