H78A Transfer Rooftop Chains

H78A Transfer Rooftop Chains

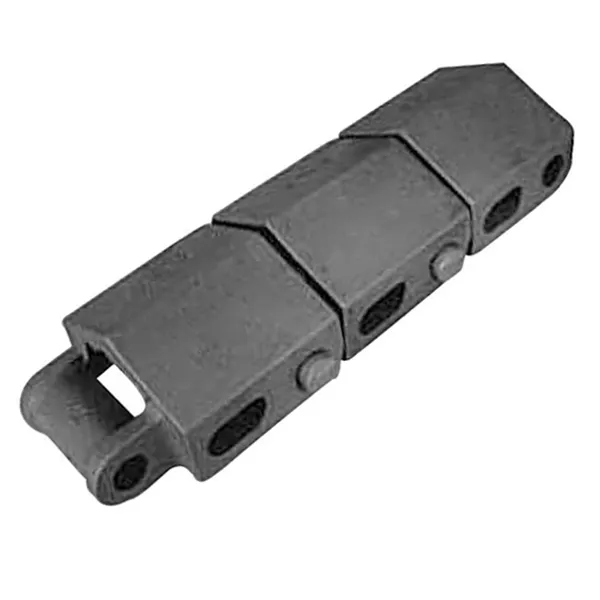

The H78A Transfer Rooftop Chain is a heavy-duty and durable rooftop transfer chain with a tensile strength of 19,500 lbs. The H78 rooftop chain finds application in lumber mills where it is used to transfer lumber. Something notable about this chain is its fully heat-treated construction. Due to this, the chain has much higher strength and working life. H78A Transfer Rooftop Chains are made to operate in one direction and therefore are not recommended for installations that require a reverse operation. The speed of operation is determined by the load carried and the frequency of operation. Generally, the recommended speed is 100 feet per minute.

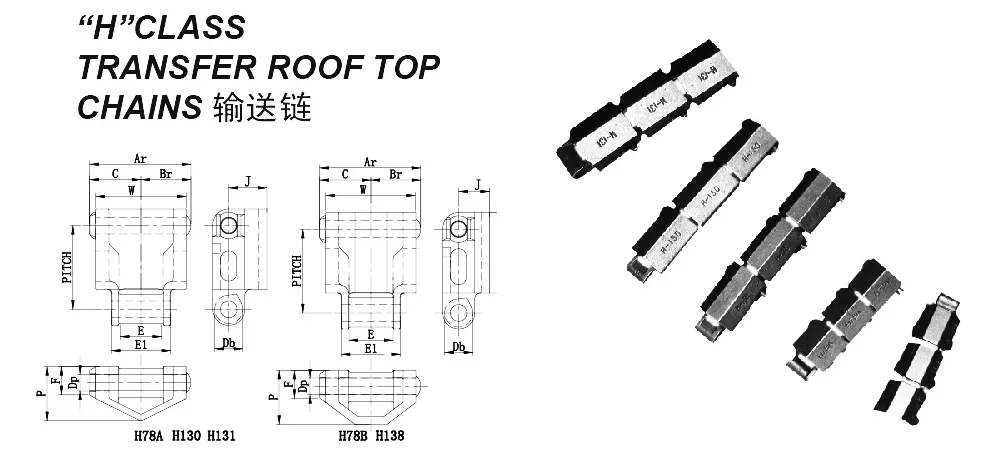

H78A Transfer Rooftop Chain Dimensions:

H78A Transfer Rooftop Chains Dimensions in Inches:

Chain No.	H78A Transfer Rooftop Chain
Pitch in Inches	2.609
Style of Top	A
Links Per 10 Feet	46
Weight Per Foot LBS.	5.6
Average Ultimate Strength Load LBS.	16000
Recommended Maximum Working Load LBS.	2820
Ar	3.25
Br	1.62
C	1.56
Db	0.88
Dp	0.500
E	1.12
E1	1.88
F	1.00
J	1.12
P	1.69
W	2.81

H78A Transfer Rooftop Chain Features:

The H78A Rooftop Chain features a number of key advantages, including:

1. High tensile strength: The H78A Rooftop Chain has a tensile strength of 19,500 lbs, making it one of the strongest rooftop chains on the market.2. Durability: The H78A Rooftop Chain is made from high-quality materials and is heat-treated for added strength and durability.3. Smooth operation: The H78A Rooftop Chain has a smooth operation, which helps to reduce wear and tear on sprockets and other components.4. Long lifespan: The H78A Rooftop Chain has a long lifespan, making it a cost-effective investment.

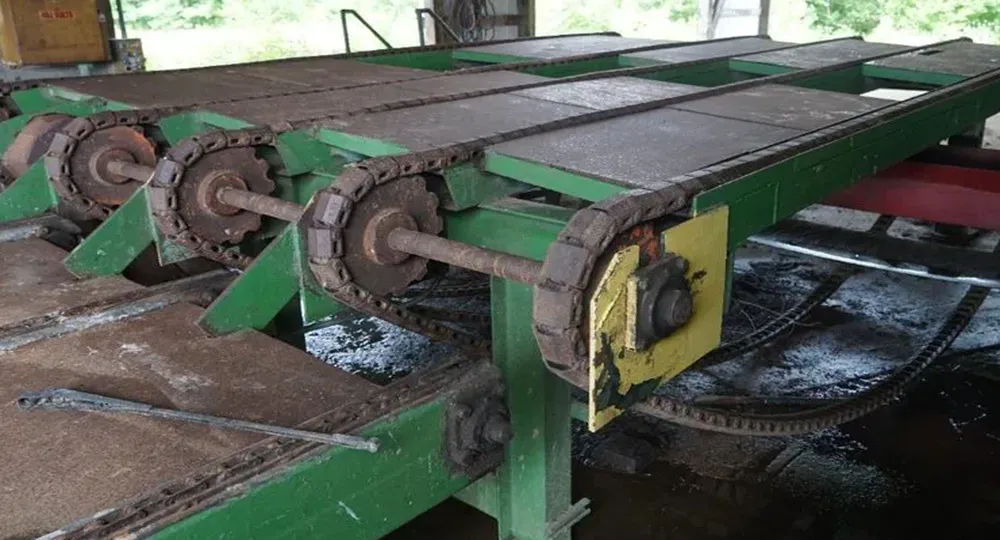

H78A Transfer Rooftop Chain Applications:

The H78A transfer rooftop chain is a heavy-duty chain designed for use in a variety of applications, including:

• Transferring lumber from one location to another: The H78A rooftop chain is often used in lumber mills to transfer lumber from one part of the mill to another. It is also used in construction to transfer lumber from the ground to the roof of a building.
• Moving materials around a construction site: The H78A rooftop chain can be used to move materials around the construction site, such as bricks, concrete blocks, and other heavy objects.
• Loading and unloading trucks: The H78A rooftop chain can be used to load and unload trucks with heavy materials, such as lumber, concrete, and steel.
• Other applications:?The H78A transfer rooftop chain can also be used in a variety of other applications, such as:
  • Mining
  • Manufacturing
  • Agriculture
  • Waste management

The H78A transfer rooftop chain is a versatile and reliable chain that can be used in a variety of demanding applications. If you are looking for a high-quality transfer rooftop chain with a long lifespan, the H78A is a great option.

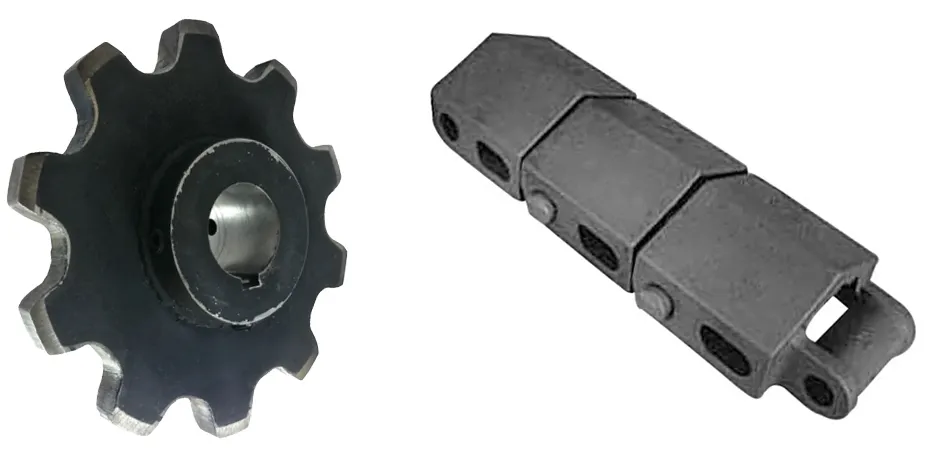

H78 Chain Sprockets for H78A Rooftop Chains:

H78 chain sprockets and H78A rooftop chains are used in a variety of applications where heavy-duty chains are required. H78A chains are made of pearlitic malleable iron and have a tensile strength of 20,800 pounds. They are designed for use in transfer conveyors, as well as abrasive atmospheres. H78 chain sprockets are made to match the dimensions of H78A rooftop chains and are available in a variety of materials and finishes.

Here are some of the key features of H78 chain sprockets and H78A rooftop chains:

• Heavy-duty construction: H78A rooftop chains are made of pearlitic malleable iron, which is a strong and durable material. They have a tensile strength of 20,800 pounds, which makes them ideal for applications where heavy loads are present.
• Wear-resistant: The sidebars of H78A rooftop chains feature a strengthened cross-section that provides a wear surface to prolong chain service life. This is important in applications where the chain is operating in troughs or over floors and slider beds.
• Available in a variety of sizes: H78 chain sprockets are available in a variety of sizes to match the dimensions of H78A chains. This ensures that you can find the perfect sprocket for your application.
• Available in a variety of materials and finishes: H78 chain sprockets are available in a variety of materials and finishes to meet your specific needs. For example, you can choose from steel, aluminum, or stainless steel sprockets. You can also choose from a variety of finishes, such as black oxide, zinc plating, or chrome plating.

H78 chain sprockets and H78A rooftop chains are versatile and reliable solutions for a variety of applications. If you are looking for a heavy-duty chain and sprocket system, then H78 is a great option.
