H82 Mill Chain

H82 Mill Chain for Transfer Conveyors

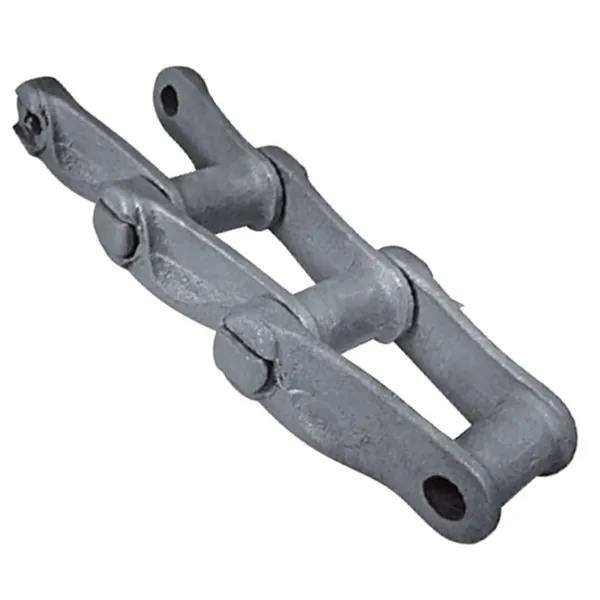

H82 Mill Chain is manufactured out of Pearlitic Malleable iron and is a common in-stock item. This H82 chain is a heavy-duty, extremely durable, and high-quality mill-duty chain with a tensile strength of 27,000 LBS. Our H82 Mill Chains are manufactured to perform and hold up in heavy drives, transfer conveyors, as well as abrasive atmospheres. The sidebars of the H82 chain feature a strengthened cross section providing an added benefit of a wear surface to prolong chain service life when operating in troughs or over floors and slider beds. In addition to the H82 chain, we also have a full line of attachments and H82 chain sprockets for sale.

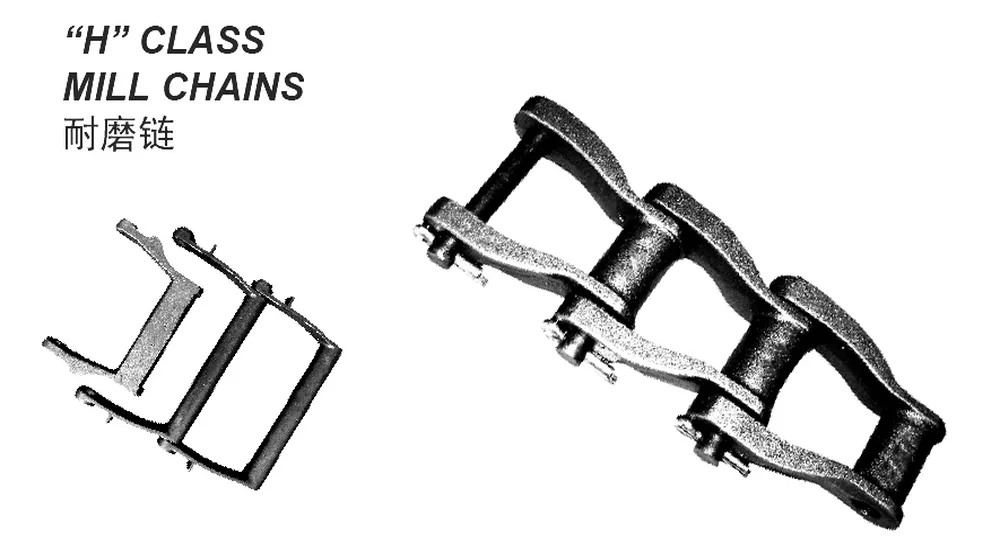

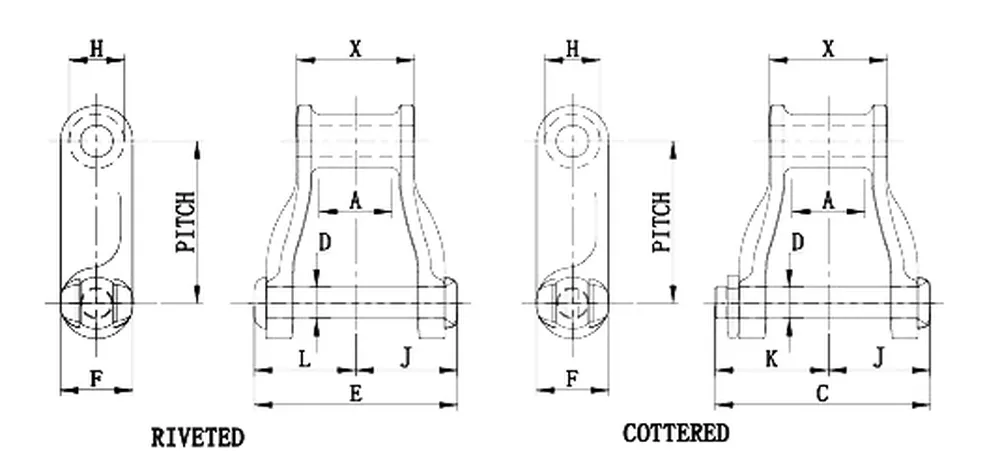

H82 Mill Chain Dimensions:

Chain No.	H82 Mill Chain
Pitch in Inches	3.075
Weight Per Foot LBS.	5.5
Average Ultimate Strength LBS.	20000
Maximum Working Load LBS.	3580
A	1.25
C	3.88
D	0.562
E	3.88
F	1.25
H	1.22
X	2.12
Available Attachments	K2

H82 Mill Chain Attachments:

This H82 K2 attachment is a high-quality precision attachment that is a common stock item and can be assembled onto the H82 chain in any configuration needed or sold as an individual H78 K2 attachment link.

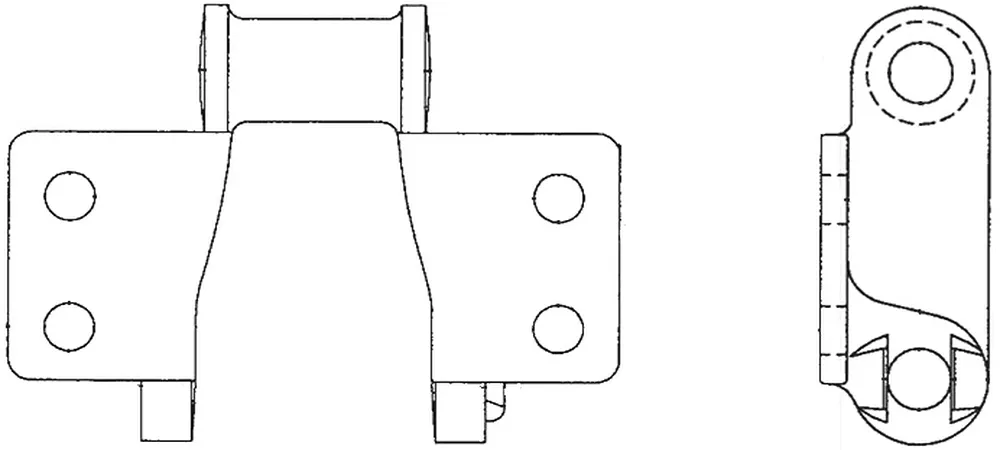

H82 Mill Chain K2 Attachment

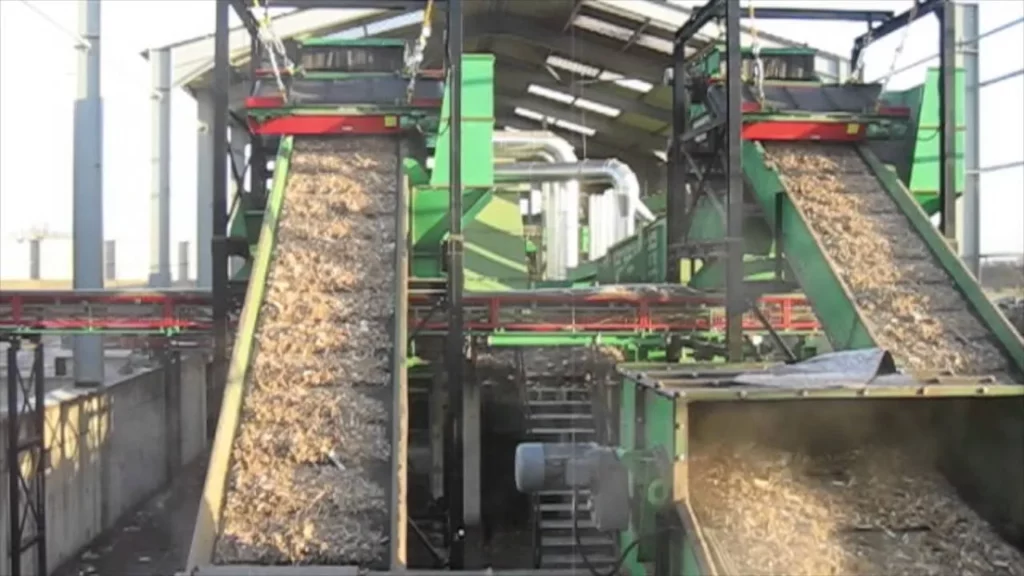

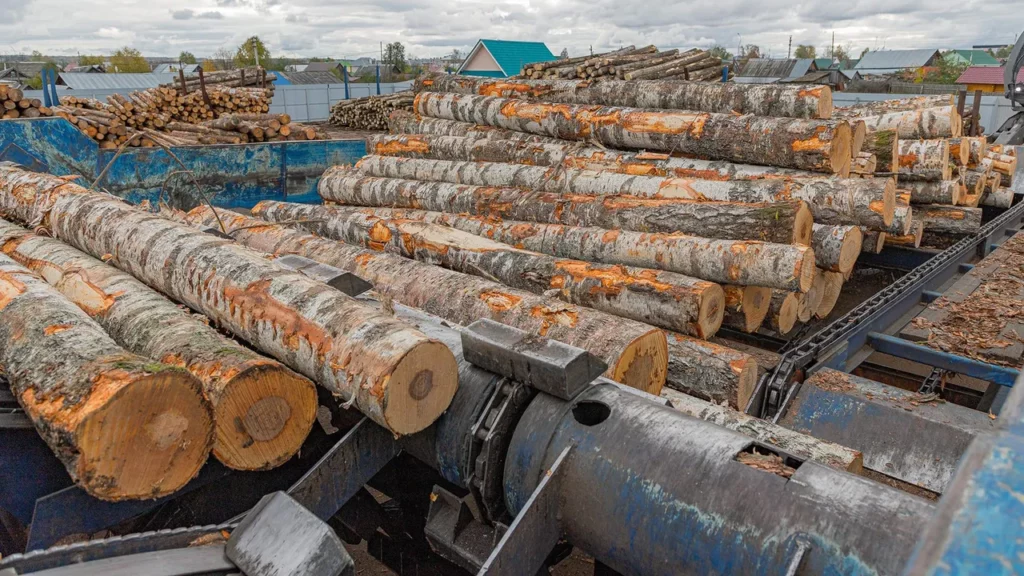

H82 Mill Chain Application Scenarios:

The H82 Mill Chain is a specific type of roller chain commonly used in heavy-duty applications, especially in steel mills and other industrial settings. It is designed to withstand high loads and operate in harsh conditions. Here are some application scenarios where the H82 mill chain may be used:1. Steel Mills: The H82 Mill Chain is extensively used in steel mills for various applications. It can be employed in conveyor systems to transport heavy steel slabs or coils, in roller tables to move steel bars or billets during the production process, or in overhead cranes to lift and move heavy loads.2. Mining Industry: In mining operations, the H82 Mill Chain can be utilized in conveyor systems to transport bulk materials such as coal, ore, or gravel. Its robust construction and high tensile strength make it suitable for handling heavy loads in challenging environments.3. Cement Plants: Cement manufacturing involves the movement of heavy materials such as limestone, clay, and gypsum. The H82 Mill Chain finds application in conveyor systems, bucket elevators, and other equipment used in cement plants to handle these materials throughout the production process.4. Paper Mills: Paper production involves the movement of large paper rolls and the handling of heavy machinery. The H82 Mill Chain can be used in paper mills for tasks such as roll conveying, paper cutting, and machine operation, where its strength and durability are essential.5. Wood Processing: In industries related to wood processing, such as sawmills or plywood manufacturing, the H82 Mill Chain may be employed in equipment like log conveyors, debarkers, or lumber handling systems. It can handle the heavy loads associated with wood products effectively.6. Heavy Machinery: The H82 Mill Chain can find applications in various heavy machinery systems that involve the movement of large components, such as in construction equipment, mining machinery, or agricultural machinery. It can provide the necessary strength and reliability in these demanding environments.

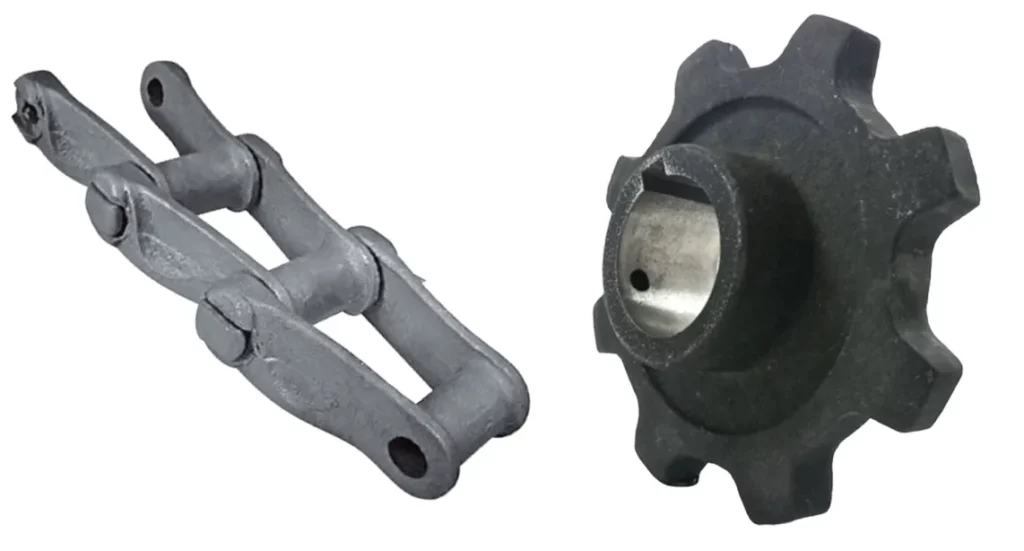

H82 Chain Sprockets for H82 Mill Chain:

When using the H82 mill chain, it is essential to select compatible sprockets to ensure proper chain engagement and optimal performance. The H82 chain requires sprockets that are specifically designed to match its pitch and tooth profile. Here are some key considerations for H82 chain sprockets:Pitch: The H82 chain has a specific pitch measurement, which refers to the distance between the centers of adjacent roller pins. The H82 chain sprockets used with the H82 chain must have a matching pitch to ensure proper engagement. The pitch for the H82 chain is typically 2.609 inches (66.25 mm).Tooth Profile: The H82 chain uses a special tooth profile known as the "mill chain" tooth profile. It is important to select sprockets that have teeth designed to match this specific tooth profile. Using H82 chain sprockets with the correct tooth profile ensures smooth and efficient chain engagement.Tooth Count: The number of teeth on the H82 chain sprockets determines the speed ratio and the overall performance of the chain drive system. The appropriate tooth count for the sprockets will depend on the specific application requirements, such as the desired speed and torque ratio. It is important to select sprockets with suitable tooth counts to achieve the desired operational characteristics.Material and Construction: The choice of H82 chain sprockets material depends on the application's requirements, such as load capacity, operating conditions, and durability. Common materials for sprockets include steel, cast iron, and stainless steel. It is crucial to select sprockets made from high-quality materials that can withstand the loads and conditions of the application.Mounting and Installation: The H82 chain sprockets should be compatible with the shaft or axle on which they will be mounted. The mounting method, such as set screws, keyways, or bushings, should be considered when selecting sprockets. Proper installation techniques, such as appropriate tightening torque and alignment, should be followed to ensure the sprockets are securely and accurately mounted.

China H Class Mill Chains?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains,?81X conveyor chains, agricultural chains,?CA550 roller chains,?S55 roller chains, silent chains,?X458 conveyor chains,?grip chains (film gripper chains), PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
