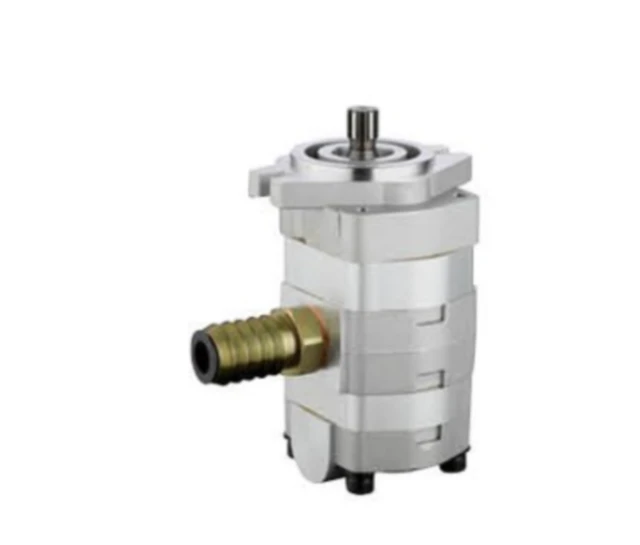

harvester hydraulic gear pumps replacement YH4.60.37a(11T)

Harvester Hydraulic Gear Pumps Replacement YH4.60.37a(11T)

A Harvester Hydraulic Gear Pump is a specially designed gear pump for the hydraulic system of agricultural harvesting machinery such as combine harvesters and corn harvesters. The main function of this pump is to provide a stable power source for various hydraulic operations of the harvester.

What Are Harvester Hydraulic Gear Pumps?

Harvester hydraulic gear pumps are a type of gear pump specifically designed for use in hydraulic systems found in agricultural harvesting machinery. They are essential in ensuring smooth and efficient hydraulic operations of the harvester.

Differences between Harvester Hydraulic Gear Pumps and other pumps

Feature	Harvester Hydraulic Gear Pumps	Gear Pumps	Piston Pumps	Vane Pumps
Application	Primarily used in agricultural machinery like harvesters for handling heavy loads, rough conditions, and high-pressure operations.	Widely used in various industrial applications, including automotive, manufacturing, and construction.	Common in high-pressure, high-flow systems, such as industrial machinery, aerospace, and mobile equipment.	Suitable for medium-pressure and medium-flow applications, often found in industrial machinery and automotive systems.
Design	Compact, rugged design, optimized for high durability in agricultural environments, and designed to handle fluctuating loads.	Simple, compact design with a fixed displacement, using two intermeshing gears.	Complex design, using pistons to create pressure; provides high efficiency and flow control.	Uses sliding vanes inside a housing to generate pressure, offering smoother operation than gear pumps.
Pressure Rating	Typically operates in the range of 1500 to 3000 psi, designed to withstand the stress of large machines under load.	Can handle pressures up to 3000 psi depending on the model, often lower than piston pumps but reliable for most industrial uses.	Can operate at very high pressures, often 3000 psi or higher, offering precision and efficiency.	Medium pressure, typically up to 1500 psi, lower than piston pumps but smoother in operation.
Flow Characteristics	Fixed displacement, often with moderate flow rates (e.g., 5 to 100 gpm), suitable for continuous operation at steady speeds.	Fixed displacement (constant flow); can be more efficient at lower flow rates but not suitable for variable flows.	Variable displacement, providing greater flow control, ideal for applications where flow needs to be adjusted frequently.	Variable displacement, like piston pumps, allowing for adjustable flow rates and smoother operation at different speeds.
Efficiency	Generally lower efficiency compared to piston and vane pumps, as gear pumps create more internal friction.	Moderate efficiency, usually around 80-85%, suitable for constant flow applications.	High efficiency (up to 95%), especially in high-pressure systems, due to precise piston movement.	Moderate efficiency (around 85%), more efficient at lower pressures but less than piston pumps.
Durability and Maintenance	Extremely durable due to heavy-duty design, but requires regular maintenance in harsh environments (dust, debris).	Moderate durability; requires regular maintenance to prevent wear, especially in high-temperature environments.	High durability, but with more complex maintenance needs due to moving pistons and seals.	Moderate durability; requires less maintenance than piston pumps, but vanes can wear over time.
Cost	Relatively low-cost solution for agricultural equipment compared to more advanced pump types.	Cost-effective for most industrial applications, but lower efficiency leads to higher operating costs in some cases.	Higher initial cost due to complexity, but provides superior performance in demanding applications.	Typically cost-effective but not as efficient as piston pumps in high-pressure applications.
Noise Levels	Can produce moderate noise levels due to gear meshing; generally louder than piston and vane pumps.	Moderate noise due to gear meshing but less than piston pumps under load.	Low noise operation, especially at high flow rates, due to smooth piston movement.	Generally low noise operation, smoother than gear pumps due to the vane design.
Flow Pulsation	Higher flow pulsation, which may require additional dampening mechanisms for smoother operation.	Moderate pulsation due to the nature of gear meshing, especially at lower speeds.	Low pulsation due to piston stroke design, offering smooth and continuous flow.	Low to moderate pulsation, smoother than gear pumps but can vary with load.
Size and Weight	Typically smaller and lighter than piston pumps, designed for space-constrained areas in harvesters.	Relatively compact, easy to integrate into smaller systems.	Larger and heavier than gear and vane pumps, especially in high-flow configurations.	More compact than piston pumps but larger than gear pumps in some configurations.

Unique Features and Advantages

• High reliability
• High efficiency
• Low noise
• Suitable for heavy-duty applications
• Stable flow rate
• Low energy consumption

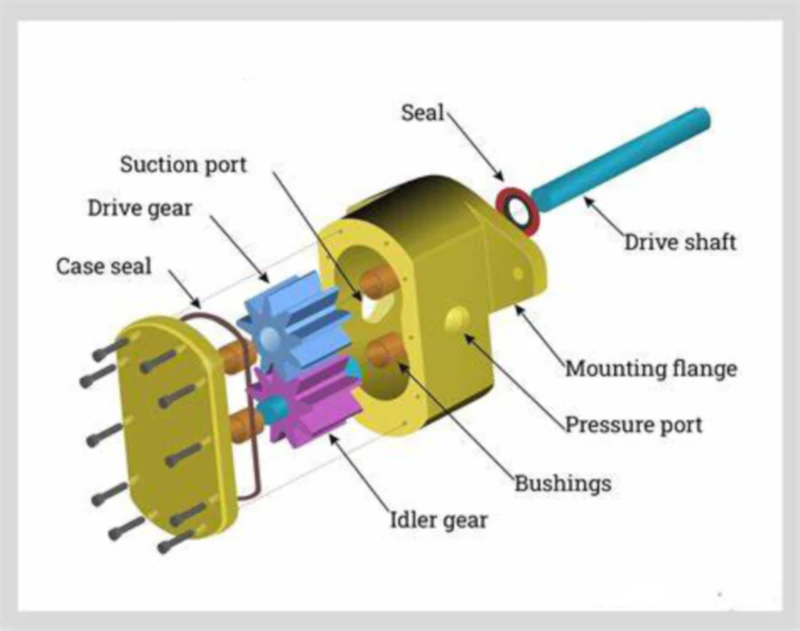

Main Components of Harvester Hydraulic Gear Pumps

• Pump Housing
  • Function: The outer shell that encases the pump components and provides support. It also serves to direct the flow of hydraulic fluid into and out of the pump.
  • Material: Typically made from durable materials like cast iron or aluminum to withstand the high pressure and mechanical stress encountered in agricultural applications.
• Gears
  • Function: The heart of the gear pump, where the mechanical energy is transferred. The pump typically has two intermeshing gears – a drive gear and a driven gear. As they rotate, they create suction on the inlet side and force hydraulic fluid out through the outlet side.
  • Types: Typically spur gears, although helical gears can also be used in some cases to reduce noise and improve efficiency.
• Shafts
  • Function: These connect the gears to the power source, transmitting mechanical power from the engine or motor that drives the pump. The shafts rotate the gears, generating fluid movement and pressure.
  • Material: Generally made of high-strength steel to handle the torque and rotational stress involved.
• Bearings
  • Function: Bearings support the shafts and help reduce friction, ensuring smooth rotation of the gears. They also help to maintain proper alignment during operation.
  • Type: Usually roller or ball bearings, depending on the load and rotational speed.
• Seals/Oil Seals
  • Function: Prevent hydraulic fluid from leaking out of the pump housing and keep contaminants (like dust, dirt, and moisture) from entering the system. This is crucial to maintain hydraulic pressure and ensure efficient operation.
  • Location: Seals are typically placed around the shafts and at the joints between different parts of the housing.
• Inlet and Outlet Ports
  • Function: These are the entry and exit points for hydraulic fluid. The inlet port allows fluid to enter the pump, and the outlet port allows the pressurized fluid to exit and flow to the hydraulic system of the harvester.
  • Design: Ports are designed for easy connection to hydraulic lines and often include filters or strainers to keep debris out of the pump.

• Relief Valve
  • Function: The relief valve is a safety feature that prevents the pump from exceeding the maximum pressure rating. If the pressure becomes too high, the valve opens to release excess fluid, protecting the hydraulic system from damage.
  • Placement: Usually integrated into the pump assembly or mounted externally in the hydraulic system.
• Flow Control Mechanism (Optional)
  • Function: Some harvester hydraulic gear pumps are equipped with flow control mechanisms that regulate the amount of hydraulic fluid being pumped, allowing the operator to adjust the flow rate to match the specific needs of the harvester.
  • Type: Often includes a variable displacement mechanism or a control valve.
• Drain Port
  • Function: Provides a pathway for fluid that accumulates within the pump, ensuring that excess or leaked fluid is directed back to the reservoir without contaminating the system.
  • Design: Often a simple drain plug or a small port connected to a return line.
• Cover Plates and End Caps
  • Function: These components cover the ends of the pump housing, sealing the internal components and maintaining pressure within the system. They also allow for easy access during maintenance.
  • Material: Typically made from durable metals that can withstand pressure and wear.



Harvester Hydraulic Gear Pumps Application

Harvester Hydraulic Gear Pumps are essential components in agricultural machinery, particularly in harvesters, where they serve critical roles in powering various hydraulic systems. These pumps are designed to provide reliable, high-pressure hydraulic fluid flow, enabling the efficient operation of multiple functions that are crucial for harvesting operations. Below are the main applications of harvester hydraulic gear pumps:

1. Powering Hydraulic Steering Systems

• Function: Hydraulic gear pumps provide the necessary fluid pressure to operate the steering system of the harvester, allowing for easy and precise control of the vehicle, especially when navigating through fields.
• Benefit: The pump ensures smooth, reliable steering, which is essential for maneuvering large harvesters in tight or uneven terrain.

2. Operating Harvesting Equipment (Header and Cutter Bars)

• Function: Hydraulic gear pumps are used to drive the hydraulic cylinders that power the header, cutter bars, and other cutting mechanisms on harvesters. These components are responsible for cutting, lifting, and adjusting the height of the harvest.
• Benefit: The pump provides consistent power to ensure efficient cutting and harvesting, adapting to various crop types and field conditions.

3. Drive and Adjust Conveyor Systems

• Function: Many harvesters are equipped with conveyor belts or augers to transport the harvested material (e.g., grains, corn, or hay). The hydraulic gear pump powers the hydraulic motors that drive these systems, enabling the continuous flow of material into storage or collection areas.
• Benefit: Smooth operation of the conveyor systems ensures that harvested materials are handled efficiently, reducing the risk of blockages and maximizing throughput.

4. Operating Lift and Tilt Mechanisms

• Function: Harvesters often have lift and tilt mechanisms used to adjust the position of the header or cutting equipment to match field conditions. These mechanisms rely on hydraulic cylinders powered by the gear pump.
• Benefit: Allows for quick and easy adjustments of equipment, enhancing flexibility and ensuring optimal cutting performance regardless of terrain or crop height.

5. Powering Grain Unloading Systems

• Function: In modern harvesters, hydraulic gear pumps power the unloading systems, such as augers or conveyors, that move the harvested grain from the grain tank into a truck or storage bin.
• Benefit: Hydraulic pumps provide the necessary power to unload grain efficiently, ensuring continuous operation without delays during harvesting.

6. Operating Crop Dusters and Sprayers (in Combination with Harvesters)

• Function: Some harvesting equipment is integrated with crop dusting or spraying systems for pest control or crop treatment. Hydraulic gear pumps supply the pressure needed to operate these spraying systems.
• Benefit: Ensures effective spraying or dusting while harvesting, reducing the number of passes needed and improving overall efficiency in crop management.



Material Selection and Performance

The material selection of harvester hydraulic gear pumps plays a crucial role in determining their performance. The use of high-quality materials ensures that the gear pumps have high strength, durability, and wear resistance, leading to better performance and longer service life.

Installation and Maintenance

Proper installation and maintenance of harvester hydraulic gear pumps are essential in ensuring their optimal performance and prolonging their service life. It is recommended to follow the manufacturer's instructions carefully during installation and perform regular maintenance to keep the gear pumps in good condition.
