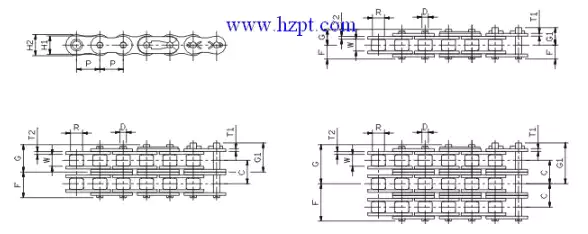

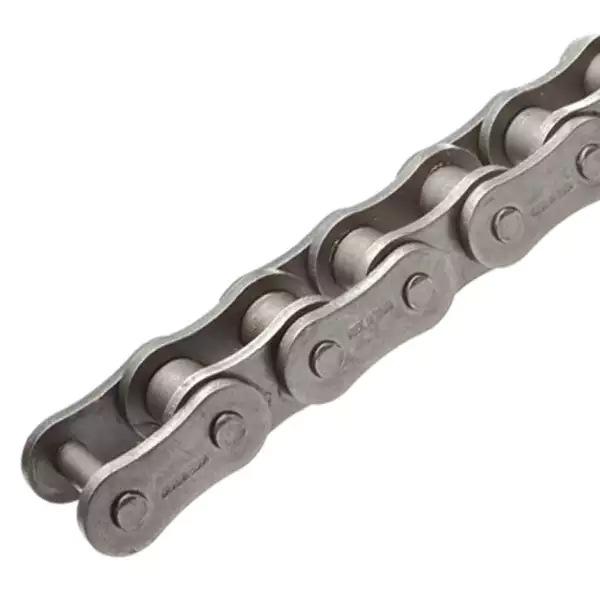

CHAIN NO.(ANSI) | Pitch | Width | Roller | Plate | Pin | Transverse Pitch | Average ?Ultimate Strength kgf | Approx Weightkg/m | |||||||
P | W | Dia | Height | Thickness | Dia | Lengths | |||||||||
inch | mm | mm | R | H1 | H2 | T1 | T2 | D | F | G | G1 | C | |||
| 25H | 1/4" | 6.35 | 3.18 | 3.30 | 5.00 | 5.80 | 1.00 | 1.00 | 2.30 | 4.50 | 5.10 | --- | --- | 560 | 0.16 |
| 50H | 5/8" | 15.875 | 9.53 | 10.16 | 13.00 | 14.80 | 2.40 | 2.40 | 5.06 | 10.90 | 12.40 | 12.90 | --- | 3100 | 1.12 |
| 50H-2 | 5/8" | 15.875 | 9.53 | 10.16 | 13.00 | 14.80 | 2.40 | 2.40 | 5.06 | 20.65 | 22.25 | 22.75 | --- | 6200 | 2.25 |
| 60H | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 17.50 | 3.10 | 3.10 | 5.95 | 14.10 | 15.70 | 16.60 | --- | 4400 | 1.81 |
| 60H-2 | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 17.50 | 3.10 | 3.10 | 5.95 | 27.20 | 28.80 | 29.70 | 26.11 | 8800 | 3.57 |
| 60H-3 | 3/4" | 19.05 | 12.70 | 11.91 | 15.50 | 17.50 | 3.10 | 3.10 | 5.95 | 40.20 | 41.80 | 42.70 | 26.11 | 13200 | 5.16 |
| 80H | 1" | 25.40 | 15.88 | 15.88 | 20.80 | 24.00 | 3.90 | 3.90 | 7.94 | 17.90 | --- | 20.80 | --- | 8000 | 2.95 |
| 80H-2 | 1" | 25.40 | 15.88 | 15.88 | 20.80 | 24.00 | 3.90 | 3.90 | 7.94 | 34.20 | --- | 37.10 | 32.59 | 16000 | 5.85 |
| 80H-3 | 1" | 25.40 | 15.88 | 15.88 | 20.80 | 24.00 | 3.90 | 3.90 | 7.94 | 50.50 | --- | 53.40 | 32.59 | 24000 | 8.32 |
| 100H | 1-1/4" | 31.75 | 19.05 | 19.05 | 24.80 | 30.10 | 4.70 | 4.70 | 9.52 | 21.70 | --- | 24.90 | --- | 12000 | 4.45 |
| 100H-2 | 1-1/4" | 31.75 | 19.05 | 19.05 | 24.80 | 30.10 | 4.70 | 4.70 | 9.52 | 41.25 | --- | 44.45 | 39.09 | 24000 | 8.34 |
| 100H-3 | 1-1/4" | 31.75 | 19.05 | 19.05 | 24.80 | 30.10 | 4.70 | 4.70 | 9.52 | 60.80 | --- | 64.00 | 39.09 | 36000 | 12.03 |
| 120H | 1-1/2" | 38.10 | 25.40 | 22.23 | 30.00 | 35.00 | 5.60 | 5.60 | 11.10 | 26.98 | --- | 30.57 | --- | 16000 | 6.78 |
| 120H-2 | 1-1/2" | 38.10 | 25.40 | 22.23 | 30.00 | 35.00 | 5.60 | 5.60 | 11.10 | 51.40 | --- | 55.05 | 48.90 | 32000 | 13.45 |
| 120H-3 | 1-1/2" | 38.10 | 25.40 | 22.23 | 30.00 | 35.00 | 5.60 | 5.60 | 11.10 | 75.90 | --- | 79.45 | 48.90 | 48000 | 20.13 |
| 140H | 1-3/4" | 44.45 | 25.40 | 25.40 | 36.20 | 42.00 | 6.40 | 6.40 | 12.70 | 28.90 | --- | 33.10 | --- | 21500 | 8.12 |
| 140H-2 | 1-3/4" | 44.45 | 25.40 | 25.40 | 36.20 | 42.00 | 6.40 | 6.40 | 12.70 | 55.15 | --- | 59.05 | 52.20 | 43000 | 16.10 |
| 140H-3 | 1-3/4" | 44.45 | 25.40 | 25.40 | 36.20 | 42.00 | 6.40 | 6.40 | 12.70 | 81.1 | --- | 85.30 | 52.20 | 64500 | 24.02 |
| 160H | 2" | 50.80 | 31.75 | 28.58 | 41.40 | 48.00 | 7.20 | 7.20 | 14.28 | 34.15 | --- | 38.85 | --- | 27500 | 10.87 |
| 160H-2 | 2" | 50.80 | 31.75 | 28.58 | 41.40 | 48.00 | 7.20 | 7.20 | 14.28 | 65.10 | --- | 69.80 | 61.90 | 55000 | 20.85 |
| 160H-3 | 2" | 50.80 | 31.75 | 28.58 | 41.40 | 48.00 | 7.20 | 7.20 | 14.28 | 96.05 | --- | 100.75 | 61.90 | 82500 | 30.83 |
| 180H | 2-1/4" | 57.15 | 35.71 | 35.71 | 46.70 | 54.20 | 8.00 | 8.00 | 17.45 | 38.10 | --- | 43.80 | --- | 36000 | 15.20 |
| 180H-2 | 2-1/4" | 57.15 | 35.71 | 35.71 | 46.70 | 54.20 | 8.00 | 8.00 | 17.45 | 72.68 | --- | 78.38 | 69.16 | 72000 | 30.10 |
| 180H-3 | 2-1/4" | 57.15 | 35.71 | 35.71 | 46.70 | 54.20 | 8.00 | 8.00 | 17.45 | 107.26 | --- | 112.96 | 69.16 | 108000 | 45.00 |
| 200H | 2-1/2" | 63.50 | 38.10 | 39.68 | 51.80 | 60.10 | 9.50 | 9.50 | 19.84 | 42.75 | --- | 50.05 | --- | 52000 | 17.8 |
| 200H-2 | 2-1/2" | 63.50 | 38.10 | 39.68 | 51.80 | 60.10 | 9.50 | 9.50 | 19.84 | 81.91 | --- | 89.20 | 78.31 | 104000 | 35.20 |
| 200H-3 | 2-1/2" | 63.50 | 38.10 | 39.68 | 51.80 | 60.10 | 9.50 | 9.50 | 19.84 | 121.06 | --- | 128.36 | 78.31 | 156000 | 52.50 |
