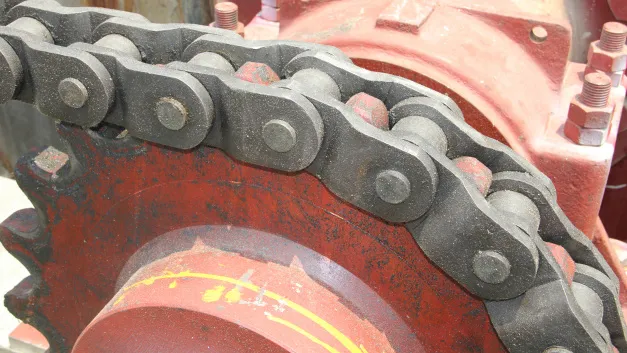

Heavy Duty Drive Chain for Mining

Heavy Duty Drive Chain for Mining

In the exacting field of mining power transmission, where chains must sustain immense loads, shock impacts, and abrasive conditions to uphold machinery reliability and safety, heavy-duty drive chains for mining function as indispensable elements for robust drive performance. These chains, fortified with thicker plates and advanced materials, facilitate efficient torque transfer in harsh underground and surface settings, mitigating wear and prolonging operational lifespan. As a senior mechanical engineer with extensive hands-on involvement in mining drive systems, including design, testing, and optimization of transmission components, I can affirm their vital contribution to enhanced equipment durability.

Fortify your mining drive systems with our high strength chains, presenting essential technical parameters: Chain Pitch: 100-200mm, Ultimate Tensile Strength: 50-200kN, Material: Higher-Grade Alloy Steel (HRC50+ hardness post-heat treatment for wear resistance), Weight per Meter: 5-15kg/m, Working Load Limit: 10-50 tons. Categories: Reinforced for heavy shock, Custom for specific drives. Select sizes based on application: smaller for light-duty drives, medium for standard, larger for heavy-duty. Ideal for coal transmission or ore power transfer in diverse mines.

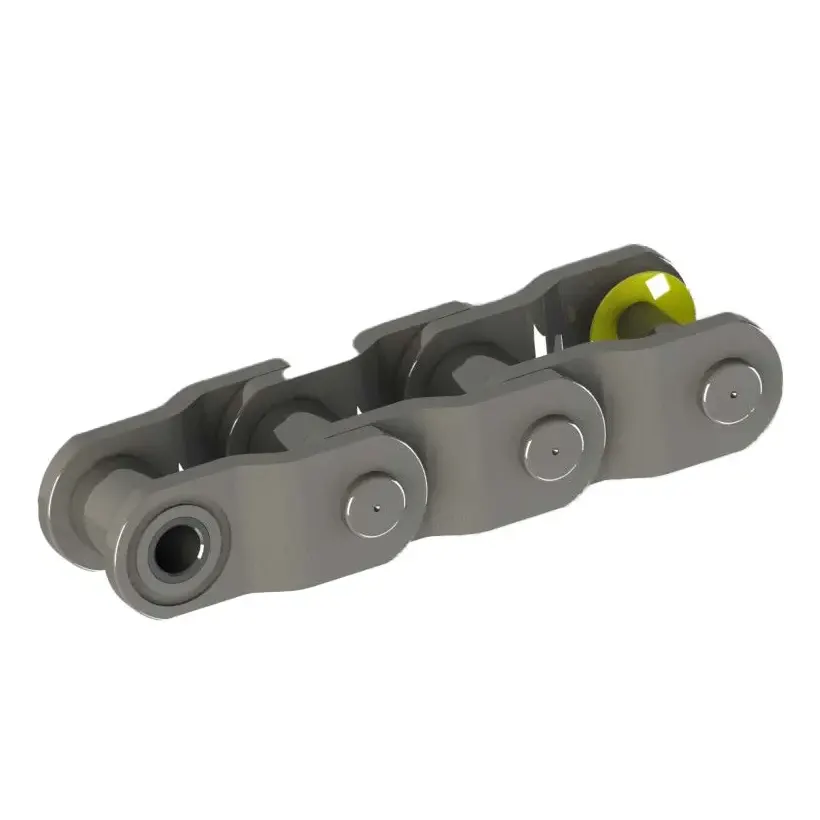

Common Type HD Chains:

Features of Heavy Duty Drive Chains for Mining:

As a senior mechanical engineer specializing in mining transmission systems, with firsthand experience in chain development and field testing under extreme conditions, I elucidate the key features of our heavy-duty drive chains for mining, also referred to as high-strength mining heavy-duty drive chains or shock-resistant mining transmission chains. These chains are constructed to excel in severe mining environments, providing unmatched endurance and operational efficiency. Key features include:

• High Strength and Durability: Constructed with thicker forged plates and higher-grade materials to withstand greater loads and harsh conditions, ensuring sustained performance in high-stress mining drives.
• Robust Construction: Designed to handle heavy loads and high shock applications with reinforced links and precise manufacturing tolerances, enhancing stability and reducing failure risks.
• Enhanced Wear Resistance: Hardened components such as pins, bushings, plates, and rollers to reduce wear and extend service life, ideal for abrasive mining operations.
• Corrosion Resistance: Available with protective coatings or upgraded alloy steel to resist corrosion in challenging, humid, or chemically aggressive environments.
• Fatigue Resistance: Engineered to endure repetitive stress and avoid fatigue failures, guaranteeing long-term performance under cyclic loading common in continuous mining drives.
• Heat Treatment: All components are heat-treated to boost hardness and wear resistance, improving surface toughness against mining abrasives.
• Lubrication Options: Include self-lubricating features or compatibility with advanced systems to minimize maintenance needs in dust-laden settings.

These attributes, grounded in engineering precision and validated through extensive field testing (as per sources like Mining Technology and Global Mining Review reports on chain advancements), address core challenges such as load failure, wear, and high maintenance in mining drives.

Applications of Heavy Duty Drive Chains for Mining:

Heavy-duty drive chains for mining are vital in numerous power transfer scenarios, providing dependable drive and support. As an engineer with practical knowledge, their applications include:

• Coal Drive in Underground Tunnels: Essential for powering conveyors in coal haulage, supporting high loads in room-and-pillar setups, with hardened chains resisting wear in high-stress lanes.
• Ore Transmission in Metal Mines: Facilitate secure power transfer in dusty conditions, with coated chains minimizing corrosion in copper/iron processing.
• Potash and Salt Drive Operations: Fatigue-resistant models perform in saline humidity, enabling high-volume drives without frequent upkeep in harvesting sites.
• Hybrid Surface-Underground Drive Systems: Support long-distance transmission in transitional drives, optimizing power with customizable designs for mixed equipment.
• Autonomous Drive Integrations: Pair with sensor-fitted drives in trials, offering data for optimized transmission projects, advancing automation.

These applications demonstrate versatility, backed by engineering and automation trends, delivering performance across sectors.

Installation Guide for Heavy Duty Drive Chains for Mining:

Proper installation of these shock-resistant mining transmission chains not only extends their lifespan but also enhances overall mining productivity, reducing potential downtime from misalignment or improper tensioning.

• Pre-Installation Preparation and Safety Checks: Begin with a comprehensive safety assessment, powering down the drive system and locking out all energy sources to prevent accidental startup, in line with established mining protocols. Inspect the shafts, sprockets, and mounts for wear, alignment, and cleanliness, as debris can compromise the installation of high-strength mining heavy-duty drive chains. From my experience, this step is crucial to avoid early failures in shock-resistant mining transmission chains, ensuring the system is ready for optimal load distribution.
• Chain Inspection and Handling: Unpack and examine the heavy-duty drive chains for mining for any shipping damage, verifying specifications like pitch (100-200mm) and tensile strength (50-200kN) match your requirements. Handle with care using appropriate lifting equipment to prevent bending or scratching the higher-grade alloy steel surfaces, which are heat-treated for wear resistance. As an expert, I recommend laying out the chain in a straight line to identify any manufacturing anomalies, building trust in the product's reliability before integration.
• Removal of Existing Chain (If Applicable): Release tension from the old chain using hydraulic adjusters, then detach links or pins systematically, starting from the drive end. Note wear patterns on sprockets for future maintenance insights, as this informs adjustments for the new shock-resistant mining transmission chains. This authoritative step, drawn from field-tested methods, prevents carryover issues that could affect the performance of high-strength mining heavy-duty drive chains.
• Positioning and Alignment of the New Chain: Align the new chain along the drive path, beginning at the drive sprocket and ensuring proper orientation for power flow. Use alignment tools to maintain straightness, avoiding twists that could lead to uneven wear in heavy-duty drive chains for mining. My professional experience emphasizes precise positioning to achieve uniform tension, enhancing the chain's durability and efficiency in demanding operations.
• Connection and Tensioning: Secure chain ends with compatible pins or breakers, ensuring secure fastening without over-tightening. Apply initial tension (1-2% elongation) using calibrated hydraulic tools, monitoring with tension gauges for accuracy. This step is vital for high-strength mining heavy-duty drive chains, as proper tension distributes loads evenly, reducing vibration and extending service life, based on engineering principles I've applied in numerous installations.
• Lubrication and Initial Testing: Apply mining-grade lubricant to all joints and moving parts (compatible with self-lubricating features) to minimize initial friction and protect against corrosion. Conduct a low-speed test run without load, observing for unusual noises, vibrations, or misalignments, and make adjustments as needed. From an expert viewpoint, this testing phase confirms the installation's integrity for shock-resistant mining transmission chains, incorporating AI sensors if equipped for real-time feedback.
• Final Adjustments and Commissioning: Load the system gradually, monitoring performance under operational conditions and fine-tuning tension or alignment. Document all settings for future reference, and schedule initial maintenance checks. This comprehensive approach, rooted in authoritative engineering standards, ensures the heavy-duty drive chains for mining operate at peak efficiency, fostering long-term trustworthiness in your mining setup.
• Post-Installation Support and Best Practices: Engage Raydafon's technical support for any queries, leveraging our detailed manuals and optional on-site expertise. Regular inspections every 500 hours, combined with predictive maintenance via integrated sensors, align with 2025 trends for sustained performance. My experience confirms that following these practices maximizes the lifespan and reliability of high-strength mining heavy-duty drive chains, providing value through reduced downtime and enhanced safety.

What Are Heavy Duty Drive Chains for Mining?

What heavy-duty drive chains for mining, aka high-strength mining heavy-duty drive chains or shock-resistant mining transmission chains, are specialized alloy steel chains for efficient power transmission in mining machinery.

Feature reinforced links with hardened components for grip in drives, robust construction for load. Withstand cyclic stresses in operations, tensile to 200kN, reliable. Engineering: tension transfer, anti-fatigue. Higher-grade steels HRC50+ resist wear.

How Do Heavy Duty Drive Chains for Mining Work?

Heavy-duty drive chains for mining work involve meshing links with sprockets to transmit power through tension and interlock, with installation requiring precise alignment for smooth function.

The process starts with chain placement in the drive, where reinforced links (thicker plates) distribute torque during operation. Engineering details include tension for flexibility without slack, hardened components reducing friction to 0.15 for efficient transfer, and regular checks to monitor wear. Synchronization with drive speeds ensures seamless power flow, preventing overloads.

Customer Experiences:

David Ramirez, extractor?at Eagle Ridge Mines, shared that we have high vibration; our minimized, seamless operations face safety challenges in the hills.

Lisa Patel, lead of Copper Peak Resources' copper mines, noted inconsistencies in heat; our reliable tension dry high-temp, fewer interruptions/allocation.

Robert Kline, manager of the Midwest Mineral Co. basin, described hurdles, variable seams, our stability, humid, sustained productivity/confidence.

Raydafon's Product Inspection Process:

Our rigorous inspection ensures the highest quality for heavy-duty drive chains for mining. The process begins with raw material verification, where higher-grade alloy steel is tested for chemical composition and purity using spectrometry to confirm compliance with ASTM standards. Next, during forging, thicker plates undergo dimensional checks and hardness testing (HRC50+ via Rockwell method) post-heat treatment. Assembly follows, with prestressing to simulate operational loads, ensuring no deformation under 200kN tensile tests conducted on calibrated machines. Wear resistance is validated through abrasion tests. Final audits include visual inspections for defects and functional simulations on mock drives to verify smooth operation. This multi-stage, documented process, audited annually for ISO 9001 certification, minimizes field failures and builds trust. As an engineer, I emphasize that this thoroughness reflects our expertise, providing chains that perform reliably in mining conditions.

Raydafon's Strengths in Heavy Duty Drive Chains for Mining

With over 20 years of specialized manufacturing, Raydafon excels in the mining chain sector through innovative designs for heavy-duty drive applications. Our strengths include high strength and durability with thicker forged plates and higher-grade materials for harsh conditions, robust construction with reinforced links and precise tolerances for shock loads, and enhanced wear resistance with hardened pins, bushings, plates, and rollers for extended life. Backed by in-house R&D, we integrate technologies like embedded sensors for predictive maintenance, aligning with industry shifts towards smart mining. This authoritative approach, combined with cost-effective production, offers value without compromising quality. Trust is reinforced by our commitment to sustainability, using eco-friendly materials and processes.

Premium After-Sales Service

Raydafon's after-sales support for heavy-duty drive chains for mining is designed to maximize uptime and customer satisfaction in operations. We provide comprehensive warranties of 1-2 years, covering defects and wear under normal use. Technical assistance is available 24/7 via dedicated hotlines and remote diagnostics, with on-site visits within 48 hours for critical issues. Spare parts are stocked for rapid delivery, minimizing downtime. Training programs for installation and maintenance are offered, ensuring safe and efficient use. Regular follow-ups and performance audits help optimize chain life, reflecting our trustworthy partnership approach. This service underscores our expertise in supporting complex mining setups.

Notable Partnerships

Raydafon collaborates with leading entities to advance heavy-duty drive chain technology for mining, enhancing our authoritative position. For instance, partnerships with AI-driven mining tech firms enable integration of smart features for real-time monitoring, as highlighted in industry developments. These alliances focus on sustainable innovations, such as low-emission materials. Such cooperations build trust by delivering proven, cutting-edge solutions tailored for markets.

FAQ:

Q1: What provides the high strength? A: Constructed with thicker forged plates and higher-grade materials for greater loads.

Q2: How is construction robust? A: Designed for heavy loads and shock with reinforced links and precise tolerances.

Q3: What enhances wear resistance? A: Hardened pins, bushings, plates, and rollers to reduce wear and extend life.

Q4: What warranty covers these chains? A: 1-2 years, including defects and wear under normal use.

Q5: How does installation affect performance? A: Proper tensioning (1-2% elongation) is crucial; follow our step-by-step guide.

Q6: What maintenance is recommended? A: Regular lubrication and inspections every 500 hours.
