Heavy Duty Vertical Circulation Chain for Stereo Garages P460F1-SA1-00(4L)

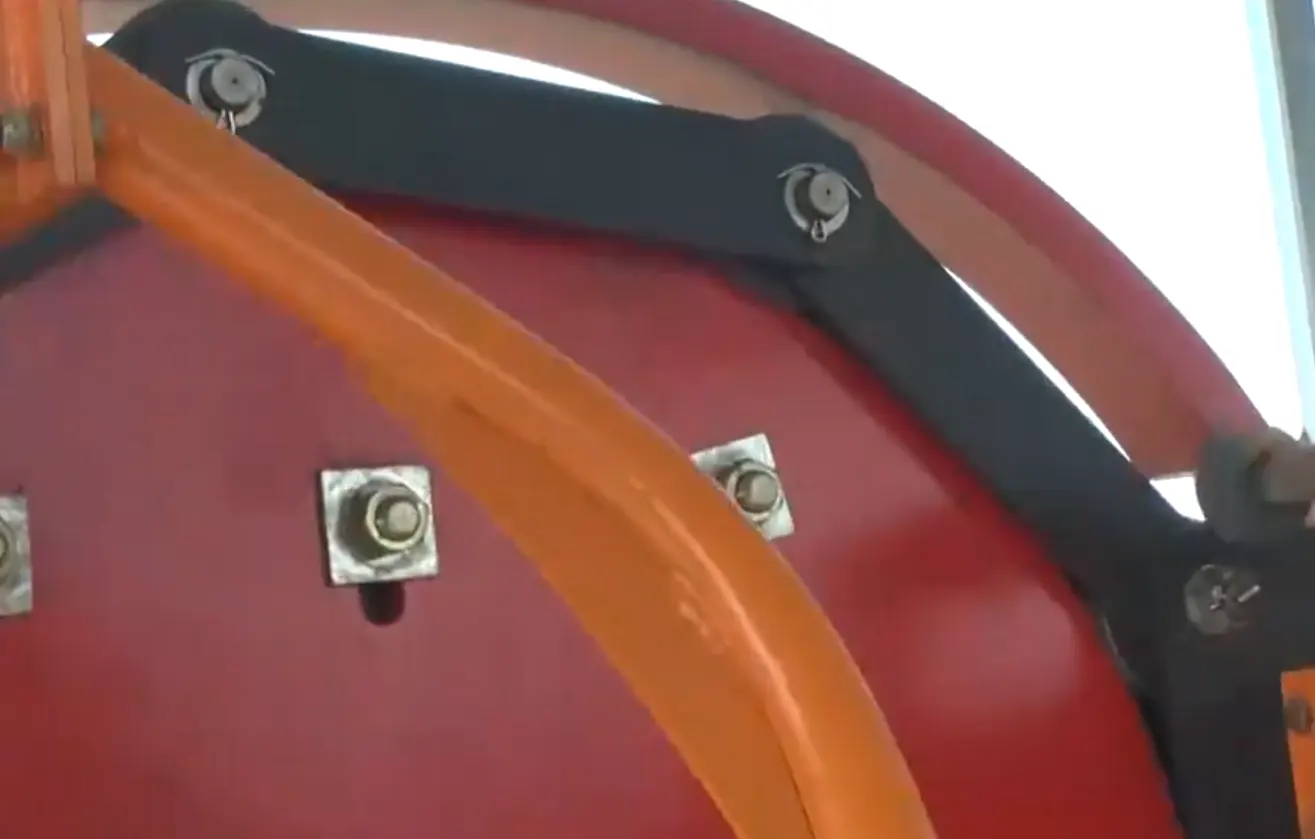

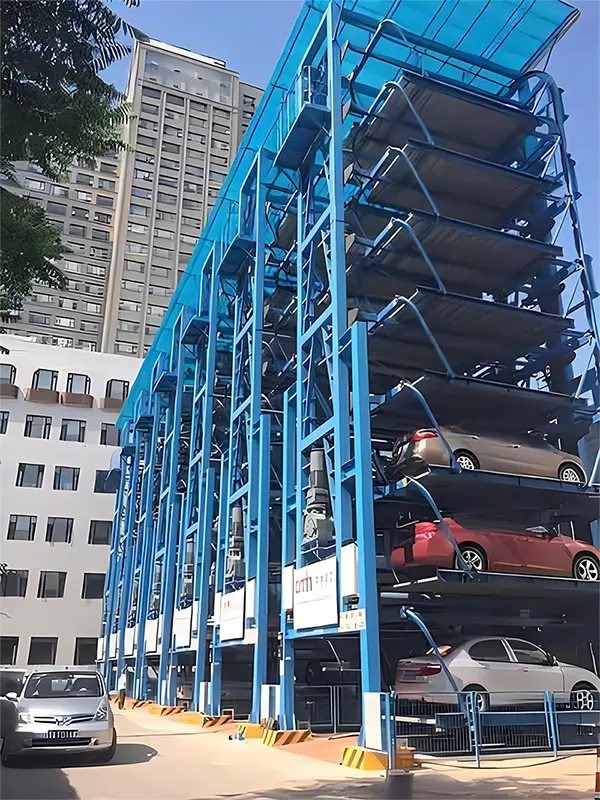

Due to the rapid growth of the number of automobiles and insufficient parking space allocation, the parking problem has become a new social problem and is increasingly affecting the daily life of residents. Stereo garages have become an important way to solve the parking problem with their high efficiency, rapidity, small footprint, etc. Among them, vertical circulation stereo garage has the advantages of small initial investment, high space utilization rate, less land occupation, etc., which has a broad market prospect and development space.A vertical circulation-type stereo garage adopts chain drive to drive the bracket rotation to achieve the purpose of access to the car; the bracket of the whole trajectory is runway-type.Parking is difficult, so the construction of three-dimensional garage supporting more and more, the common is the lift and shift class, pan class garage. But really really convenient to stop and pick up the car is the high-end vertical cycle class garage, safe and reliable.A set of 2 chains, generally 48-80 sections, can park 10-20 cars, occupies a small area, out of the car quickly, is currently the best choice of three-dimensional garage.We can also undertake long axis and large sprocket fork 4 teeth sprocket, our R & D this chain for several years, developed a variety of pitch lifting chain, hope to be able to serve more garage host manufacturers!

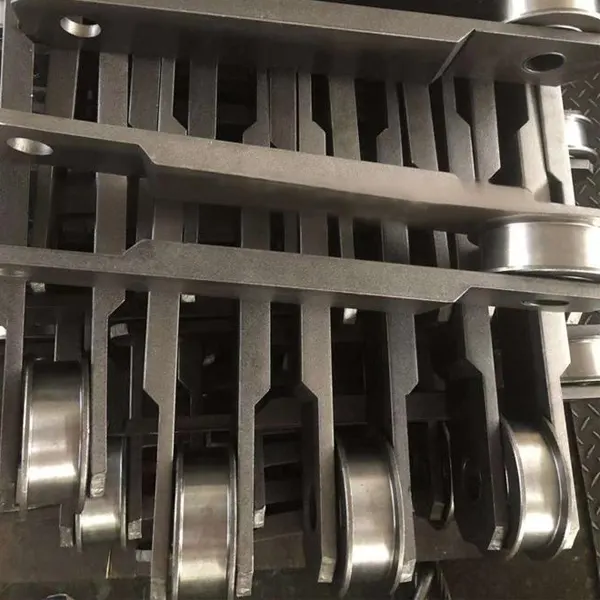

Specifications of P460F1-SA1-00(4L) Vertical Circulation Stereo Garage Chains



No.	Number	Item	Material	Weight
1	P460-00-03	Inner chain plate	40Mn	5097
2	P460F1-00-05	Edge rollers	40Cr	6120
3	P460F1-SK1F-00-01	Outer plate	Q345	44215
4	GB/T 91-86	Opening and pin
5	P460-00-01	Outer chain plate	40Mn	5204
6	P460-00-06	Attachment plates	40Mn	5188
7	P460F1-00-07(NUT)	Threaded header connecting pin	40Cr	1152
8	GB/T 6181-1986	Hexagon slotted thin nuts x fine teeth
9	GB/T 95-2002	Flat washers
10	P460-HJ-00-04	Welding sleeve	20	222.3
11	P460F1-00-04	Bushings	20	392
12	JB/T 3729-1999	Solid copper based lubricated bearings
13	P460F1-00-02(NUT	Threaded header pins	40Cr	1202
14	GB1152-1989	Straight-through oiling cups



Features and Advantages of P460F1-SA1-00(4L) Vertical Cycle Stereo Parking Garage Chains

• High strength: The vertical cycle parking garage chain is usually made of high-strength metal materials and can withstand greater tension and weight to ensure its stability and safety in the parking system.
• Wear-resistant: due to the vertical cycle parking garage chain needing a long time for high-frequency cyclic operation, the surface of the chain needs to be specially treated to increase the wear resistance and service life.
• Easy maintenance: The vertical cycle parking garage chain can be easily removed and replaced, which means that the chain can be quickly repaired or replaced when necessary, reducing the maintenance costs of the parking system.
• Low motor power: due to the chain's own weight and inertia, vertical circulation of three-dimensional parking garage motor power required is usually lower than the traditional flat parking lot, this is because the vertical circulation of three-dimensional parking garage chain can make full use of its own physical principles of self-support and operation.
• Small footprint: vertical circulation of the three-dimensional parking garage chain can realize multi-story parking; compared with the traditional flat parking lot, its footprint is smaller and can save a lot of space resources for urban planning and land development to provide more possibilities.



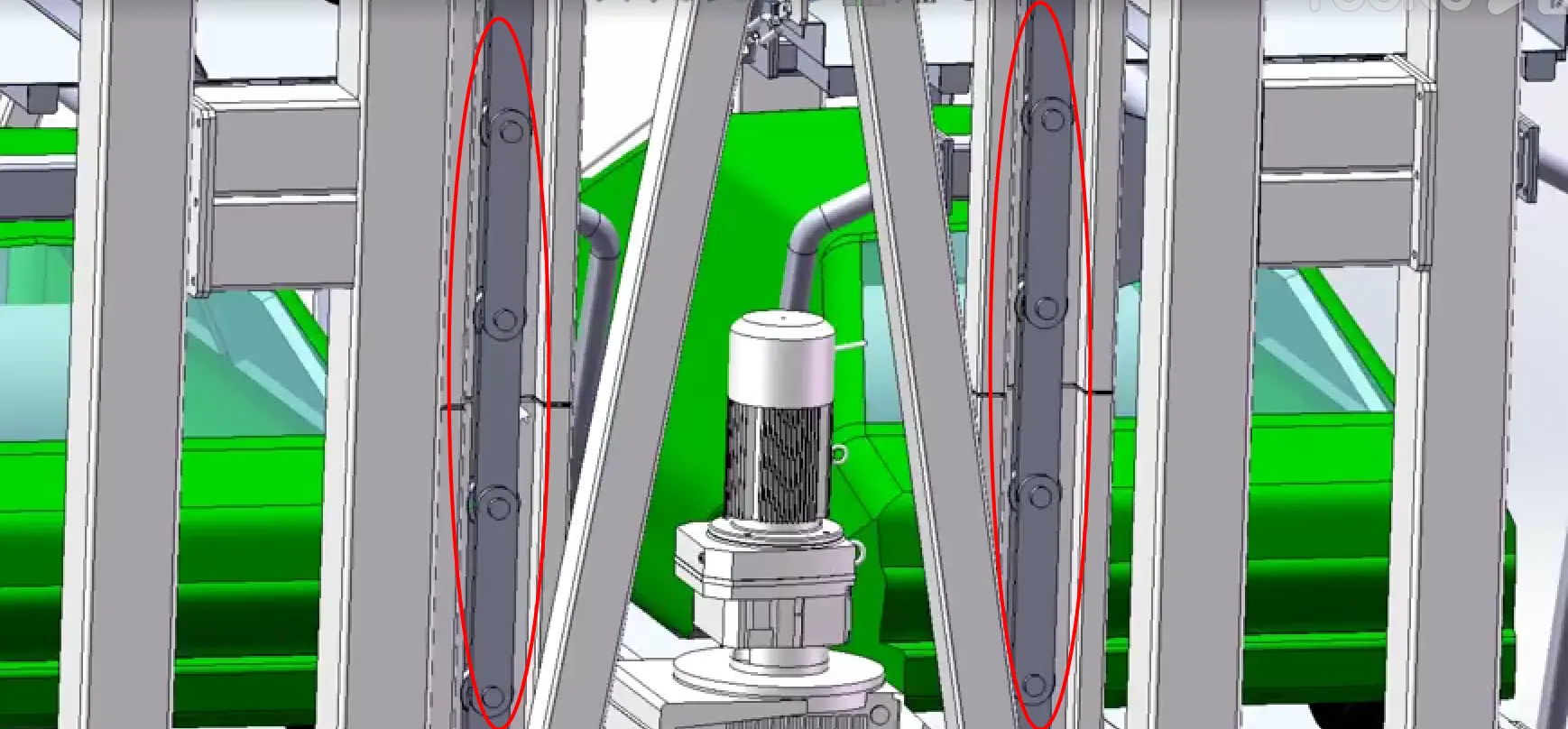

Vertical Circulation Stereo Garage Working Principle

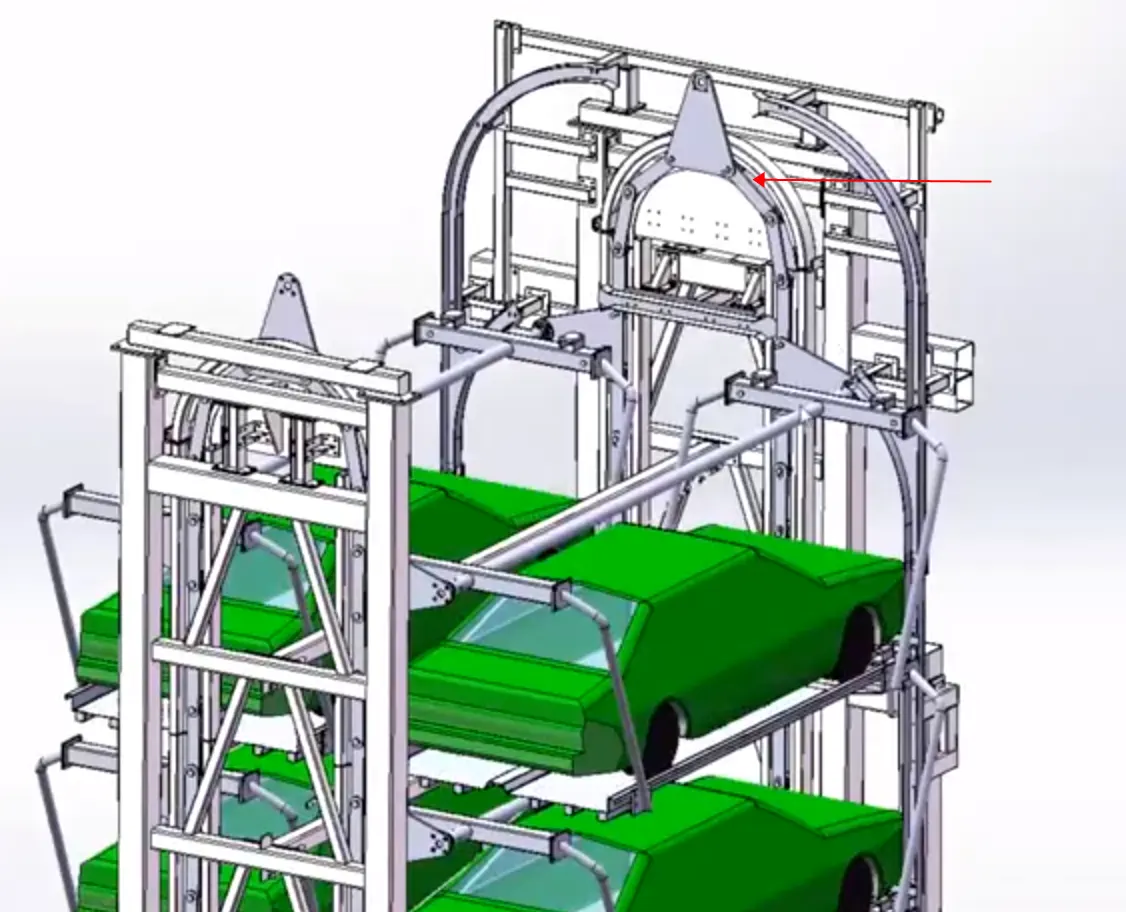

Vertical circulation type stereo garage mainly realizes the access of vehicles by doing vertical circulation movement in the vertical direction of the carriage. The standard chain-based vertical circulating three-dimensional garage uses the standard chain to realize chain transmission and installs a carrier on the standard chain at a certain distance driven by the drive motor; the transmission chain drives the carrier to circulate along the fixed trajectory to achieve the purpose of taking the car and storing the car. Compared with the vertical circulation type stereo garage based on shaped chain, the vertical circulation type stereo garage based on standard chain doesn't need to design and process the chain sprocket separately, with low processing cost, short design cycle, and simple and convenient maintenance and replacement of the chain in the later stage. The basic structure of vertical circulation type stereo garage based on standard chain is shown in the figure.1. steel frame 2. carrier 3. drive sprocket 4. drive train 5. guide rail 6. outreach plate 7. carrier floor 8. standard chain for drive 9. electronic control system 10. roller

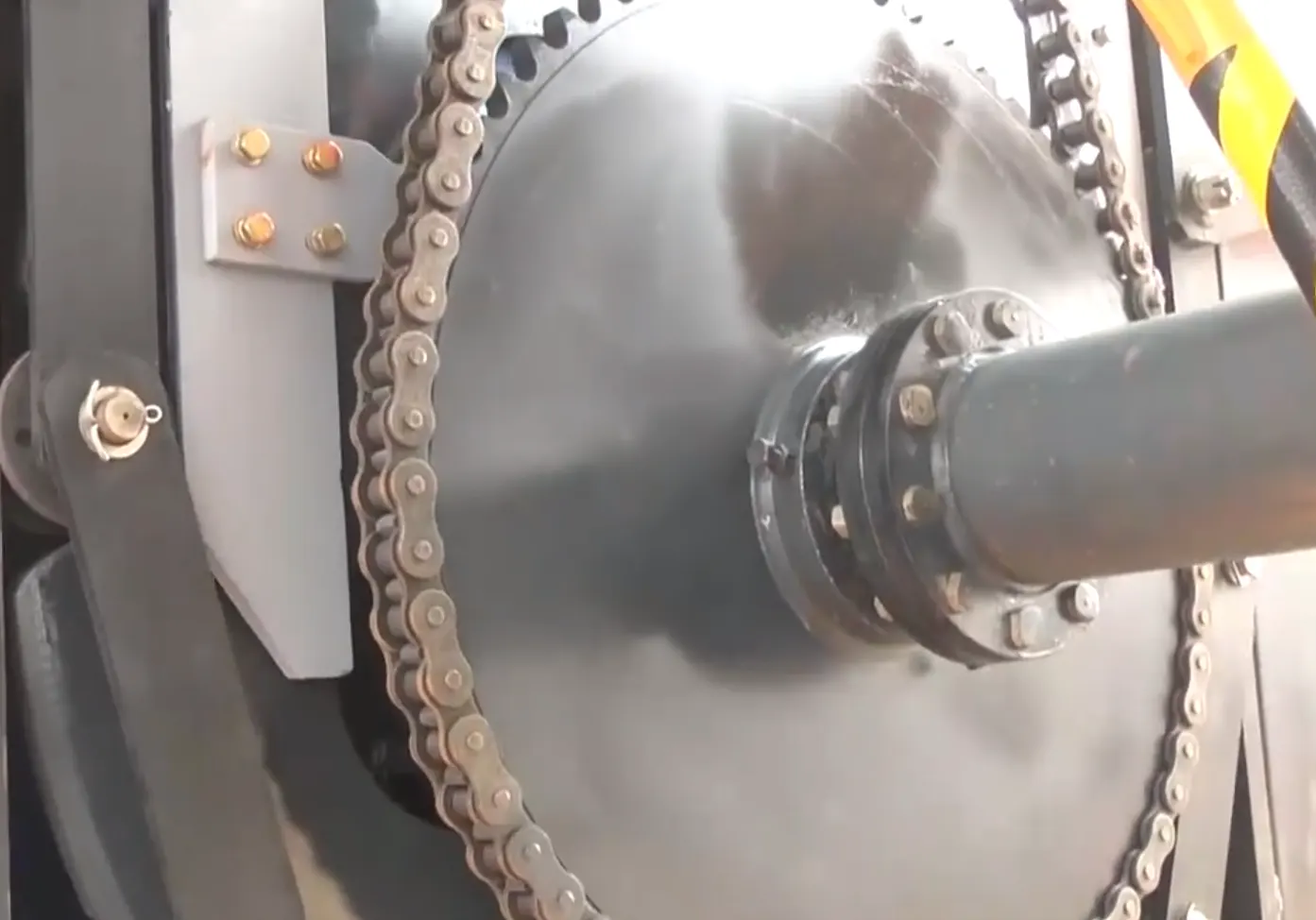

Sprockets for Vertical Circulation Parking Garage Chain

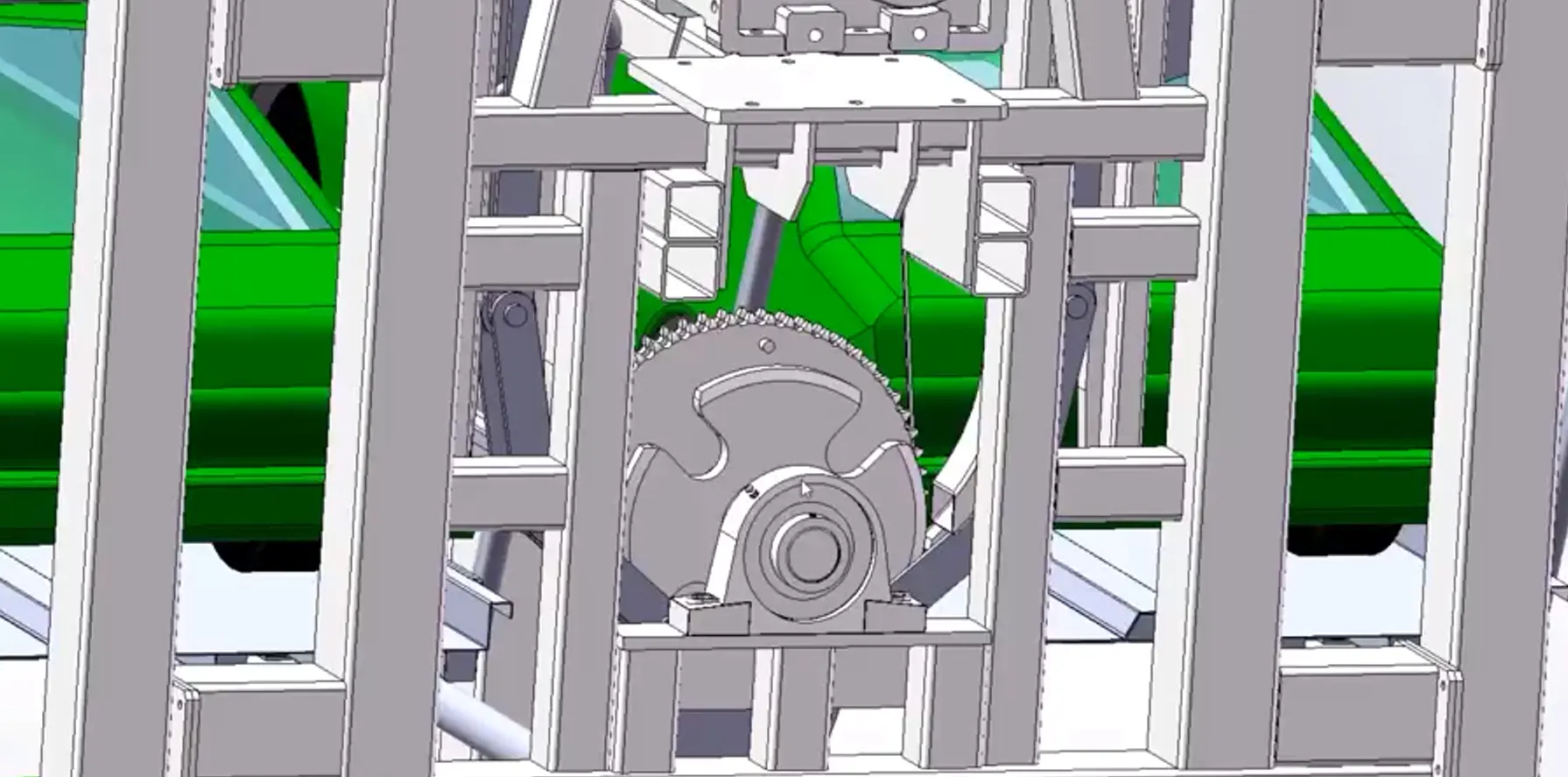

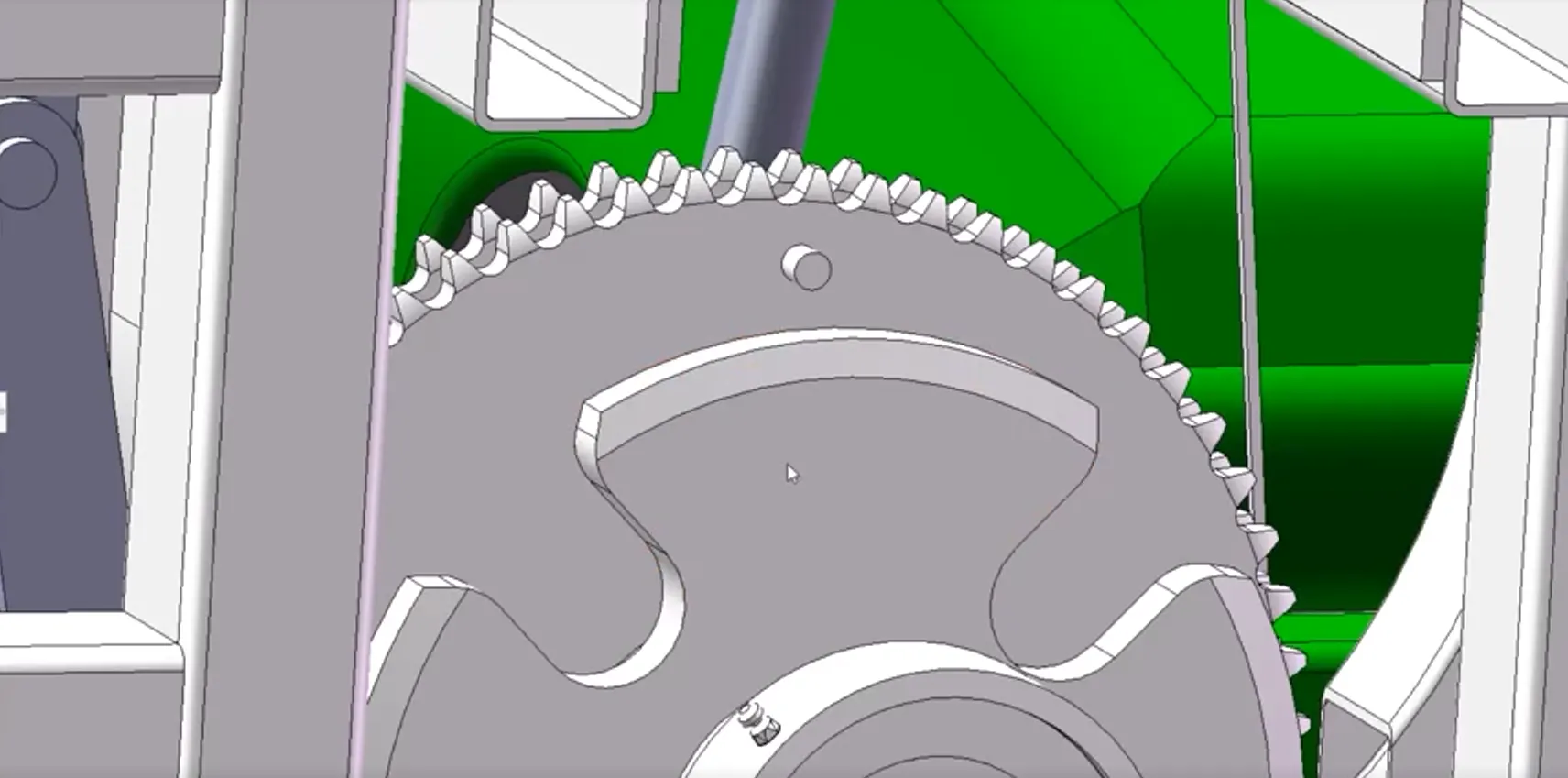

The sprockets used in the vertical circulation chain of a parking garage. These sprockets are crucial components responsible for driving the chain to facilitate the vertical movement of vehicles.Typically designed for high strength and durability, these sprockets are made from wear-resistant materials to ensure prolonged and reliable operation amidst frequent vertical motions. The design takes into consideration the load and pressure on the garage system, ensuring effective performance under various conditions.In addition to providing high-quality sprockets, our company is committed to offering comprehensive solutions. We not only supply chains but also provide compatible sprockets to ensure the integrity and synergy of the system. Our products and services aim to meet the customers' needs for efficient and reliable operation of parking garage systems.If you have specific requirements or inquiries regarding sprockets for vertical circulation parking garage chains or related products, feel free to reach out. We are dedicated to providing professional technical support and services to address your needs.
