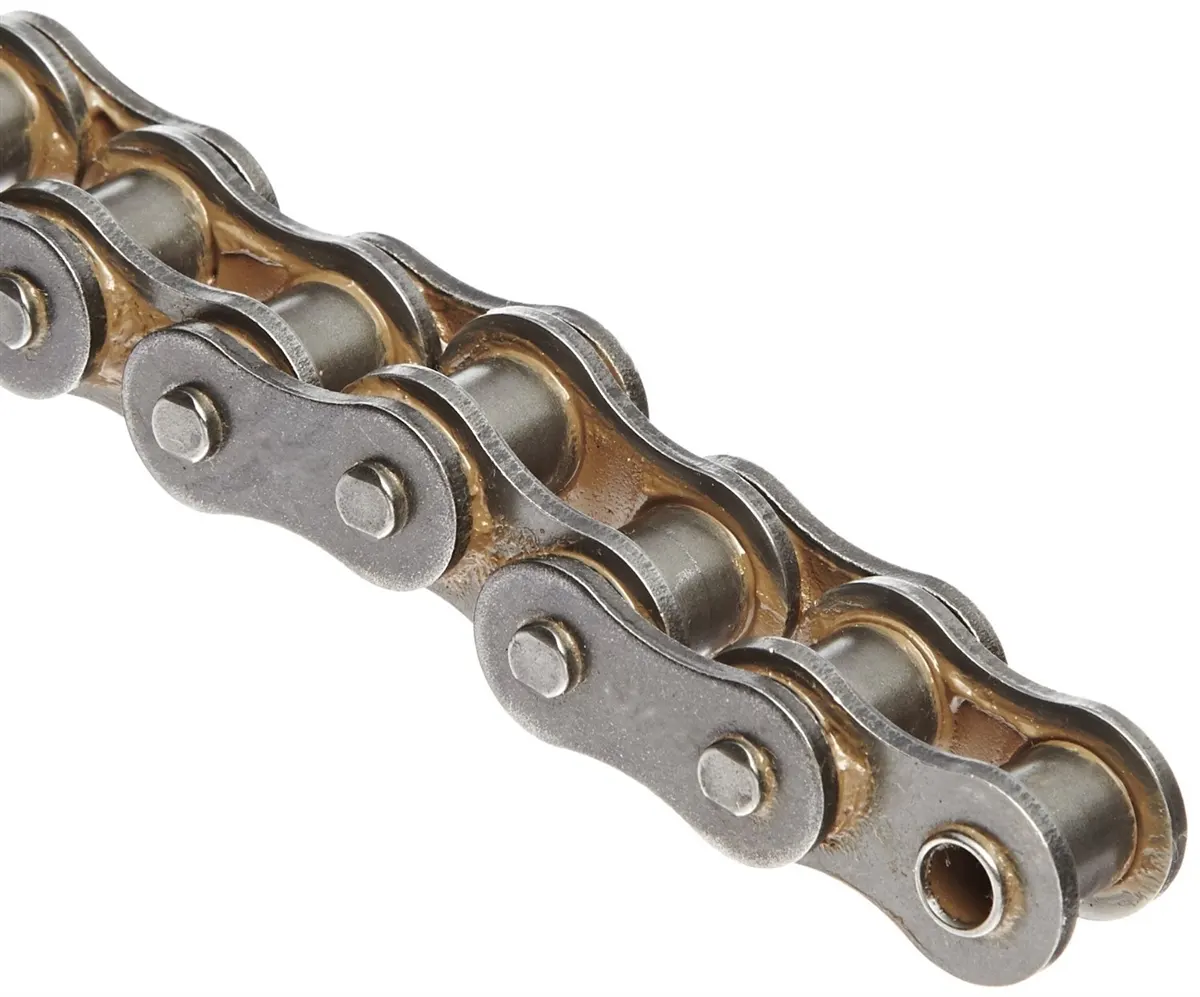

High End O-Ring Chain 20AF15-OR-D1F7.2L-00 for Honeywell

The O-ring chain is a specialized type of chain crucial for power transmission and motion control in various mechanical systems. Characterized by its circular cross-section resembling the letter "O," this chain is designed to excel in demanding industrial environments. Its key features include high tensile strength, durability, and resistance to wear, making it ideal for heavy-duty applications.Our high-end O-ring chains, specifically tailored for precision and reliability, find strategic application in diverse industries. Notably, our products are suitable for esteemed enterprise such as Honeywell, a leading technology and manufacturing company. The O-ring chain's advanced design ensures optimal lubrication within the joints, reducing friction and extending its operational life. This makes it a preferred choice in manufacturing processes, conveyor systems, and other industrial applications where seamless performance is paramount.

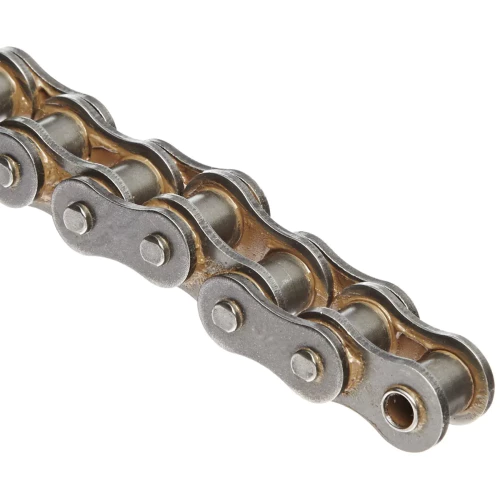

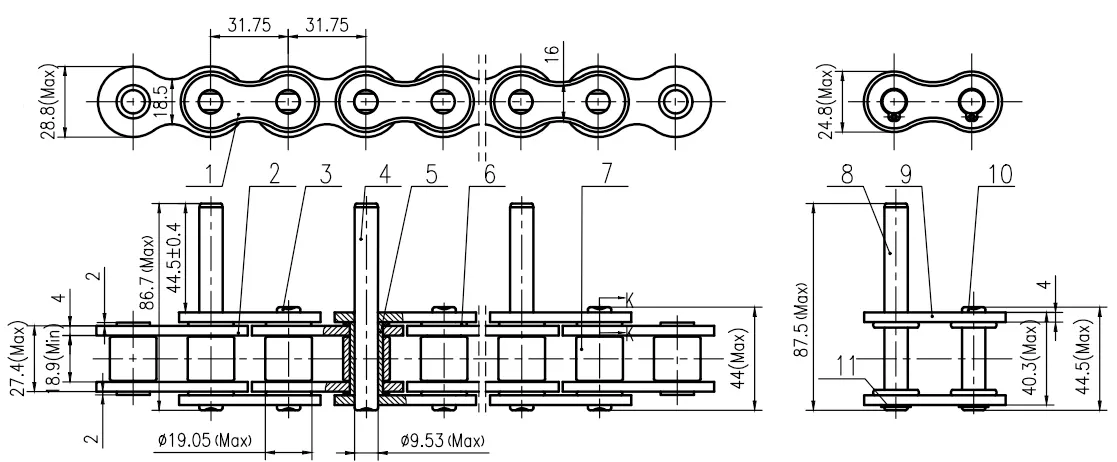

O-Ring Chain 20AF15-OR-D1F7.2L-00 Specifications



No.	Number	Part name	Material	Weight
1	20AF15-00-01	Outer Chain Plate	40Mn	29.64
2	20AF15-00-03	Inner chain plate	40Mn	33.95
3	20AF15-OR-00-02	Pins	20CrMnMo	24.2
4	20AF15-OR-D3F7-0O-02	Extended pin	20CrMnMo
5	20AF15-OR-00-04	Seamless sleeve	20CrMo	17
6	φ18X2.9	O-ring seals	NBR
7	20A-1-00-05(FL)	Roller	35	20.2
8	20AF15-OR-D3F7-00-07	Extended connecting pin	20CrMnMo
9	20AF15-00-06	Attachment plate	40Mn	29.64
10	20AF15-OR-00-07	Connecting pin	20CrMnMo
11	GB/T894.1-1986	Shaft retaining ring-A type	65Mn



	Part name	Material	Case depth	Heat Treatment ?Hardness
	Plate	40Mn	——	40~46HRC
	Pin	20CrMnMo	0.4~0.6	HV700~950
	Bush	20CrMo	0.25~0.4	79~83HRA
	Roller	35	——	40~46HRC

 Technical Requirements Example1. Chain ultimate tensile strength is not less than 86.87kN2. Under the usual conditions, the measuring force is 861.4N, the measuring number of links is 39, and the measured length shall be 1238.25+0.93 0.3. Under the usual conditions, the twist angle is less than 3°/m4. The chain joint shall be turned freely5. Push-off force of pin is no less than 4715N, and push-off force of bush is not less than 2825N6. Each joint lubed 100% With R4107. Compression on each 18x2.9mm O-ring must range from 0.43 minimum to 0.72 maximum8. Each chain supplied in a 25" length. 25" lengths are measured and tagged. 25" lengths per package. Chains within each package must be matched within an overall length of 0.381 mm overall length.9. Each chain must receive a serial code. The serial code will have traceablity to the date of manufacture and the length.10. Each 25" chain must be packaged in a wood package per the attached design. Each chain must contain two connecting links packaged as shown below.11. Connecting links must be supplied in a perforated rust proof bag. They must contain D1 outer link + Loose slip fif cover plate + 2 O-rings + 2 circlips + a small bag of ECLR410 lubrication + instructions12. Pre-load 29~43KN13. All pins need Nitrocarburized HV700+250, hardened depth 0.4~0.6mm

Characteristics of O Ring Chains

• Reduced friction and wear: The O-rings keep lubricant in the chain, which reduces friction between the moving parts. This leads to less wear and tear on the chain, and can extend its lifespan by up to 50% compared to non-O-ring chains.
• Improved performance: With less friction, O-ring chains can transfer more power to the rear wheel, resulting in improved acceleration and performance.
• Reduced maintenance: The O-rings help to keep dirt and debris out of the chain, which means that it needs to be lubricated less often. This can save you time and money in the long run.
• Increased durability: O-ring chains are more resistant to corrosion and rust than non-O-ring chains. This is because the O-rings help to protect the metal parts of the chain from the elements.
• Quieter operation: O-ring chains tend to be quieter than non-O-ring chains. This is because the O-rings dampen the sound of the chain as it moves.

O-Ring Chains Applications

O-ring chains, with their sealed-in lubrication and resistance to dirt and debris, find application in a variety of demanding environments. Here are some of the most common:

• Motorcycles: Perhaps the most well-known use of o-ring chains. Motorcycles experience high speeds, heavy loads, and exposure to the elements, making o-rings' reduced friction, wear resistance, and extended lubrication intervals crucial for optimal performance and reduced maintenance.
• All-terrain vehicles (ATVs): Similar to motorcycles, ATVs operate in harsh conditions with exposure to dirt, mud, and water. O-ring chains help maintain smooth operation and minimize wear, extending component life and reducing downtime.
• Go-karts: High-performance go-karts benefit from o-ring chains' ability to transfer power efficiently with minimal friction. This translates to improved acceleration and overall performance on the track.
• Bicycles: While not as common as on motorcycles or ATVs, o-ring chains can be found on some high-end bicycles, particularly those used for off-road riding or touring. The sealed lubrication and resistance to contaminants make them ideal for extended rides and adverse conditions.
• Industrial machinery: In factory settings, o-ring chains are used in various conveyor systems and other power transmission applications where reliability and reduced maintenance are essential. Their resistance to dust and debris makes them suitable for harsh industrial environments.
• Agricultural equipment: Agricultural machinery like tractors and harvesters often operate in dusty and dirty conditions. O-ring chains help ensure smooth operation and prevent premature wear, reducing downtime and maintenance costs.

These are just a few examples, and o-ring chains can be found in various other applications where reliable power transmission and resistance to wear and tear are crucial. Their versatility and performance make them a valuable choice for demanding environments across various industries.If you're considering an o-ring chain for your specific application, be sure to factor in the size, strength, and type of o-ring needed to ensure optimal performance and compatibility.

Choosing the Right O-Ring Chain

• The size of the chain: The size of the chain will depend on the application. For example, a motorcycle will need a larger chain than an ATV.
• The strength of the chain: The strength of the chain will depend on the power of the engine. For example, a high-performance motorcycle will need a stronger chain than a scooter.
• The type of O-ring: There are two main types of O-rings: standard and X-ring. X-rings have a more complex cross-section that provides better sealing and can last longer than standard O-rings.

Sprockets for O Ring Chains

Sprockets for O-ring chains play a pivotal role in industrial machinery, providing a crucial link between the power source and the O-ring chain. These specialized sprockets are meticulously designed to complement the circular cross-section of O-ring chains, ensuring a seamless engagement that facilitates efficient power transmission. The precision engineering of these sprockets is essential for maintaining the integrity of the O-ring chain's circular shape and optimizing performance. Their compatibility and reliability make them indispensable components in various applications, from manufacturing processes to conveyor systems. The synergy between O-ring chains and their dedicated sprockets exemplifies a cohesive solution for robust and dependable industrial power transmission.As a professional chain and?sprocket manufacturer?and supplier in China, Raydafon offers both high-quality O-ring chains and sprockets for sale. Contact us to get more!

About Raydafon - Professional Chain Manufacturer and Supplier

Raydafon is a professional chain manufacturer of standard chains and all kinds of special requirement shaped chains. Our chains are manufactured in accordance with strict ANSI/DIN/ISO standards. Our chains are designed with sturdy rollers to ensure a long service life of the chains. In addition, our chains are heat treated and pre-stressed. According to customers' requirements, we offer a wide range of materials to meet different requirements of clients. The products are manufactured using high quality materials. These plates are punched and extruded holes through precision technology. The pins, bushings and rollers are processed by highly efficient automated equipment and automatic grinding equipment, and then heat-treated by carburizing, carbon and nitrogen protected mesh belt furnace and surface sand blasting process. Assembly accuracy is ensured by bore positioning, spinning, etc. Pressure riveting is used to ensure the performance of the whole chain. The factory has excellent equipments, mature and advanced technology and a large technical force team. With quick market response, flexible and modernized production and operation mode, and excellent and considerate after-sales service, we have won the favor of our customers. Our products are exported to Europe, Japan, the United States, Canada, Southeast Asia and other countries and regions.
