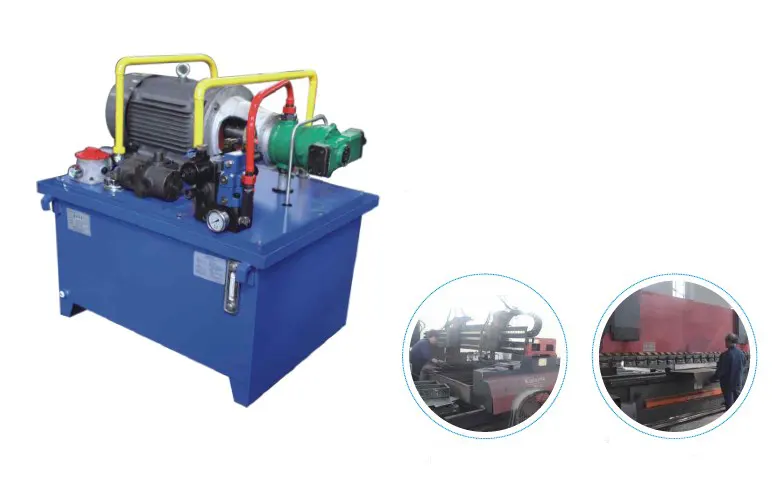

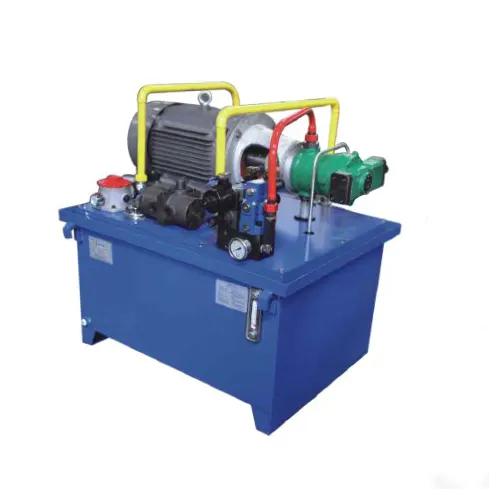

Hydraulic System For Coating Equipment

Hydraulic System For Coating Equipment

The Hydraulic System for Coating Equipment is a state-of-the-art solution designed to revolutionize the coating process in various industries. This advanced system offers exceptional efficiency, precise control, and improved productivity, ensuring optimal performance and superior coating results. Let's explore the key characteristics, usage methods, maintenance requirements, and other essential aspects of the Hydraulic System for Coating Equipment.The synchronous hydraulic system controls multiple cylinders to act simultaneously and requires a certain precision. Synchronizing steps or synchronizing valves maintain synchronization accuracy.Features:1. The variable piston pump is used with the return oil and water cooler, which significantly reduces the system's heat output.2. Adopt the best domestic manufacturer synchronous valve to achieve multi-cylinder synchronization and improve production efficiency and accuracy.3. The use of laser cutting and bending processes to ensure the strength and beauty of the equipment.

Synchronous Hydraulic System Parameter:

Motor Power:11KWOil Tank:200L

Characteristics of the Explosion-Proof Hydraulic System For Mine Equipment:

1. High Precision and Control

• The hydraulic system provides precise control over critical coating parameters such as pressure, flow rate, and spray pattern, allowing for consistent and uniform coatings.
• Enables fine-tuning of coating parameters during the application process, ensuring accurate results and reducing wastage.

2. Versatility and Adaptability

• The system is compatible with a wide range of coating equipment, including spray guns, robotic arms, and automated coating lines, making it suitable for diverse coating applications.
• Offers flexibility in adjusting coating parameters to accommodate different coating materials, substrates, and desired finishes.

3. Excellent Efficiency and Productivity

• Optimizes coating efficiency by providing consistent pressure and flow control, minimizing overspray, and reducing material wastage.
• Enables faster coating cycles, increasing productivity and throughput without compromising quality.

4. User-friendly Interface

• Equipped with an intuitive and easy-to-use control interface, it allows operators to adjust and monitor coating parameters easily.
• Provides real-time feedback on pressure, flow rate, and other critical parameters for precise control and troubleshooting.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed based on a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

What Are The Basic Components Of A Hydraulic System?

A hydraulic system consists of several essential components that work together to generate, control, and transmit hydraulic power. The basic components of a hydraulic system include:

1. Hydraulic Fluid:Hydraulic fluid serves as the medium for transmitting power in the system. It is typically a specially formulated oil with properties such as high viscosity, good lubrication, and resistance to foaming and temperature changes.
2. Reservoir:The reservoir, also known as the hydraulic tank, holds the hydraulic fluid. It provides a storage location for the fluid, allows for heat dissipation, and facilitates the removal of air and contaminants from the system. The reservoir is equipped with a breather to maintain fluid cleanliness and prevent pressure buildup.
3. Hydraulic Pump:The hydraulic pump is responsible for generating flow and pressure in the hydraulic system. It converts mechanical energy, typically from an electric motor or an engine, into hydraulic energy. Common types of pumps include gear pumps, vane pumps, and piston pumps.
4. Actuators:Actuators are hydraulic devices that convert hydraulic pressure into mechanical force or motion. They are responsible for performing the desired work in the system. The two primary types of actuators are:
   • Hydraulic Cylinders: Hydraulic cylinders consist of a cylindrical barrel, a piston, and a rod. When pressurized fluid enters the cylinder, it pushes the piston, which generates linear motion. Hydraulic cylinders are commonly used in applications that require straight-line force, such as lifting or pushing.
   • Hydraulic Motors: Hydraulic motors convert hydraulic energy into rotational motion. They are often used in applications that require continuous rotary motion, such as driving conveyor belts or rotating machinery.
5. Control Valves:Control valves regulate the flow and pressure of hydraulic fluid in the system. They direct the fluid to the desired actuators and control their speed, direction, and force. Control valves include various types such as directional control valves, pressure control valves, flow control valves, and proportional valves.
6. Hydraulic Lines and Hoses:Hydraulic lines and hoses transport the pressurized hydraulic fluid between the components of the system. They are typically made of steel or flexible materials, such as reinforced rubber or thermoplastic, to withstand high pressures and accommodate system movements.
7. Filters:Filters are crucial components that help maintain the cleanliness of the hydraulic fluid. They remove contaminants, such as particles, debris, and water, to prevent damage to system components. Filters are commonly located in the reservoir, suction lines, and return lines.
8. Accumulator:An accumulator stores hydraulic energy in the form of pressurized fluid. It consists of a gas-filled chamber separated from the hydraulic fluid by a piston or bladder. Accumulators can absorb pressure surges, store energy for peak demands, and provide emergency power in case of pump failure.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
