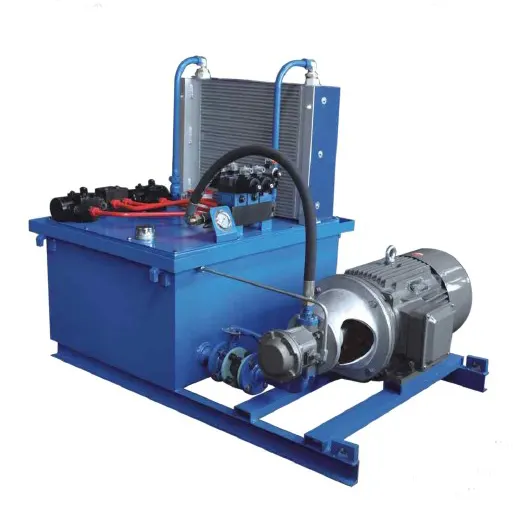

Hydraulic System For Lifter

Hydraulic System For Lifter

The Hydraulic System for Lifter is a state-of-the-art solution designed to optimize the performance of lifting equipment in various industries. This advanced system offers exceptional power, control, and reliability, ensuring smooth and precise lifting operations. Let's explore the key characteristics, usage methods, maintenance requirements, and other essential aspects of the Hydraulic System for Lifter.

Hydraulic System For Lifter Parameter:

Motor Power:30KWOil Tank:300LSystem Pressure:23MpaSystem Flow:56L/min

Characteristics of the Hydraulic System For Lifter:

1. Powerful Lifting Capability:
   • High Force Output: The hydraulic system delivers substantial force, allowing for the lifting of heavy loads efficiently and safely.
   • Controlled Lifting Speed: The system offers precise control over the lifting speed, enabling operators to adjust the rate as needed to ensure smooth and controlled lifting operations.
2. Versatile Application:
   • Adaptability: The Hydraulic System for Lifter can be integrated into various lifting equipment, such as scissor lifts, car lifts, material handling systems, and hydraulic jacks.
   • Load Capacity: This system is designed to handle different load capacities, ranging from light-duty to heavy-duty applications, catering to a wide range of lifting requirements.
3. Safety and Stability:
   • Secure Load Handling: The hydraulic system provides stable and secure load handling, minimizing the risk of accidents or load shifting during lifting operations.
   • Overload Protection: Many hydraulic lifters incorporate safety features like overload protection valves, which prevent the system from exceeding its lifting capacity, ensuring safe and reliable operation.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed on the basis of a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

How To Remove Air In Hydraulic System?

Removing air from a hydraulic system is crucial to ensure proper functioning and optimal performance. Air in the system can lead to reduced efficiency, spongy or inconsistent hydraulic response, and potential damage to components. Here are the steps to remove air from a hydraulic system:

1. Identify Air Trapped Areas:
   • Determine the potential areas where air can be trapped in the hydraulic system, such as hoses, fittings, pumps, cylinders, and valves. These are common locations where air pockets may accumulate.
2. Bleeding Procedure:
   • Locate the bleeding or air release points in the hydraulic system. These are typically designated ports or valves specifically designed to remove air.
   • If there are multiple bleeding points, start from the one closest to the hydraulic pump and progressively move towards the furthest point.
3. Prepare the System:
   • Ensure the hydraulic system is turned off and at rest. This prevents any accidental movement or pressurization during the bleeding process.
   • Check the hydraulic fluid level and ensure it is within the recommended range. Top up the fluid if necessary.
4. Open Bleeding Points:
   • Using the appropriate tools, slowly open the bleeding points or valves. This allows air to escape while maintaining control over the fluid flow.
   • Start with the bleeding point closest to the hydraulic pump and gradually work your way through the system.
5. Purging Air:
   • Once the bleeding point is open, activate the hydraulic pump or actuator that pressurizes the system.
   • Allow the hydraulic fluid to flow through the bleeding point until a steady stream is observed, ensuring that all air bubbles are expelled.
   • Close the bleeding point before moving on to the next one. Repeat the process for each bleeding point until air is removed from the entire system.
6. System Inspection:
   • After bleeding air from the hydraulic system, inspect all connections, hoses, and fittings for any signs of leaks or abnormal behavior.
   • Check the fluid level again and top up if necessary, ensuring it is at the recommended level.
7. Testing and Operation:
   • Once air removal is complete, test the hydraulic system by activating the various components, such as cylinders or valves, to ensure smooth and consistent operation.
   • Monitor the system for any signs of air re-entry or other issues. If problems persist, repeat the bleeding process or consult a hydraulic specialist for further assistance.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
