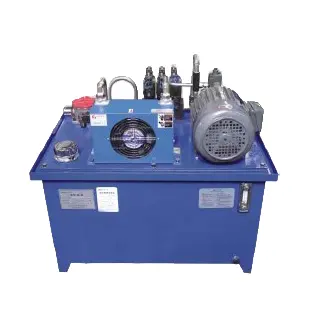

Hydraulic System For Multi-Spindle Drilling Machine

Hydraulic System For Multi-Spindle Drilling Machine

The Hydraulic System for Multi-Spindle Drilling Machine is a cutting-edge solution designed to optimize drilling operations in various industries. This advanced hydraulic system offers improved precision, increased productivity, and enhanced control, making it an essential component for high-volume drilling applications. Let's explore the key features, usage methods, and maintenance requirements of this remarkable product.

Hydraulic System For Multi-Spindle Drilling Machine Parameter:

Motor Power:1.5KWOil Tank:120L

Characteristics of the Hydraulic System For Multi-Spindle Drilling Machine:

1. Precision Control:

• Accurate Drilling: The Hydraulic System for Multi-Spindle Drilling Machine ensures precise hole placement, minimizing errors and reducing the need for rework.
• Consistent Performance: The system's advanced hydraulic components deliver reliable power, enabling consistent drilling performance even during demanding operations.

2. Enhanced Efficiency:

• Increased Productivity: This hydraulic system enhances drilling efficiency, allowing for faster operation and increased productivity.
• Multi-Spindle Capability: With its ability to drive multiple spindles simultaneously, the system enables efficient and synchronized drilling across multiple workpieces.

3. Intelligent Automation:

• Programmable Parameters: The system is equipped with intelligent control features that allow operators to program drilling parameters, including spindle speed, feed rate, and drilling depth.
• Automated Operations: Through automation, the system reduces human error and streamlines drilling processes, leading to improved efficiency and time savings.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed on the basis of a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

What Is Charge Pressure In Hydraulic System?

In a hydraulic system, charge pressure refers to the pressure exerted on the hydraulic fluid within the system's reservoir or accumulator. It is the pressure level maintained in the system to ensure proper functioning and readiness for operation. The charge pressure is typically lower than the working or operating pressure in the hydraulic system.Here are some key points to understand about charge pressure in a hydraulic system:

1. Purpose of Charge Pressure:
   • Ensuring Readiness: The charge pressure keeps the hydraulic system primed and ready for immediate operation by maintaining a pre-set pressure level.
   • Compensation for Leakages: Charge pressure compensates for minor internal and external leakages that may occur over time, preventing a significant drop in system pressure and performance.
   • Auxiliary Functions: In certain hydraulic systems, the charge pressure may also serve other functions, such as actuating specific components or subsystems.
2. Pressure Source:
   • Hydraulic Pump: The charge pressure is typically generated by the hydraulic pump, which supplies the necessary force to pressurize the fluid in the system.
   • Accumulator: In some hydraulic systems, an accumulator may be used to store energy and maintain the charge pressure. The accumulator releases stored fluid to maintain the desired pressure when needed.
3. Pressure Regulation:
   • Pressure Relief Valve: A pressure relief valve is commonly installed in the hydraulic system to regulate and control the charge pressure. It ensures that the pressure does not exceed a predetermined limit, protecting the system from over-pressurization.
   • Pressure Switches/Gauges: Pressure switches or gauges are used to monitor and display the charge pressure level, allowing operators to verify if it is within the desired range.
4. Maintenance and Adjustment:
   • Inspection: Regular inspections of the hydraulic system should include checking the charge pressure to ensure it is maintained at the appropriate level.
   • Adjustment: If the charge pressure deviates from the specified range, adjustments may be necessary. This can involve adjusting the pressure relief valve or other pressure-regulating components.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
