JK5063 Boiler Moving Grate Chains

JK5063 Boiler Moving Grate Chains

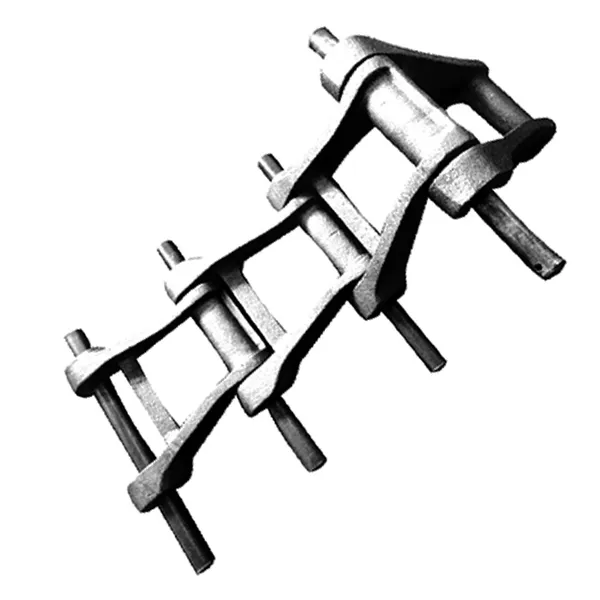

JK5063 boiler moving grate chains are a type of conveyor chain that is used in boilers to transport fuel from the hopper to the combustion chamber. The chains are made of a high-strength alloy that is resistant to wear and tear, and they are designed to operate in high temperatures.

JK5063 boiler moving grate chains are typically made up of a series of links that are connected together by pins. The links are designed to interlock with each other, and they are also designed to engage with the sprockets that drive the chain.

JK5063 boiler moving grate chains are available in a variety of sizes and configurations, and they can be custom-made to meet the specific needs of a particular boiler. The chains are typically supplied with a variety of accessories, such as tensioners, guides, and guards.

JK5063 boiler moving grate chains are a critical component of many boilers, and they play an important role in the efficient and reliable operation of the boiler.

Here are some of the benefits of using JK5063 boiler moving grate chains:

• They are made of a high-strength alloy that is resistant to wear and tear.
• They are designed to operate in high temperatures.
• They are available in a variety of sizes and configurations.
• They can be custom-made to meet the specific needs of a particular boiler.
• They are typically supplied with a variety of accessories.
• They are a critical component of many boilers, and they play an important role in the efficient and reliable operation of the boiler.

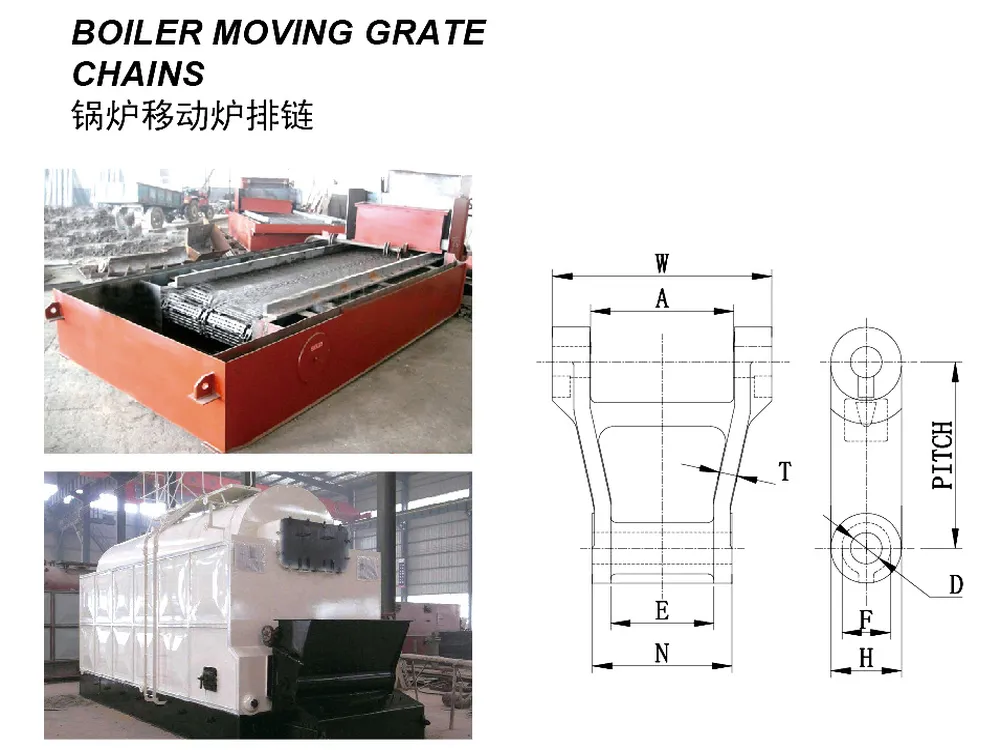

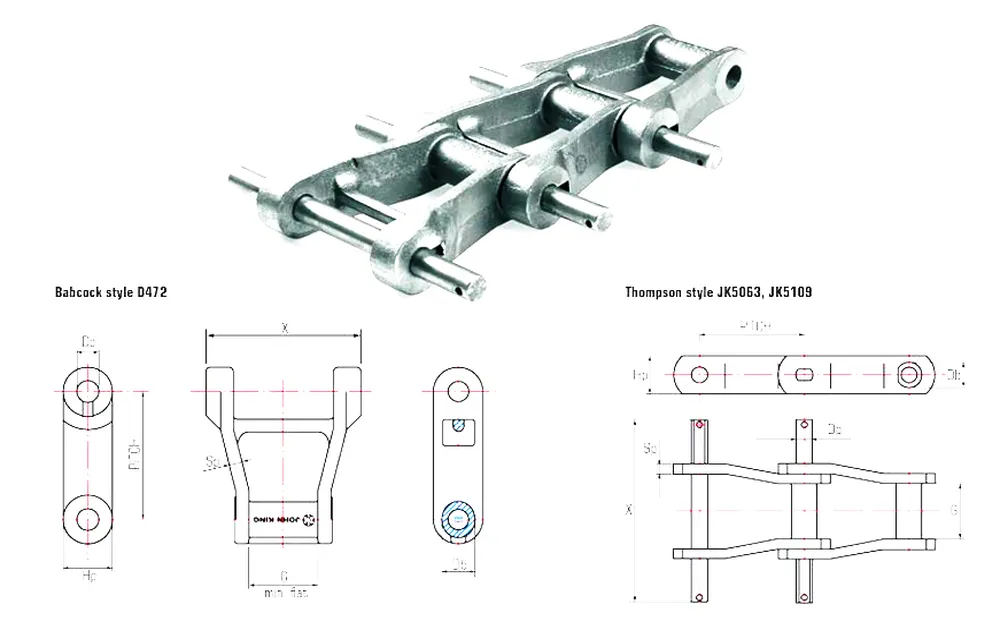

JK5063 Boiler Moving Grate Chain Dimensions:

ChainNo.		Pitch	Bush Diameter	Pin Diameter	Between Sidebars	Sidebar Height	Sidebar Thickness	Over Pin	Breaking Load
		P	D5	D6	L	H	S	F
JK5063	mm	101.60	25.40	15.70	54.10	38.10	10.00	179.30	22,700 kg
	in	4.00	1.00	0.63	2.13	1.50	0.38	7.06	50,000 lb

Applications of JK5063 Boiler Moving Grate Chain:

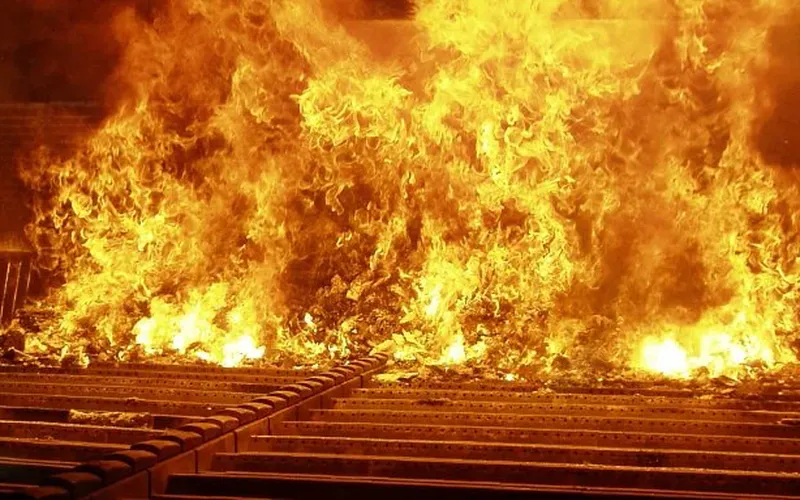

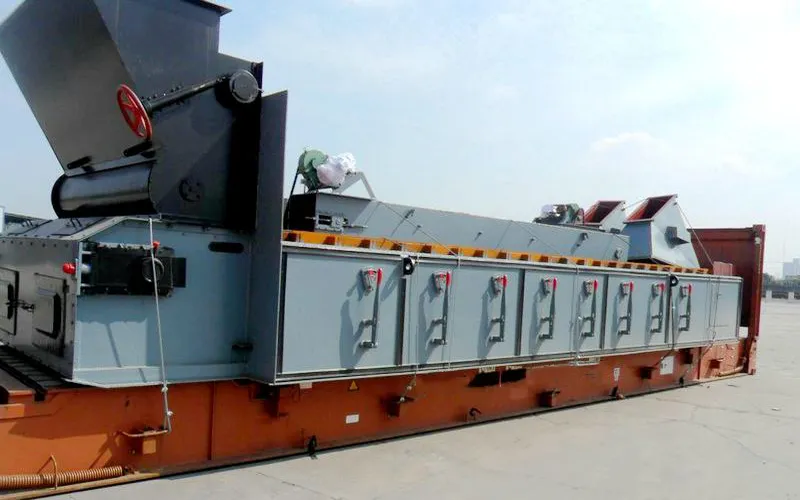

JK5063 boiler moving grate chains have several applications in industries that utilize boilers for solid fuel combustion. Here are some specific applications of JK5063 boiler grate chains:1. Coal-fired Power Plants: JK5063 boiler moving grate chains are commonly used in boilers of coal-fired power plants. The moving grate system, equipped with these chains, allows for the efficient combustion of coal, which generates high-pressure steam to drive turbines and produce electricity.2. Biomass Power Plants: Biomass power plants utilize organic materials such as wood chips, agricultural residue, or dedicated energy crops as fuel. JK5063 boiler grate chains are employed in the moving grate systems of these boilers to facilitate the controlled combustion of biomass and generate steam for electricity production.3. Waste Incineration Plants: JK5063 boiler moving grate chains play a vital role in waste incineration plants that burn municipal solid waste (MSW) or industrial waste. The moving grate system, driven by these chains, ensures the efficient and complete combustion of waste materials, reducing their volume and generating heat energy.4. Pulp and Paper Industry: In the pulp and paper industry, boilers are used for various processes, including steam generation, drying, and chemical recovery. JK5063 boiler grate chains are installed in boilers that burn wood waste or other solid fuels, enabling efficient fuel combustion and heat recovery for different stages of paper production.5. Cement Industry: Cement plants often have boilers that utilize alternative fuels such as shredded tires, biomass, or coal to generate the high temperatures required for cement production. JK5063 boiler moving grate chains are employed in these boilers to ensure proper fuel distribution and combustion, contributing to the energy-intensive processes of clinker formation and cement manufacturing.6. Sugar Industry: Boilers are essential in the sugar industry for processes such as juice extraction, evaporation, and crystallization. JK5063 boiler grate chains are used in boilers that burn bagasse, a byproduct of sugarcane processing, to produce steam for various stages of sugar production.

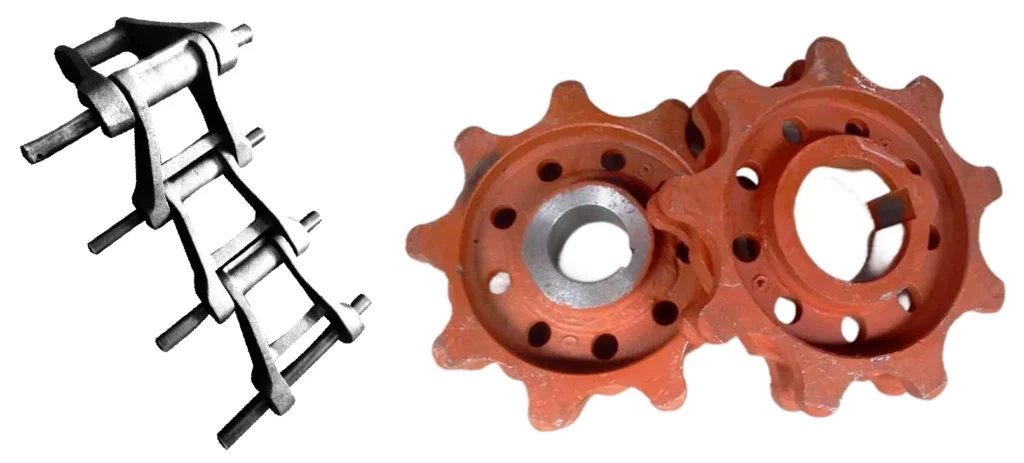

Boiler Grate Chain Sprockets for Boiler Moving Grate Chains:

Boiler grate chain sprockets are an integral part of the mechanism that drives the moving grate chains in boilers. These sprockets are specifically designed to engage with the links and attachments of the grate chains, facilitating their movement and ensuring the proper functioning of the moving grate system. Here are some key points about boiler grate chain sprockets:Design and Construction: Boiler grate chain sprockets are typically made from high-strength materials such as alloy steel or cast iron. They are designed to withstand the heavy loads and high temperatures encountered in boiler operations. The sprockets feature teeth or projections that match the shape and spacing of the attachments on the grate chains, allowing for effective engagement.Tooth Profile: The tooth profile of the sprockets is crucial for ensuring smooth and reliable operation of the moving grate system. The teeth are designed to securely hold the attachments of the grate chains while minimizing wear and excessive friction. The tooth profile is usually engineered to provide optimal chain engagement, reducing the risk of chain slippage or dislocation during operation.Size and Dimensions: Boiler grate chain sprockets are available in various sizes and dimensions to match the specific requirements of different boiler designs. The size of the sprocket depends on factors such as the pitch of the grate chains, the number of teeth required for proper engagement, and the load capacity of the system. Proper sizing and selection of sprockets are essential to ensure efficient and reliable operation of the moving grate system.Lubrication and Maintenance: Lubrication is crucial for the smooth functioning and longevity of boiler grate chain sprockets. Adequate lubrication helps reduce friction, wear, and heat buildup between the sprockets and the grate chains. Regular inspection and maintenance of the sprockets, including lubrication and cleaning, are necessary to prevent excessive wear, prolong their lifespan, and maintain optimal performance.Compatibility: When selecting boiler grate chain sprockets, it is important to ensure compatibility with the specific type and model of the moving grate chains installed in the boiler. The sprockets should be designed to match the pitch, attachment configuration, and load requirements of the grate chains.Boiler grate chain sprockets are critical components that enable the smooth and efficient movement of the moving grate chains in boilers. Their proper design, sizing, and maintenance contribute to the reliable operation and longevity of the moving grate system, ensuring efficient solid fuel combustion and energy production in various industrial applications.

Boiler Moving Grate Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains, 81X conveyor chains,?agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel mill chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain, 500 Class bucket elevator chain, 600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
