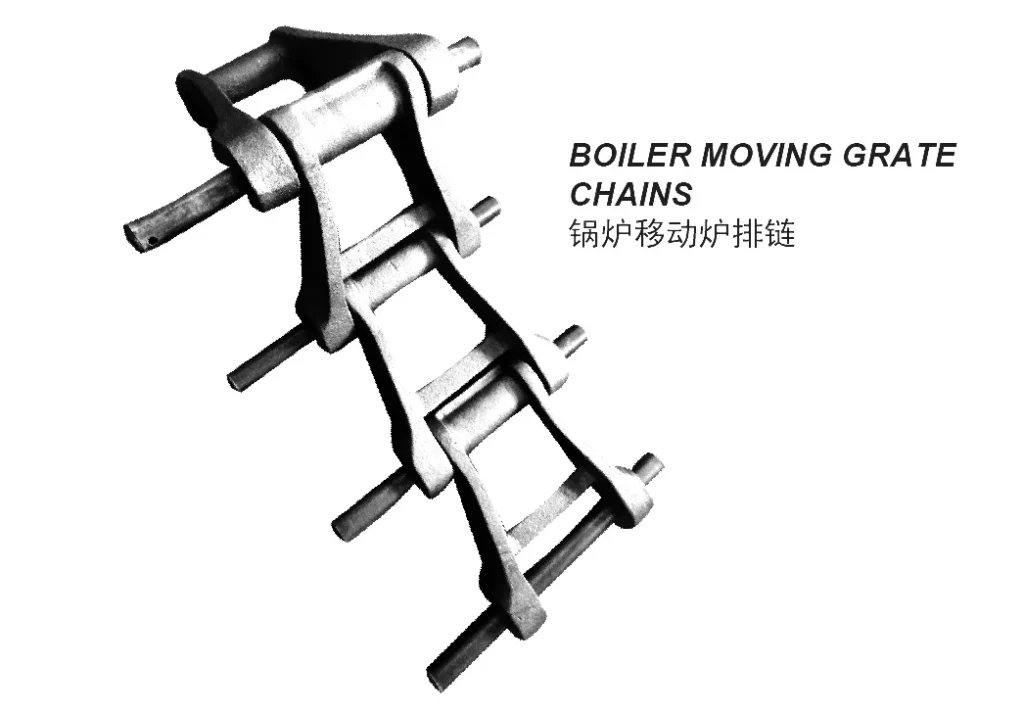

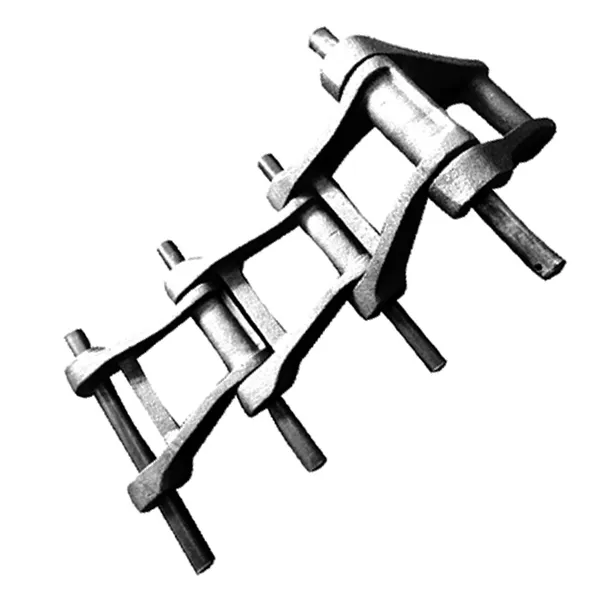

The JK5109 boiler moving grate chains are a specialized component used in boilers with a moving grate system. It plays a crucial role in the efficient combustion of solid fuels, such as biomass, coal, or waste materials, in industrial settings. The moving grate system is commonly found in biomass-fired power plants, waste-to-energy facilities, and other industries that rely on solid fuel combustion.The moving grate chain is responsible for carrying the solid fuel across the combustion chamber at a controlled rate. It consists of a series of interconnected links that form a continuous loop. The JK5109 boiler grate chains are typically made of high-quality alloy steel to withstand the high temperatures and mechanical stress experienced during the combustion process.The JK5109 boiler moving grate chains are known for their durability, strength, and resistance to wear and tear. They are designed to withstand the harsh operating conditions of boiler systems, including high temperatures, heavy loads, and exposure to corrosive gases and ash. The chains are engineered to provide reliable and consistent performance, ensuring the smooth and efficient operation of the moving grate system.The design of the JK5109 boiler moving grate chains allows for easy installation and maintenance. The chains are equipped with various attachments and accessories that facilitate their proper functioning, such as drive sprockets, tensioning devices, and lubrication systems. Regular maintenance and lubrication are essential to ensure the longevity and optimal performance of the chains.

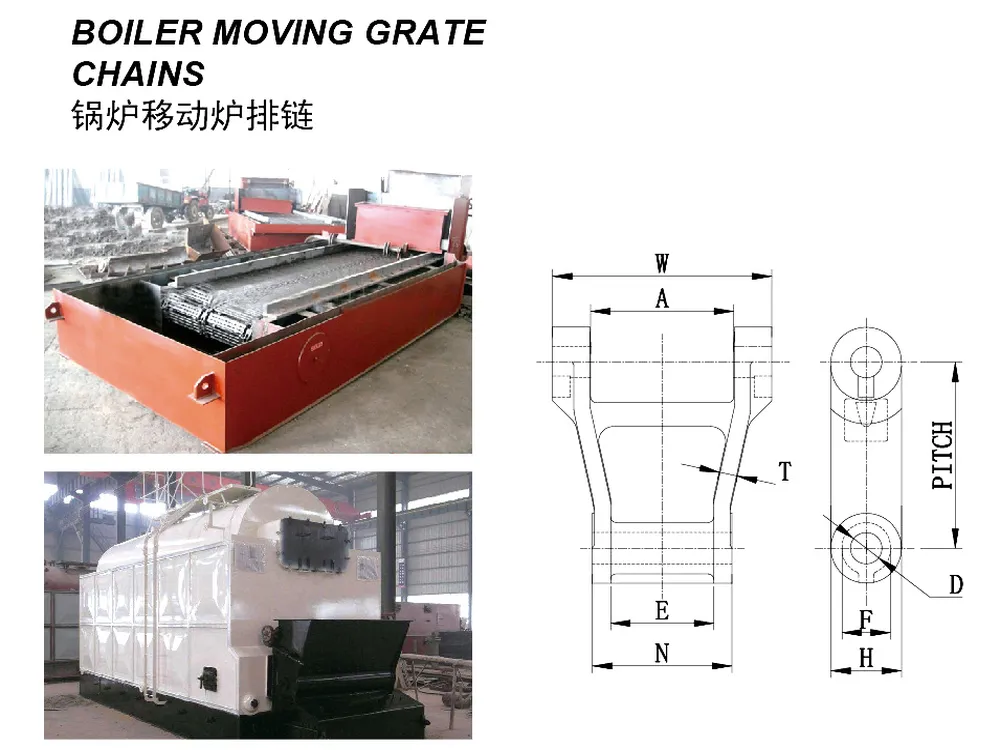

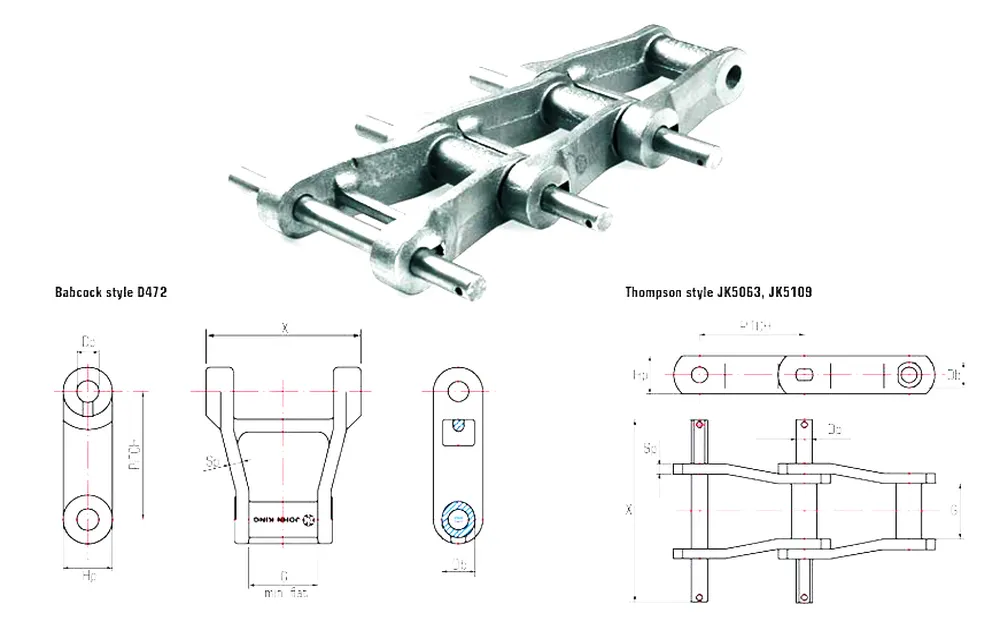

JK5109 Boiler Moving Grate Chain Dimensions:

ChainNo.		Pitch	Bush Diameter	Pin Diameter	Between Sidebars	Sidebar Height	Sidebar Thickness	Over Pin	Breaking Load
		P	D5	D6	L	H	S	F
JK5109	mm	101.60	25.40	15.70	55.60	38.10	10.00	178.60	30,500 kg
	in	4.00	1.00	0.63	2.19	1.50	0.38	7.03	67,000 lb

Benefits of JK5109 Boiler Moving Grate Chain:

The JK5109 boiler moving grate chains offer several benefits that contribute to the efficient and reliable operation of boilers with a moving grate system. Here are some key advantages:1. Durability and Longevity: The JK5109 boiler grate chains are constructed with high-quality alloy steel, known for their strength and resistance to wear and tear. This ensures that the chains can withstand the demanding operating conditions of boiler systems, including high temperatures, heavy loads, and exposure to corrosive gases and ash. The chains are designed to have a long service life, reducing the need for frequent replacements and minimizing downtime.2. Efficient Fuel Combustion: The JK5109 moving grate chains play a critical role in the combustion process by transporting solid fuels across the combustion chamber at a controlled rate. This enables efficient and complete fuel combustion, optimizing heat transfer and energy conversion. The proper movement of the fuel bed ensures consistent and uniform combustion, maximizing the boiler's thermal efficiency and reducing fuel consumption.3. Reliable Operation: The JK5109 boiler moving grate chains are engineered to provide reliable and consistent performance. Their robust design and precise manufacturing ensure smooth and trouble-free operation of the moving grate system. The chains are designed to resist jamming, sticking, or breaking, minimizing operational disruptions and maintenance requirements.4. Easy Installation and Maintenance: The JK5109 boiler grate chains are designed for easy installation and maintenance. They are equipped with various attachments and accessories that facilitate their proper functioning, such as drive sprockets, tensioning devices, and lubrication systems. This simplifies the installation process and allows for convenient maintenance, reducing downtime and optimizing operational efficiency.5. Compatibility and Customization: The JK5109 boiler moving grate chains are available in different sizes and configurations to suit various boiler designs and specifications. They can be customized to meet the specific requirements of different boiler systems, ensuring optimal performance and compatibility.

Boiler Grate Chain Sprockets for Boiler Moving Grate Chains:

Boiler grate chain sprockets are essential components that work in conjunction with the boiler moving grate chains to ensure their proper functioning in a boiler system. Sprockets are toothed wheels that engage with the links of the moving grate chains, providing the driving force and controlling the movement of the chains.Here are some key points about boiler grate chain sprockets:Design and Construction: Boiler grate chain sprockets are typically made of high-strength materials such as alloy steel or cast iron. They are designed to withstand the mechanical stresses and high temperatures associated with the operation of the moving grate chains. The sprockets are precisely manufactured to ensure accurate tooth profiles and smooth engagement with the chains.Tooth Configuration: The sprockets have teeth that align with the links of the moving grate chains. The tooth configuration is designed to match the pitch and profile of the chain links, providing proper engagement and effective power transmission. The number of teeth on the sprocket determines the speed ratio and the rate of chain movement.Drive System: The sprockets are connected to a drive system, typically a motor or a gearbox, which provides the rotational power to drive the chains. The sprockets transmit this power to the chains, causing them to move the fuel bed across the combustion chamber.Chain Tensioning: Sprockets may incorporate features for chain tensioning to maintain proper chain tension during operation. Tensioning devices such as idler sprockets or adjustable mounting systems can be used to ensure optimal chain tension, preventing slippage or excessive chain sagging.Lubrication: Proper lubrication is crucial for the smooth operation of the sprockets and the moving grate chains. Lubrication systems, such as oil baths or drip lubricators, can be employed to ensure sufficient lubrication at the sprocket-chain interface, reducing friction, wear, and noise.Maintenance and Replacement: Regular inspection and maintenance of the sprockets are necessary to monitor wear and ensure their continued performance. Over time, sprockets may experience tooth wear or damage, requiring replacement to maintain efficient chain operation.Boiler grate chain sprockets are vital components that work in tandem with the moving grate chains to facilitate the controlled movement of solid fuels in a boiler system. Their proper design, construction, and maintenance contribute to the reliable and efficient operation of the moving grate system, ensuring optimal combustion and heat transfer in industrial applications.

Boiler Moving Grate Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains, 81X conveyor chains,?agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel mill chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain,?500 Class bucket elevator chain, 600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
