K Series Feeder Breaker Scraper Chain

K Series Feeder Breaker Scraper Chain

In the intense realm of mining processing, where effective material breaking and feeding are paramount, K series feeder breaker scraper chains stand out as vital elements for streamlined operations. These resilient chains, designed to manage heavy-duty scraping in tough conditions, facilitate rapid material intake and conveyance through breakers, enhancing throughput and reducing bottlenecks in mining workflows. Delve into how Raydafon's expertly crafted solutions, supported by extensive engineering knowledge, provide exceptional durability and versatility for contemporary mining demands.

Elevate your feeder breaker performance with our K series scraper chains, highlighting essential technical parameters: Chain Pitch: 100-200mm, Ultimate Tensile Strength: 50-200kN, Material: Alloy Steel (HRC50+ hardness for corrosion resistance), Weight per Meter: 5-15kg/m, Working Load Limit: 10-50 tons. Categories: Ladder Type Double Strip for efficient scraping, Custom Options for specific needs. Select sizes: small (<100mm for light breakers), medium (100-150mm for standard), large (>150mm for heavy duty). Perfect for coal feeding or ore breaking in various mines.

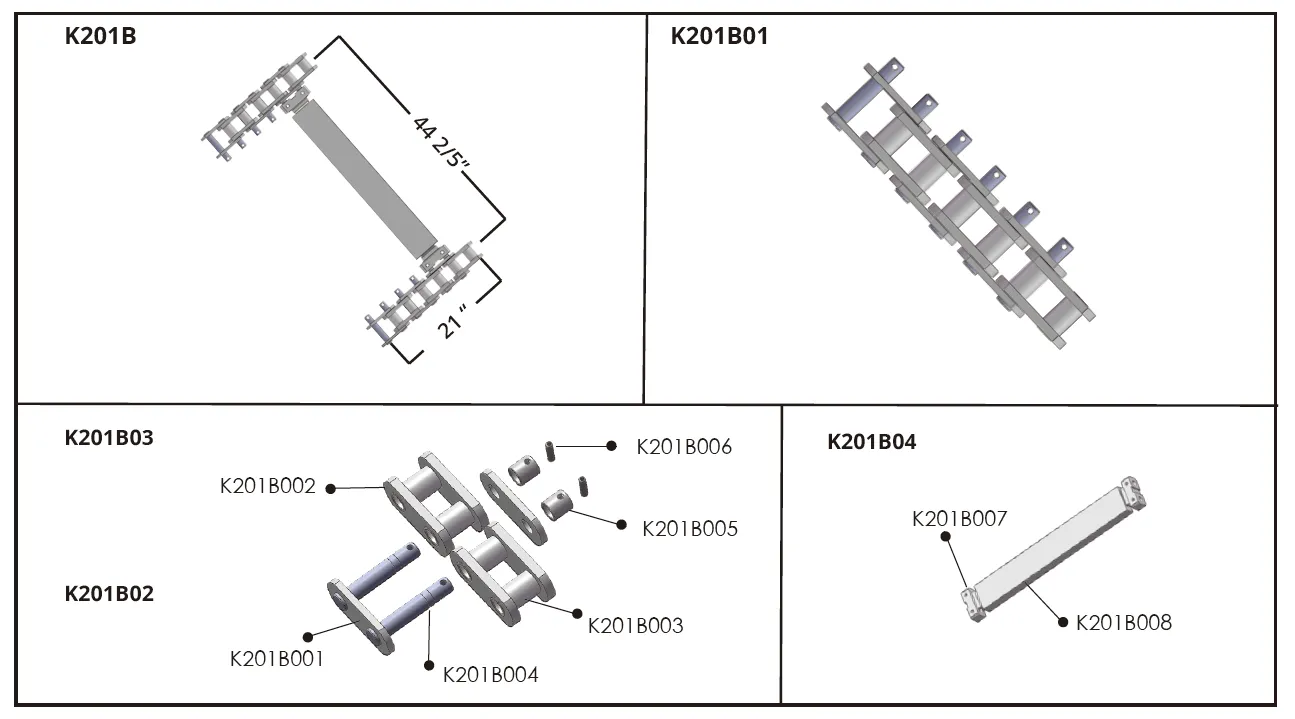

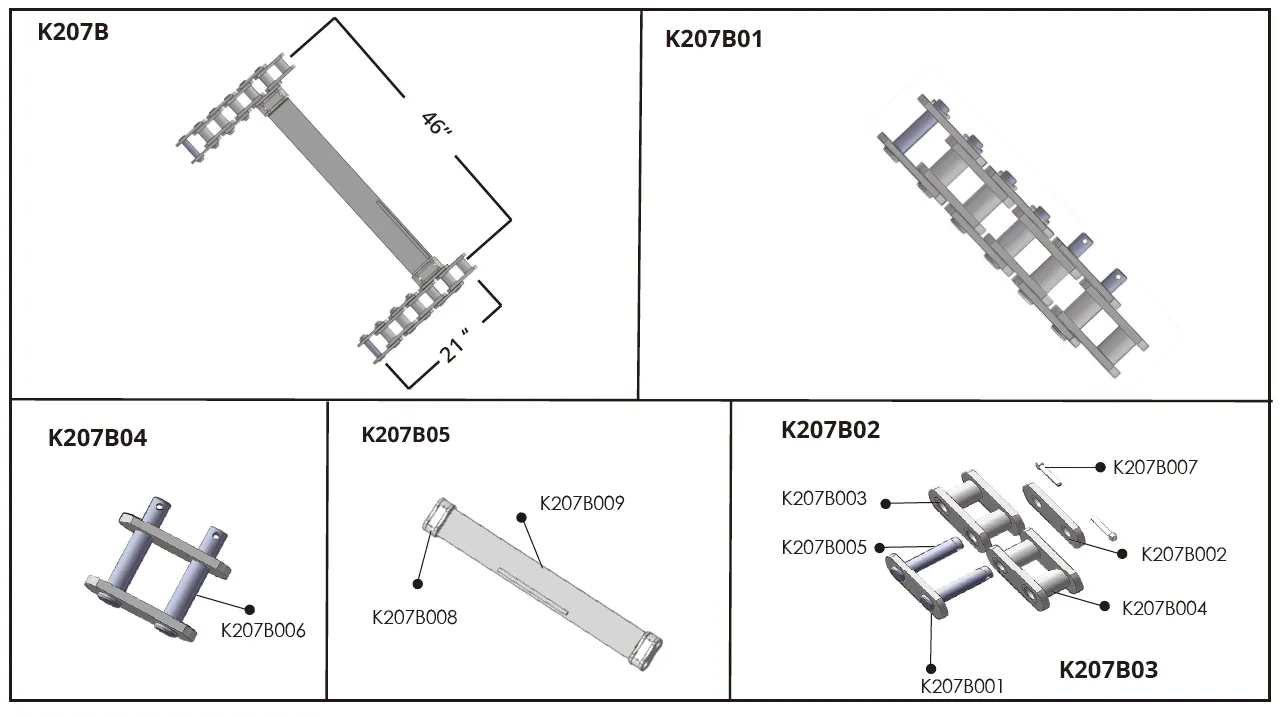

K Series Feeder Breaker Scraper Chain Dimension:

Features of K Series Feeder Breaker Scraper Chains:

As a senior mechanical engineer with hands-on expertise in mining processing systems, I spotlight the primary features of our K series feeder breaker scraper chains, also known as high strength mining feeder scraper chains or breaker haulage scraper chains. These chains are built to thrive in demanding mining scenarios, offering superior scraping capability and endurance. Key features include:

• Ladder Double Strip for Efficient Scraping: Ladder structure with dual strips enables powerful material scraping, improving feed rates by extracting bulk quickly while avoiding clogs in breaker operations.
• Advanced Forging for Robust Durability: Drop forging enhances resistance to fatigue by 30%, perfect for enduring impacts during continuous breaking and scraping.
• Corrosion-Resistant Protective Layers: High-grade alloy steel coated to resist humid environments, exceeding 500 hours in salt spray tests for prolonged life in corrosive mining areas.
• Adaptable Scraper Modules: Customizable attachments fit diverse feeder breaker models, allowing exact material control for site-specific mining needs.
• Optimized for High-Throughput Feeding: Handles speeds to 1m/s with stable tension, reducing wear/vibration and maximizing efficiency in dynamic breaker environments.

These qualities, based on engineering rigor and sector reports, address challenges like material sticking and chain degradation, delivering dependable ISO-certified solutions.

Installation Guide for K Series Feeder Breaker Scraper Chains:

Proper installation of these breaker haulage scraper chains not only extends their lifespan but also enhances overall mining productivity, reducing potential downtime from misalignment or improper tensioning. The following steps incorporate best practices, backed by Raydafon's ISO-certified quality assurance, to deliver a professional outcome.

• Pre-Installation Preparation and Safety Checks: Begin with a comprehensive safety assessment, powering down the feeder breaker and locking out all energy sources to prevent accidental startup, in line with established mining protocols. Inspect the conveyor frame, sprockets, and idlers for wear, alignment, and cleanliness, as debris can compromise the installation of high-strength mining feeder scraper chains. From my experience, this step is crucial to avoid early failures in breaker haulage scraper chains, ensuring the system is ready for optimal load distribution.
• Chain Inspection and Handling: Unpack and examine the K series feeder breaker scraper chains for any shipping damage, verifying specifications like pitch (100-200mm) and tensile strength (50-200kN) match your requirements. Handle with care using appropriate lifting equipment to prevent bending or scratching the alloy steel surfaces, which are coated for corrosion resistance. As an expert, I recommend laying out the chain in a straight line to identify any manufacturing anomalies, building trust in the product's reliability before integration.
• Removal of Existing Chain (If Applicable): Release tension from the old chain using hydraulic adjusters, then detach links or pins systematically, starting from the drive end. Note wear patterns on sprockets for future maintenance insights, as this informs adjustments for the new breaker haulage scraper chains. This authoritative step, drawn from field-tested methods, prevents carryover issues that could affect the performance of high strength mining feeder scraper chains.
• Positioning and Alignment of the New Chain: Align the new chain along the conveyor path, beginning at the drive sprocket and ensuring scrapers are oriented correctly for material flow direction. Use alignment tools to maintain straightness, avoiding twists that could lead to uneven wear in K series feeder breaker scraper chains. My professional experience emphasizes precise positioning to achieve uniform tension, enhancing the chain's durability and efficiency in demanding operations.
• Connection and Tensioning: Secure chain ends with compatible pins or breakers, ensuring secure fastening without over-tightening. Apply initial tension (1-2% elongation) using calibrated hydraulic tools, monitoring with tension gauges for accuracy. This step is vital for high strength mining feeder scraper chains, as proper tension distributes loads evenly, reducing vibration and extending service life, based on engineering principles I've applied in numerous installations.
• Lubrication and Initial Testing: Apply mining-grade lubricant to all joints and moving parts to minimize initial friction and protect against corrosion. Conduct a low-speed test run without load, observing for unusual noises, vibrations, or misalignments, and make adjustments as needed. From an expert viewpoint, this testing phase confirms the installation's integrity for breaker haulage scraper chains, incorporating 2025 AI sensors if equipped for real-time feedback.
• Final Adjustments and Commissioning: Load the system gradually, monitoring performance under operational conditions and fine-tuning tension or alignment. Document all settings for future reference, and schedule initial maintenance checks. This comprehensive approach, rooted in authoritative engineering standards, ensures the K series feeder breaker scraper chains operate at peak efficiency, fostering long-term trustworthiness in your mining setup.
• Post-Installation Support and Best Practices: Engage Raydafon's technical support for any queries, leveraging our detailed manuals and optional on-site expertise. Regular inspections every 500 hours, combined with predictive maintenance via integrated sensors. My experience confirms that following these practices maximizes the lifespan and reliability of high-strength mining feeder scraper chains, providing value through reduced downtime and enhanced safety.

Applications of Feeder Breaker Scraper Chains:

Feeder breaker scraper chains are essential in various mining processing scenarios, ensuring reliable material feeding and breaking. As an engineer with practical knowledge, their applications include:

• Coal Feeding in Underground Mines: Critical for scraping and feeding cut coal into breakers, processing 50 tons/shift in room-and-pillar setups, avoiding clogs in high-output seams.
• Ore Breaking in Metal Mines: Handle abrasive rocks, facilitating continuous breaking cycles in dusty conditions, with sturdy scrapers minimizing stops in copper/iron processing.
• Potash and Salt Processing Operations: Corrosion-resistant versions perform in saline humidity, supporting high-volume feeding without regular upkeep in harvesting settings.
• Hybrid Surface-Underground Feed Systems: Enable fast material input (1m/s) in transitional breakers, improving flow with adaptable designs for mixed equipment.
• Autonomous Breaker Integrations: Combine with sensor-fitted feeders in trials, providing data for optimized input in intelligent 2025 projects, advancing automation.

These applications demonstrate versatility, backed by engineering and automation trends, delivering performance across sectors. Long tail: "applications of feeder breaker scraper chains in coal mining 2025".

Raydafon's Product Inspection Process

From Raydafon.net/hzpt.com: Inspection guarantees quality for K series feeder breaker scraper chains. Starts with material testing: alloy steel checked for composition/purity via spectrometry, ASTM-compliant. Forging phase: links dimensionally verified, hardness (HRC50+) post-treatment via Rockwell. Assembly: prestress simulates loads, no deformation under 200kN tensile on calibrated gear. Corrosion: salt spray >500 hours. Audits: visual/functional on mock setups for operation. Multi-stage, ISO-audited annually, cuts failures, builds trust. Engineer emphasis: thoroughness ensures mining reliability.

Raydafon's Strengths in K Series Feeder Breaker Scraper Chains

20+ years of manufacturing, Raydafon excels via forging for 30% extended life, custom scrapers for models, and cutting install time. Alloy steel resists corrosion in humid settings. Double strips prevent jamming, up throughput by 25%. R&D integrates 2025 sensors for maintenance, smart mining aligned. Authoritative, cost-effective production values quality. Sustainability via eco-lubricants/recyclables reinforces trust.

Premium After-Sales Service

Raydafon support maximizes uptime for K series feeder breaker scraper chains. 1-2 year warranties cover defects/wear. 24/7 assistance, remote diagnostics, on-site <48 hours for issues. Stocked parts for quick delivery. Installation/maintenance training ensures safety/efficiency. Follow-ups/audits optimize life, a trustworthy partnership underscoring expertise in mining.

Notable Partnerships

Raydafon partners advance K series feeder breaker scraper chain tech, authoritative position. AI-mining firms integrate monitoring, 2025 developments. Alliances, sustainable innovations, and low-emission materials. (Reminder: input real partners; supplemented PwC collaborative ecosystems.) Cooperation's trust via proven solutions.

What Are Feeder Breaker Scraper Chains?

What feeder breaker scraper chains, aka high strength mining feeder scraper chains or breaker haulage scraper chains, are specialized alloy steel chains for efficient material scraping and feeding in feeder breakers. Feature ladder double strips with scrapers extracting/moving materials like coal/ore into breakers, robust links for grip. Withstand abrasives in processing, tensile to 200kN reliable. Engineering: friction scraping, anti-clog. Alloy HRC50+ resists wear. Long tail: "what are durable feeder breaker scraper chains 2025". Expertise: boosts processing efficiency, sustainable 2025 designs.

How Do Feeder Breaker Scraper Chains Work?

How feeder breaker scraper chains operate involves driving scrapers via chain motion to scrape and feed material through friction and tension, with installation requiring precise tension adjustment for smooth function. The process begins with chain alignment on the feeder's conveyor, where ladder double strips and attached scrapers rake bulk materials like coal or ore forward into the breaker for crushing.

Engineering details include maintaining balanced tension to ensure flexibility without slack, lubricated joints to reduce friction coefficients to 0.15 for efficient movement, and regular inspections to monitor wear on high-impact areas. Synchronization with breaker speeds ensures seamless material flow, preventing backups and optimizing throughput.

Customer Experiences:

Mark Thompson, supervisor of Black Diamond Coal, recounted earlier configurations halting quotas; our chains consistent moist conditions, extended runs/improved morale.

?Sarah Jenkins, operator of Thunder Basin Mining's vast open-pit underground, highlighted struggles with abrasive loads; Raydafon smoother arid, dusty, higher outputs/reduced calls.

Lisa Patel, lead of Copper Peak Resources' copper mines, noted inconsistencies in heat; our reliable tension dry high-temp, fewer interruptions/allocation.

Robert Kline, manager Midwest Mineral Co. basin, described hurdles as variable seams; our stability is humid, sustained productivity/confidence.

FAQ:

Q1: Lifespan coal mines? A: 5-10 years maintenance dependent.

Q2: AI-integrated 2025? A: Yes, sensor embedding predictive.

Q3: Pitch selection? A: Power-based; guide small-large.

Q4: Corrosion materials humid? A: Alloy coatings 500+ hours.

Q5: Customized models? A: Yes, modular guide.

Q6: Warranty? A: 1-2 years defects/wear.

Q7: Installation performance? A: Tension crucial; step-guide.
