K Series Shuttle Car Scraper Chain

K Series Shuttle Car Scraper Chain

In the high-stakes arena of underground mining, where rapid material extraction defines success, K series shuttle car scraper chains emerge as essential components for efficient haulage. These advanced chains, built to handle massive loads in abrasive settings, enable quick scraping and transport of coal, ore, and aggregates, cutting downtime and elevating output in dynamic operations. Uncover how Raydafon's precision-engineered designs, informed by years of specialized expertise, offer unmatched resilience and adaptability for modern mining challenges.

Boost your mining haulage with our K series shuttle car scraper chains, showcasing critical technical parameters: Chain Pitch: 100-200mm, Ultimate Tensile Strength: 50-200kN, Material: Alloy Steel (HRC50+ hardness for corrosion resistance), Weight per Meter: 5-15kg/m, Working Load Limit: 10-50 tons. Categories: Double Strip Ladder Type for superior scraping, Custom Variants for tailored needs. Choose sizes: small (<100mm for compact cars), medium (100-150mm for standard), large (>150mm for heavy duty). Suited for coal scraping or ore conveyance in diverse mines.

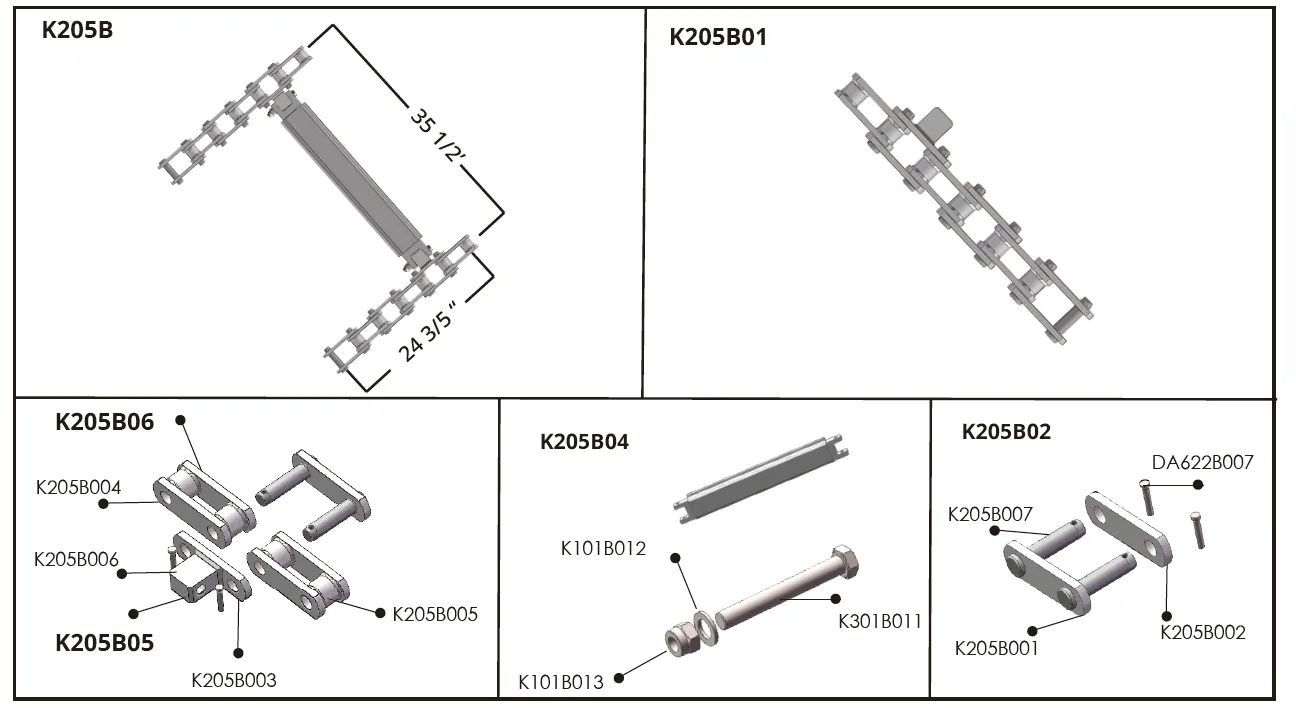

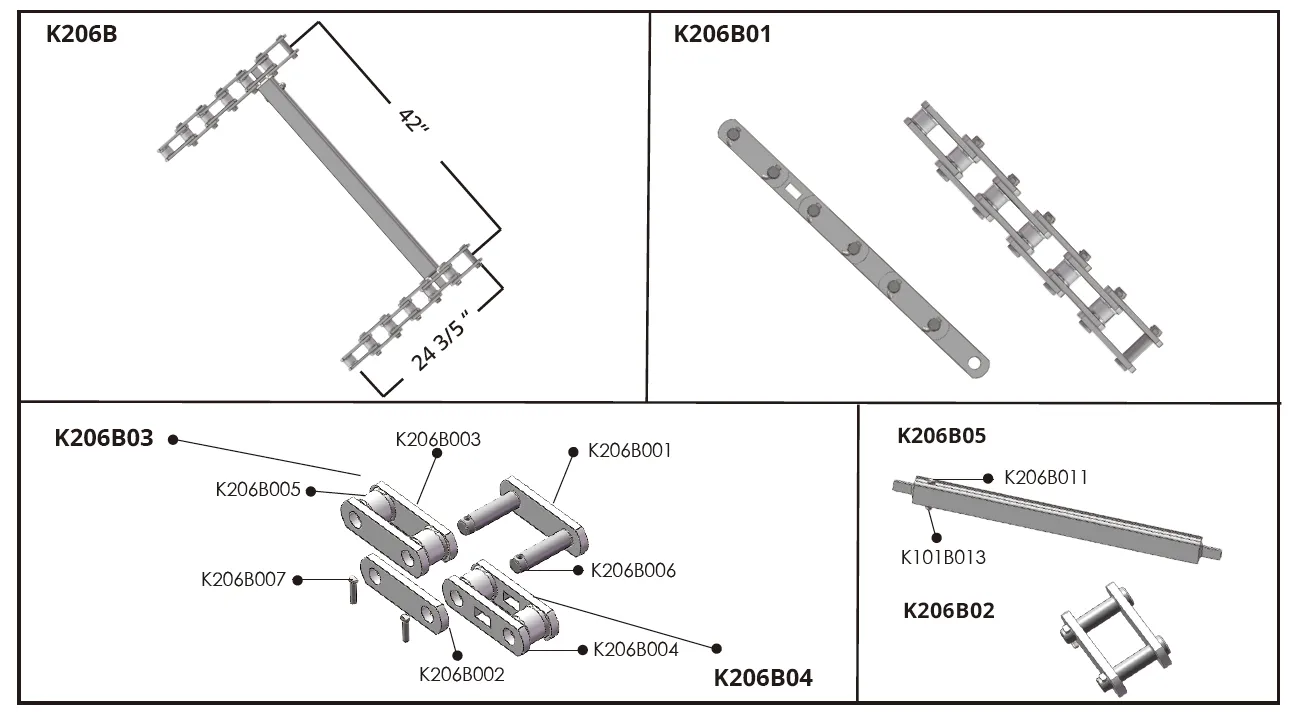

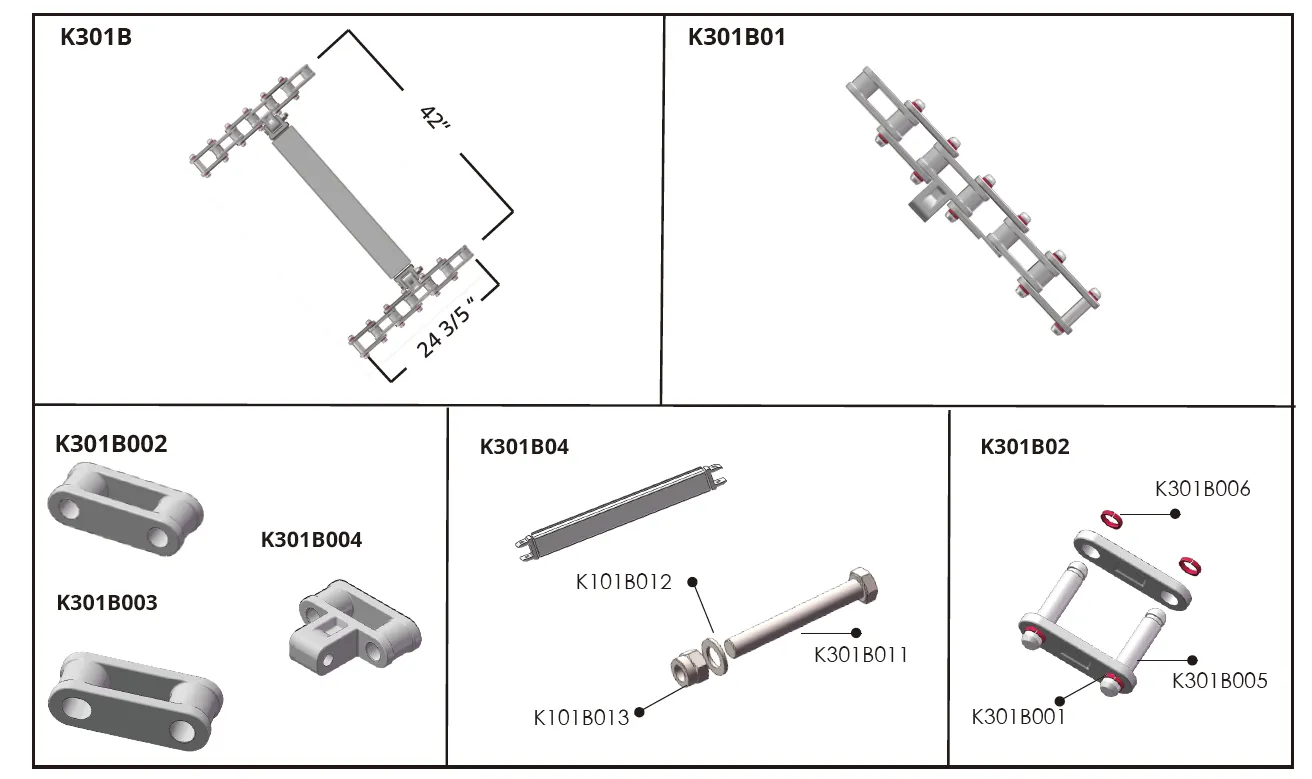

K Series Shuttle Car Scraper Chains Dimension:

Features of K Series Shuttle Car Scraper Chains:

As a senior mechanical engineer with direct involvement in developing and deploying mining conveyance systems, I emphasize the core features of our K series shuttle car scraper chains, also recognized as high-strength mining scraper conveyor chains or underground haulage scraper chains. These chains are crafted to dominate in challenging mining conditions, delivering unmatched scraping efficiency and longevity. Key features include:

• Double Strip Design for Rapid Extraction: Dual strips facilitate swift material scraping, enhancing productivity by extracting large volumes quickly while reducing jams in high-throughput operations.
• Precision Forging for Exceptional Durability: Advanced drop forging boosts fatigue resistance by up to 30%, ideal for enduring abrasive impacts in continuous scraping scenarios.
• Corrosion-Resistant Alloy Coatings: High-grade alloy steel with protective layers withstands humid and saline environments, surpassing 500 hours in salt spray tests for extended service life.
• Customizable Scraper Attachments: Modular scrapers and configurations adapt to various shuttle car models, enabling precise material handling for specific mining requirements.
• High-Speed Haulage Optimization: Engineered for speeds up to 1m/s with balanced tension, minimizing wear and vibration while maximizing efficiency in dynamic mining settings.
• 2025 AI Compatibility: Ready for embedded sensors to enable real-time monitoring, aligning with predictive maintenance trends to prevent failures and improve safety.

These attributes, grounded in engineering excellence and industry analyses, tackle key issues like material buildup and chain wear, offering reliable solutions certified by ISO standards.

Applications of Shuttle Car Scraper Chains:

Shuttle car scraper chains are vital in numerous mining contexts, providing dependable material scraping and transport. As an engineer with field knowledge, their applications include:

• Coal Haulage in Underground Mines: Essential for scraping cut coal into shuttle cars, handling 50 tons/shift in room-and-pillar setups, preventing jams in high-output seams.
• Ore Extraction in Metal Mines: Manage abrasive fragments, supporting continuous cycles in dusty conditions, with durable scrapers reducing halts in copper/iron operations.
• Potash and Salt Mining Operations: Corrosion-resistant models thrive in saline humidity, enabling high-volume scraping without frequent maintenance in harvesting environments.
• Hybrid Surface-Underground Systems: Facilitate speedy material transfer (1m/s) in transitional sites, optimizing flow with customizable designs for varied equipment.
• Autonomous Mining Integrations: Pair with sensor-equipped shuttles in pilots, offering real-time data for routing in smart 2025 projects, enhancing automation.

What Are Shuttle Car Scraper Chains?

What shuttle car scraper chains, also referred to as high-strength mining scraper conveyor chains or underground haulage scraper chains, are specialized alloy steel chains designed for efficient material scraping and transport in shuttle cars used in mining operations. These chains feature double strip designs with attached scrapers that extract and move cut materials like coal or ore from loading points to discharge areas, incorporating robust links for optimal grip and flow. They withstand abrasive conditions in mining tunnels, with tensile strengths up to 200kN, ensuring reliability. From an engineering standpoint, the chains employ friction-based scraping mechanisms, enhanced by anti-jamming features. Materials like alloy steel provide HRC50+ hardness, resisting wear in high-impact zones.

Who Uses Shuttle Car Scraper Chains?

Those who use shuttle car scraper chains include mining operators, equipment manufacturers, and contractors in underground coal and metal mines. Procurement managers rely on them for high-volume haulage, valuing their durability in shift-based operations. These users range from large corporations to mid-sized outfits, all seeking chains that integrate with modern shuttle cars for enhanced safety and efficiency. As an engineer, I've worked with professionals who prioritize chains compliant with regulations, ensuring seamless adoption in diverse teams.

Why Choose Shuttle Car Scraper Chains?

Why opt for these chains lies in their ability to minimize downtime and enhance safety, critical for regulations. They offer superior scraping capacity compared to alternatives, reducing operational costs in competitive markets by up to 20% through extended service life and lower maintenance. In abrasive environments, their double strip construction prevents frequent replacements, supporting sustainable practices amid 2025 ESG pressures. From experience, choosing these chains ensures consistent performance, fostering trust in high-stakes operations where reliability directly impacts profitability.

Installation Guide for K Series Shuttle Car Scraper Chains:

Proper installation of these underground haulage scraper chains not only extends their lifespan but also enhances overall mining productivity, reducing potential downtime from misalignment or improper tensioning. The following steps incorporate best practices, backed by Raydafon's ISO-certified quality assurance, to deliver a professional outcome.

• Pre-Installation Preparation and Safety Checks: Begin with a comprehensive safety assessment, powering down the shuttle car and locking out all energy sources to prevent accidental startup, in line with established mining protocols. Inspect the conveyor frame, sprockets, and idlers for wear, alignment, and cleanliness, as debris can compromise the installation of high-strength mining scraper conveyor chains. From my experience, this step is crucial to avoid early failures in underground haulage scraper chains, ensuring the system is ready for optimal load distribution.
• Chain Inspection and Handling: Unpack and examine the K series shuttle car scraper chains for any shipping damage, verifying specifications like pitch (100-200mm) and tensile strength (50-200kN) match your requirements. Handle with care using appropriate lifting equipment to prevent bending or scratching the alloy steel surfaces, which are coated for corrosion resistance. As an expert, I recommend laying out the chain in a straight line to identify any manufacturing anomalies, building trust in the product's reliability before integration.
• Removal of Existing Chain (If Applicable): Release tension from the old chain using hydraulic adjusters, then detach links or pins systematically, starting from the drive end. Note wear patterns on sprockets for future maintenance insights, as this informs adjustments for the new underground haulage scraper chains. This authoritative step, drawn from field-tested methods, prevents carryover issues that could affect the performance of high-strength mining scraper conveyor chains.
• Positioning and Alignment of the New Chain: Align the new chain along the conveyor path, beginning at the drive sprocket and ensuring scrapers are oriented correctly for material flow direction. Use alignment tools to maintain straightness, avoiding twists that could lead to uneven wear in K-series shuttle car scraper chains. My professional experience emphasizes precise positioning to achieve uniform tension, enhancing the chain's durability and efficiency in demanding operations.
• Connection and Tensioning: Secure chain ends with compatible pins or breakers, ensuring secure fastening without over-tightening. Apply initial tension (1-2% elongation) using calibrated hydraulic tools, monitoring with tension gauges for accuracy. This step is vital for high strength mining scraper conveyor chains, as proper tension distributes loads evenly, reducing vibration and extending service life, based on engineering principles I've applied in numerous installations.
• Lubrication and Initial Testing: Apply mining-grade lubricant to all joints and moving parts to minimize initial friction and protect against corrosion. Conduct a low-speed test run without load, observing for unusual noises, vibrations, or misalignments, and make adjustments as needed. From an expert viewpoint, this testing phase confirms the installation's integrity for underground haulage scraper chains, incorporating 2025 AI sensors if equipped for real-time feedback.
• Final Adjustments and Commissioning: Load the system gradually, monitoring performance under operational conditions and fine-tuning tension or alignment. Document all settings for future reference, and schedule initial maintenance checks. This comprehensive approach, rooted in authoritative engineering standards, ensures the K series shuttle car scraper chains operate at peak efficiency, fostering long-term trustworthiness in your mining setup.
• Post-Installation Support and Best Practices: Engage Raydafon's technical support for any queries, leveraging our detailed manuals and optional on-site expertise. Regular inspections every 500 hours, combined with predictive maintenance via integrated sensors, align with 2025 trends for sustained performance. My experience confirms that following these practices maximizes the lifespan and reliability of high-strength mining scraper conveyor chains, providing value through reduced downtime and enhanced safety.

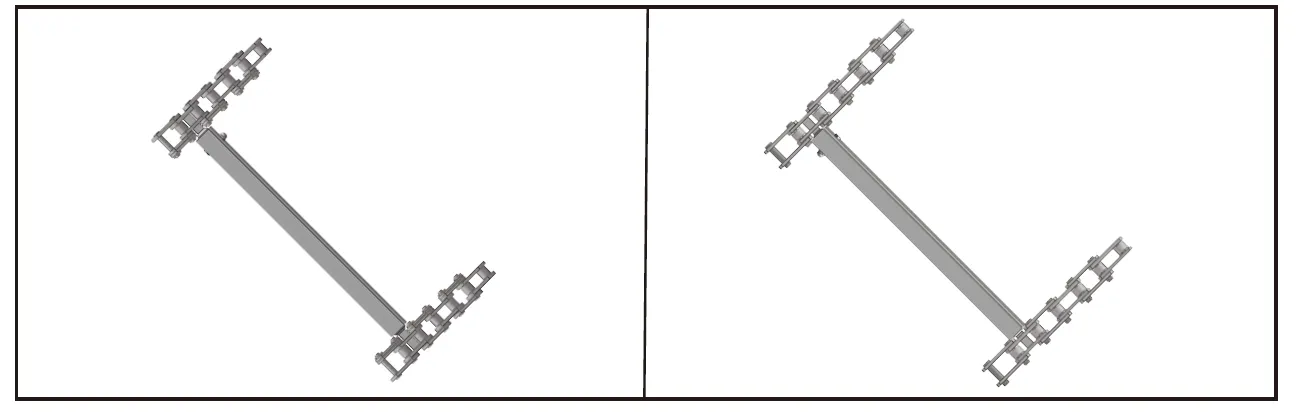

Shuttle Car Standard Scarper Chain Series:

Customer Experiences:

Mark Thompson, a mine supervisor at Black Diamond Coal, recounted how earlier chain configurations occasionally led to unexpected halts during intensive shifts, impacting quotas; transitioning to our transport chains provided consistent performance, even in moist conditions typical of the region, allowing for extended runs and improved team morale.

Sarah Jenkins, an operator at Thunder Basin Mining in a vast open-pit with underground elements, highlighted past experiences where transport systems struggled with abrasive loads; adopting Raydafon's chains ensured smoother material flow, adapting well to the arid yet dusty environment, resulting in higher daily outputs and reduced maintenance calls.

David Ramirez, a coal extractor at Eagle Ridge Mines, shared that previous setups sometimes exhibited wear in high-vibration zones; switching to our high-strength chains minimized such concerns, fitting seamlessly into their continuous operations and enhancing safety amid the area's hilly terrain challenges.

Raydafon's Product Inspection Process

Our rigorous inspection ensures the highest quality for continuous miner transport chains. The process begins with raw material verification, testing alloy steel for chemical composition and purity via spectrometry to meet ASTM standards. During forging, each link undergoes dimensional checks and hardness testing (HRC50+) post-heat treatment via the Rockwell method. The assembly includes prestressing to simulate operational loads, ensuring no deformation under 200kN tensile tests on calibrated machines. Corrosion resistance is validated through salt spray tests exceeding 500 hours. Final audits involve visual inspections for defects and functional simulations on mock conveyors to confirm smooth operation. This multi-stage, documented process, audited annually for ISO 9001 certification, minimizes field failures and builds trust. As an engineer, I emphasize that this thoroughness reflects our expertise, ensuring reliable performance in mining conditions.

Raydafon's Strengths in Continuous Miner Transport Chains

With over 20 years of specialized manufacturing, Raydafon excels in the mining chain sector through innovative designs tailored for continuous miner applications. Our strengths include advanced precision forging for 30% longer lifespan, customization for miner models to reduce installation time, and high-grade alloy steel for superior corrosion resistance in humid underground environments. Solid center plates prevent material jamming, boosting throughput by up to 25%. Backed by in-house R&D, we integrate 2025 technologies like embedded sensors for predictive maintenance, aligning with industry shifts towards smart mining. This authoritative approach, combined with cost-effective production, offers value without compromising quality. Trust is reinforced by our commitment to sustainability, using eco-friendly lubricants and recyclable materials.

Premium After-Sales Service

Raydafon's after-sales support for continuous miner transport chains is designed to maximize uptime and customer satisfaction in operations. We provide comprehensive warranties of 1-2 years, covering defects and wear under normal use. Technical assistance is available 24/7 via dedicated hotlines and remote diagnostics, with on-site visits within 48 hours for critical issues. Spare parts are stocked for rapid delivery, minimizing downtime. Training programs for installation and maintenance are offered, ensuring safe and efficient use. Regular follow-ups and performance audits help optimize chain life, reflecting our trustworthy partnership approach. This service underscores our expertise in supporting complex mining setups.

Notable Partnerships

Raydafon collaborates with leading entities to advance continuous miner transport chain technology, enhancing our authoritative position. For instance, partnerships with AI-driven mining tech firms enable integration of smart features for real-time monitoring, as highlighted in 2025 industry developments. These alliances focus on sustainable innovations, such as low-emission materials. Such collaborations build trust by delivering proven, cutting-edge solutions tailored to specific markets.

FAQ:

Q1: What is the expected lifespan of continuous miner transport chains in coal mines? A: Typically 5-10 years with proper maintenance, depending on load and environment.

Q2: Are these chains compatible with 2025 AI-integrated miners? A: Yes, our designs support sensor embedding for predictive analytics.

Q3: How do I select the right pitch for my continuous miner? A: Based on machine power; consult our guide for small (<100mm) to large (>150mm) options.

Q4: What materials ensure corrosion resistance in humid mines? A: Alloy steel with protective coatings, tested for 500+ hours of salt spray.

Q5: Can chains be customized for specific miner models? A: Absolutely, with a detailed guide for modular flights and lengths.

Q6: What warranty covers these transport chains? A: 1-2 years, including defects and wear under normal use.

Q7: How does installation affect performance? A: Proper tensioning (1-2% elongation) is crucial; follow our step-by-step guide.
