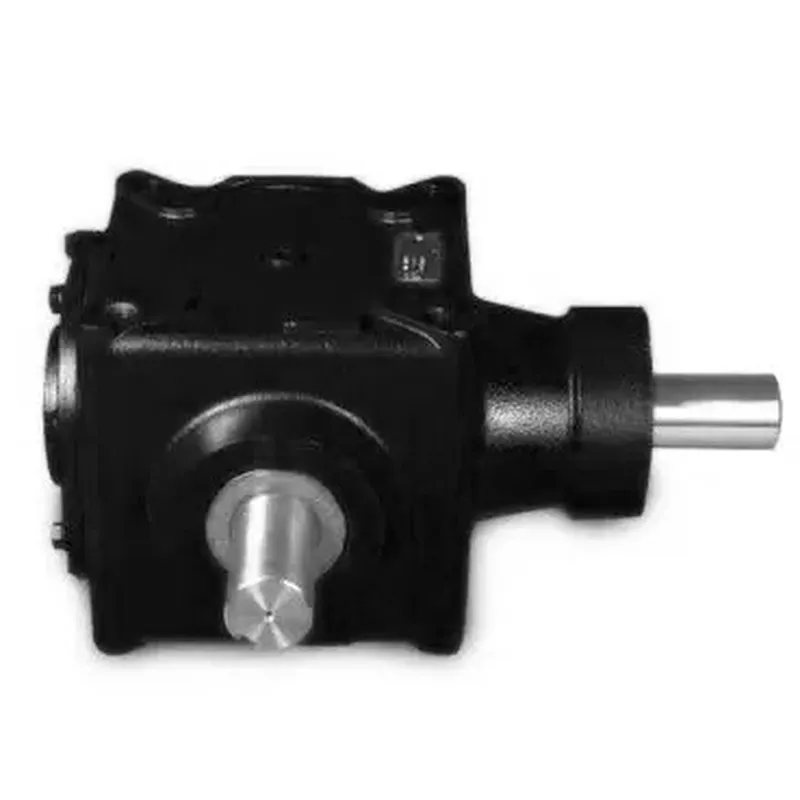

L Series Grain Storage Gearbox RDF-1005 for Agricultural Grain Storage

The L Series Grain Storage Gearbox is a specialized type of gearbox designed for use in agricultural grain storage systems. It is particularly engineered to handle the demands of equipment used in the storage and retrieval of grain, such as sweep augers, unloaders, and other conveying systems within silos and storage bins.This gearbox is built to provide high torque at low speeds, which is essential for the heavy-duty operations required to move large volumes of grain gently and efficiently. The L Series features a robust, compact design that can withstand the dusty, moist, and abrasive environment typical of grain storage facilities. Made from durable materials, it often includes enhanced sealing mechanisms to prevent the ingress of fine grain particles and moisture, which can cause corrosion and wear.Internally, the gearbox usually incorporates hardened steel gears, high-quality bearings, and possibly a cooling system to manage thermal loads during extended periods of operation. The configuration of the gears is optimized to ensure smooth operation and minimal maintenance. This reliability is crucial during harvest periods when equipment uptime is critical to economic success. The L Series gearbox is an integral component that enhances the efficiency and safety of grain storage operations, ensuring that the quality of the grain is maintained from storage to market.

Grain Storage Gearbox RDF-1005 Specifications

Product Name	Grain storage gearbox
Material	HT250 for housing, 40CrMnTi for gear shaft.
Color	Customization
Mould No	6.5
Used	Grain storage

Benefits of Using Grain Storage Gearbox RDF-1005

Using a grain storage gearbox in agricultural grain storage systems offers several benefits that enhance the efficiency, reliability, and overall performance of grain handling processes. Here are some key advantages:

1. High Torque Efficiency: Grain storage gearboxes are designed to deliver high torque at low speeds, which is essential for the powerful and steady operation of conveyors and augers used in grain storage. This capability allows for the efficient movement of large volumes of grain, which is necessary for filling and emptying storage facilities rapidly and effectively.
2. Durability: Built with rugged materials and designed to withstand the harsh conditions of agricultural environments, these gearboxes are highly durable. They can resist the abrasive effects of grain dust, moisture, and other environmental factors that typically cause wear and tear. This robust construction ensures a longer lifespan and reduces the need for frequent replacements.
3. Reduced Maintenance: The design of grain storage gearboxes often includes features such as self-lubricating systems and advanced sealing mechanisms that keep out contaminants like dust and water. These features help to minimize the maintenance required, reducing downtime and operational costs.
4. Energy Efficiency: By optimizing the mechanical output, grain storage gearboxes ensure that the power is used efficiently. This efficient use of power helps reduce the energy consumption of grain handling equipment, which can lead to significant cost savings over time and help in maintaining a lower carbon footprint.
5. Precision in Handling: The gearbox allows for precise control over the equipment, which is crucial in managing the flow and handling of grain. This precision prevents damage to the grain during transport and storage, ensuring that the quality of the grain is preserved, which is vital for market value and suitability for processing.
6. Versatility and Integration: Grain storage gearboxes are compatible with a variety of equipment and can be easily integrated into different systems within a grain storage facility. This versatility enables them to be used in various applications, from vertical lifts in silos to horizontal conveyors and augers, making them an integral part of the storage system.

Common Applications of Grain Storage Gearbox RDF-1005

The grain storage gearbox is a critical component in various agricultural grain storage systems, ensuring efficient and reliable operation across several applications. Here are some common applications of grain storage gearboxes in agricultural grain storage:

• Silo Unloaders: In silos, unloaders are crucial for extracting grain efficiently. The grain storage gearbox provides the necessary torque and speed control to operate these unloaders, allowing for smooth and continuous grain flow, which is essential for maintaining the integrity and quality of the grain during the unloading process.
• Sweep Augers: These are used inside silos to move grain towards the central unloading point. The gearbox drives the sweep augers, facilitating the even and thorough removal of grain from the silo floor. The precise control offered by the gearbox ensures that the auger operates at an optimal speed to prevent grain damage and ensure complete cleanout.
• Conveyors: Gearboxes are integral to conveyor systems that transport grain from one part of a storage facility to another or into loading areas. The gearbox adjusts conveyor speeds according to the required flow rate and operational conditions, optimizing the movement of grain and reducing bottlenecks.
• Bucket Elevators: These systems are used to vertically lift grain to different levels within storage facilities or for loading into silos. The grain storage gearbox provides the power and durability needed to handle the heavy loads associated with lifting large volumes of grain, ensuring efficient and reliable operation.
• Grain Pumps: Grain pumps, which move grain through tubes using a chain-driven flight system, rely on gearboxes for their operation. The gearbox enables the grain pump to maintain a consistent speed, ensuring smooth and efficient grain transport without causing congestion or damage to the grain.
• Aeration Fans: Although not directly involved in the movement of grain, gearboxes are also used in systems that drive aeration fans within storage facilities. These fans help maintain the proper temperature and moisture levels to preserve grain quality. The gearbox ensures that these fans operate at the correct speed for effective aeration.

Key Components:

The grain storage gearbox is a complex assembly designed to handle the rigorous demands of agricultural grain storage systems. It contains several key components that work together to provide reliable and efficient operation. Here are the major components of a grain storage gearbox:

1. Housing: The housing of the gearbox is typically made from robust materials like cast iron or steel. It serves as the protective shell that encloses the internal components, shielding them from external contaminants like dust, moisture, and debris, which are common in agricultural environments. The housing also provides structural support and maintains the alignment of the internal components under load.
2. Gears: Inside the gearbox are various gears including spur gears, helical gears, and sometimes planetary gears, depending on the design and required torque and speed specifications. These gears are usually made from hardened steel for durability and wear resistance. They are responsible for reducing the input speed from the motor to a more manageable speed, while increasing the torque output necessary for driving grain handling equipment.
3. Bearings: Bearings support the rotational shafts and maintain the alignment of the gears. They reduce friction between moving parts, enhancing the efficiency of the gearbox and extending its operational life. Common types of bearings used include ball bearings and roller bearings, which are selected based on the load and speed requirements of the application.
4. Shafts: The input and output shafts transmit mechanical power from the motor to the gearbox, and from the gearbox to the grain handling equipment, respectively. These shafts must be strong enough to handle torque and shear forces without deforming or breaking.
5. Seals and Gaskets: These components are critical for preventing the ingress of contaminants and the leakage of lubricating oil. Proper seals and gaskets ensure that the internal environment of the gearbox remains clean and lubricated, which is essential for maintaining performance and preventing premature wear.
6. Lubrication System: The lubrication system might consist of splash lubrication, pressure lubrication, or a self-lubricating design, depending on the gearbox type and application. Lubrication minimizes the wear and tear on gears and bearings, reduces heat generation, and helps in the smooth operation of the gearbox.

Working Principle:

The working principle of a grain storage gearbox in agricultural grain storage systems centers around transmitting power and modifying it to meet the specific needs of grain handling machinery such as conveyors, elevators, and augers. Here’s how it typically works:

1. Power Input: The gearbox begins its function by receiving mechanical power from a prime mover, which is typically an electric motor or an internal combustion engine. This power enters the gearbox through the input shaft.
2. Gear Reduction and Torque Multiplication: Inside the gearbox are several gears arranged in various configurations, often as spur or helical gears. When the input shaft rotates, it drives the primary gear connected to it. This primary gear then engages with larger or smaller gears to alter the speed and torque of the output. By meshing a small (drive) gear with a larger (driven) gear, the output speed is reduced while the torque is increased proportionally. This process is known as gear reduction. The ratio of the teeth counts between the drive and driven gears determines the magnitude of the speed reduction and torque increase.
3. Output Delivery: The modified speed and increased torque are transmitted through the output shaft of the gearbox. This shaft is connected to various grain-handling equipment. The increased torque is crucial for these machines, as it allows them to move large volumes of grain efficiently and with the necessary force, especially when lifting or moving against gravity.
4. Control and Regulation: Many grain storage gearboxes are equipped with additional features that allow for the adjustment of output speed and torque according to operational needs. Some gearboxes include variable speed drives or settings that can be manually or automatically adjusted to optimize performance and energy efficiency.

Common Troubleshooting:

Troubleshooting common issues with a grain storage gearbox is essential to maintaining the efficiency and reliability of agricultural grain storage systems. Here are some common problems and their potential solutions:

• Excessive Noise or Vibration: Unusual noise or vibration from the gearbox often indicates misalignment, bearing failure, or gear damage. To address this, inspect and realign the gearbox and connected machinery. Check the condition of bearings and replace them if they show signs of wear or damage. Examine gears for signs of wear, chipping, or improper meshing and make necessary repairs or replacements.
• Overheating: Gearboxes can overheat due to inadequate lubrication, overloading, or poor heat dissipation. Ensure the gearbox is not exceeding its operational capacity. Check the lubricant level and quality; replace it if it's degraded. Enhance cooling by cleaning any external cooling fins or adding an external cooling system if necessary.
• Oil Leakage: Leaks can be caused by damaged seals or gaskets, overfilling, or cracks in the gearbox housing. Inspect seals and gaskets and replace them if they are worn or broken. Ensure the oil level is correct according to manufacturer specifications, and check the housing for any structural damage that might need welding or replacement.
• Reduced Efficiency: If the gearbox is not transmitting power effectively, it could be due to worn gears, insufficient torque, or internal slippage. Check gear teeth for wear and ensure they are properly engaged. Verify that the gearbox specifications match the power and torque requirements of the application. Adjust or replace components as necessary to restore efficiency.
• Stiff or Unresponsive Operation: Difficulty in gearbox operation can result from corrosion, lack of lubrication, or accumulation of debris inside the mechanism. Clean the internal components thoroughly, ensure adequate lubrication, and check for rust or corrosion on moving parts. Replace corroded parts and consider using more corrosion-resistant materials or coatings if this is a recurring issue.
• Contaminated Lubricant: The presence of metal particles or excessive dirt in the lubricant can indicate internal wear and tear. This contamination can further accelerate wear. Regularly check and change the lubricant to ensure it is clean and up to specification. Consider installing filtration systems to maintain oil purity and extend the life of gearbox components.
