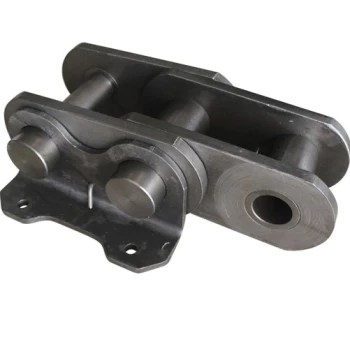

Loading Chains for Metallurgical W03075 W03100 W07100 W07150

Raydafon Group's Loading Chains for Metallurgical W03075, W03100, W07100, and W07150 are essential for heavy-duty industrial applications, offering superior durability and precision. Designed for metallurgical professionals needing reliable lifting solutions, these chains feature robust construction, enhanced safety, and seamless operation. They solve the challenge of material handling inefficiencies, providing confidence and productivity. Unlike generic options, Raydafon's chains deliver unmatched performance and tailored specifications. Trust Raydafon Group for quality that drives industrial success.

Send Inquiry

Product Description

Loading Chains for MetallurgicalW03075 W03100 W07100 W07150 W08150 W11150W11100 W19152 W19200 W19250 W25250 W25300W28200 W28300 W48250 W48300 W48400 W51450

Loading chains for metallurgical applications are specially designed to withstand the rigors of metallurgical processes. They are widely used in the steel industry. They are manufactured from high-quality alloy steels. They have a medium carbon content and are characterized by high wear resistance and tensile strength. In addition, they do not suffer from elongation.These chains are available in different grades. The grade refers to the chain's tensile strength, expressed in newtons per square millimeter. One newton is equal to 0.224805 lbs. The grade is calculated by multiplying the tensile strength by the area of the cross sections.

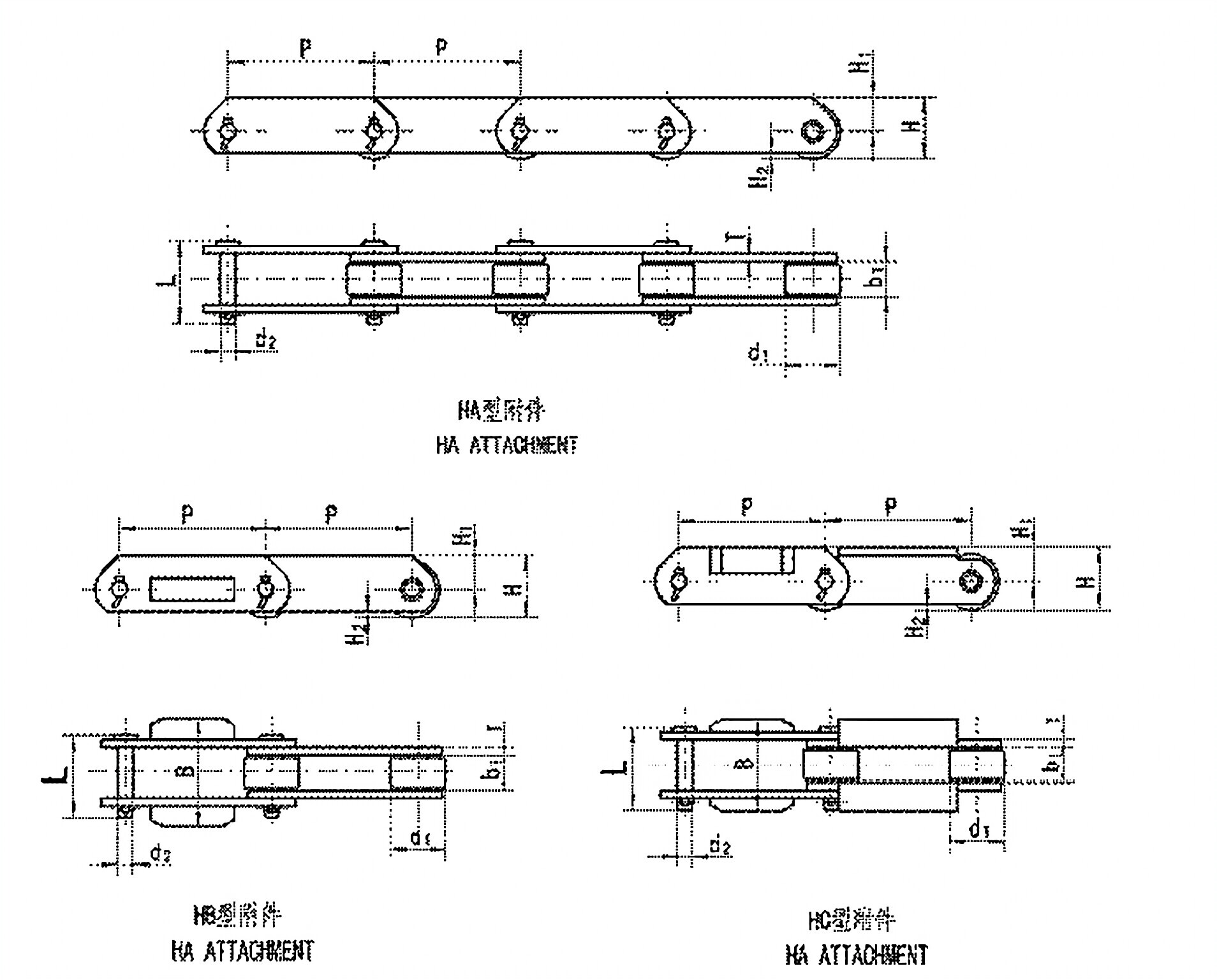

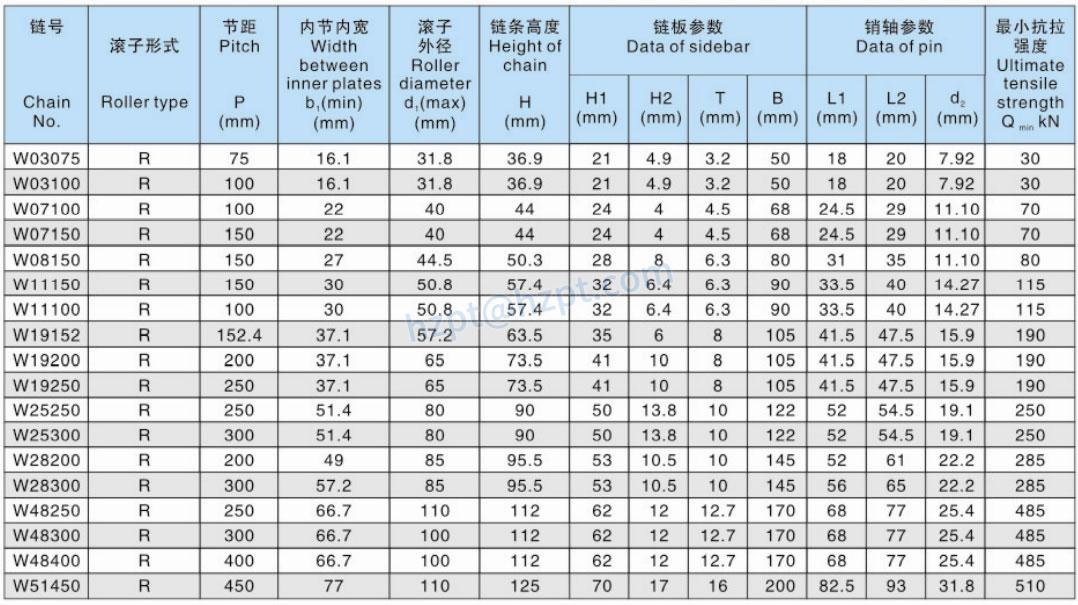

Dimensions of Loading Chains for Metallurgical

Sprockets for Loading Chains for Metallurgical Industry

Loading chains have to have high durability and high wear resistance. Ever power produces high-quality sprockets with two distinct segments that are manufactured from special grade alloy steel. They also feature localized induction hardening to improve their wear resistance.Different sprockets are designed for specific chains and are sized accordingly. For instance, a chain with a large pitch diameter will require a large sprocket with wide teeth. On the other hand, a chain with a smaller pitch diameter will require a sprocket with small teeth. The pitch diameter is the measurement between the centers of the roller pins on the chain.Moreover, sprockets can be found in a variety of materials. They can be made of metal or reinforced plastic. They are often compared to gears as they both have a wheel-shaped design with teeth. However, unlike gears, sprockets are only used with different types of chains.BS, JIS, and ANSI sprockets are available for the metallurgical industry. Stainless steel chains are also available for use in harsh environments. Hardened steel chains have a greater bearing surface area and less stretch.Another type of sprockets used in loading chains is split sprockets. These sprockets are made from steel and are split through the center. These sprockets are easy to install and remove. The split sprockets are generally available in bore diameters of 3/4" through six inches.Ever power is also a mature?sprocket supplier?that you can rely on. Contact us to get more about our sprockets! Loading Chains for Metallurgical W03075 W03100 W07100 W07150

Why Choose Us?

Raydafon transmission group is a professional?drive chain manufacturer. We have a complete chain production line, equipment selection, and process design that adhere to high efficiency, energy-saving, and automation, with perfect testing equipment, high-quality enterprise management, and professional technical personnel. We focus on the drive chains' production, processing, and sales, particular chains, chain accessories, machinery parts, and so on, forming an "aluminum, fine, special, creative" separate chain development and production system. We have mastered the core technology of chain production and are proficient in core processing. All products are widely used in sugar, paper, cement, wood, food, mining, metallurgy, and other industries. We pay attention to the reputation of product quality through IS09001:2008 quality management system certification and obtain self-supporting, agent-related products and technology import and export business qualifications. Our products are exported to all provinces and cities in China, Europe, America, and Southeast Asia.

1. Large bell-type intelligent annealing furnace:

stable and reliable annealing quality and low energy consumption2. Mesh belt furnace:

first-class domestic mesh belt furnace heat treatment production line3. Multipurpose furnace:

Epson multipurpose furnace provides stable and reliable heat treatment quality4. ABB intelligent welding robot:

instead of manual completion of complex welding operations, the welding is beautiful, stable, and reliable

5. Automatic hot riveter:?the self-developed automatic assembly line of welding chain can replace manual to realize automatic outcrop and hot riveting, with stable products, high precision, and high efficiency6. Induction quenching equipment:?the self-developed semi-automatic induction quenching equipment successfully realizes selective (local) induction quenching of pin shaft and induction quenching of sprocket teeth7. Programmable gantry cutting machine:?it has the functions of plasma cutting and flame cutting8. CNC machining center:?CNC vertical machining center and CNC horizontal machining center, which meet the processing of high-precision molds and products

Related Chains at Raydafon

Hot Tags: Loading Chains Manufacturer, Metallurgical Loading Chains Supplier, Custom Loading Chains Wholesale
