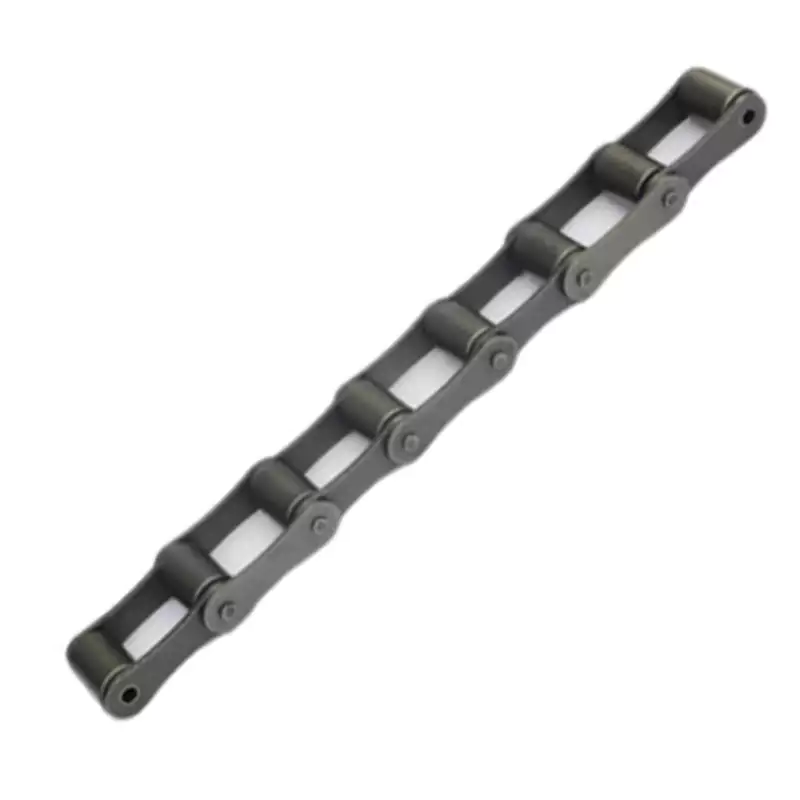

LV40 Special Agricultural Chains

LV40 Special Agricultural Chains

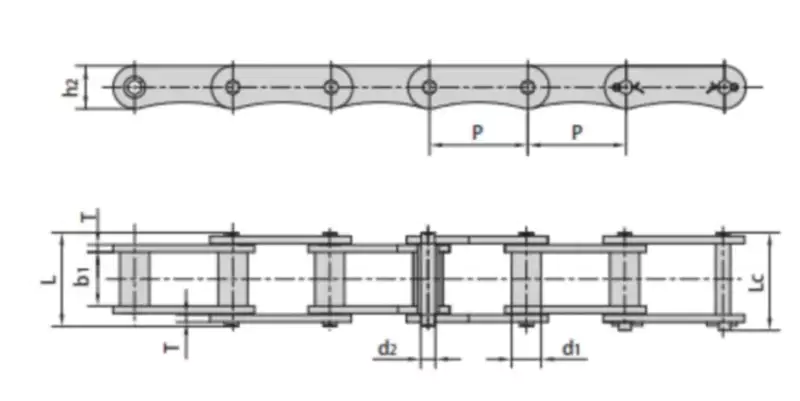

Chain No.	Pitch	Rollerdiameter	Width?betweeninner?plates	Pindiameter	Pinlength		Platedimension		Ultimatetensile?strength	Weightper?meter
	P	d1?max	b1?min	d2?max	Lmax	Lc?max	h2?max	Tmax	Qmin	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kg/m
LV40	40	12.0	22.0	6.0	38.2	41.0	17.5	3.0	31.4/7136	1.53

Agricultural roller chain, welded steel factory chain, welded steel drag chain, cast fixed pin chain, pivot chain, drop forged chain link chain, and engineer level transmission chain on agricultural machinery and equipment. Select alloy steel and stainless steel according to your requirements1. Chain type: agricultural chain, drop forging rivetless chain, roller chain, transport chain, sugar industry chain, palm oil industry chain, asphalt industry chain, elevator transport industry chain, double flexible chain, pivot chain, welded steel drag chain, malleable chain, etc.;2. Main material: 40Mn. 40Cr and 45MN alloy steel or SUS304 are used for plates, 10 #, 20 #, 20CrMnMo, and 30crmnti are used for pins and rollers;3. Heat treatment: carburizing, isothermal quenching, nitrocarburizing hardening, etc.;4. Surface: shot peening, black, blue, or original;5. Packing method: plastic bag + carton + plywood box

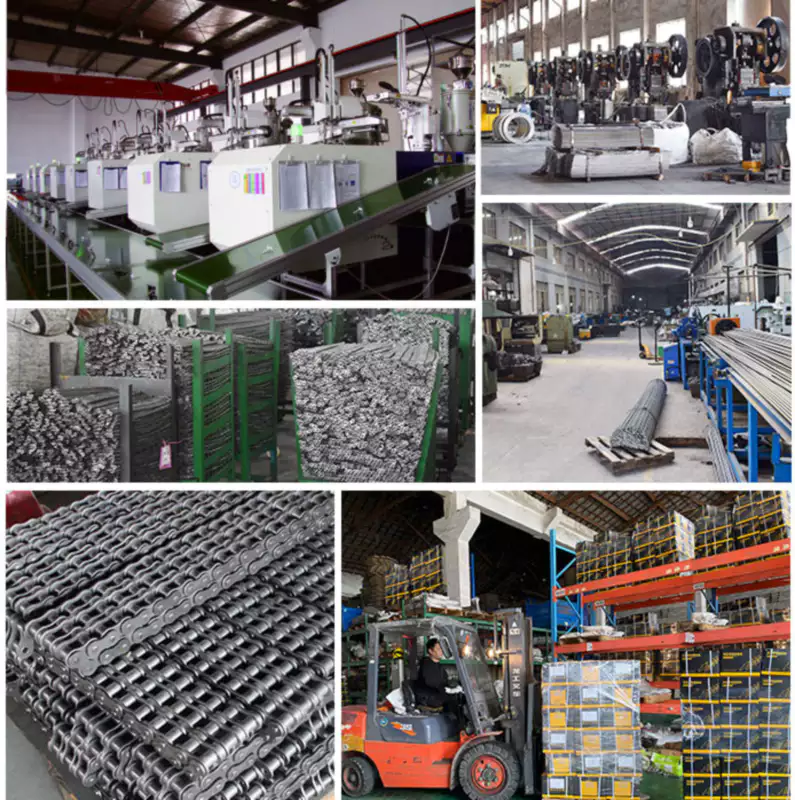

Professional Chain Production Enterprise

Raydafon has a history of more than 20 years. It is a professional chain production enterprise integrating R & D, production, and sales. The company was founded in 1992 with a building area of 10000 square meters. The company's headquarters is in beautiful Ningbo, and its subsidiary is in Huzhou City.The company has a mature team with robust design and manufacturing capabilities and a solid technical force. Our products come from our R & D, accumulation, and innovation. The company mainly produces "double arrow" brand AB series short pitch precision roller chains, weighted roller chains, straight plate roller chains, double pitch chains, conveying chains, stainless steel chains, hollow shaft chains, sharp tooth chains, plate chains, agricultural machinery chains, non-standard chains, and other unique chains. The products adopt advanced heat treatment technology and surface strengthening technology. After precision machining, selection, and assembly, the quality is stable, and all dimensional parameters meet national standards. The whole chain is also pre-tensioned, so it has good strength, stable operation, and durability and has established a good reputation among users.Raydafon has consistently implemented the tenets of "quality assurance," "customer first," and "quality service" and has won high praise from customers at home and abroad.

Related Sprockets and Chains

Sprockets fit our entire conveyor chain range.The drive chain and the conveying chain are driven by sprockets. The uniform distribution of power depends on the precise transmission between the sprocket teeth and the chain rollers or bushes.Because sprockets significantly impact the chain's life, all challenging sprockets (from casting to precision mechanical cutting) are manufactured according to strict tolerances and quality control. We also recommend that all customers replace the sprocket when replacing the chain to maximize the chain life.

Lubricant Requirements for Chain Drive

• Excellent permeability

For chains, smooth rollers and sprockets are relatively easy, but smooth pins and rollers are relatively complex. Because the clearance between the pin shaft and the roller is minimal, and the integrity belongs to the open environmental conditions. Assuming that the smooth oil has no good permeability, it cannot penetrate the pin shaft and roller and cannot play the role of smooth pin shaft and roller.

• It should have excellent adhesion.

The smooth oil will be thrown off when the chain runs due to the high speed. At low speed, the lubricating oil will drip due to the effect of gravity. All these will pollute the environment and products and cause a lot of waste. Therefore, the smooth oil must have good adhesion, which can be firmly adhered to the friction surface without being scattered due to various effects.

• Excellent smoothness

One of the functions of smooth oil is to be smooth. However, when chains are subjected to different effects during operation, they will have higher requirements for the smooth performance of the smooth oil. In particular, those chains under heavy load and impact conditions require extreme pressure and abrasion resistance. Therefore, ordinary chain smooth oil pays excellent attention to this requirement.

• Excellent oxidation stability

Generally, the chain drive works in an exposed environment, so the chain smooth oil needs to have excellent oxidation stability.

• With minimal evaporation loss rate



• Have an excellent ability to resist external effects



• It is not easy to be polluted.



• ?With a minimum tendency of carbon deposition.

In addition to the above basic requests, many other requests will have different emphases due to different application scopes, environments, and equipment requirements of the drive chain.
