Metric Gear Rack For Sale

Metric gear rack is a mechanical component used in linear motion systems. It is a straight bar or strip with specialized teeth that mesh with gears to convert rotational motion into linear motion or vice versa. The teeth on the gear rack are designed to engage with the teeth on a mating gear, allowing for precise linear movement.Metric gear racks are characterized by their pitch, which is the distance between consecutive teeth. The pitch is specified in metric units, such as millimeters or modules, hence the term "Metric" gear rack. The pitch determines the linear displacement per revolution of the mating gear.Gear racks are often made from durable materials such as steel or stainless steel to withstand the forces and wear associated with linear motion applications. They are manufactured with precision to ensure accurate tooth profiles and dimensional consistency throughout the length of the rack.Metric gear racks find applications in various industries, including machinery, robotics, automation, printing, and transportation. They are commonly used in applications that require controlled linear motion, precise positioning, and reliable transmission of force.

Application

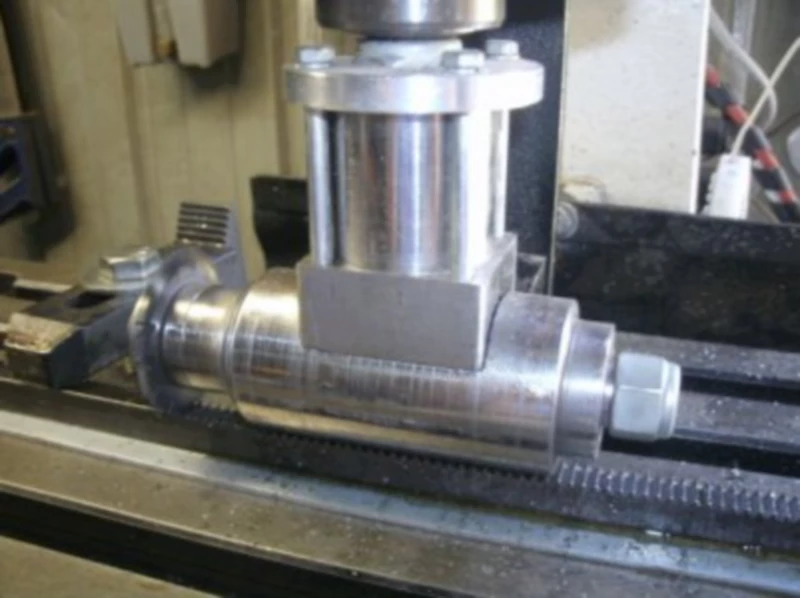

Metric gear racks are widely used in various automation and precision motion control applications, including:Machine tools: Linear movement of slides and carriages.3D printers: Movement of the printing head along the X and Y axes.Robotics: Actuation of arms and grippers.Packaging machinery: Conveyor systems and material handling.Food processing equipment: Linear movement for processing tasks.Greenhouse automation: Ventilation systems, shade control, and irrigation mechanisms.

Types of Metric Gear Rack

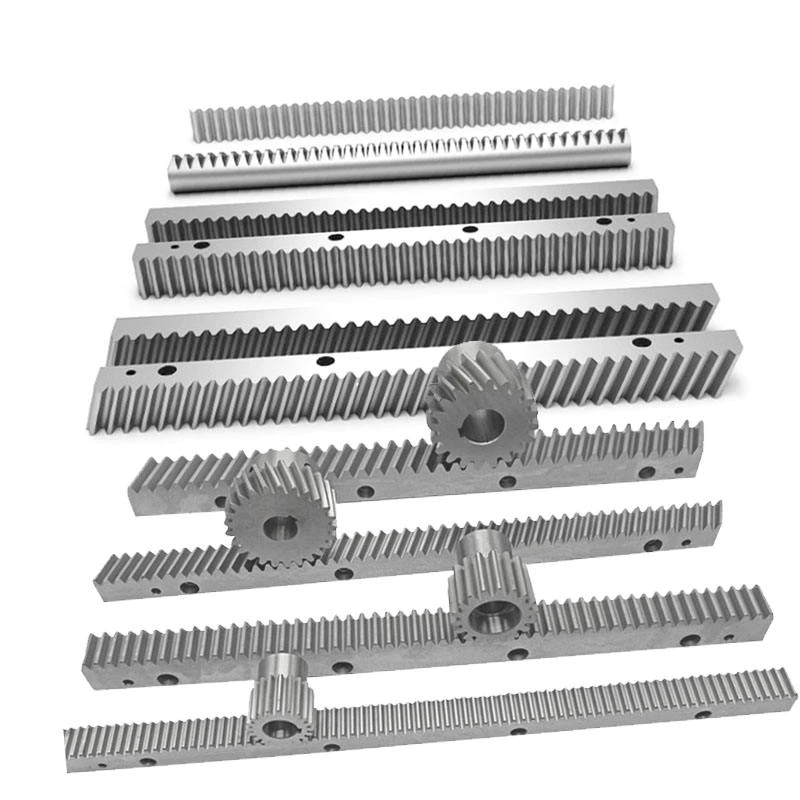

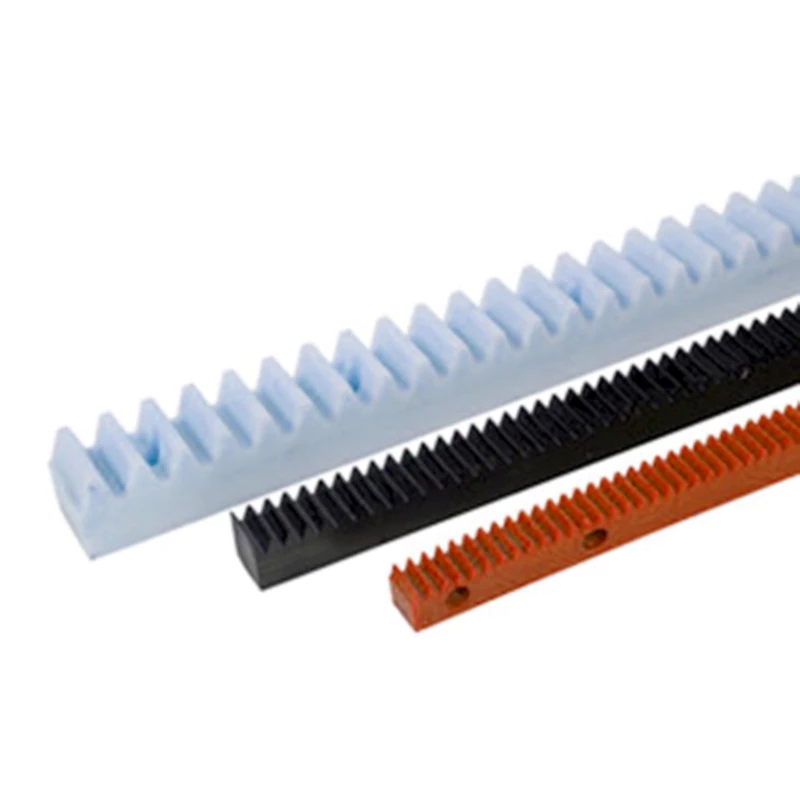

Metric gear racks can be categorized in several ways, depending on the specific feature you're interested in. Here's a breakdown of some common types:By Tooth Profile:Metric Spur Gear Rack: This is the most common type. It has straight teeth that are parallel to the length of the rack. Simple and cost-effective, they are suitable for various linear motion applications.Metric Helical Gear Rack: These racks have teeth that are angled, resembling a screw thread. They offer smoother operation and lower noise levels compared to spur racks, but are more expensive.Metric gear racks can be categorized in several ways, depending on the specific feature you're interested in. Here's a breakdown of some common types:By Tooth Profile:Metric Spur Gear Rack: This is the most common type. It has straight teeth that are parallel to the length of the rack. Simple and cost-effective, they are suitable for various linear motion applications.Metric Helical Gear Rack: These racks have teeth that are angled, resembling a screw thread. They offer smoother operation and lower noise levels compared to spur racks, but are more expensive.By Material:Metric Steel Gear Rack: Steel is a strong and durable material, making these racks suitable for high load applications. They can be further categorized by steel type, such as stainless steel for corrosion resistance.Metric Aluminum Gear Rack: Aluminum offers a lightweight option with good corrosion resistance. However, it has lower load capacity compared to steel.Metric Plastic Gear Rack: These are the most economical option, but have lower strength and wear resistance. They are suitable for light-duty applications.By Other Features:Metric Precision Gear Rack: These racks are manufactured with tighter tolerances for applications requiring high accuracy in linear movement.Metric High-Speed Gear Rack: Designed for applications with high operating speeds, these racks often have specific tooth profiles or materials to minimize vibration and noise.Metric Low-Backlash Gear Rack: Backlash refers to the slight gap between the gear rack teeth and the pinion gear teeth. Low-backlash racks minimize this gap for applications requiring precise positioning.Metric Modular Gear Rack: These racks feature a modular design allowing for customization of length and other features by combining sections.Metric Custom Gear Rack: Manufacturers can produce custom gear racks with specific tooth profiles, materials, dimensions, or features to meet unique application requirements.Metric Steel Gear Rack: Steel is a strong and durable material, making these racks suitable for high load applications. They can be further categorized by steel type, such as stainless steel for corrosion resistance.Metric Aluminum Gear Rack: Aluminum offers a lightweight option with good corrosion resistance. However, it has lower load capacity compared to steel.Metric Plastic Gear Rack: These are the most economical option, but have lower strength and wear resistance. They are suitable for light-duty applications.By Other Features:Metric Precision Gear Rack: These racks are manufactured with tighter tolerances for applications requiring high accuracy in linear movement.Metric High-Speed Gear Rack: Designed for applications with high operating speeds, these racks often have specific tooth profiles or materials to minimize vibration and noise.Metric Low-Backlash Gear Rack: Backlash refers to the slight gap between the gear rack teeth and the pinion gear teeth. Low-backlash racks minimize this gap for applications requiring precise positioning.Metric Modular Gear Rack: These racks feature a modular design allowing for customization of length and other features by combining sections.Metric Custom Gear Rack: Manufacturers can produce custom gear racks with specific tooth profiles, materials, dimensions, or features to meet unique application requirements.

How Do Metric Gear Rack Work?

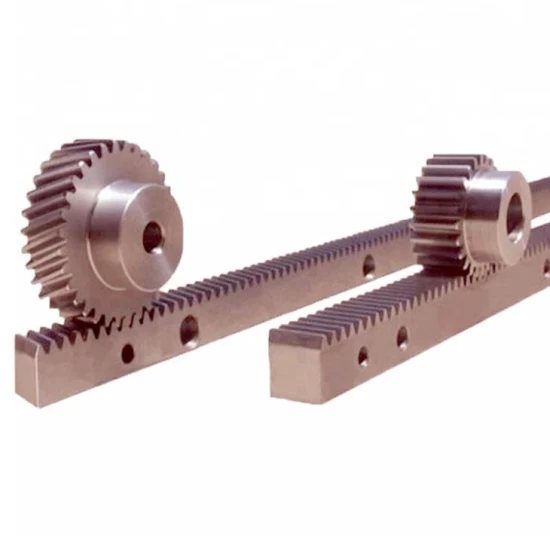

Metric gear racks are the linear counterparts of spur gears, translating rotary motion into linear motion (and vice versa) with high precision. Here's a breakdown of how they work:Components:Metric Gear Rack: This is a straight or curved bar with evenly spaced teeth along its entire length. The teeth are specifically designed to mesh with a pinion gear.Pinion Gear: This is a cylindrical gear with teeth that match the profile of the gear rack teeth. It's typically mounted on a rotating shaft.Working Principle:Rotation of the Pinion Gear: When the pinion gear rotates, its teeth engage with the teeth of the gear rack.Force Transfer: As the pinion gear teeth push against the gear rack teeth, a force is transferred between the two components.Linear Movement: Depending on the direction of pinion gear rotation:Clockwise Rotation: The gear rack is pushed to the right, creating linear movement to the right.Counter-clockwise Rotation: The gear rack is pushed to the left, creating linear movement to the left.Key Points:The distance a gear rack travels in one complete rotation of the pinion gear depends on the number of teeth on the pinion gear.The finer the teeth (more teeth per unit length) on both the rack and pinion, the smoother and more precise the linear movement will be.Gear racks and pinions operate based on the principle of conjugate gears, meaning their tooth profiles are designed to ensure smooth and efficient meshing for optimal force transfer and minimal wear.

Rack and Pinion Gear Design



Rack and Pinion Gear Material

As for the materials of racks and pinions, strength, abrasion resistance, and absorbency are considered. Carbon steel is the most common material used to make racks and pinion steel.

1. This material is excellent for most settings and usage scenarios.
2. The relative strength of the rack tooth combined with the pinion makes this material effective.
3. Additionally, the material is well-suited for heat-treating to increase strength, allows for the insertion of threaded or bolt holes, upholds dimensional stability, and may be straightened if required.

Aluminum	Aluminum is a bluish, silver-white, malleable, ductile, light, trivalent, metallic element with good electrical and thermal conductivity, high reflectivity, and oxidation resistance. It is lighter than steel but not as strong.
Brass	Brass has good strength, high-temperature ductility and cold flexibility, electrical conductivity, corrosion resistance, bearing properties, and low magnetic permeability.
Bronze	Bronze is a copper base alloy that consists of copper as the primary alloying metal and one or more other metals, such as tin, zinc, or phosphorus. Silicon bronze is a typical bronze alloy.
Cast Iron	Cast iron is a very durable iron alloy with high amounts of carbon. Types include ductile iron, gray iron, and white cast iron grades. Differences in grades are due to variations in composition and processing.
Carbon / Alloy Steel	Steel is a commercial iron that contains carbon in any amount up to about 1.7 percent as an essential alloying constituent. Many grades of carbon and alloy steel are available. They may require a coating to protect against corrosion, however.
Hardened Steel	Steel may be hardened in several ways. These include a variety of quenching techniques in oil and water, passing the steel through induction chambers, etc. Quickly cooling steel during processing freezes, traps, and packs the carbon atoms inside the shrunken iron crystals, producing a rigid and brittle metal. Although challenging, it cannot absorb much shock or impact without breaking.
Stainless Steel	Stainless steel is chemical and corrosion-resistant and can have relatively high-stress ratings. Most stainless steels cannot be hardened to the same degree as carbon steels.
Acetal	Acetal is a stable plastic material with inherent self-lubricating properties that can be enhanced with lubricating fillers.
Delrin	Delrin is an engineered plastic with toughness, stiffness, wear and abrasion resistance, and low frictional characteristics.
Nylon	Nylon, comprising several grades of polyamides, is a general-purpose material in wide use. It is challenging and resistant and has good pressure ratings.
Polycarbonate	Polycarbonate is an extremely tough polymer that can be machined to close tolerances. Lubrication is sometimes needed, as the wear properties of polycarbonate are not as good as some other polymers.

Frequently asked questions and solutions for Metric gear racks

1. Backlash: Backlash refers to the clearance between the teeth of the gear rack and the mating gear. It can result in positioning errors and reduced accuracy. To minimize backlash, you can use pre-loaded gear rack systems, employ anti-backlash mechanisms such as spring-loaded or dual-meshing gears, or select gear racks with tighter manufacturing tolerances.2. Wear and tear: Over time, gear racks can experience wear and tear due to repeated use and contact with the mating gear. Regular lubrication and maintenance can help reduce friction and wear. Choosing gear racks made from durable materials and implementing proper lubrication schedules can extend the lifespan of the gear rack and maintain its performance.3. Noise and vibration: Gear racks in motion can produce noise and vibration, which can affect the overall system performance and user experience. To reduce noise and vibration, you can use gear racks with optimized tooth profiles and precision manufacturing. Additionally, implementing vibration damping measures, such as using vibration-absorbing materials or adding damping elements to the system, can help minimize noise and vibration.4. Misalignment: Misalignment between the gear rack and mating gear can lead to poor meshing, increased wear, and decreased efficiency. Proper installation and alignment techniques should be followed to ensure accurate alignment. This may involve using alignment tools, adjusting mounting positions, or employing shimming techniques to achieve proper alignment.5. Lubrication issues: Insufficient or improper lubrication can lead to increased friction, wear, and overheating of the gear rack system. It is important to follow the manufacturer's lubrication recommendations and maintenance guidelines. Regularly inspect and replenish lubricants as needed to ensure smooth operation and optimal performance.6. Environmental factors: Harsh environmental conditions, such as high temperatures, humidity, or exposure to contaminants, can impact the performance and lifespan of gear racks. Selecting gear racks made from materials that are resistant to these environmental factors can help mitigate their effects. Implementing proper sealing and protective measures can also help safeguard the gear rack system.7. Overloading: Exceeding the maximum load capacity of the gear rack can lead to premature wear, tooth breakage, and system failure. It is important to accurately calculate and understand the load requirements of the application. Selecting gear racks with appropriate load ratings and employing safety measures, such as using overload protection devices or implementing load-sharing mechanisms, can help prevent overloading.8. Tooth damage and deformation: Heavy impacts, improper handling, or foreign object interference can cause tooth damage or deformation in the gear rack. Care should be taken during installation, maintenance, and operation to avoid such incidents. Regular inspection and prompt replacement of damaged gear racks can help maintain system integrity.

What should you pay attention to when using Metric gear rack？

1. Proper installation: Ensure that the gear rack is installed correctly according to the manufacturer's guidelines. Follow the recommended mounting methods and torque specifications to prevent misalignment, excessive stress, or damage to the gear rack.2. Adequate lubrication: Proper lubrication is crucial for the smooth operation and longevity of gear racks. Follow the manufacturer's recommendations for lubrication type, quantity, and maintenance intervals. Regularly inspect and replenish lubricants as needed to prevent excessive friction, wear, and overheating.3. Load capacity: Do not exceed the maximum load capacity specified by the manufacturer. Consider both static and dynamic loads, as well as any potential overload conditions. Overloading the gear rack can lead to premature wear, tooth breakage, and system failure.4. Avoid shock loads: Minimize sudden impacts or shock loads on the gear rack. Excessive force or abrupt changes in load can cause damage to the teeth, lead to tooth deformation, or result in misalignment. Implement measures such as load dampening or cushioning to reduce the impact on the gear rack.5. Regular inspection: Periodically inspect the gear rack for signs of wear, damage, or misalignment. Look for wear patterns, chipped or broken teeth, and any abnormalities in the gear rack's performance. Promptly address any issues to prevent further damage and maintain optimal performance.6. Environmental considerations: Take into account the environmental conditions in which the gear rack will operate. Extreme temperatures, humidity, dust, or chemical exposure can affect the performance and lifespan of the gear rack. Choose gear racks made from materials that are resistant to the specific environmental factors encountered in the application.7. Maintenance and cleaning: Follow a regular maintenance schedule to keep the gear rack clean and free from debris. Remove any dirt, dust, or foreign particles that may accumulate on the gear rack's surface or teeth. Use appropriate cleaning methods and avoid abrasive cleaners that can damage the gear rack.8. Compatibility with other components: Ensure that the gear rack is compatible with other components in the system, such as gears, pulleys, or actuators. Consider factors such as pitch, module, tooth profile, and mounting interfaces. Proper compatibility ensures smooth and efficient operation of the entire system.9. Safety precautions: Implement appropriate safety measures when working with gear racks, especially in applications involving high speeds or heavy loads. Use protective guards or enclosures to prevent accidental contact with moving parts. Adhere to safety guidelines and regulations to minimize the risk of injury or equipment damage.

Metric Gear Rack Suppliers

Custom rack and pinion gear designs are based on many factors, including design constraints. These considerations are cost, accuracy, load requirements, and peak cycle forces. These cycle forces depend on the weight being moved, the speed versus time provided for the cycle, the friction of the axis bearings, and the external forces that act on the axis.

• Custom Gear RacksThe gear rack is a long, straight bar with teeth along its entire length. The teeth have the same pitch as the pinion gear, which engages with it.
• Custom PinionsAs the pinion gear is turned, its gears mesh with the gear rack, creating linear torque.

Observe the diagram below to note the required specs to manufacture a custom rack and pinion. For accuracy, three additional components must be considered: Backlash, Pitch Deviation, and Tooth Quality.Rack Quality Levels are selected for certain types of applications – and they also denote the accuracy of the teeth. Tooth Quality is the accuracy of the manufactured tooth flanks. Tooth accuracy affects backlash, positioning accuracy, and the noise level of the rack and pinion set. Backlash is the amount of clearance between the rack and pinion tooth flanks. Pitch Deviation is the difference between the theoretical rack length and its actual length.From custom long gear racks to giant drive pinion gears, your heavy-duty machining projects may need Raydafon Flame Machining Technology to enhance application longevity, quality, and affordability. Raydafon has manufactured many clients' large custom-designed racks and pinions that move their projects, ranging from furnace doors to blast hole drills.In addition, we also offer other gear rack products, as well as agricultural machinery gearboxes, PTO shafts, sprockets and chains, hydraulic cylinders, air compressors, and other products. Customers are welcome to customize or inquire.
