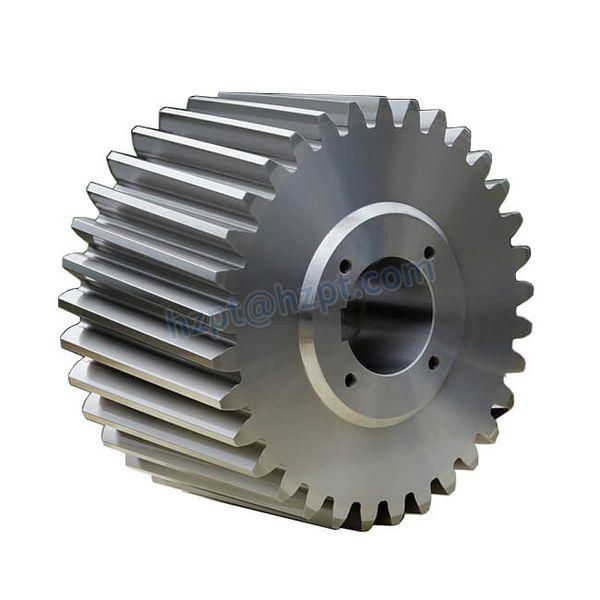

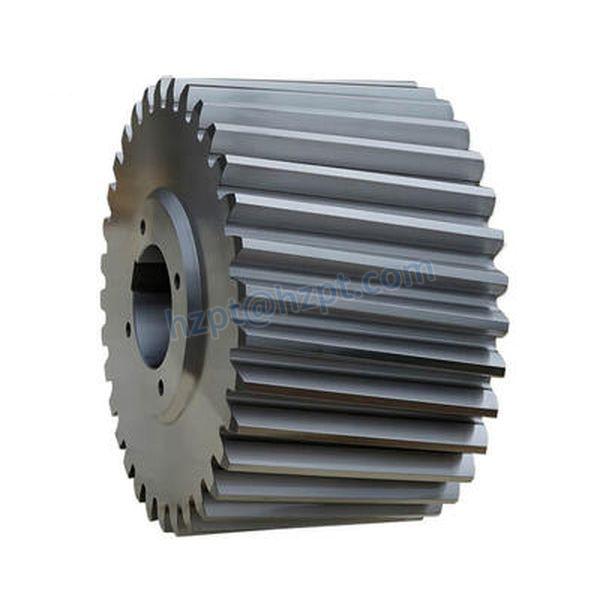

Mining Machinery Carburized Helical Gear

Raydafon Group's Mining Machinery Carburized Helical Gear delivers unmatched durability and precision for heavy-duty mining operations. Featuring advanced carburizing technology, it ensures superior strength, reduced noise, and extended lifespan in harsh environments. Ideal for mining professionals seeking reliable, high-performance components, this gear enhances operational efficiency and minimizes downtime. Its unique design and robust construction solve common wear issues, offering peace of mind with every rotation. Experience the Raydafon difference in your machinery today!

Send Inquiry

Product Description

Gear Basic Data
Gear Tooth Shape	involute
Gear Material	18CrNiMo6
Gear Process	forging, carburization, plane and internal grinding, tooth grinding, line cutting
Pressure Angle	20°
Quality level	DIN 3962 class 6
Gear Type	M=9, Z=33, a=20°, β=8°, x=0.2, right-handed

Capabilities of Gear/Spline

Internal Gears and Internal Splines
	MILLING	SHAPING	TOOTH GRINDING
Maximum O.D.	2500 mm	2500 mm	2500 mm
Minimum I.D.	650 mm	50 mm	100 mm
Maximum Face Width	500 mm	500 mm	500 mm
Maximum Diametral Pitch	D.P. 1	D.P. 1	DP 0.5
Maximum Module	26 mm	26 mm	45 mm
AGMA Level/ DIN Level	DIN Class 8	DIN Class 8	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±22.5°	±22.5°	±45°
External Gears and External Splines
	HOBBING	MILLING	TOOTH GRINDING
Maximum O.D.	1250 mm	2500 mm	2500 mm
Minimum O.D.	20 mm	200 mm	20 mm
Maximum Face Width	500 mm	500 mm	1480 mm
Maximum Diametral Pitch	D.P. 1	D.P. 1	DP 0.5
Maximum Module	26 mm	26 mm	45 mm
AGMA Level/ DIN Level	DIN Class 8	DIN Class 8	DIN Class 4
Tooth Surface Finishing	Ra 3.2	Ra 3.2	Ra 0.6
Maximum Helix Angle	±45°	±45°	±45°

Helical gears generally have longer and stronger teeth than the other gears. Due to the greater surface contact area on the teeth, these gears can carry a heavy load, but the efficiency is reduced because of the same reason. Forging produces helical gears that are quiet and make less vibration. These gears are very similar to spur gears, except that the teeth of helical gears are cut at an angle to the axis. An intriguing thing about helical gears is that if the gear teeth' tips are correct, they can be raised on perpendicular shafts, where the revolving angle is adjusted by 90 degrees. These are available in both right and left-hand configurations.The helical gears provided by us are made as per the industry's standards and are widely used in the automotive and engineering industries. These can also be customized as per the client's requirements. We provide helical gears upto 1000mm O.D. and 80 modules in different varieties such as hard, soft, or ground. Helical gears are pretty similar to industrial gears. They have teeth that are slanted and thus help in meshing the gear. The teeth of helical gears are connected better than those of spur gear.They can be configured to either crossed or parallel as per the needs of the applications. When it comes to mechanics, parallel helical gears are much better. The reason behind this is that helices meet at tangents that do not happen in crossed gears, thus limiting the contact point to the tooth's surface. So it is not advisable for applications that concern heavy loads to use crossed gear.

Products Show

Our Service

Before Sales

1. Customer provides detailed drawings.2. Evaluate the drawing, communicate the technical and quality questions, and then make quotations.3. face-to-face communication the not settled questions.4. Make-up PPAP files.

1.The customer does not provide a detailed drawing and asks for design cooperation for the gear part.2. Evaluate the drawing, simulate the optimized design, detailed makeup drawing, and then make a quotation.3. Makeup PPAP files.

In Process

1. Communicate detailed technical questions found during process makeup.2. Make traceability marking.3. Make and improve complete production flow and transportation packing plan.

After-Sales

1. Follow the product application condition.2. For quality complaints, give feedback within 24 hours and submit an 8D report within 48 hours. If necessary, professional staff would be in the field on the customer side, communicating and solving the problem.3. Continuously improve machining processes, improve product quality and shorten the lead time.4. Visit customers abroad every year, to get better cooperation in technical, quality and commercial aspects.

FAQ

Q: What should I do if I cannot identify the gear?A: Please send us your damaged gear! We specialize in reverse engineering.Q: Do you have a minimum order quantity?A: Our minimum requirements depend on the parts ordered. Send us your drawings, pictures, sample gears, or specifications, and we will let you know the minimum requirements for the part.Q: If there is no stock, how can Raydafon Machinery provide such fast delivery?A: Our unique manufacturing process, coupled with a large stock of tools, raw materials, and semi-finished products, allows us to complete orders in the shortest possible time.Q: How to get the lowest price?A: Increase the quantity. The more parts you order, the lower the price you get.Q: Can I use other materials besides steel to manufacture rack and pinion?A: The price of racks is not fixed. Generally, we need to quote according to the customer's required parameters such as material, tooth type, module, length, accuracy, type, spiral angle, and unique customization!Q: How to get the lowest price?A: Increase the quantity. The more parts you order, the lower the price you get.Q: Is there a rack and pinion on your website in stock?A: Everything we do is made to order. All parts on our website are pre-designed and will be manufactured when ordering, so you can request different sizes of end face widths, eyelets, wheels, etc.Q: Can Raydafon Machinery manufacture Gears that are not on this site?A: Of course! We can provide custom gears with excellent delivery options as standard gears.Q: Can Raydafon Machinery manufacture metric gears?A: Of course! We have the tools to manufacture any metric size.
