Model 1000 Heavy Duty 3-Point Post Hole Digger for Cat 1 & 2 Tractors

[embed]https://youtu.be/2RMp7wqIZm0[/embed]

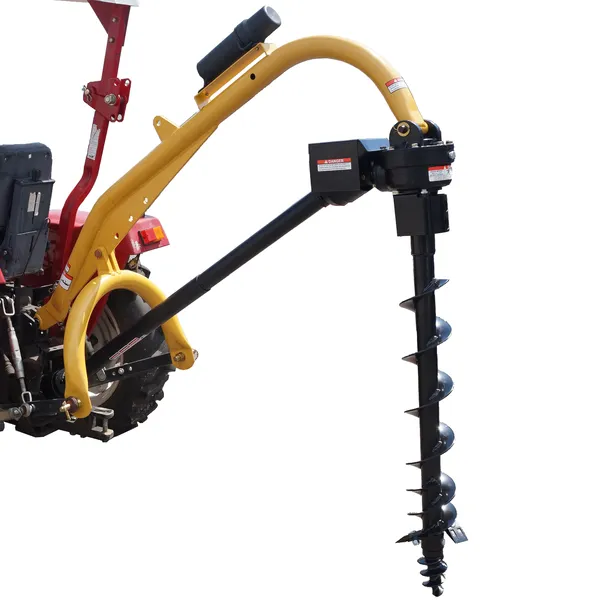

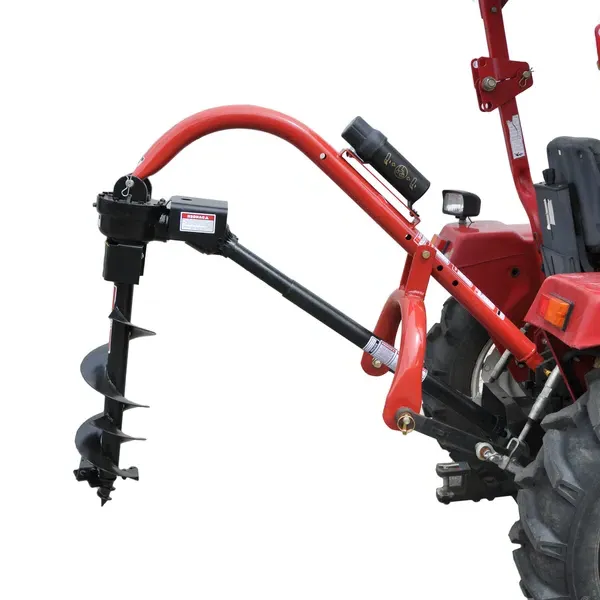

Model 1000 Heavy Duty 3-Point Post Hole Digger

A 1000 heavy duty 3-point post hole digger is a tractor-mounted equipment used for drilling holes in the ground primarily for fence posts, signposts, and planting trees. It is designed to handle tough digging conditions and can dig holes up to several feet deep with ease. The 3-point linkage of the equipment ensures stability, while the auger blades help to break up the soil and remove any debris from the hole. This type of post hole digger is commonly used for agricultural and landscaping purposes, making it a valuable tool for farmers, ranchers, and landowners.

Specifications of 3-Point Post Hole Digger

If you don't see the auger combo you want, contact us and we will create an option for you to purchase. - Rated for tractors up to 45 hp - Series 4 Driveline - Heavy Duty Gearbox, 2.9:1 Reduction Ratio - 2" Output Shaft with Dual 1/2" Bolt-Holes for Auger Attachment - Choose Combos of Up to 5 Augers - Fits Cat 1 & 2 Tractors - Super Heavy Duty Reinforced Steel Boom - Backed by our 6-month warranty & exceptional Customer Service

Model 1000 Heavy Duty 3-Point Post Hole Digger for Sale

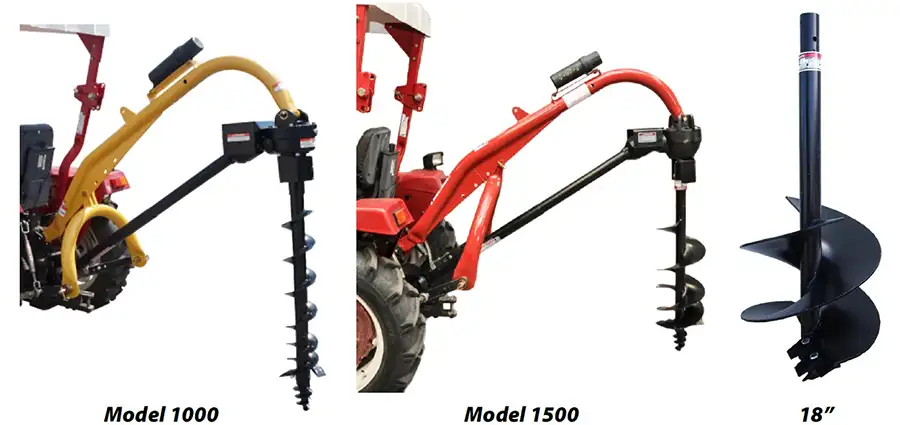

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3'  lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150  bs	160  bs	200  bs	235  bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

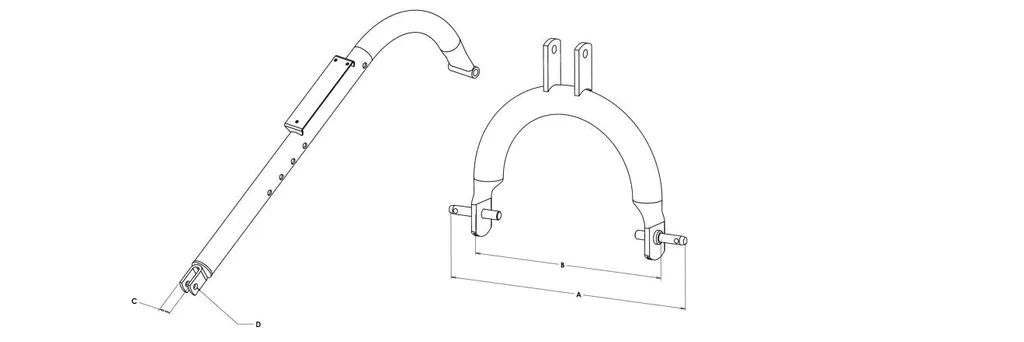

Heavy Duty Post Hole Digger Parts

Model # / CAT	A(in) Lower Hitch Point Spread -Max	B(in) Lower Hitch Point Spread -Min	C(in) Clevis/ Ball Joint Outside Width	D(in) Upper Hitch Point Pin Dia
Model 400 / CAT 0, Sub Compact	26-3/8	20-7/8	1.75	0.75
Model 650 / CAT 1	33-1/2	28	1-5/8	1.0
Model 1000 / CAT 1	32-3/8	26-7/8	1-5/16	0.75
Model 1500 / CAT 1 & 2	38-3/8	32-7/8	1-5/16	0.75

Features of Heavy Duty 3-Point Post Hole Digger

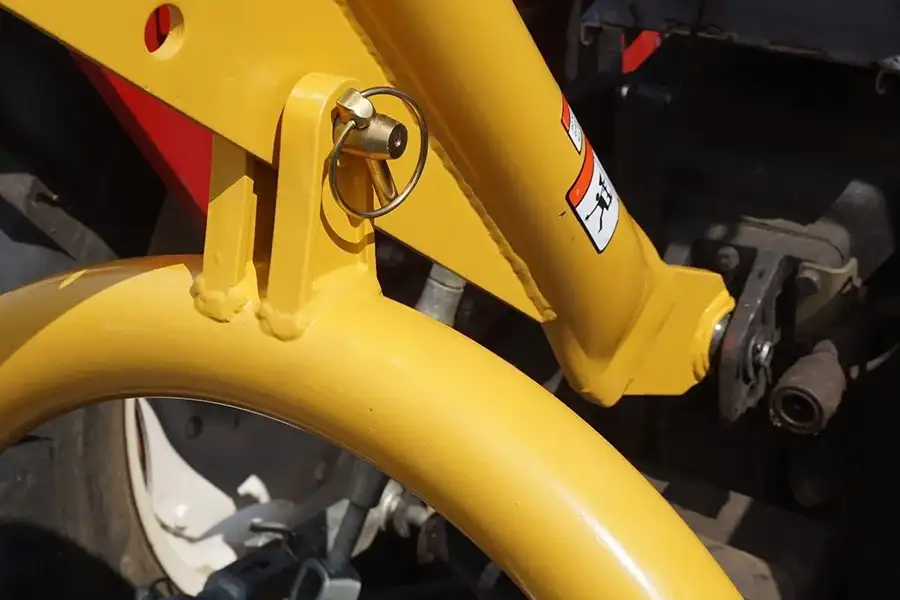

Heavy duty 3-point post hole diggers are tools commonly used for digging holes in the ground for installing fence posts, sign posts, and mailbox posts. Some of the features of these tools include: 1. Robust Frame Construction: The digger is built with a high-strength steel frame designed to withstand the rigors of heavy-duty use. This robust construction ensures that the implement remains stable and durable even when working in challenging soil conditions. The reinforced design minimizes wear and tear, extending the lifespan of the equipment and providing reliable performance over time. 2. Versatile Auger Options: Equipped with interchangeable auger bits, the digger offers versatility for various applications. These bits come in multiple diameters, allowing users to dig holes of different sizes to accommodate posts, trees, or other needs. The augers are crafted to penetrate the ground efficiently, reducing the effort required from both the operator and the tractor. 3. Secure 3-Point Hitch Attachment: The digger is designed to attach seamlessly to Category 1 and 2 tractors using a 3-point hitch system. This secure attachment ensures stability during operation, preventing the implement from wobbling or becoming detached. The easy hookup process makes it convenient for operators to connect and disconnect the digger as needed. 4. Powerful Gearbox: A heavy-duty gearbox is a core component of this post hole digger, providing the necessary torque to drive the auger into tough soil. The gearbox is engineered for high performance and durability, reducing the risk of mechanical failure. Its efficient design helps maximize the tractor's power, making hole digging faster and more efficient. 5. Shear Bolt Protection: To enhance safety and prevent damage, the digger includes shear bolt protection. This feature is designed to break under excessive stress, such as when the auger hits an immovable object. By breaking, the shear bolt prevents damage to the gearbox and tractor, allowing for quick replacement and minimizing downtime. 6. Adjustable Depth Control: The digger often features adjustable depth control, enabling the operator to set the desired hole depth with precision. This adjustability is crucial for projects requiring consistent hole depths, such as fencing or planting. The ability to control depth accurately ensures that the holes meet specific requirements without unnecessary adjustments.

Typical Applications:

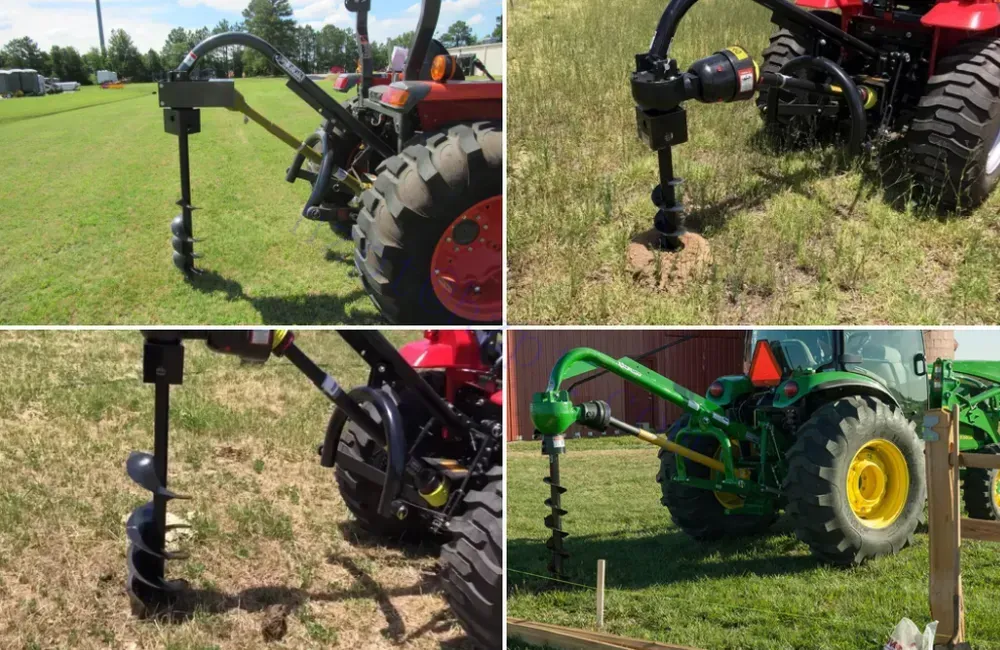

Post hole diggers are versatile tools used for various applications, primarily in the realm of construction, agriculture, and landscaping. Some typical applications of post hole diggers include: (1) Fence Installation: Post hole diggers are essential for installing fences, as they create uniform holes for setting posts at regular intervals. This ensures the fence is sturdy and aligned properly. Whether for agricultural, residential, or commercial fencing, the digger speeds up the process and reduces manual labor, making large-scale projects more manageable. (2) Tree Planting: When planting trees, post hole diggers are used to dig precise holes that accommodate root balls. This helps ensure optimal growth conditions by providing adequate space and soil aeration. The ability to dig consistent holes quickly also allows for efficient planting of multiple trees, which is ideal for landscaping or reforestation projects. (3) Irrigation System Installation: Installing an irrigation system often requires digging holes for pipes and sprinkler heads. Post hole diggers make this task straightforward by creating precise, deep holes quickly. This precision is crucial for ensuring the proper placement and depth of irrigation components, which helps maintain an efficient and effective watering system. (4) Signpost Installation: For installing signposts, whether for traffic, informational, or decorative purposes, post hole diggers provide the necessary depth and stability. The digger ensures that signposts are securely anchored in the ground, preventing them from leaning or falling over. This is particularly important in areas exposed to wind or heavy traffic. (5) Utility Pole Installation: Utility poles require deep, stable holes to support their weight and withstand environmental forces. Post hole diggers are used to create these robust foundations, ensuring the poles remain upright and secure. This application is critical for maintaining the infrastructure of power lines, telecommunications, and other essential services. (6) Vineyard and Orchard Planting: In vineyards and orchards, post hole diggers facilitate the planting of vines and trees by creating uniform planting holes. This ensures even spacing and depth, which are crucial for optimal growth and fruit production. The digger’s efficiency allows for the rapid establishment of large planting areas, supporting agricultural productivity.

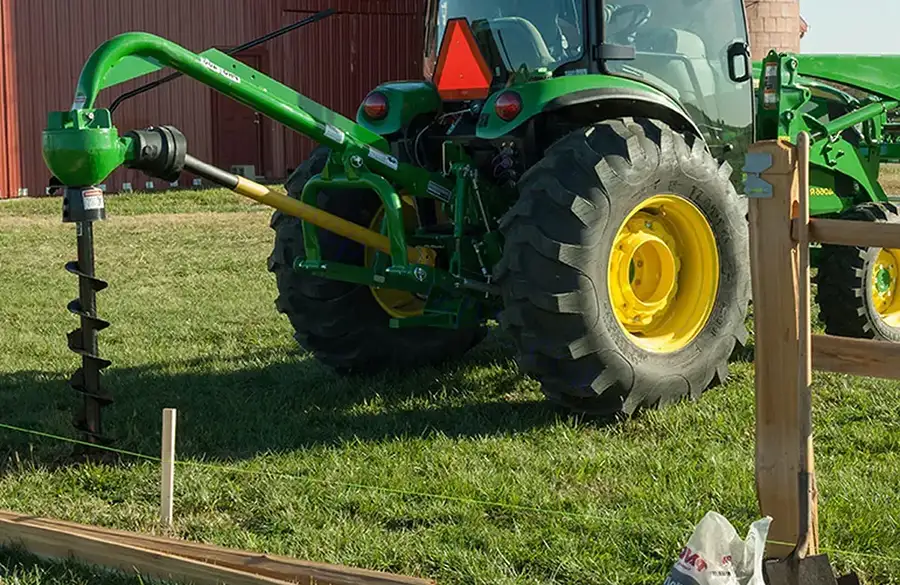

Working Principle of Tractor Mounted PTO Drive Post Hole Digger

A tractor-mounted PTO drive post hole digger is a common implement used in agriculture and construction for digging holes efficiently. Here's an overview of how it works: 1. Attachment to the Tractor: The post hole digger is securely attached to the tractor using the 3-point hitch system. This setup provides stability and allows the implement to be lifted, lowered, and maneuvered easily. Proper attachment ensures that the digger remains stable during operation, which is essential for efficient and safe digging. 2. Power Take-Off (PTO) Connection: The digger connects to the tractor’s Power Take-Off (PTO) shaft. This connection transfers engine power directly to the digger, providing the necessary rotational force to operate the auger. The PTO system ensures that the digger has a consistent power source, enabling it to penetrate various soil types effectively. 3. 3-Point Hitch System: Utilizing the tractor’s 3-point hitch system, the digger can be raised and lowered as needed. This system provides the flexibility to adjust the digging depth and ensures that the implement is aligned correctly with the ground. The hitch system also absorbs some of the operational vibrations, contributing to smoother performance. 4. Auger Rotation: Once powered by the PTO, the digger’s gearbox converts the energy into rotational motion, driving the auger. The auger’s helical blades cut into the soil, allowing it to screw downward efficiently. This rotation is critical for breaking up soil and ensures that the digger can create holes quickly and effectively. 5. Hole Creation: As the auger rotates, it drills into the ground, creating a precise, cylindrical hole. The depth and diameter of the hole can be adjusted based on the project’s requirements. This precision is essential for applications like fence post installation, where uniformity and accuracy are necessary for structural stability. 6. Soil Displacement: During the digging process, the auger lifts displaced soil to the surface, clearing the hole. The helical design of the auger ensures efficient soil removal, preventing clogging and allowing for continuous operation. Once the hole is created, the loose soil can be easily removed or redistributed as needed.

Other 3-Point Post Hole Digger Parts

Our post hole digger parts and auger points help you install fencing efficiently. Post hole digger gearboxes are engineered for smooth, long-lasting performance. (1) Post Hole Digger Auger: The post hole digger auger is the primary component responsible for drilling into the ground. It consists of a helical screw blade that rotates to cut through soil, displacing it upward as it digs. Constructed from high-strength steel, the auger is designed to handle various soil conditions, ensuring efficient and effective hole creation. (2) Post Hole Digger Auger Bits: Auger bits are the replaceable ends of the auger, available in different sizes to create holes of varying diameters. These bits are essential for adapting the digger to specific tasks, such as planting, fencing, or utility installations. Made from durable materials, they ensure longevity and maintain sharpness even in tough soil conditions. (3) Post Hole Digger Gearbox: The gearbox is a crucial component that transfers power from the tractor’s PTO to the auger. It converts rotational energy into the torque needed to drive the auger into the ground. Built to withstand significant stress, the gearbox ensures smooth operation and protects the auger from damage by managing rotational speed and force. (4) 3-Point Tractor Quick Hitch: The 3-point tractor quick hitch is a system that allows for fast and secure attachment of the post hole digger to the tractor. It simplifies the connection process, making it easier for operators to attach or detach the implement without tools. This feature enhances efficiency, reducing setup time and allowing for quick transitions between tasks.

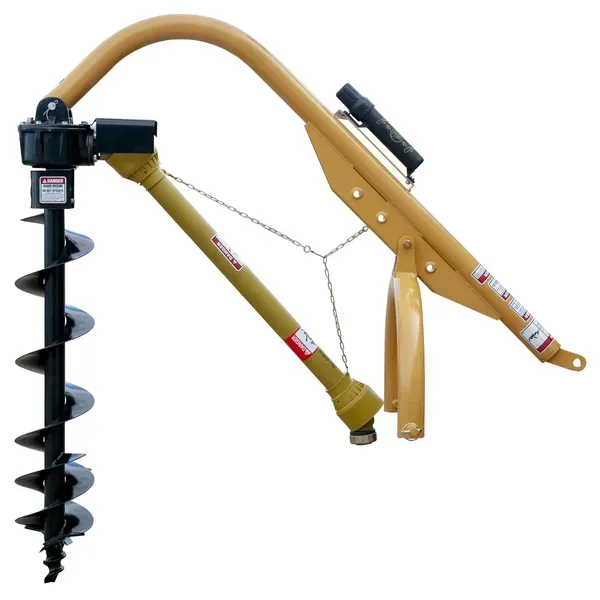

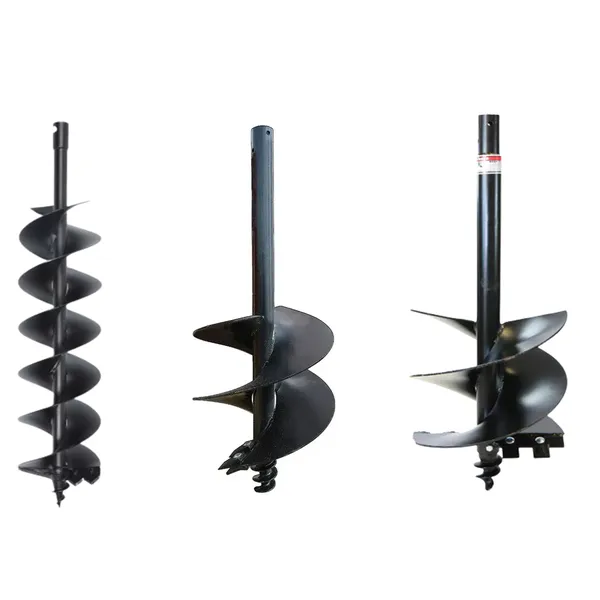

3 Point Post Hole Digger Auger	Post Hole Digger Auger Bits

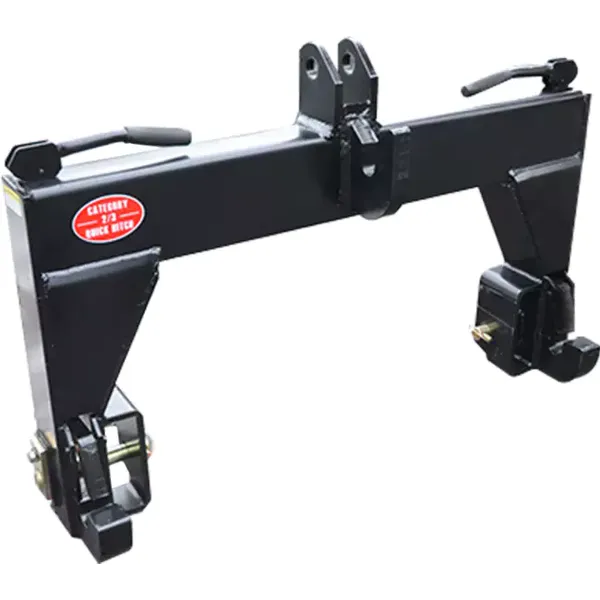

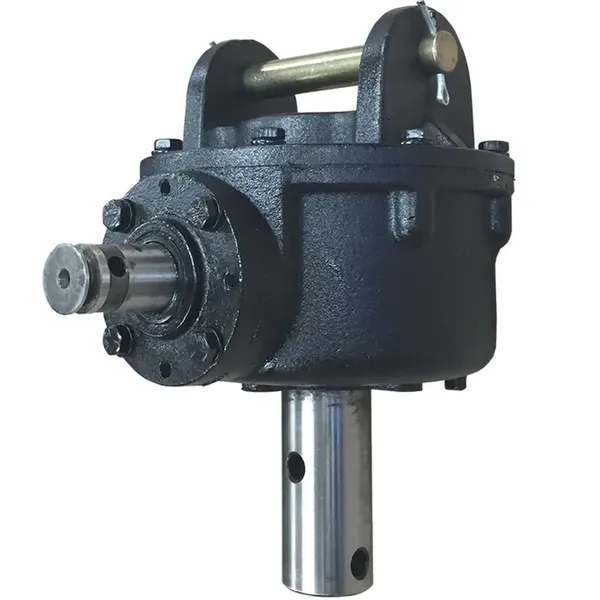

Post Hole Digger Gearbox	3-Point Tractor Quick Hitch

Operation Tips:

Operating a tractor PTO drive post hole digger efficiently and safely requires attention to detail and adherence to best practices. Here are some operation tips for using a tractor-mounted PTO drive post hole digger: 1. Inspect Equipment: Before beginning any operation, thoroughly inspect the post hole digger for signs of wear or damage. Check the auger, gearbox, and PTO shaft for any issues. Ensure all bolts and connections are secure. Regular inspections help prevent mechanical failures during operation and ensure that the equipment functions safely and efficiently. 2. Select the Right Auger: Choose an auger that matches the diameter required for your specific task. Ensure the auger is sharp and in good condition to facilitate smooth and efficient digging. Using the correct auger size enhances performance and ensures the holes are appropriate for your project, whether it’s for fencing, planting, or other installations. 3. Clear the Work Area: Survey the area where you intend to dig and remove any visible obstacles, such as rocks, roots, or debris. Mark any underground utilities to prevent accidental damage. Clearing the work area not only ensures safety but also allows the auger to operate smoothly without encountering unexpected resistance. 4. Engage PTO Safely: When ready to start, engage the tractor’s PTO at a low speed to begin auger rotation. Ensure the PTO shaft is properly connected and that all safety guards are in place. Engaging the PTO safely minimizes the risk of sudden movements or mechanical stress, protecting both the operator and the equipment. 5. Control Auger Speed: Maintain a steady and controlled speed while operating the auger. Avoid excessive speeds that can lead to loss of control or equipment damage. A consistent speed ensures efficient soil penetration and prevents the auger from binding or causing unnecessary strain on the tractor’s engine and transmission. 6. Monitor Auger Depth: Keep an eye on the digger’s progress to ensure the holes reach the required depth. Adjust the 3-point hitch as needed for precision. Monitoring depth prevents over-digging and ensures that each hole meets project specifications, which is essential for tasks requiring uniform and consistent hole sizes, such as fencing or tree planting.

Agricultural PTO Shaft for 3-Point Post Hole Digger

An agricultural PTO shaft is a crucial component in farming equipment, designed to transmit power from a tractor to various implements. One such implement is the 3-point post hole digger, which is widely used for drilling holes in the ground for tasks like installing fences, planting trees, or setting up signposts. The PTO shaft connects the tractor's PTO output to the post hole digger, enabling the transfer of rotational power necessary for the digger's operation. The 3-point post hole digger is mounted on the tractor's three-point hitch system, which allows for easy attachment and detachment. This system provides stability and support during digging operations. The PTO shaft's primary role is to deliver the mechanical energy from the tractor's engine to the digger's auger. As the tractor's engine runs, the PTO shaft rotates, driving the auger into the ground to create precise and efficient holes. This setup offers several advantages. It enhances productivity by enabling quick and uniform hole digging, reducing manual labor. The PTO-driven system ensures that even hard or compacted soil can be penetrated with relative ease. Additionally, the adjustable depth settings on most post hole diggers allow for versatility in various agricultural and landscaping applications. The relationship between the agricultural PTO shaft and the 3-point post hole digger is defined by the efficient transfer of power, facilitating the mechanized digging of holes in agricultural settings. This combination not only streamlines the process but also broadens the range of tasks that can be accomplished with minimal effort, making it an indispensable tool for modern farming and land management.

Why Choose Raydafon's Post Hole Diggers?

Raydafon is a leading manufacturer and supplier specializing in the production and sales of post hole diggers, with a robust presence in the agricultural machinery industry. Our company boasts a highly skilled technical team, advanced production facilities, and a commitment to innovation and quality. With extensive experience and a global reach, we have established ourselves as a trusted name in the market. Our post hole diggers are designed for efficiency and durability, making them ideal for various applications such as fencing, landscaping, and agricultural projects. These diggers feature robust construction, adjustable depth settings, and compatibility with different soil types, ensuring precise and effortless digging. Whether for planting trees or setting up signposts, our products offer unmatched performance and reliability, streamlining tasks and enhancing productivity. At Raydafon, our expertise in the post hole digger sector is unparalleled. We pride ourselves on our specialized knowledge, international certifications, and the ability to offer customized solutions tailored to our clients' needs. Our state-of-the-art manufacturing facilities and comprehensive after-sales service ensure that customers receive top-quality products and support. In addition to post hole diggers, we provide a wide range of agricultural equipment, including PTO shafts, agricultural gearboxes, large round balers, mini round balers, hay square balers, PTO wood chippers, diesel wood chippers, drum mowers, disc mowers, rotary hay rakes, fertilizer spreaders, lawn mowers, sickle bar mowers, rotary mowers, flail mowers, rotary tillers, land levelers, furrow ploughs, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvesters, corn seeders, vegetable seeders, boom sprayers, subsoiler, trailers, finger wheel rake, snow blower, road sweeper, and more, reinforcing our position as an industry leader and innovator. Author: Yjx
