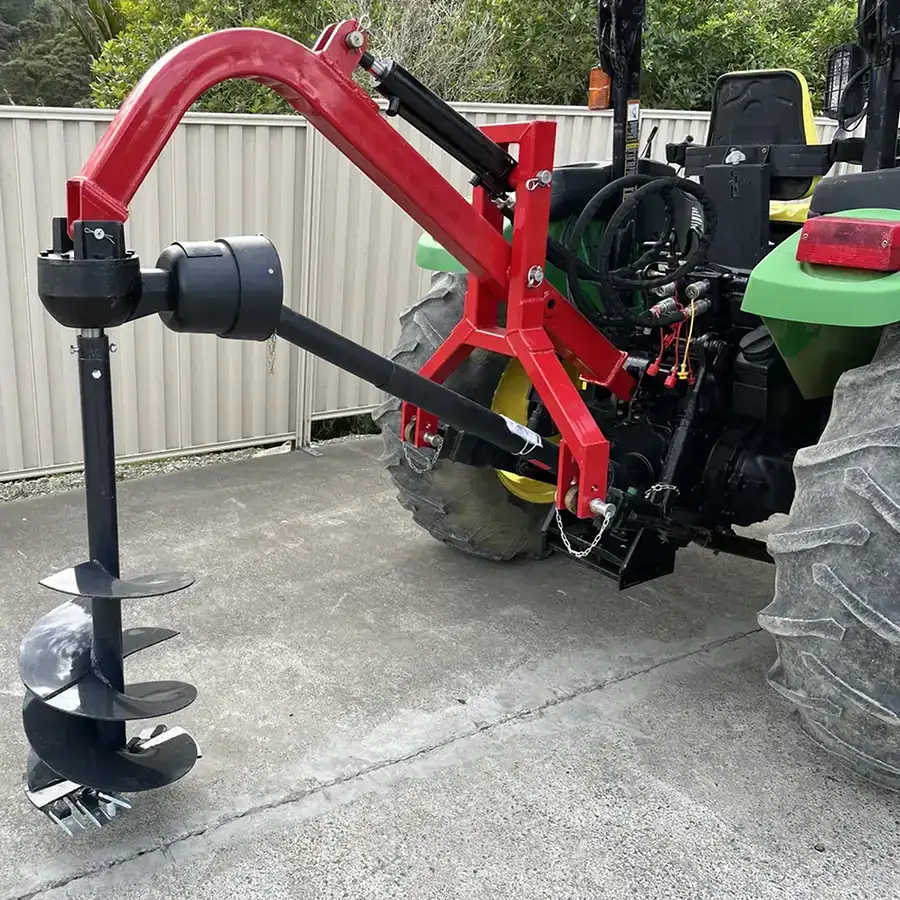

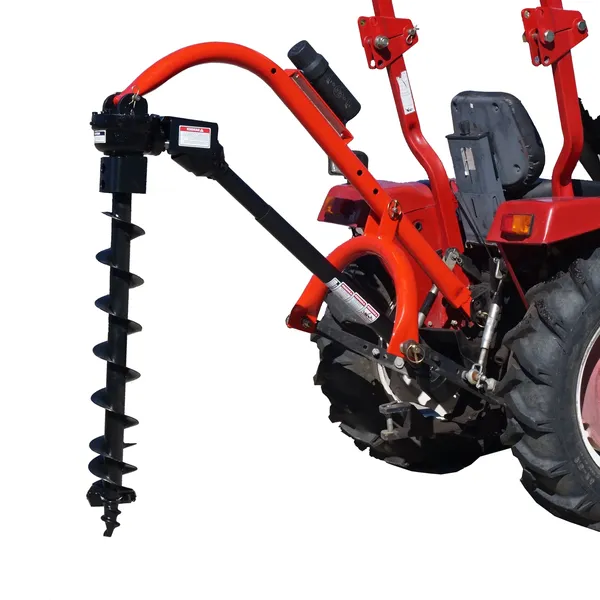

Model 650 3-Point Post Hole Digger with Optional Auger Combos for Fits All Category 1 Tractors

Model 650 3-Point Post Hole Digger with Optional Auger Combos for Fits All Category 1 Tractors

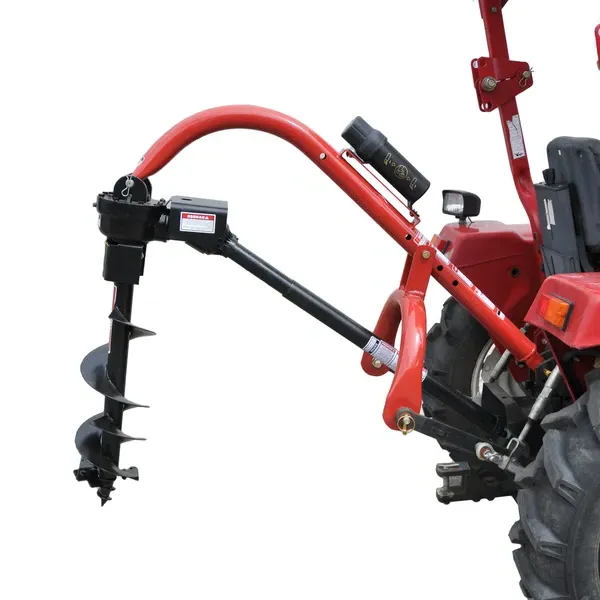

The Model 650 3 point post hole digger is a powerful and efficient tool designed to make digging post holes easier and faster. It is a heavy-duty implement that can be attached to the three-point hitch of a tractor and it can be used in a variety of soil types, including rocky and compacted soil. The Model 650 3 point post hole digger features a high-strength steel frame with a gearbox that provides increased torque and power to the auger. It also has replaceable cutting edges and auger teeth that ensure long-lasting performance. The 3 point post hole digger can dig holes up to 48 inches deep and up to 12 inches in diameter, making it ideal for a range of applications, such as setting fence posts or planting trees. The 3 point post hole digger also features adjustable cutting depth and angled teeth to ensure precise hole digging. Tthe Model 650 3-point post hole digger is an excellent tool for anyone who needs to dig post holes quickly and efficiently. With its sturdy construction, powerful motor, and versatile design, it can help you get the job done in no time.

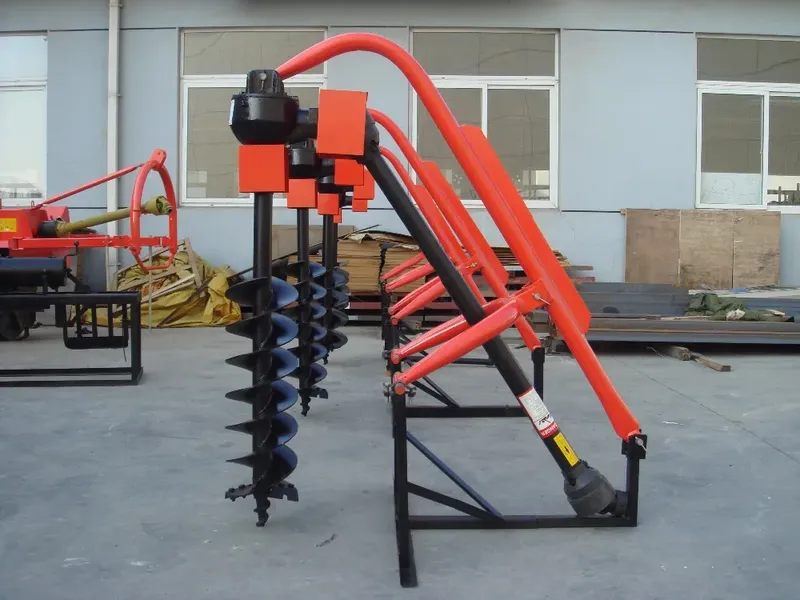

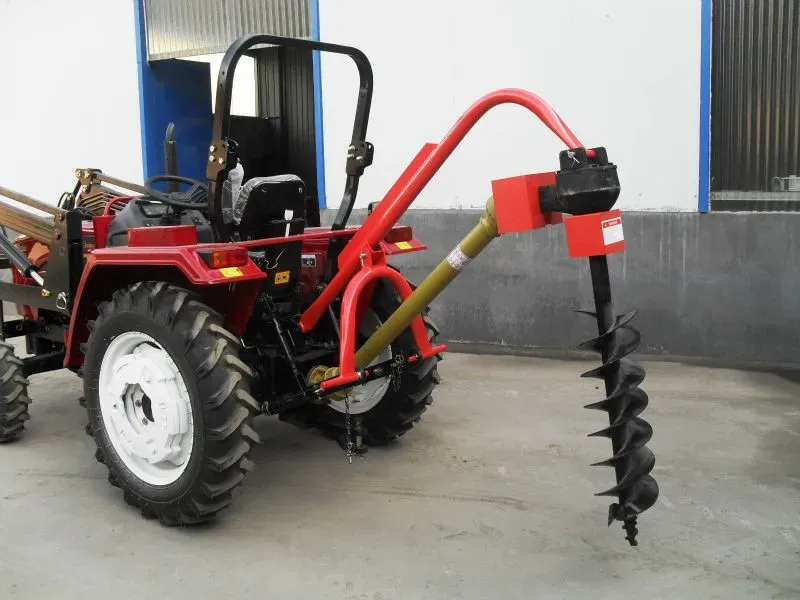

Model 650 3 Point Post Hole Digger for Sale

This is a new, quality post hole digger for category 1 tractors. It is OEM quality and has been in production for decades, serving farmers, landscaping professionals, and property owners proudly and reliably. Compatible with 6", 9", and 12" Post Hole Auger Bits that bolt to a 2" gearbox shaft Contains everything you need (besides the tractor!) to get digging! 1. Boom with high strength 2-7/8" tubing with adjustment holes and manual canister 2. PTO driveline, robust 1 series with safety shields (1 3/8" x 6 Quick release x 1 1/4" Round w/ Shear Bolt) 3. Heavy duty right angle gearbox 4. High strength A-Frame - 27.5" lift arm spacing 5. Hardware kit with necessary pins and bolts 6. Can be purchased with or without augers via the dropdown menu. If there is a combo you don't see and would like to purchase, please contact us. All augers are 48" in length in the drop-down. 7. If your tractor is a Sub Compact tractor with a CAT 1 3-pt hitch and you require 36" augers, please purchase the variation without augers and purchase the compact augers you require separately. 8. Augers 6-12" diameter are Standard-Duty w/Replaceable Edges.

Model	Model 400 Compact	Model 650 Standard Duty	Model 1000 Heavy Duty	Model 1500 Extra Heavy Duty
SKU	24-0361	24-0362	24-0318	24-0337
Category	0 & 1	1	1	1 & 2
Boom Length	56"	60"	72"	72"
Tubing Diameter	2-7/8"	2-7/8"	2-7/8"	3-1/4"
Draw Pin Width	20"	27"	27"	32-1/2"
Drive ine	Series 1	Series 1	Series 4	Series 4
Gearbox	2.9:1	2.9:1	2.9:1	3.18:1
Auger Diameters	6", 9", 12" (3'  lengths)	6", 9", 12"	6", 9", 12", 18", 24"	6", 9", 12", 18", 24"
Weight	150  bs	160  bs	200  bs	235  bs
SKU	24-0361	24-0362	24-0318	24-0337
Features	4 Positions	3 Positions	4 Positions	4 Positions

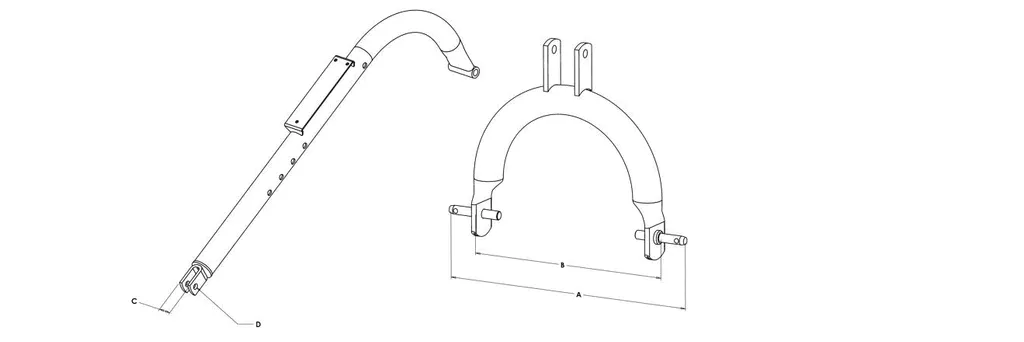

Model 650 3 Point Post Hole Digger Parts Dimensions

Model # / CAT	A(in) Lower Hitch Point Spread -Max	B(in) Lower Hitch Point Spread -Min	C(in) Clevis/ Ball Joint Outside Width	D(in) Upper Hitch Point Pin Dia
Model 400 / CAT 0, Sub Compact	26-3/8	20-7/8	1.75	0.75
Model 650 / CAT 1	33-1/2	28	1-5/8	1.0
Model 1000 / CAT 1	32-3/8	26-7/8	1-5/16	0.75
Model 1500 / CAT 1 & 2	38-3/8	32-7/8	1-5/16	0.75

Benefits of Using the 3-Point Post Hole Digger for Tractor

Using a 3-point post hole digger with a tractor offers a range of benefits, making it a popular choice for various agricultural, construction, and landscaping tasks. Here are some key advantages of using a 3-point post hole digger:

1. Efficiency and Speed: Using a 3-point post hole digger significantly speeds up the process of digging holes compared to manual methods. It allows you to complete projects more quickly, saving valuable time. The mechanized digging reduces physical labor, enabling you to focus on other important tasks and increasing overall productivity on your farm or property.
2. Consistent Hole Sizes: The digger ensures uniform hole dimensions, which is crucial when installing fence posts or planting trees. Consistency in hole size helps maintain the structural integrity of fences and supports even growth for plants. This uniformity is difficult to achieve with manual digging, making the digger a more reliable choice for precise work.
3. Adaptability to Soil Conditions: The robust design of the digger allows it to handle various soil types, including clay, sand, and compacted earth. Its powerful auger can penetrate tough ground with ease, providing versatility for different environments. This adaptability ensures that you can use the digger across diverse terrains without compromising effectiveness.
4. Ease of Attachment and Use: The 3-point hitch system makes attaching the digger to a tractor straightforward and secure. This ease of use allows even less experienced operators to manage the equipment effectively. Quick attachment and detachment mean you can switch between tasks without significant downtime, enhancing operational efficiency on the field.
5. Durability and Low Maintenance: Constructed with high-quality materials, the digger is designed to withstand rigorous use and harsh conditions. Its durability ensures a long lifespan, reducing the need for frequent replacements. Moreover, it requires minimal maintenance, with simple routine checks and lubrication, which saves on repair costs and prolongs its operational life.
6. Safety Features: Equipped with safety mechanisms such as shear bolt protection, the digger prevents damage by stopping operation if an obstruction is encountered. This feature not only protects the equipment but also ensures the safety of the operator. By minimizing the risk of accidents, it allows for safer working conditions on your property.

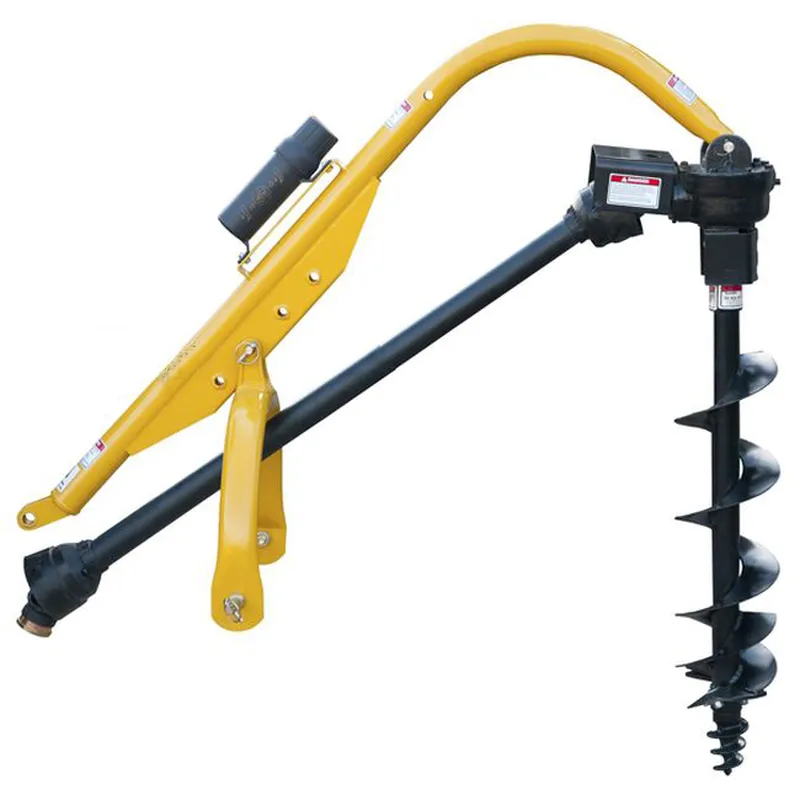

Key Components of a 3 Point Post Hole Digger

A 3-point post hole digger is a specialized attachment designed for tractors and consists of several key components that work together to efficiently dig holes for various applications. Here are the key components typically found in a 3-point post hole digger:

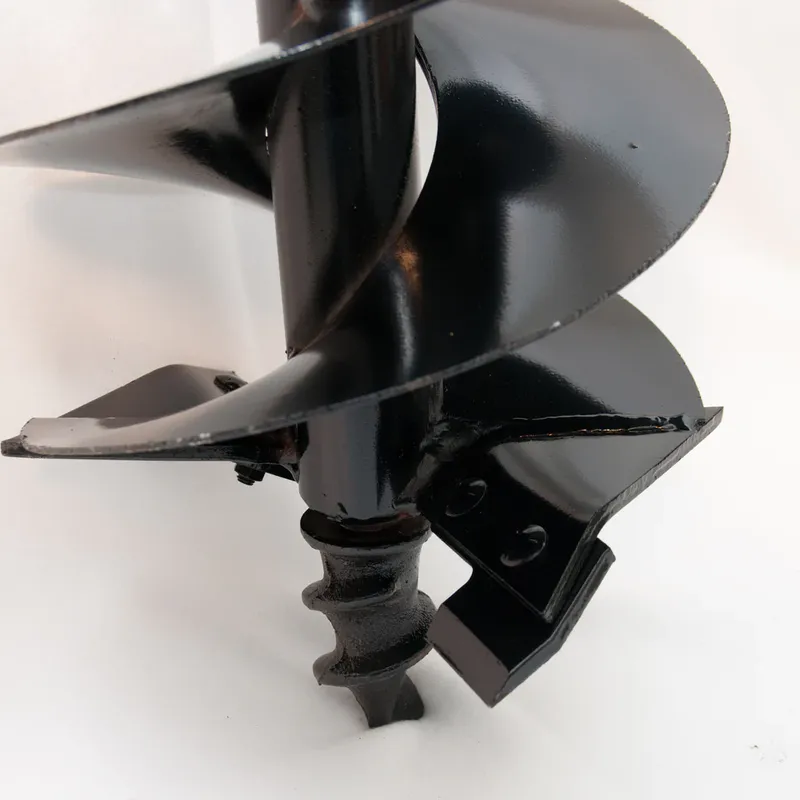

• Auger: The auger is the digging component, typically made from high-strength steel. It comes in various diameters to accommodate different hole sizes. Its spiral design allows it to efficiently cut through soil and remove it from the hole, ensuring precise and clean digging for various applications.

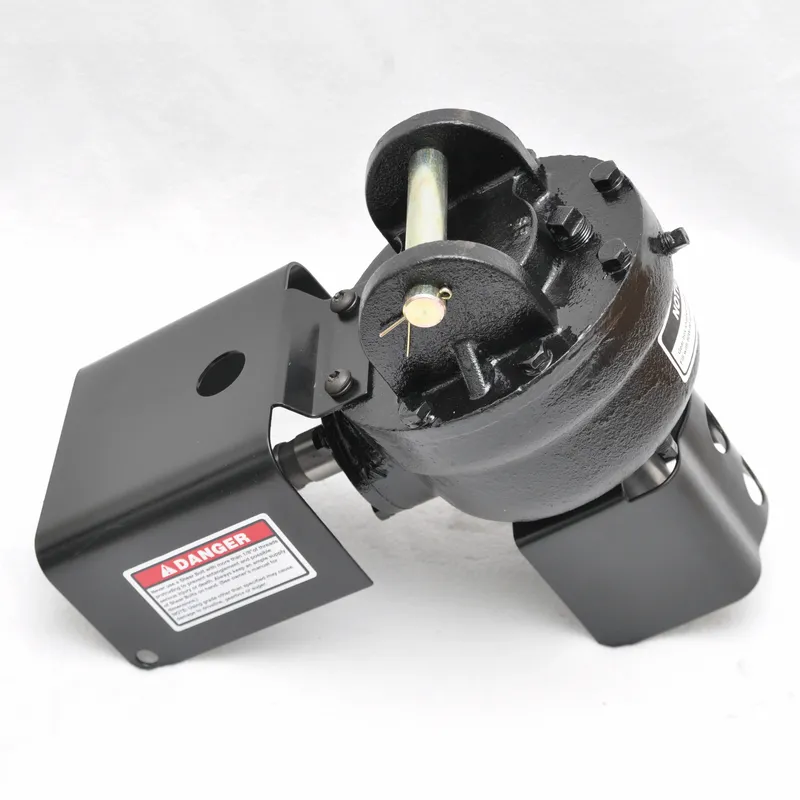

• Gearbox: The post hole digger gearbox is a crucial component that transfers power from the tractor to the auger. It is designed to withstand high torque, enabling the digger to penetrate tough soil conditions. The gearbox ensures smooth operation and longevity, making it essential for the digger's overall performance and reliability.
• PTO Shaft: The Power Take-Off (PTO) shaft connects the tractor's engine to the digger, supplying the necessary power to operate the auger. It is designed to handle heavy loads and transmit power efficiently, allowing the digger to perform effectively. Proper maintenance of the PTO shaft is critical to prevent wear and ensure safety.
• 3-Point Hitch Frame: This frame attaches the digger to the tractor using the standard 3-point hitch system. It provides stability and support during operation, ensuring that the digger remains securely in place. The frame is designed to distribute weight evenly, minimizing stress on both the tractor and the digger.
• Boom: The boom is an adjustable arm that connects the digger to the tractor frame. It allows for the vertical movement of the auger, enabling precise control over the digging depth. This component is crucial for positioning the auger correctly and ensuring that holes are dug to the desired specifications.
• Shear Bolt: The shear bolt acts as a safety feature, designed to break if the auger encounters an obstruction. This prevents damage to the gearbox and other components, safeguarding the digger and tractor from harm. The shear bolt is an essential part of the digger's safety mechanism, reducing the risk of costly repairs.
• Stabilizer Bar: The stabilizer bar enhances the digger's stability during operation, especially in uneven terrain. It helps maintain balance and prevents excessive sway, ensuring that the auger remains aligned with the desired digging location. This component is vital for maintaining precision and safety in challenging conditions.

Post Hole Digger Auger Bit	Post Hole Digger Gearbox	Post Hole Digger Linkage

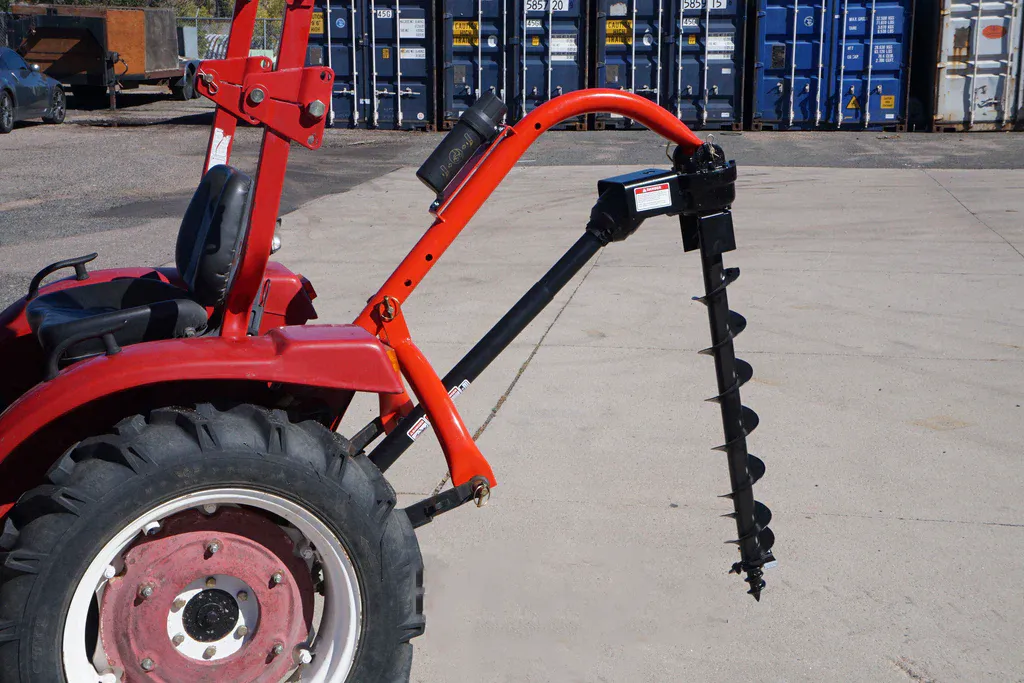

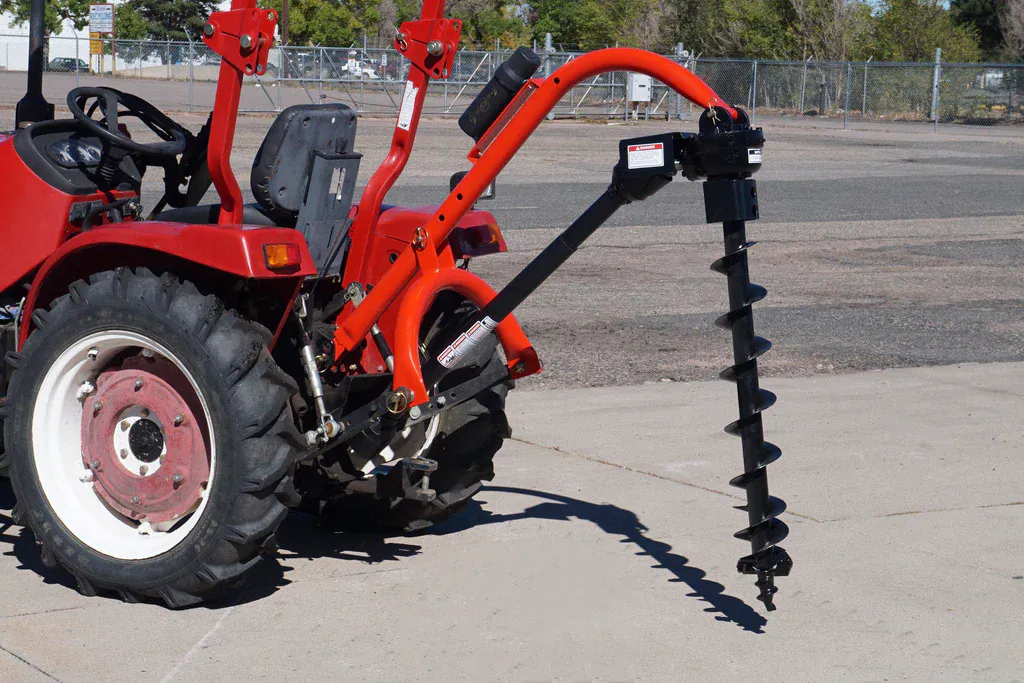

Key Features:

The model 650 tractor 3 point post hole digger is a powerful and versatile digging tool that is designed to be mounted on a tractor's 3-point hitch. Some of the key characteristics of this machine include:

1. 3-point hitch: The Model 650 3 point post hole digger is designed with a 3-point hitch that makes it easy to attach and detach from your tractor.
2. 6", 9", and 12" augers: The Model 650 3 point post hole digger comes with three different sizes of augers, allowing you to dig holes of various sizes to suit your needs.
3. Heavy-duty gearbox: The gearbox on the Model 650 3 point post hole digger is made with heavy-duty materials to ensure longevity and durability.
4. Powder-coated finish: The post hole digger is finished with a powder-coated finish, which not only looks great but also helps protect against rust and other wear and tear.
5. Adjustable boom: The Model 650 3 point post hole digger's boom can be adjusted to accommodate different hole depths and angles.
6. Power take-off (PTO) driven: The Model 650 3 point post hole digger is powered by your tractor's PTO sahft, providing ample power to dig even the toughest holes.
7. Safety shields: The Model 650 post hole digger is designed with safety shields to prevent injury from flying debris.

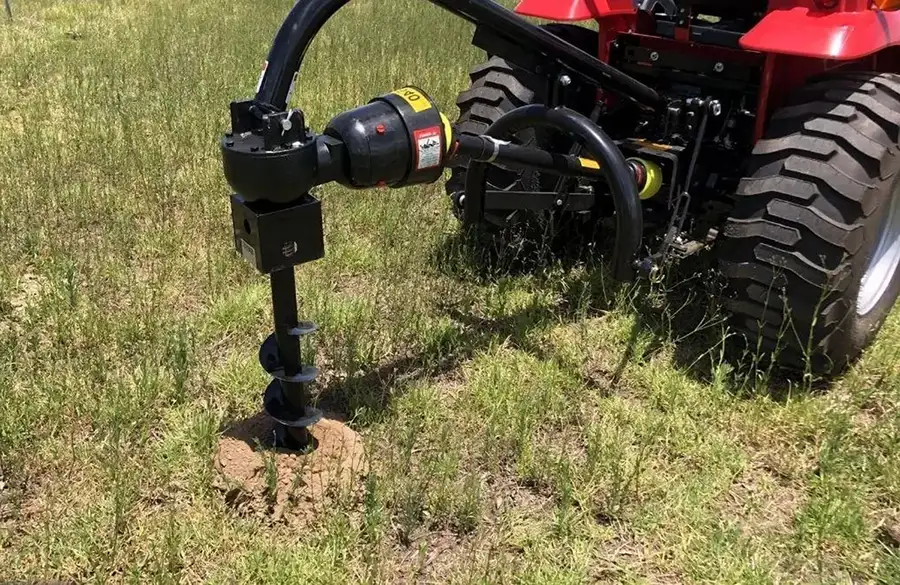

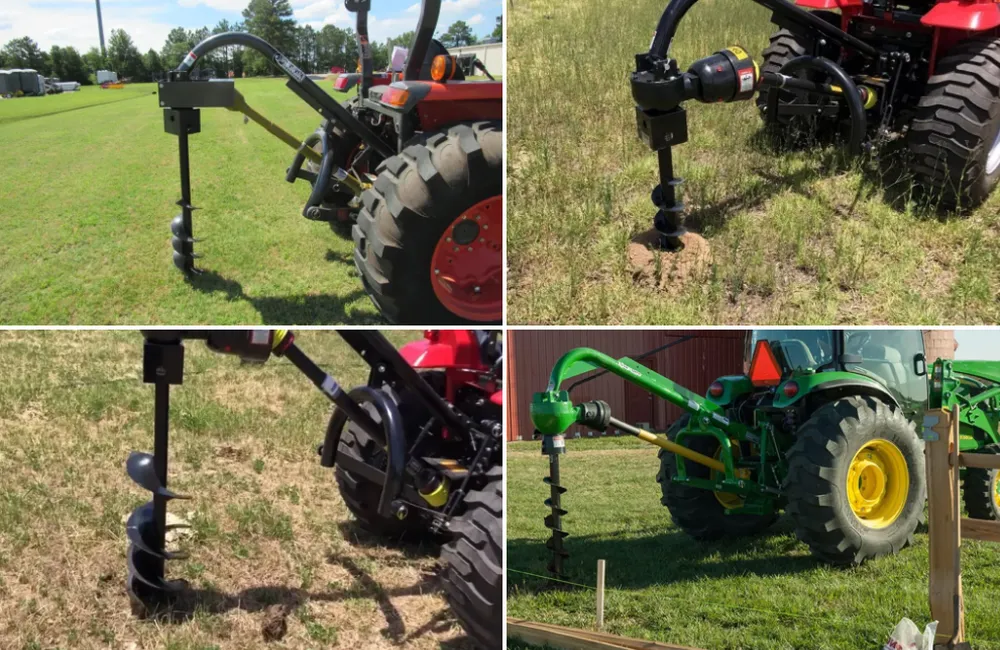

Common Applications of 3 Point Post Hole Digger

A 3-point post hole digger is a versatile attachment for tractors that finds numerous applications across various industries due to its efficiency and precision in digging holes. Some common applications of a 3-point post hole digger include:

• Fence Installation: A 3-point post hole digger is essential for efficient fence installation. It quickly creates uniform holes for fence posts, ensuring stability and alignment. This is crucial for agricultural, residential, and commercial fences, where consistent post spacing and depth are necessary for structural integrity and aesthetic appeal.
• Tree and Shrub Planting: The digger facilitates the planting of trees and shrubs by creating appropriately sized holes. This ensures adequate space for root systems to expand, promoting healthy growth. Its ability to dig quickly and efficiently makes it ideal for landscaping projects, orchards, and reforestation efforts, saving time and labor.
• Vineyard and Orchard Maintenance: In vineyards and orchards, post hole diggers are used to install trellis systems and support structures. Properly spaced and secured posts are vital for the growth and maintenance of vines and fruit trees. The digger's precision aids in creating a conducive environment for plant training and fruit production.
• Livestock Enclosures: Building livestock enclosures requires strong and durable fencing. A post hole digger ensures that posts are securely anchored, which is crucial to prevent livestock from escaping. The digger's efficiency allows for quick setup of enclosures, providing a safe and controlled environment for animals on farms and ranches.
• Utility Pole Installation: Utility poles require deep and stable holes to support electrical lines and communication cables. A 3-point post hole digger can create these holes with precision, ensuring the poles remain upright and secure. This application is vital for infrastructure development and maintenance, particularly in rural and remote areas.
• Signpost Placement: Installing signposts for roads, properties, or businesses demands precise hole placement. The digger allows for quick and consistent hole creation, ensuring that signs are properly positioned and securely anchored. This application is important for visibility and safety, providing clear directions and information to drivers and pedestrians.

Working Principle:

A tractor-mounted PTO drive post hole digger operates based on a straightforward yet effective working principle. Here's how it typically functions:

1. Attachment to Tractor: The post hole digger is securely attached to the tractor using the 3-point hitch system. This connection ensures stability and control during operation, allowing the tractor and the digger to work in unison. Proper attachment is crucial to maintain safety and efficiency while digging holes.
2. Power Transmission: The tractor's PTO shaft is engaged to provide power to the post hole digger. The PTO transfers rotational energy from the tractor's engine to the gearbox of the digger, enabling the conversion of this energy into vertical movement to drive the auger into the ground effectively.
3. Gearbox Operation: Within the post hole digger, the gearbox plays a vital role in converting the rotational motion from the PTO shaft into the vertical movement needed to turn the auger. It contains a series of gears and shafts that work together to amplify and direct the power towards the digging mechanism.
4. Auger Rotation: Powered by the gearbox, the auger rotates as it penetrates the soil. This rotating motion allows the spiral-shaped drill bit to dig into the ground, removing soil and creating the desired hole diameter and depth. The auger's design ensures efficient soil removal and hole formation.
5. Hole Digging: The rotating auger efficiently digs into the ground to create holes of varying depths. The operator controls the depth by adjusting the boom of the post hole digger, ensuring precise digging according to the project requirements. This control allows for consistent and accurate hole creation.
6. Precision and Efficiency: The tractor-mounted PTO drive post hole digger combines power and precision to efficiently dig holes for various applications. The controlled operation, guided by the operator, ensures precise hole dimensions and consistent results. This combination of power and accuracy enhances efficiency in digging tasks, making the digger a valuable tool for a wide range of projects.

Maintenance Tips for 3 Point Post Hole Digger for Tractor

Maintaining a 3-point post hole digger for a tractor is essential to ensure its longevity, efficiency, and safe operation. Here are some maintenance tips to keep your post hole digger in optimal working condition:

• Regular Inspection: Conduct regular inspections before and after use to check for any visible signs of wear or damage. Pay close attention to the auger, gearbox, and PTO shaft. Identifying issues early can prevent further damage and ensure the digger operates efficiently, extending its lifespan and reducing downtime.
• Lubrication: Proper lubrication of moving parts is essential for smooth operation. Regularly grease the PTO shaft, gearbox, and any other pivot points to minimize friction and wear. Use high-quality lubricant suitable for the digger's components to ensure optimal performance and prevent rust or corrosion.
• Check Gearbox Oil Levels: Maintain the gearbox by checking the oil levels and topping up as necessary. Use the recommended oil type specified by the manufacturer. Proper lubrication within the gearbox reduces wear and tear on gears, ensuring that the digger operates smoothly and efficiently under various conditions.
• Auger Maintenance: Inspect the auger for dullness or damage after each use. Sharpen the blades if necessary to maintain efficient digging performance. If the auger becomes bent or significantly worn, consider replacing it to prevent strain on the tractor and ensure consistent hole quality.
• Shear Bolt Replacement: Check the shear bolts regularly and replace them if they are damaged or have already broken. These bolts are crucial for protecting the equipment by breaking under excessive load. Keeping spare shear bolts on hand ensures you can quickly replace them and continue working without interruption.
• Tighten Bolts and Connections: Regularly inspect and tighten all bolts, nuts, and connections to ensure they remain secure. Vibrations during operation can loosen these fasteners, potentially causing misalignment or other operational issues. Maintaining tight connections helps keep the digger stable and functioning properly.
• Storage: Store the digger in a dry, sheltered location when not in use to prevent rust and weather-related damage. Consider covering it with a tarp for added protection. Proper storage helps preserve the digger's condition, ensuring it remains ready for use and prolonging its operational life.

Agricultural PTO Shaft for Tractor Mounted Post Hole Digger

Tractor mounted post hole digger systems include a boom, A-frame, gearbox, PTO driveline with safety shields, manual canister, and all necessary pins and bolts. All models have an adjustable boom/A-frame connection. Post hole diggers come in individual crates, which can also fit one auger up to 9" or 12" depending on the model and create order. The agricultural PTO shaft and the post hole digger are crucial components in agricultural operations, working in tandem to perform efficient digging tasks. The PTO shaft is a mechanical component that transfers power from a tractor to an attached implement, in this case, the post hole digger. It connects the tractor's engine to the digger, providing the necessary rotational force to drive the auger into the ground. This transfer of power is essential for the digger's operation, as it allows the auger to penetrate various soil types efficiently, making it a versatile tool for farmers and landscapers. The PTO shaft is designed to handle high torque and rotational speeds, ensuring that the post hole digger can perform under demanding conditions. It is equipped with universal joints that accommodate the movement between the tractor and the digger, allowing for flexibility and reducing stress on the components. Proper maintenance, such as regular lubrication and inspection, is crucial to prevent wear and ensure safety. The tractor mounted post hole digger, on the other hand, is a specialized implement used for creating holes for fence posts, tree planting, and other applications. It consists of an auger, gearbox, and frame that attaches to the tractor's 3-point hitch system. The gearbox, powered by the PTO shaft, converts the rotational energy into the torque needed to turn the auger. This allows for precise and consistent hole digging, essential for various agricultural and construction tasks. Together, the PTO shaft and post hole digger provide a powerful and efficient solution for digging needs. The seamless transfer of power from the tractor to the implement ensures that the digging process is both quick and effective, saving time and labor. This synergy allows operators to tackle projects with confidence, knowing they have reliable equipment capable of handling the demands of modern agriculture.

FAQs:

Q1: What is a post hole digger used for? A: A post hole digger is primarily used to dig holes for fence posts, planting trees and shrubs, and installing signposts or utility poles. It's essential for creating uniform holes quickly and efficiently. Q2: How does a tractor-mounted post hole digger work? A: It attaches to a tractor's 3-point hitch and is powered by the PTO shaft. The PTO transfers rotational energy to the digger, driving the auger into the ground to create holes. Q3: What sizes of augers are available? A: Augers come in various diameters, typically ranging from 6 to 24 inches. The size needed depends on the specific application, such as the type of post or plant being installed. Q4: How deep can a post hole digger go? A: Most standard post hole diggers can dig holes up to three feet deep. Extensions are available for deeper holes, depending on the requirements of the project. Q5: What maintenance does a post hole digger require? A: Regular maintenance includes inspecting and lubricating the PTO shaft, checking and topping up gearbox oil, tightening bolts, and sharpening or replacing the auger blades as needed. Q6: What safety precautions should be taken? A: Always ensure that the PTO is disengaged before making adjustments. Use shear bolts to protect against obstructions, and wear appropriate safety gear, such as gloves and eye protection. Q7: Can it be used in rocky soil? A: While post hole diggers can handle various soil types, rocky soil may require specialized augers or additional equipment to effectively penetrate and remove rocks.
