Multiple Plate Bearing Pin Chains LF30/MP50F2/MP50.8/MP70/MP80/MP90/MP110

Raydafon Group presents the Multiple Plate Bearing Pin Chains LF30/MP50F2/MP50.8/MP70/MP80/MP90/MP110—engineered for high-load industrial applications with robust construction, superior durability, and smooth operation. Ideal for manufacturing and machinery sectors, these chains enhance efficiency and reliability, solving wear-and-tear issues while delivering unmatched performance. Their unique multiple-plate design ensures longer service life and reduced downtime, standing out in the market. Experience peak productivity and trust in Raydafon Group's commitment to quality.

Send Inquiry

Product Description

The multiple-plate bearing pin chains are a kind of timing chains made up of numerous rows of bearings that are plate-type. It is typically utilized in automotive engines. The chains utilize a shorter pin to keep the plates in position. These chains are extremely efficient and require little maintenance than traditional chain systems. They are particularly useful in high-performance settings.

Specifications of Multiple Plate Bearing Pin Chains

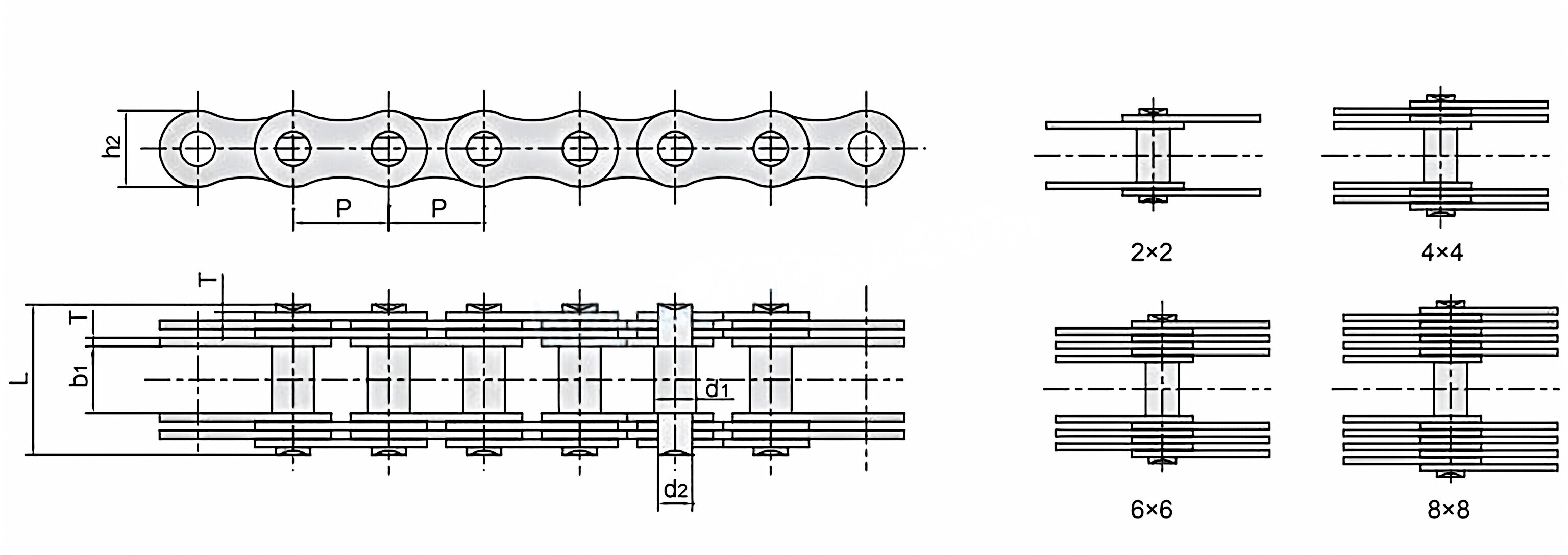

Chain No.	Pitch	Width between inner plates	Plate lacing	Pin diameter		Pin length	Plate depth	Plate thickness	Ultimate tensile strength	Weight per meter
	P	b₁min		d₁ max	d₂max	Lmax	h₂max	Tmax	Qmin	q
	mm	mm		mm	mm	mm	mm	mm	kN/lbf	kg/m
LF30	30.0	16.5	2×2	6.0	5.00	27.7	15.7	2.03	20.0/4496	0.72
MP50F2	50.0	38.0	6×6	22.0	18.00	85.0	40.0	3.00	250.0/56202	11.11
MP50.8	50.8	36.0	6×6	22.0	17.81	85.4	42.0	3.25	200.0/44961	11.90
MP70F1	70.0	21.0	2×2	16.5	14.00	51.5	30.5	6.00	145.0/32597	4.16
MP70F2	70.0	50.0	8×8	32.0	28.00	158.0	55.0	5.00	375.0/84303	44.00
MP70F3	70.0	52.0	8×8	32.0	28.00	160.0	55.0	5.00	375.0/84303	31.62
MP80F1	80.0	60.0	8×8	36.0	32.00	170.0	60.0	5.00	500.0/112404	35.32
*MP90F2	90.0	60.4	6×6	40.0	37.00	182.0	70.0	8.00	700.0/157366	52.70
*MP90F1	90.0	60.0	4×4	36.0	32.00	146.0	60.0	8.00	600.0/134885	32.22
*MP110F1	110.0	90.0	8×8	50.0	45.00	239.0	90.0	7.00	1250.0/281011	87.50

Note: *means straight link plate and both end of pin with washer

Multiple Plate Bearing Pin Chain Features

There are many advantages to multiple-plate bearing chains, for instance, the ability to take many different attachments. They are typically utilized for conveyors. The dimensions of these chains can be seen below. Since the pin is located at the center of articulation the length of pitch remains in the same range throughout its movements. As a result, the distance of the attachment's center is always the same regardless of whether the chain is bent or the sprocket is in use.Pin chains with hollow bearings are more flexible and allow attachments to be easily fixed onto the chain. Bearing chains with solid bearings are more robust and fuller which makes them suitable for conveyors that are more challenging. Additionally, a deep link chain is more than conventional chains, allowing an even carrying edge on top of the roller. The two types have hollow or solid bearing pins. This kind of chain is usually more expensive and its greater tension limits make it the best choice for extreme conditions.
