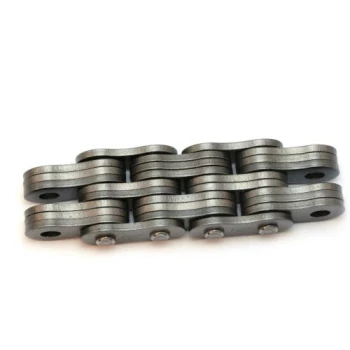

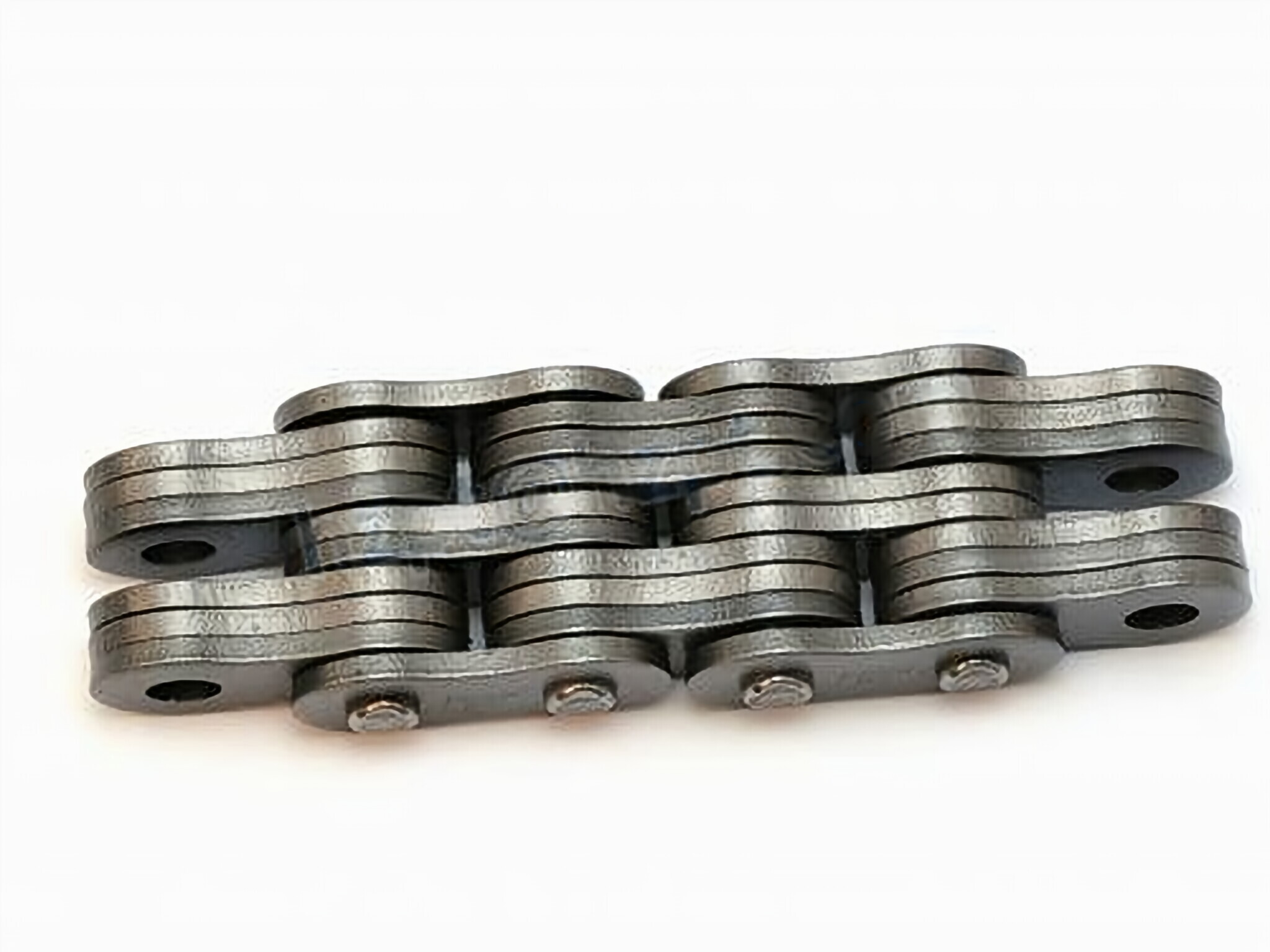

Multiple Plate Bearing Pin Chains

MP15/MP20/MP25/MP30/MP35/MP40/MP45/MP50/MP55/MP60/MP70/MP80/MP90/MP100/MP110/MP120

A multiple plate bearing pin chain is a type of timing chain that uses many rows of plate-type bearings. It is often used in automotive engines. These chains use a short pin to hold the plates in place. These chains are highly efficient and require less maintenance than conventional chain systems. They are especially useful in high-performance applications.A multiple plate bearing pin chain has two types: the hollow type, which allows attachments to fit through the pin itself, and the solid type, which is thicker and more durable than the hollow variety. Hollow bearing pin chains are generally used in light-duty applications, while solid bearing pin chains are typically used in more intensive conveyor applications. Both types have their benefits, so choose the one that fits your specific needs. Deep link chains are different from other chains, which use a single plate. They have deeper side plates than the standard chain plates, giving them a continuous carrying edge over the roller's periphery.

Specifications of Multiple Plate Bearing Pin Chains

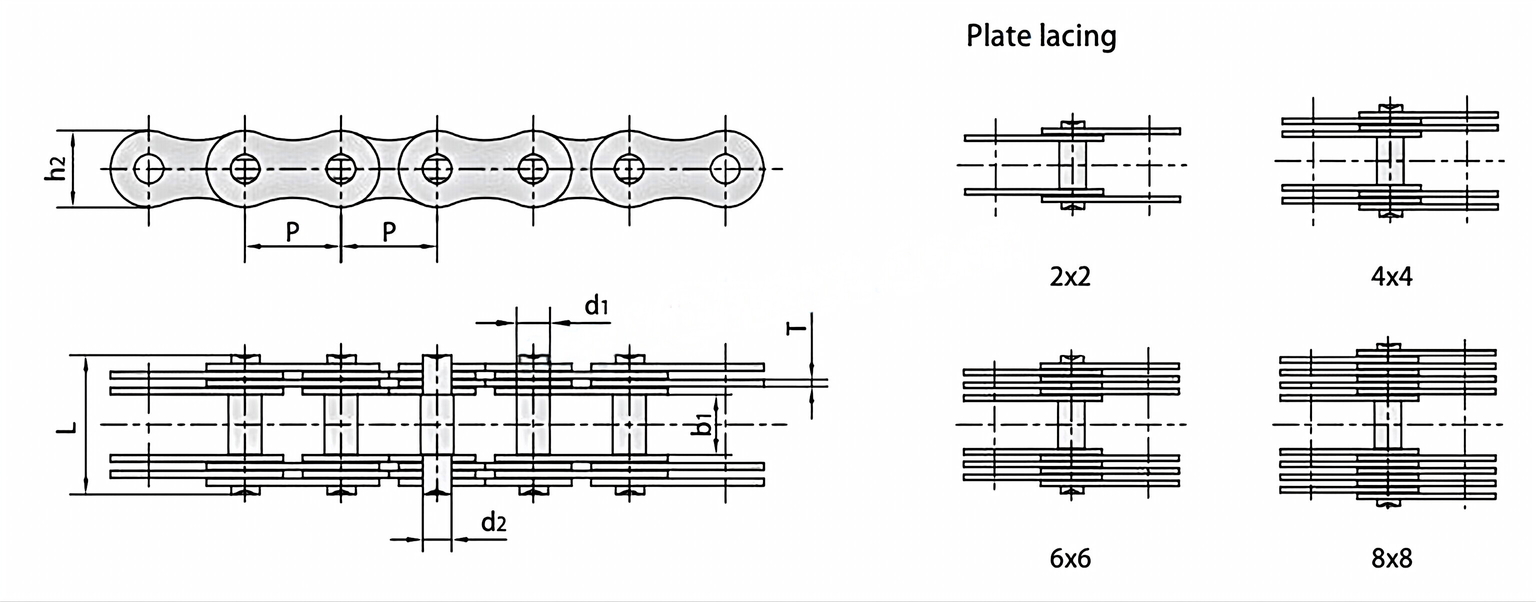

Chain No.	Pitch	Width between inner plates	Plate lacing	Pin diameter		Pin length	Plate depth	Plate thickness	Ultimate tensile strength	Weight per meter
	P	b₁min		d₁ max	d₂max	Lmax	h₂max	Tmax	Qmin	q
	mm	mm		mm	mm	mm	mm	mm	kN/lbf	kg/m
MP15	15	12	2×2	5	4	25	12	2.03	5.0/1125	0.7
MP20	20	15	2×2	8	6	28	15	2.03	12.5/2812	1.1
MP25	25	18	2×2	10	8	36	18	3.00	25.0/5624	1.8
MP30	30	20	4×4	11	9	51	20	3.00	40.0/8999	3.4
MP35	35	22	4×4	12	10	53	26	3.00	60.0/13498	4.5
MP40	40	25	4×4	14	12	58	32	3.00	80.0/17998	5.0
MP45	45	30	4×4	17	14	63	35	3.00	100.0/22497	7.0
MP50	50	35	4×4	22	18	90	40	4.50	150.0/33746	11.3
MP55	55	40	4×4	24	21	108	42	6.00	200.0/44994	14.5
MP60	60	45	4×4	26	23	114	46	6.00	250.0/56243	17.1
MP70	70	50	6×6	32	28	148	55	6.00	375.0/84364	34.0
MP80	80	60	6×6	36	32	159	60	6.00	500.0/112486	39.0
MP90	90	70	6×6	40	36	184	70	7.00	750.0/168728	53.0
MP100	100	80	8×8	45	40	224	80	7.00	1000.0/224972	77.0
MP110	110	90	8×8	50	45	236	90	7.00	1250.0/281215	90.0
MP120	120	100	8×8	55	50	262	100	8.00	1500.0/337458	112.0

Multiple Plate Bearing Pin Chain FeaturesThere are many features of multiple plate bearing pin chains, including the ability to accommodate a wide range of attachments. These chains are usually used in conveyor systems. The sizes of these chains are shown above. Because the pin is at the center of articulation, the pitch length remains constant throughout the chain's motion. Because of this, the center distance for attachments is always the same, even if the chain bends or the sprocket is engaged.Hollow bearing pin chains are more flexible, allowing for attachments to be loosely affixed to the chain. Solid bearing pin chains are thicker and fuller, making them appropriate for more demanding conveyor applications. Lastly, deep link chains are deeper than standard chain plates, offering a steady carrying edge atop the roller. Both types feature solid or hollow bearing pins. This type of chain is generally more expensive, and its higher tension limits make it the ideal choice for demanding conditions.

Chains and Sprockets

Chains and sprockets are mainly used in all applications such as transportation, machinery and other motor applications.
Chain and sprockets are maintained with grease and oil spray to provide smoother and better operation.
It makes the wheels run as the motor rotates and is considered as Rotation Per Minute (RPM).

Chains and sprockets are mainly used in the transport industry and machine building industry to rotate wheels by means of motors or engines. These chains and sprockets both help the wheelbase to run fast according to the engine speed. The chain hangs between the motor and the sprocket, the motor turns the sprocket and the chain is connected to the sprocket teeth, which can turn simultaneously with the motor wheel, thus making the vehicle or machine run smoothly. Raydafon is one of the leading manufacturers and suppliers in China. We can offer various high-quality chains and?sprockets for sale.
