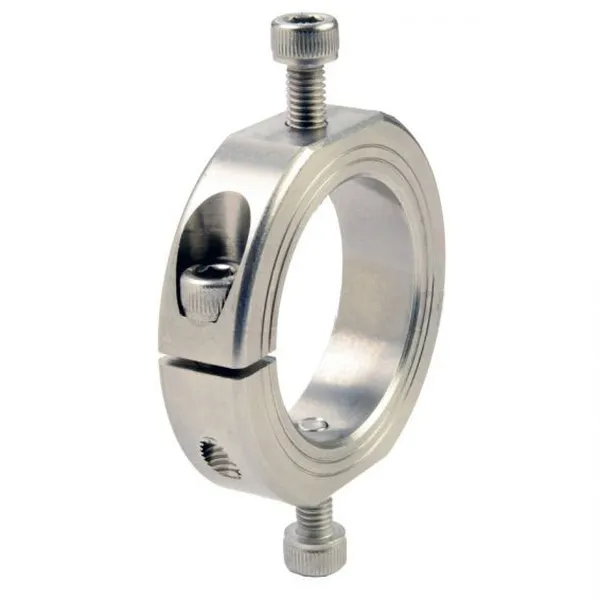

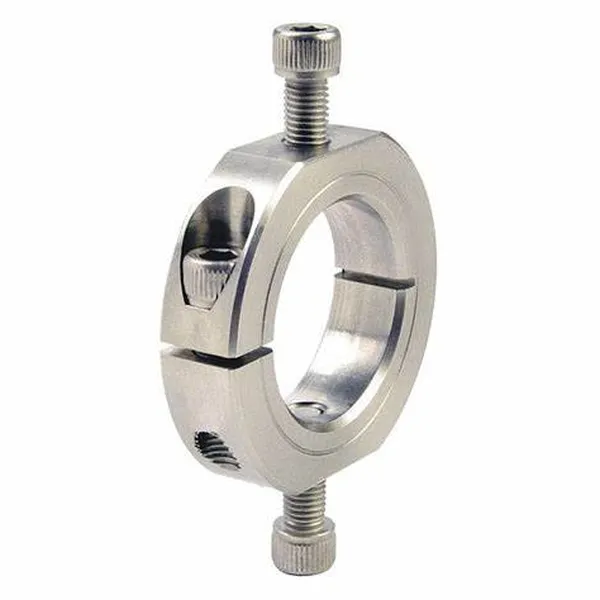

A metric series one-piece mountable shaft collar with OD flats and holes is a type of shaft collar that has a series of flats and holes on its outer diameter. These flats and holes allow the mountable shaft collar to be mounted to a variety of surfaces, including other shaft collars, plates, and hinges. The mountable shaft collar is also able to be used as a traditional shaft collar for guiding, spacing, stopping, and component alignment.The metric series mountable shaft collar with OD flats and holes is made of a variety of materials, including 1215 lead-free steel, 2024 high-strength aluminum, and 303 stainless steel. The steel shaft collar version is the strongest and has the greatest holding power, while the aluminum shaft collar version is the lightest. The stainless steel shaft collar version is the most corrosion-resistant.The metric series mountable shaft collar is available in a variety of sizes, with bore sizes ranging from 10mm to 40mm. The mountable shaft collar can be ordered with a variety of finishes, including black oxide, zinc plating, and stainless steel. The metric series one-piece mountable shaft collar with OD flats and holes is a versatile and useful tool that can be used in a variety of applications. It is a good choice for applications where a strong, lightweight, or corrosion-resistant shaft collar is needed.

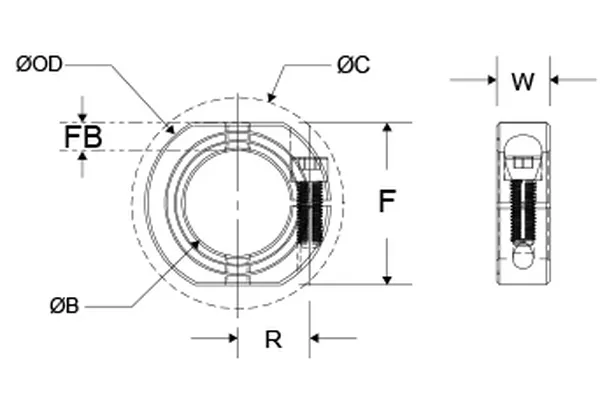

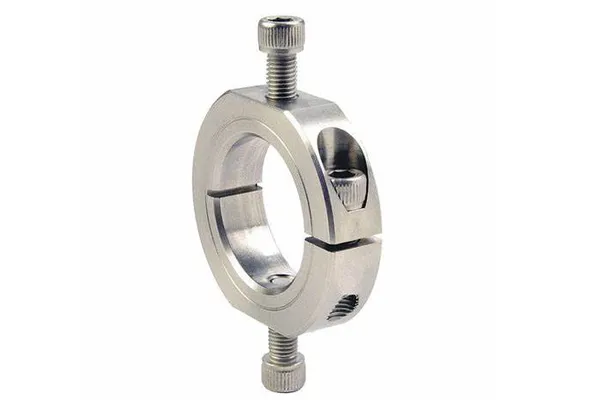

▍One Piece Mountable Shaft Collar Sizes Chart (Metric Series)

Part Number Steel	Part Number Aluminum	Part Number Stainless Steel	Bore (B) (in)	Outer Diameter (OD) (in)	Width (W) (in)	Flat to Bore FB (in)	Distance Across Flats (F) (in)
OF-MCL-10-F	OF-MCL-10-A	OF-MCL-10-SS	10 mm	24 mm	9 mm	5 mm	20 mm
OF-MCL-12-F	OF-MCL-12-A	OF-MCL-12-SS	12 mm	28 mm	11 mm	6 mm	24 mm
OF-MCL-16-F	OF-MCL-16-A	OF-MCL-16-SS	16 mm	34 mm	13 mm	7 mm	30 mm
OF-MCL-20-F	OF-MCL-20-A	OF-MCL-20-SS	20 mm	40 mm	15 mm	8 mm	36 mm
OF-MCL-25-F	OF-MCL-25-A	OF-MCL-25-SS	25 mm	45 mm	15 mm	8 mm	41 mm
OF-MCL-30-F	OF-MCL-30-A	OF-MCL-30-SS	30 mm	54 mm	15 mm	10 mm	50 mm
OF-MCL-35-F	OF-MCL-35-A	OF-MCL-35-SS	35 mm	57 mm	15 mm	7.5 mm	50 mm
OF-MCL-40-F	OF-MCL-40-A	OF-MCL-40-SS	40 mm	60 mm	15 mm	7.5 mm	55 mm

▍One Piece Mountable Shaft Collar with OD Flats and Holes Features

The one piece mountable shaft collar with OD flats and holes has several features that make it a popular choice for securing shafts in various industrial applications. Some of its key features include:

• One-piece design for ease of installation and removal.
• OD flats and holes for mounting sensors, fixtures, and other assemblies.
• Tapped holes for standard cap, torx, or set screws.
• Available in 1215 lead-free steel, high strength 2024 aluminum, and 303 stainless steel.
• Bore sizes range from 3/8” to 2” and 10mm to 40mm.

One piece mountable shaft collar with OD flats and holes is a versatile and easy-to-use tool that can be used in a variety of applications. It is ideal for mounting sensors, fixtures, and other assemblies to shaft collars or each other. The OD flats and holes provide a secure mounting surface, and the tapped holes allow for the use of standard hardware. One piece mountable shaft collar with OD flats and holes is available in a variety of materials and sizes to meet the needs of any application.Here are some of the benefits of using one piece mountable shaft collar with OD flats and holes:

• Ease of installation and removal: The one-piece design makes it easy to install and remove the mountable shaft collar from the shaft.
• Versatility: The OD flats and holes provide a secure mounting surface for a variety of sensors, fixtures, and other assemblies.
• Durability: The mountable shaft collar is made from a variety of materials, including 1215 lead-free steel, high-strength 2024 aluminum, and 303 stainless steel, to ensure durability and long life.
• Affordability: One piece mountable shaft collar with OD flats and holes is an affordable option for a variety of applications.

▍One Piece Mountable Shaft Collar with OD Flats and Holes Applications

One piece mountable shaft collar with OD flats and holes can be used in a variety of applications, including:(1) Mounting sensors: One piece mountable shaft collar with OD flats and holes can be used to mount sensors to shaft collars or each other. This is a common application in the automotive, aerospace, and manufacturing industries.(2) Mounting fixtures: One piece mountable shaft collar with OD flats and holes can be used to mount fixtures to shaft collars or each other. This is a common application in the manufacturing industry.(3) Welding items: One piece mountable shaft collar with OD flats and holes can be used to weld items such as plates or hinges to the shaft collar. This is a common application in the construction and manufacturing industries.(4) Mounting to a base plate: One piece mountable shaft collar with OD flats and holes can be used to mount to a base plate. This is a common application in the automotive and manufacturing industries.(5) Guiding, spacing, stopping, and component alignment: One piece mountable shaft collar with OD flats and holes can be used to guide, space, stop, and align components on a shaft. This is a common application in the automotive, aerospace, and manufacturing industries.

▍One Piece Mountable Shaft Collar with OD Flats and Holes Installation Instructions

Here are the installation instructions for a one piece mountable shaft collar with OD flats and holes:

1. Clean the bore. Use a clean, dry cloth to wipe away any dirt, grease, or oil from the bore of the mountable shaft collar.
2. Apply a thin coat of light oil to the shaft. This will help to prevent the mountable shaft collar from seizing to the shaft.
3. Place the collar on the shaft. Make sure that the flats on the mountable shaft collar are aligned with the flats on the shaft.
4. Tighten the screws. Use a torque wrench to tighten the screws to the specified torque.

▍One Piece Mountable Shaft Collar Manufacturers

Shaft collars are machine components that feature a simple design but play an important role in a wide range of industrial applications. They serve three primary functions; holding components in place, locating or positioning components on a shaft, and creating an attachment between the shaft and another component. Designers have a variety of factors to consider, such as style, material, bore size, and shaft geometry, before a selection can be made. It is important to identify the requirements, parameters, and limitations of your system in order to determine the right style for the application.Despite their simple design, shaft collars play an important role in a wide range of industrial applications. As such, when choosing one for a particular application, it is essential to use the one with the right design and performance characteristics.As an experienced manufacturer and distributor of shaft collars suitable for use in power transmission, motion control, automation, and other OEM and ODM operations, Raydafon has the knowledge, skills, and inventory to help customers select and source the right shaft collar for their application. In addition to offering standard shaft collars, including set screw shaft collars, heavy duty shaft collars, one piece shaft collars, two piece shaft collars, quick release shaft collars, double wide shaft collars, mountable shaft collars, hex shaft collars, D profile shaft collars, and threaded shaft collars, we also provide custom design and engineering services to manufacturing specialized shaft collars for unique customer needs.
