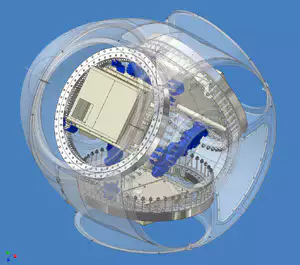

Pitch Drive Planetary Gearbox Reducer For Wind Turbine

Importance of Pitch Drive Planetary Gearbox Reducer

Wind power, as a pioneering force in global energy transformation, is reshaping our energy landscape at an unprecedented speed. As the urgency of climate change becomes increasingly apparent, the development and utilization of renewable energy has become a global consensus. Among them, wind energy has become a key area for governments and enterprises to invest due to its clean, renewable and widely distributed characteristics.In the wind turbine, the core of the wind power generation system, the yaw system and blade angle adjustment play a crucial role. The yaw system is responsible for adjusting the direction of the wind turbine to ensure that the wind wheel always faces the wind direction and maximizes the capture of wind energy. Blade angle adjustment (also called pitch control) optimizes wind energy absorption and conversion efficiency by changing the blade angle of attack. Especially when the wind speed changes, it can effectively prevent overload and maintain stable operation of the system. The precise control of these two functions is directly related to the efficiency, safety and life of the wind turbine.Against this background, the emergence of Pitch Drive Planetary Gearbox Reducer (yaw drive planetary gear reducer) provides revolutionary technical support for the wind energy industry. This high-performance reducer can not only accurately transmit torque and achieve fine-tuning control of blade angles, but also maintain efficient operation under extreme climate conditions with its excellent load-carrying capacity and reliability, significantly improving the overall performance of the wind turbine. performance and economic benefits.

Definition & Function

Planetary gear reducer, as a precision power transmission device, achieves speed reduction and torque amplification through a set of planetary gears rotating around the central sun gear and meshing with a ring gear (also called an external ring gear) fixed on the housing. function. In wind power generation systems, Pitch Drive Planetary Gearbox Reducer is especially used in the two key links of yaw system and blade pitch adjustment. The yaw system uses a reducer to precisely control the direction of the wind turbine head to ensure that it always faces the wind direction to maximize wind energy capture. The pitch adjustment uses a reducer to drive the blades to adjust their angles to optimize energy conversion efficiency under different wind speeds, avoid overload, and enhance system stability.

Performance Parameters

Output torque range:	1000-80000 N_m
Gear Ratios	i=300-2000
Support	slew support (with flange mounted)
Electric Brake	DC and AC type
Output shaft	splined or with integral pinion: output shafls supported by heavy duty capacity bearings
Applicable motors:	lEC electric motors

Tyрe	Nominal Output Torque (N.m )	Peak Static Output Torque (N.m )	Ratio (i)
700L	1000	2000	297-2153
701L	2000	4000	297-2153
703AL	2500	5000	278-1866
705AL	5000	10000	278-1866
706BL4	8000	15000	203-2045
707AL4	12000	25000	278-1856
709AL4	18000	30000	278-1856
711BL4	35000	80000	256-1606
710L4	25000	50000	329-1420
711L4	35000	80000	256-1606
713L3	50000	100000	250-1748
715L4	80000	140000	269-1390

Design Highlights Of Pitch Drive Planetary Gearbox

• High-precision transmission: Precision manufacturing technology and advanced materials are used to ensure perfect meshing between gears and reduce transmission errors, allowing blades and yaw control to achieve extremely high positioning accuracy, thus improving the overall wind energy utilization efficiency.
• Compact structure: The design pursues space optimization and integrates the complex planetary gear system into a relatively small volume. This not only saves installation space, but also helps reduce the weight of the entire machine, which is conducive to the lightweight development of wind power generation systems.
• High efficiency ratio: By optimizing the gear ratio and power transmission path, efficient energy conversion is achieved, and high-efficiency operation can be maintained even under low-speed and high-torque conditions, reducing energy loss and improving the overall efficiency of the wind turbine.
• Reliable and durable: The use of wear-resistant and corrosion-resistant materials, combined with advanced heat treatment technology and good lubrication system design, extends the service life of the reducer and reduces maintenance costs. It is especially suitable for remote areas with abundant wind resources but harsh environments.
• Low Noise and Low Vibration: Carefully designed gear geometry and balance, coupled with a high-quality bearing system, significantly reduce noise and vibration during operation, improving the environmental friendliness of the wind farm.
• Modular design: Provides highly flexible modular configuration for easy on-site installation, maintenance and upgrades, allowing the reducer to quickly adapt to the specific needs of different types of wind turbines, enhancing the versatility and maintainability of the product.

Working Principle and Operation Process

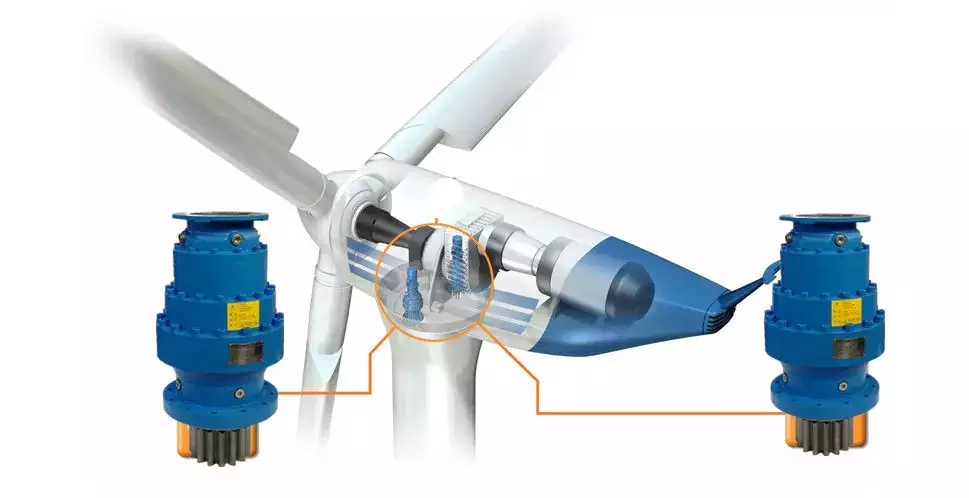

Yaw Control

The planetary gear reducer plays a vital role in the yaw control system of wind turbines. Wind power systems are usually equipped with wind vanes and controllers to monitor changes in wind direction in real time. When the wind direction shifts, the controller will send a signal to the yaw drive system to trigger the planetary gear reducer. This exquisite device receives high-speed input from an electric motor or other prime mover and reduces it through multi-stage gears to significantly reduce the speed while increasing the output torque. In this process, the unique structure of the planetary gear (that is, the planetary gear rotates around the sun gear and simultaneously revolves around the central axis with the planet carrier) plays a key role. It not only ensures efficient and smooth torque transmission, but also achieves extremely high torque transmission. Transmission accuracy. Therefore, even when the wind direction changes slightly, the reducer can respond quickly and drive the yaw motor to accurately adjust the direction of the wind wheel to ensure that it is always facing the wind, maximizing wind energy capture and improving power generation efficiency.

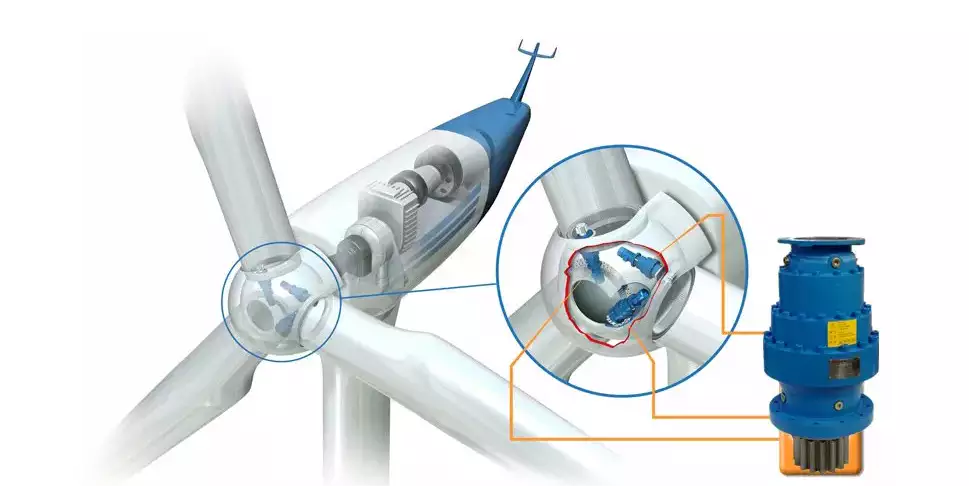

Blade Tilt Adjustment (Pitch Control)

Blade pitch adjustment uses the Pitch Drive Planetary Gearbox Reducer to finely control the angle (pitch) of each wind turbine blade to adapt to different wind speed conditions and optimize wind energy conversion. When the wind speed is low, increasing the angle of attack of the blades (even if the angle between the blades and the wind direction is larger) can increase the amount of wind energy captured; while when the wind speed is too high, reducing the angle of attack can prevent the wind turbine from overloading. Protect wind turbines from damage.The planetary gear reducer receives instructions from the control system and accurately adjusts the actuator connected to the blades to achieve instant adjustment of the pitch. Its high-precision characteristics ensure that even in continuous wind speed changes, the blade angle can be dynamically and seamlessly changed to maintain the optimal tip speed ratio, thereby maximizing wind energy conversion efficiency while ensuring safe and stable operation of the entire system. This adaptability to wind speed not only improves wind energy utilization, but also extends the service life of wind turbines and reduces maintenance costs.

Leading the Wind Energy Future: Your Preferred Pitch Drive Planetary Gearbox Manufacturer

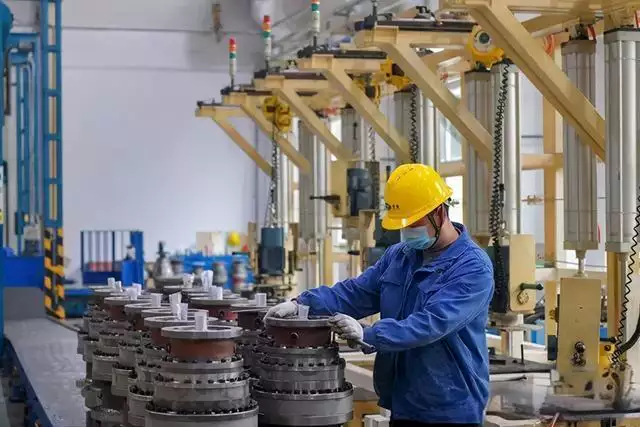

Welcome to our leading Pitch Drive Planetary Gearbox manufacturing facility, which is not only a showcase of precision mechanical art, but also the forefront of wind energy technology. As a leader in the industry, we focus on providing efficient and reliable yaw and blade tilt adjustment solutions for global wind power systems. Our factory integrates R&D, design, and production, and is committed to integrating the most advanced technology into the precision meshing of each gear, ensuring that every planetary gear reducer shipped from the factory represents the highest standards in the industry.Our products are known for their high precision and durability. They use high-quality materials and innovative processes, and undergo strict quality control processes to ensure they still perform well in the most demanding environments. From lightweight design to low-noise operation, from ultimate torque density to excellent environmental adaptability, we continue to make breakthroughs and lead the industry development trend. We know that precise yaw control and blade adjustment are crucial to the efficiency of wind power generation. Therefore, each reducer is carefully built to maximize wind energy capture and minimize operation and maintenance costs.Choosing us means you will get:

• Customized services: No matter the size of your project, our team of engineers will provide one-on-one consultation to ensure the product fully meets your specific needs and site conditions.
• Technological innovation: Continuous investment in R&D and adoption of the latest design concepts and manufacturing technologies ensure that products always maintain a leading position in the industry.
• Strict quality control: From the procurement of raw materials to the delivery of finished products, every process is strictly tested to ensure impeccable product quality.
• Quick response and after-sales support: A global service network provides fast and effective technical support and maintenance services to ensure the efficient and stable operation of your wind turbines.
• Environmental protection commitment: We adhere to green production, are committed to reducing environmental impact, and work with you to promote the development of sustainable energy.

Join our many satisfied customers and start a new chapter in wind energy utilization. Whether upgrading existing wind farms or developing new wind energy projects, we are your trusted partner. We look forward to working with you to create a clean energy future.
