Planetary Gearbox Reducer for Solar Energy Tracking System

The Key Role Of Planetary Gearbox Reducer In Solar Tracking System

Planetary gearbox reducers play a central role in solar tracking systems, especially those installed in the vertical pillars supporting solar panels. They are key components for solar panels to efficiently capture sunlight and maximize energy output. The solar tracking system automatically adjusts the direction and angle of the photovoltaic panels to ensure that the panels always face the sun to obtain the best lighting angle, which is directly related to the power generation efficiency of the solar system.The application of planetary gearbox reducers in solar tracking systems not only improves solar energy collection efficiency, but also ensures the long-term reliability and economy of the system. It is an important technical support for promoting the widespread application and sustainable development of solar energy technology. As the solar energy industry continues to expand and technology continues to innovate, the design and performance of planetary gearbox reducers will be further optimized to better serve the future sustainable energy system.

• Precise positioning

The planetary gearbox, with its high-precision transmission characteristics and intelligent control system, ensures that the solar panels can accurately follow the trajectory of the sun. Even the smallest angle adjustment can be accurately achieved, improving the sunlight reception efficiency.

• Torque amplification

Through gear reduction, the output torque of the motor is doubled, allowing the system to easily drive the rotation of the solar panel without affecting the tracking accuracy even in the face of large wind resistance or the weight of the panel itself.

• Durability and stability

In view of the fact that solar energy systems need to operate in various harsh outdoor environments for a long time, the planetary gearbox reducer ensures long-term operation stability and minimal maintenance needs.

• Space and efficiency optimization

The compact design of the planetary gearbox is suitable for installation in limited spaces, such as in the support structure of solar panels. It does not add extra burden, but can effectively utilize space and improve the integration and aesthetics of the overall system.

Introduction To Solar Tracking System

The solar tracking system is a device that dynamically adjusts the direction and angle of solar photovoltaic panels or collectors to maintain the optimal angle with the sun's rays, thereby maximizing the absorption of solar radiation and improving energy conversion efficiency. This type of system significantly improves the economy and efficiency of solar energy utilization, and is especially suitable for large-scale ground-mounted solar power stations.Solar tracking systems are mainly divided into two categories: single-axis tracking systems and dual-axis tracking systems.

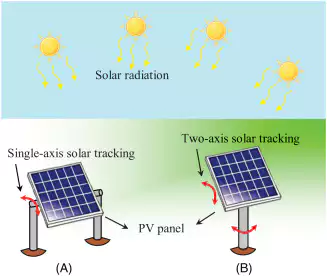

• Single-axis tracking system: As the name suggests, this type of system only rotates in one axis. The most common is east-west axis tracking, which means that the photovoltaic panels rotate horizontally as the sun rises from the east to sets in the west. Although single-axis tracking is not as flexible as dual-axis, it has a relatively simple structure and low cost, and can significantly improve power generation efficiency by about 25% compared to fixed installation systems.

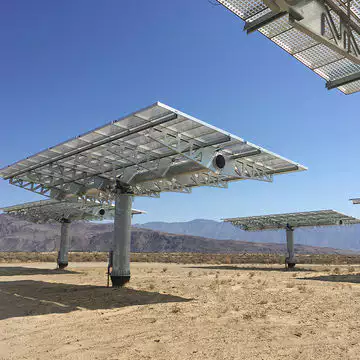

• Dual-axis tracking system: It can rotate in two axes simultaneously, generally referring to tracking that combines the east-west axis and the north-south axis (or tilt axis), so that the photovoltaic panels can accurately align with the sun all day long and capture direct and scattered sunlight to the maximum extent. The dual-axis tracking system can increase power generation efficiency by up to 45%, but it has a complex structure and high cost and maintenance requirements.

Principle of Improving Energy Efficiency

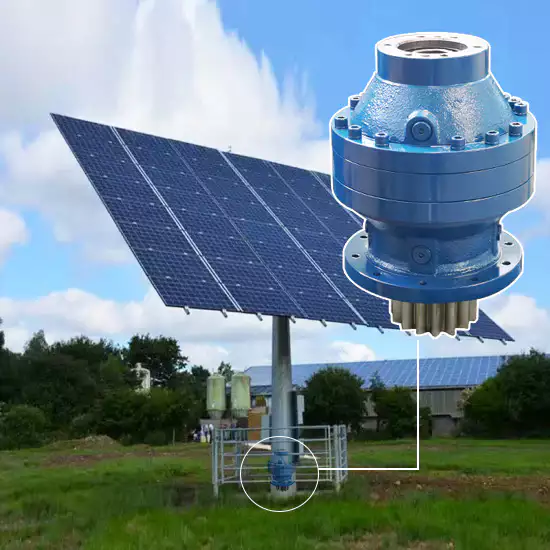

Whether it is a single-axis or dual-axis tracking system, the core principle is to adjust the orientation of the photovoltaic panel in real time to minimize the angle between the sun's rays and the normal line of the photovoltaic panel, thereby reducing light reflection and scattering losses. This directly increases the amount of light energy absorbed and increases the electrical energy output.In solar tracking systems, planetary gearbox reducers are usually installed near the vertical pillars or rotational axes that support the solar panels and serve as the connection between the motor and the moving parts (such as the rotating bracket). Its specific location and installation method vary depending on the type of tracking system (single-axis or dual-axis) and design details, but the basic functions are the same

Planetary Gearbox Basics

A planetary gearbox reducer, also called a planetary reducer or planetary gearbox, is a precision gear transmission designed to reduce the input shaft (usually driven by an electric motor) through a complex set of planetary gear mechanisms. speed, and simultaneously increases the torque of the output shaft. Such devices play a vital role in many demanding industrial applications, especially solar tracking systems, due to their efficient power transfer, high precision, compact design, and good durability.

Core components

1. Sun Gear: Located in the center of the planetary gear mechanism, it is usually directly driven by an external motor as an input element.
2. Planet Gears: Multiple small gears that rotate around the sun gear. They both rotate and revolve, and mesh with the sun gear and ring gear through the planet carrier.
3. Planet Carrier/Carrier: A frame that connects all planetary gears. It allows the planetary gears to rotate around the sun gear and may also rotate around the central axis as a whole, serving as an output element or intermediate transmission link.
4. Annulus/Ring Gear: A large gear that surrounds and meshes with the planet gear. It is usually stationary or serves as the housing of a reducer, but can also serve as an input or output element in some designs.

Your Trusted Expert In Planetary Gearbox Manufacturing

In the era of pursuing high efficiency and sustainable development, we, a leading company specializing in the R&D and manufacturing of planetary gearboxes, are committed to providing excellent transmission solutions to global partners. As a senior manufacturer in this field, we know that every precise transmission is not only a manifestation of technology, but also a fulfillment of our commitment to green energy. Therefore, we sincerely invite you to join our global network of partners and explore the endless possibilities together.

• Technological innovation, leading the cutting edge:Relying on a strong R&D team and advanced laboratory facilities, we continue to make breakthroughs and optimize product design, ensuring that each planetary gearbox incorporates the latest scientific and technological achievements, providing higher efficiency and greater durability. transmission experience.
• Precision workmanship, the cornerstone of quality:from raw material selection to finished product delivery, every process follows ISO quality management system standards, using high-precision processing equipment and strict quality inspection processes to ensure that products reach world-class quality, freeing you from worries.
• Customized services to meet needs:We know that different application scenarios have different requirements for planetary gearboxes, so we provide a full range of customized services. Whether it is special materials, non-standard sizes or specific working environments, we can tailor it. Meet your individual needs.
• Efficient response and worry-free after-sales:We have established a complete customer service system to provide 24-hour rapid response from pre-sales consultation to after-sales service. Our professional technical support team is on call at any time to ensure that your problems are solved in time and the project is guaranteed. Goes smoothly.
• Green manufacturing, sustainable development:Adhering to the concept of environmental protection, we actively use environmentally friendly materials in the production process, implement energy saving and emission reduction measures, and strive to minimize the impact on the environment, and work with you towards a green and sustainable future.

Choosing us means choosing a partner that combines technical strength, product quality, customization flexibility and service efficiency. In this era full of opportunities and challenges, let us walk side by side, use high-quality planetary gearboxes to drive every innovative project, and jointly open a new chapter in energy utilization. Looking forward to cooperating with you to create brilliance together!
