Planetary Gearbox Wheel Drive For Motor Grader

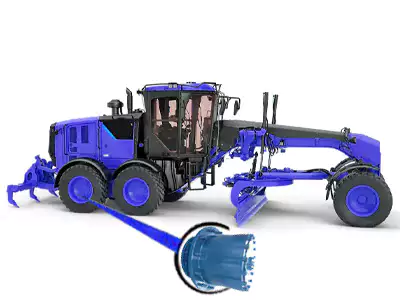

Installation Location of Wheel Drive For Motor Grader

The Planetary Gearbox Wheel Drive unit is integrated into the axle or hub assembly of each drive wheel, immediately adjacent to the tire or track system. This layout allows for a more direct transfer of torque to the wheels while keeping the overall design compact.The application of Planetary Gearbox Wheel Drive in Motor Grader mainly focuses on the drive system part, especially as the terminal reduction device of wheel drive. It is usually installed near the hub of each drive wheel (all wheels on front-wheel or all-wheel drive models) and is directly involved in converting the power generated by the engine into the driving force of the bulldozer.

Features of Wheel Drive For Motor Grader

Efficient power transmission: Due to its efficient transmission ratio and high torque transmission capacity, the planetary gearbox can efficiently convert the power output from the engine into the driving force of the wheels, ensuring that the bulldozer can operate efficiently even under low-speed, high-load conditions. Enough traction.

• Space optimization: The planetary gearbox has a compact structure and can achieve a large reduction ratio in a limited space. This is particularly important for the space-tight Motor Grader chassis design, which helps to reduce the size of the entire vehicle and improve mobility and flexibility.
• Increased stability and controllability: By precisely controlling the distribution of torque to each drive wheel, the planetary gearbox helps improve the stability and controllability of the bulldozer on complex terrain, especially when working on slopes or during delicate operations.
• Durability and maintainability: Because the gears of the planetary gearbox are evenly stressed and wear relatively uniformly, coupled with its sturdy design, it can withstand the continuous operation of the bulldozer under harsh working conditions, and it also facilitates regular maintenance and replacement of worn parts.
• Strong adaptability: For all-wheel drive Motor Grader, the independent planetary gearbox design of each wheel can be independently adjusted to adapt to different ground conditions and operating needs, enhancing passability and work efficiency.

In summary, the application of Planetary Gearbox Wheel Drive in Motor Grader significantly improves the vehicle's driving force, controllability and operating efficiency through its efficient, compact and durable design. It is a key component in the bulldozer drive system.

The Necessity of Wheel Drive For Motor Grader

Bulldozers often face the challenges of heavy loads and complex terrain during construction, and require strong driving force to complete earthwork operations. Due to its structural characteristics, the planetary gearbox can provide high torque output in a compact volume, meeting the bulldozer's need for strong traction. The star gearbox enables efficient power transmission and reduces energy loss through multiple planetary gears meshing simultaneously, which is crucial for fuel efficiency and overall operating economy. The planetary gears in the planetary gearbox rotate around the sun gear, and the load is distributed on multiple gear contact points, which helps to evenly distribute stress and improve the durability and life of the gearbox, especially when bulldozers are frequently subjected to heavy loads and impact loads.

Adaptability of Our Gearbox

The gearbox series we are proud of is designed for broad compatibility and can be seamlessly integrated into most Motor Grader models on the market, ensuring that whether it is an internationally renowned brand or a regional specialty model, it can Enjoy the outstanding performance of our high-performance transmission solutions. Our gearbox not only follows the industry standard interface design, but also has a high degree of flexibility. It can be customized in detail according to the specific working conditions and configuration requirements of different Motor Graders, covering everything from interface size, power matching to torque requirements. adaptation.There are many common Motor Grader brands and models on the market, covering flagship products of industry leaders, including but not limited to:

• Caterpillar's 140M and 160M series
• John Deere's 624K and 770G series
• Komatsu's D61PXi-23 and GD655-6 series
• CASE's 885M and 955L series
• Volvo's G930 and G940 series

Our Customized Services

Our customized services are not limited to the above brands, but are open to the entire Motor Grader market. From initial consultation to detailed design, to final delivery and technical support, we promise that each gearbox can accurately meet the customer's specific requirements, including but not limited to:Precise adaptation of the interface size: ensuring seamless connection between the gearbox and the prime mover and drive wheel without complex modification work.Precise matching of power and torque: According to the Motor Grader's engine output and operating requirements, the gearbox is customized to achieve optimal power transmission efficiency.Durability and environmental adaptability: The use of high-quality materials and advanced manufacturing processes ensures that the gearbox still performs well under harsh working conditions and extends its service life.Maintenance convenience: Fully consider post-maintenance during design, simplify maintenance procedures and reduce downtime.In short, no matter which brand or model your Motor Grader belongs to, or how special your working environment is, we can provide tailor-made gearbox solutions to help your bulldozer reach its maximum potential and improve the efficiency and quality of construction site operations.
