Plastic Conveyor Chains Sideflexing With Snap On Gripper(Silica Gel) Replacement Of System Plast 1873D3 - K650

Plastic Conveyor Chains Sideflexing With Snap On Gripper(Silica Gel) Replacement Of System Plast 1873D3 - K650

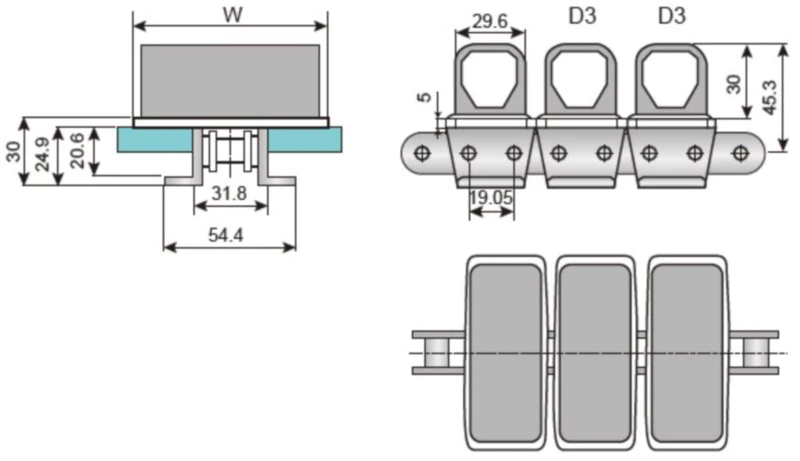

Widely used in clip bottle and lift transportation.Material ( base roller chain ):stainless steel SUS304 or carbon steel,The longest distance: 24M,Max. speed: lubricant 90M/min,dryness 60M/min,Packing: 10 feet = 3.048 M/box 26pcs/M.

Product Description

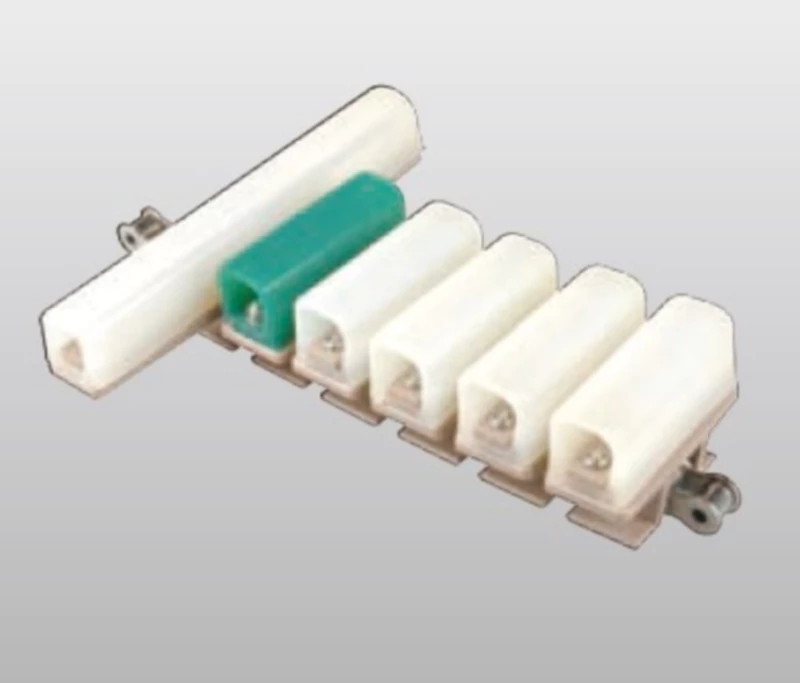

Plastic Conveyor Chains Sideflexing With Snap On Gripper is a plastic conveyor chain with side flexing ability, and the gripper part is made of silica gel material. This chain has side flexing ability and comes equipped with grippers, making it suitable for use in a variety of conveying systems.

Product Features and Benefits

• Excellent gripping performance: The silica gel material has good adhesion and friction properties, making it able to reliably grip and convey materials. They provide stable gripping force during transportation, reducing the risk of material sliding and dropping.
• High-temperature resistance: The silica gel material has high-temperature resistance, maintaining stable physical properties in high-temperature environments. This makes this chain suitable for applications that require transportation in high-temperature conditions.
• Wear and corrosion resistance: The silica gel material has good wear and corrosion resistance, maintaining its gripping performance and life during long-term use. They have high resistance to some chemicals and corrosive media.
• Low noise and low vibration: The silica gel material has shock absorption and noise reduction characteristics, reducing noise and vibration during transportation and providing a quieter and smoother working environment.

Applications

• Food and beverage industry: This chain is suitable for conveying and packaging processes in the food and beverage processing industry. They can be used to convey food, bottles, cans, packaging boxes, and other materials, ensuring the stable transfer of materials on the curved path.
• Packaging industry: This chain can be used in automated packaging lines in the packaging industry. They can transport materials such as packaging boxes, bags, and cartons from one workstation to another, achieving efficient packaging.
• Pharmaceutical industry: In the pharmaceutical industry, this chain can be used to transport drug containers, bottles, boxes, and other materials. They ensure the safe and accurate transmission of drugs during transportation.
• Logistics and warehousing industry: This chain is suitable for material transportation and sorting systems in the logistics and warehousing industry. They can move goods from one location to another, such as from the warehouse's inbound area to the storage area or from one area to another in the warehouse.
• Electronics industry: This chain can be used in production and assembly lines in the electronics industry. They can convey electronic components, assemblies, and equipment, ensuring their stable transfer and assembly during the manufacturing process.

Customization Options

Discuss the customization options for the product to meet specific requirements, including different sizes, shapes, and accessory options. Emphasize the flexibility of the product to adapt to various conveyor systems.

Installation

Preparation: Before starting the installation, ensure that you have proper safety measures and tools. Read the installation instructions and operating manual provided by the vendor and ensure that you understand the chain's specifications and size requirements.

Prepare conveyor line architecture: Prepare the supports and structures of the conveyor line according to your application requirements and layout design. Ensure that the supports are smooth, stable, and comply with the chain's installation requirements.

Install sprockets: Properly install the sprockets on the drive shafts of the conveyor line. Ensure that the sprockets match the chain's tooth shape and correctly position and fix them according to the chain's specifications and the vendor's guidelines.

Install chain: Place the chain along the conveyor line's path and ensure that the chain's direction is correct. Use connectors to connect the chain if necessary. Ensure that the connectors are firm and reliable and follow the vendor's installation guidelines.

Install grippers: Fix the grippers on the chain according to the chain's design. Ensure that the grippers are firmly connected to the chain and have appropriate gripping force.

Adjust chain tension: Adjust the chain tension appropriately according to the chain's tension requirements. Ensure that the chain has adequate tension during operation to ensure normal operation and material transfer.

Testing and debugging: After the installation is complete, perform testing and debugging. Check the chain's operation and ensure that the chain runs smoothly during transportation and that the gripper's gripping effect is satisfactory.

Sprockets Adapted with the Product

Explain the important relationship between sprockets and the product.

Other Chain Products

We also offer other chain products such as Plastic Chain, Stainless Steel Chain, agricultural chains, leaf chains, etc.

About Raydafon Company

Raydafon was established in 2003 and is a company specializing in power transmission parts. We have multiple advanced production and inspection equipment, including CNC Gear grinding machine, gear measuring machine, CNC gear shaper, machine center, CMMS, Torque test system, etc.

We pride ourselves on our professionalism, international certifications, customized services, production equipment, and after-sales service. Raydafon welcomes all customers to inquire or customize products.

FAQs

1. What is the material of the base roller chain of Plastic Conveyor Chains Sideflexing With Snap On Gripper?

The material of the base roller chain can be stainless steel SUS304 or carbon steel.

2. What is the maximum speed of the chain?

The maximum speed of the chain is 90M/min with lubricant and 60M/min in dryness.

3. What is the longest distance this chain can cover?

The longest distance this chain can cover is 24M.

4. What are the packing specifications for this chain?

The packing specifications for this chain is 10 feet = 3.048 M/box 26pcs/M.

5. What are the industries where Plastic Conveyor Chains Sideflexing With Snap On Gripper can be used?

This chain can be used in food and beverage industry, packaging industry, pharmaceutical industry, logistics and warehousing industry, and electronics industry.
