Plastic Flat Top Chain Double Hinge Straight Replacement Of System Plast 821

Introducing the plastic flat top chain

The plastic flat top chain is a unique product designed to revolutionize various industries. Its design, structure, and material composition make it a top choice for many applications.

The Material Composition of the Plastic Flat Top Chain

The plastic flat top chain is typically made from high-quality engineering plastics such as polypropylene (PP), polyethylene (PE), and polyamide (PA). These materials offer excellent resistance to corrosion, wear, and have excellent chemical stability.

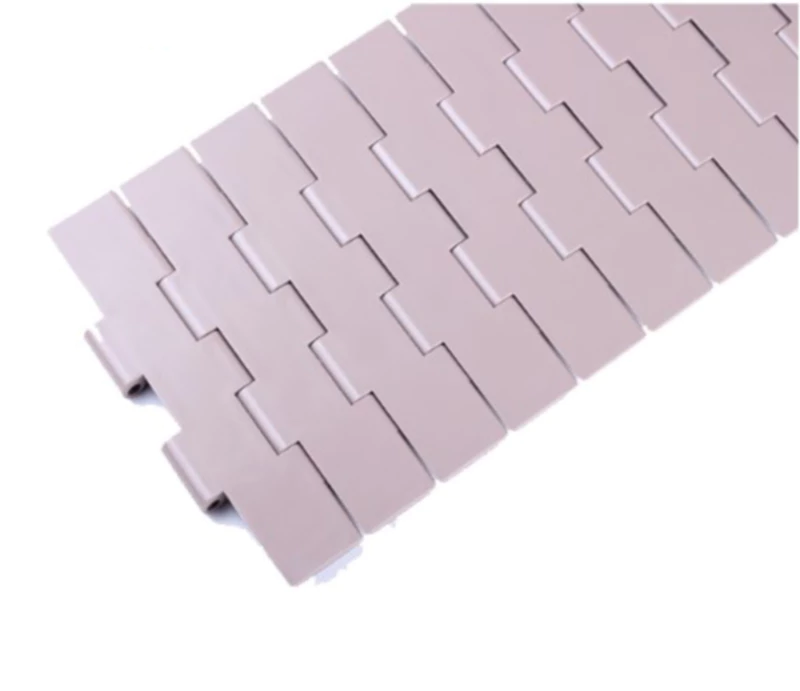

The Chain Structure

Comprised of a series of flat chain plates, the plastic flat top chain is interconnected by pins, rivets, or bolts. This creates a flat conveying surface between the chain plates, ensuring a smooth and stable transportation of objects.Mainly used for all kinds of food industry, such as beverage, bottle, can and other conveyors.The longest distance: 12MMax. speed: lubricant 90M/mindryness 60M/minWorking load: 3000NPin material: austenitic stainless steelPlate material: POM acetal(Temperature: -40 ~ 90℃)Packing: 10 feet = 3.048 M/box 26pcs/M

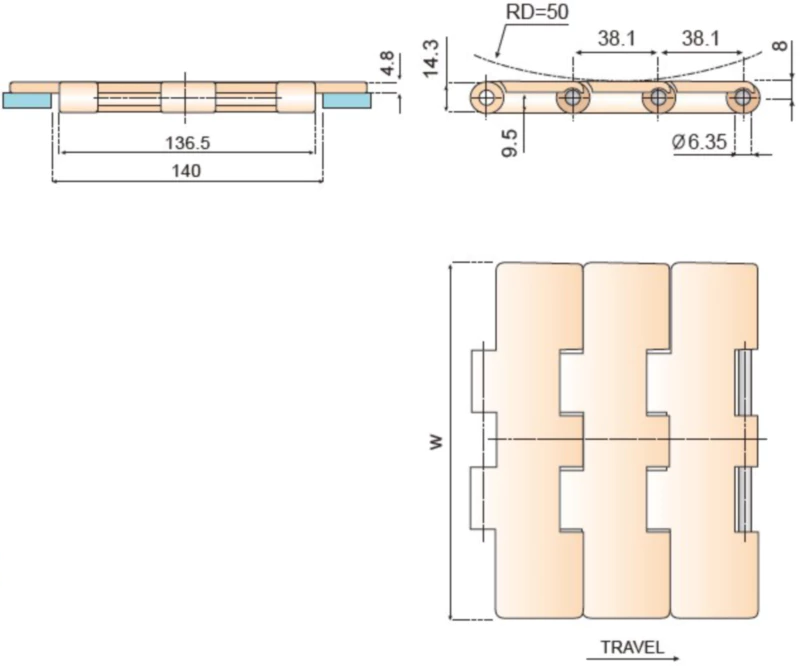

Chain Plate Shape and Size

The shape and size of the chain plate can be customized to meet specific application requirements. Typically rectangular or square, the size of the plate can be designed and selected based on the requirements of the conveying system.

Key Features and Technical Parameters of the Plastic Flat Top Chain

There are several notable features and technical parameters of the plastic flat top chain. These include maximum load capacity, operating temperature range, chemical resistance, wear resistance, and tensile strength. Accurate and useful technical data is provided to assist potential customers in understanding the product's capabilities and applicability.

Applications of the Plastic Flat Top Chain

With its specific material characteristics, the plastic flat top chain has become popular across various industries. It is extensively used in automobile manufacturing, electronic product manufacturing, mechanical processing, food and beverage transportation, and material transportation, to name a few. These industries value the superiority and adaptability of the plastic flat top chain.

Customer Case Studies

To better understand the practical application and commercial value of the product, case studies of successful implementations of the plastic flat top chain are provided. These case studies offer insight into the product's real-world applications.

Customization Options

There are various customization options available for the plastic flat top chain to meet specific requirements. These include different sizes, shapes, and accessory options. The plastic flat top chain's flexibility allows it to adapt to various conveyor systems easily.

Installation and Maintenance

Instructions on the installation and maintenance of the plastic flat top chain are also provided. These instructions include proper installation methods, chain adjustments, and alignment requirements for gears or rollers. The plastic flat top chain requires less maintenance than metal chains due to its corrosion resistance and self-lubricating properties. It also has a long lifespan and can withstand harsh environments and prolonged use. Guidance on cleaning and lubricating the chain is also provided to ensure its normal operation.

Future Development

The future of plastic flat top chain technology is promising. Emerging trends such as the use of advanced polymers or integrated intelligent technologies could further enhance the performance and capabilities of plastic flat top chains.

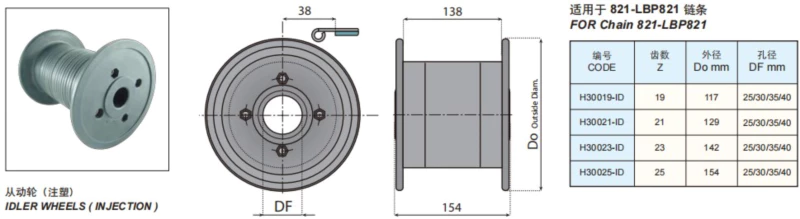

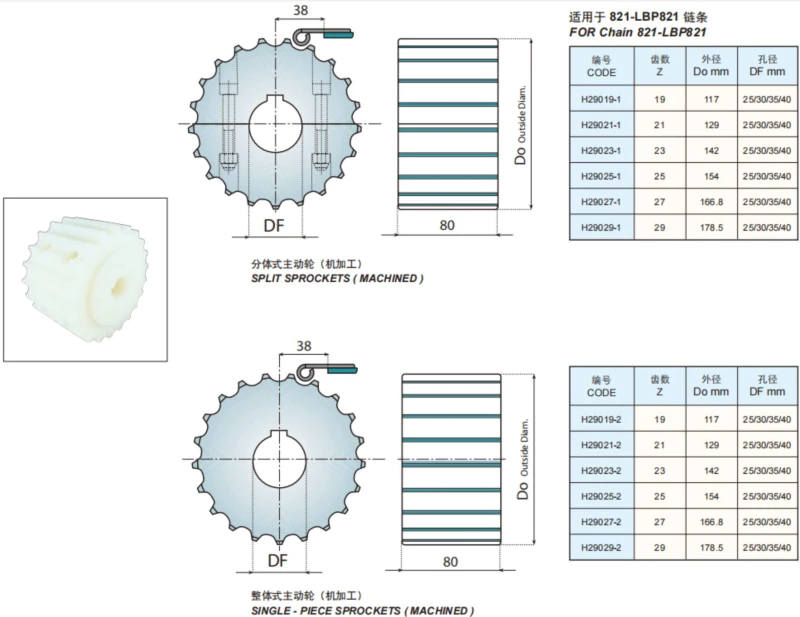

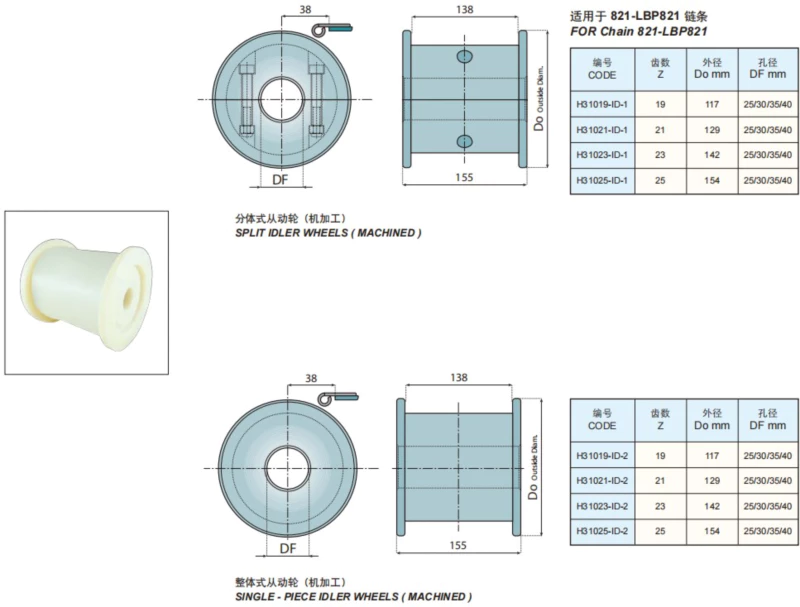

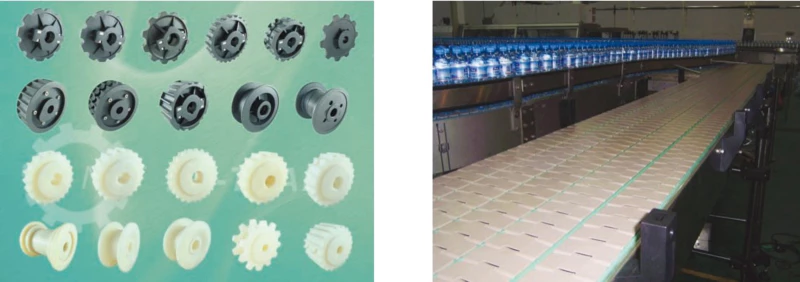

We also provide sprockets that match the chain.

Sprocket is a key component of chain power transmission. When the chain and sprocket are interlocked, the rotational motion of the sprocket transfers power to the chain, allowing it to move and drive. The design and size of the sprocket determine the torque and speed transmitted to the chain, directly affecting the operational efficiency and performance of the chain.

Other Chain Products

Beyond the plastic flat top chain, we also offer a range of other chain products including Plastic Chain, Stainless Steel Chain, agricultural chains, leaf chains, Pintle Chain, and more.

Raydafon: Your Trusted Chain and Sprocket Provider

At Raydafon, we also provide matching sprockets for our chains. Both chains and sprockets are indispensable components of any conveyor system, and we understand their importance. We leverage multiple advanced production and inspection equipment, including CNC Gear grinding machines, gear measuring machines, CNC gear shapers, machine centers, CMMS, and torque test systems. Our commitment to professionalism, international certification, customized services, advanced production equipment, and excellent after-sales services makes us a trusted partner for all your conveyor system needs.
