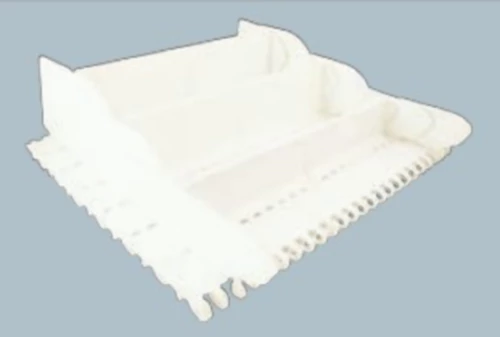

Plastic Modular Belts Replacement Of System Plast N5080-UMPB-FSG

Plastic Modular Belts Replacement Of System Plast N5080-UMPB-FSG

Basic Definition

Plastic modular belts are a type of conveyor belt system composed of interlocking plastic modules or links that form a continuous, flexible belt. These belts are designed to be highly customizable, easily assembled, and adaptable to various applications.

Advantages

Modularity and Customization

Plastic modular belts offer a high degree of modularity, allowing for easy customization to suit specific conveyor system requirements. The interlocking modules can be easily replaced or reconfigured to accommodate changing needs.

Flexibility and Adaptability

Plastic modular belts are flexible and can navigate curves, inclines, and declines, making them suitable for a wide range of conveyor system configurations. They can easily adapt to different production layouts.

Durability and Corrosion Resistance

These belts are made of durable thermoplastic materials, such as polypropylene or polyethylene, which are highly resistant to wear, abrasion, and corrosion. They can withstand harsh operating conditions.

Hygienic Properties

Plastic modular belts are easy to clean and maintain, making them ideal for industries with strict hygiene requirements, such as food and beverage processing and pharmaceutical manufacturing.

Reduced Maintenance

Due to their modular design, individual modules can be easily replaced without affecting the entire belt. This reduces maintenance time and costs, improving overall operational efficiency.

Energy Efficiency

Plastic modular belts have low friction and require less power to operate, resulting in energy savings and reduced operating costs.

Modular Replacement

With plastic modular belts, specific sections or modules can be replaced without replacing the entire belt, minimizing downtime and reducing maintenance expenses.

Applications

Plastic modular belts are widely used in various industries, including:

1. Food and Beverage Processing

Plastic modular belts are highly suitable for transporting food and beverage products, ensuring efficient and hygienic processing and packaging.

2. Pharmaceutical and Medical Device Manufacturing

In the pharmaceutical industry, plastic modular belts provide safe and clean transportation of drugs and medical devices during the manufacturing process.

3. Logistics and Warehousing

Plastic modular belts are used in sorting, conveying, and packaging applications in logistics and warehousing facilities, improving efficiency and streamlining operations.

4. Automotive Manufacturing

Plastic modular belts are utilized in automotive assembly lines for parts handling, painting, and assembly processes, ensuring smooth and reliable production.

5. Electronics and Consumer Goods

In the electronics industry, plastic modular belts are used for the precise movement of delicate components during manufacturing and assembly processes.

6. Recycling and Waste Management

Plastic modular belts are employed in recycling and waste management facilities to efficiently transport and separate various materials for processing and disposal.

Working Principle

Plastic modular belts consist of individual plastic modules or links that interlock with each other, forming a continuous, flexible conveyor belt. These modules are typically made of durable thermoplastic materials, such as polypropylene or polyethylene. The belts are supported by a series of rollers or sprockets that drive the belt's movement. As the rollers or sprockets rotate, the interlocking modules align and move in a synchronized manner, propelling the belt forward. The modular design allows the belt to navigate curves, inclines, and declines, making it adaptable to various conveyor system configurations.

Choosing the Right Plastic Modular Belts

• Application Requirements: Consider the specific requirements of your application, such as load capacity, temperature resistance, and product compatibility.
• Material Selection: Choose a material that best suits the application's needs, considering factors like durability, chemical resistance, and hygienic properties.
• Module Design: Evaluate the design of the modules, ensuring they provide optimal grip, smooth product transfer, and easy cleaning.
• Surface Texture: Select a surface texture that minimizes product slippage and provides efficient conveying while maintaining appropriate product support.
• Accessories and Options: Consider additional features, such as side guards, cleats, or flights, that may be necessary for your specific application.
• Manufacturer Reputation and Support: Choose a reputable manufacturer known for producing high-quality plastic modular belts and providing excellent customer support.
• Cost and Lead Time: Consider the overall cost, including the initial investment, maintenance, and replacement needs, as well as the lead time for obtaining the belts.

Installation and Maintenance

Installation

1. Determine the Conveyor Path: Plan the layout and path of the conveyor system.
2. Prepare the Conveyor Frame: Ensure the frame is properly aligned and securely mounted.
3. Assemble the Belt: Connect the interlocking plastic modules to form a continuous belt.
4. Add Modules Progressively: Gradually add modules to the belt, ensuring proper alignment and interlocking.
5. Install Sprockets or Rollers: Position and secure the sprockets or rollers to support and drive the belt.
6. Secure the Belt Ends: Fasten the belt ends using appropriate connectors or fastening methods.
7. Adjust Tension and Alignment: Adjust the tension and alignment of the belt to ensure smooth operation.

Maintenance

1. Regular Cleaning: Clean the belt regularly to remove debris, dirt, and contaminants.
2. Tension Monitoring: Monitor the belt tension to ensure optimal performance and prevent slippage.
3. Sprocket and Roller Inspection: Check the condition of the sprockets or rollers for wear or damage.
4. Module Replacement: Replace individual modules as needed to maintain the belt's integrity and functionality.
5. Lubrication: Apply appropriate lubrication to the sprockets or rollers to minimize friction and prolong their lifespan.
6. Visual Inspections: Perform regular visual inspections to identify any signs of damage or abnormalities.

Importance of Chain Sprockets

Chain sprockets are essential components in the operation of plastic modular belts. They provide the necessary drive and support for the belt's movement. The proper selection and installation of chain sprockets ensure smooth and reliable conveyor performance, minimizing wear and maximizing efficiency.

Other Chain Products

In addition to plastic modular belts, we also offer a range of other chain products, including Plastic Chain, Stainless Steel Chains, Agricultural Chains, Leaf Chains, and more. These chains are designed for various applications and provide reliable performance in different industries.
