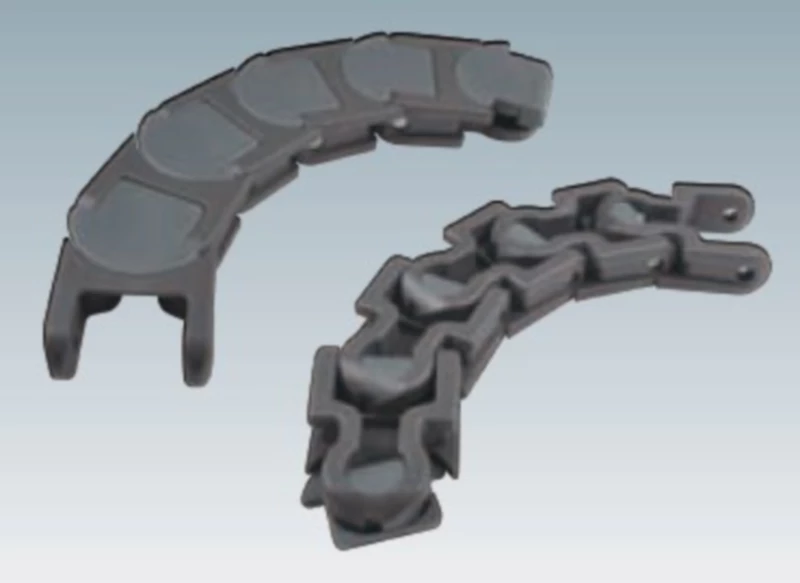

Plastic Multiflex Chain Replacement Of System Plast 1775

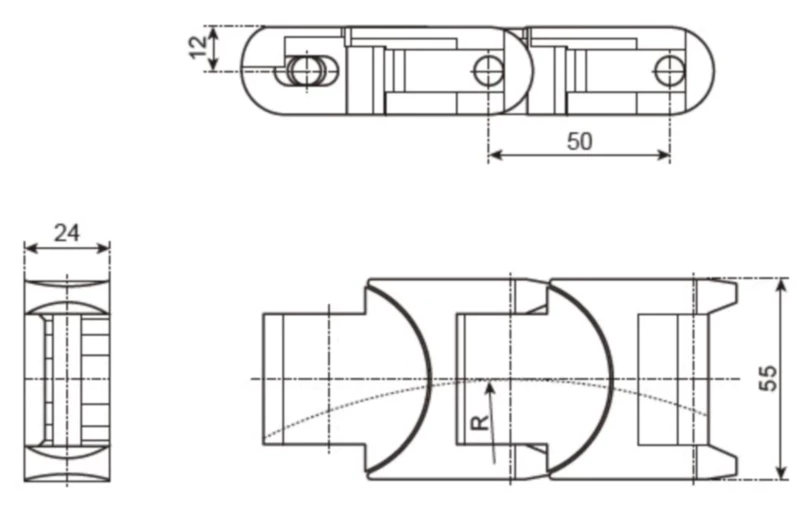

[table id=118 /]Plastic Multiflex Chain Replacement Of System Plast 1775Plastic Multiflex Chain is a chain product made of high-quality plastic material, which is suitable for conveying or towing operations in various occasions, especially under the conditions of flexibility, corrosion resistance, wear resistance, and lightweight. Please see the following image for the dimensions of Plastic Multiflex Chain:

Features of Plastic Multiflex Chain:

1. Material characteristics: Made of high-quality plastics such as polyurethane, nylon, or other composite plastics, it has good chemical stability and physical toughness.2. Flexible design: Unique design allows it to bend and twist in a small space, adapting to the needs of complex paths and angle changes.3. Durability: With excellent wear resistance, weather resistance, and corrosion resistance, it can maintain stable operation for a long time in harsh environments.4. Lightweight: Compared with metal chains, the weight is significantly reduced, reducing energy consumption and mechanical load.

Advantages:

- Diverse range of applications: Due to its flexibility and durability, it can be used in food processing, packaging production lines, logistics transportation and other fields.- Quiet operation: The plastic material generates less noise during operation, creating a more comfortable working environment.- Easy to clean and maintain: Rust-free, smooth surface, easy to clean, in line with hygiene standards, especially suitable for food contact and clean room environments.- Environmentally friendly and energy-saving: The production raw materials and recycling rate of plastic chains are higher and more environmentally friendly.

Applications:

- Food industry: Used in conveyor systems, such as sushi rotating tables, bread production lines, etc.- Packaging machinery: As a conveying component, participate in the handling and sorting process of items.- Agriculture and logistics industry: Used as a conveyor chain or connection component for lightweight goods.- Other industrial fields: In equipment transmissions that require low friction coefficients, no lubrication, and non-conductive environments.Please see the following image for the application of Plastic Multiflex Chain:

How to choose the right Plastic Multiflex Chain:

1. Application environment and requirements:- Temperature range: Confirm the temperature range in which the chain needs to work normally, and ensure that the selected plastic chain material can maintain sufficient strength and elasticity at high and low temperatures.- Chemical resistance: If the chain will be used in chemical or corrosive environments, select plastic materials that are resistant to chemical corrosion.- Food contact: If used in the food processing or packaging industry, ensure that the chain uses food-grade plastics that meet food safety standards.2. Functional requirements:- Bending radius and flexibility: One of the major features of Multiflex Chain is its high flexibility. Understand and select chains that can adapt to minimum bending radii and complex path changes.- Load-bearing capacity: Determine the weight and volume that the chain needs to bear and select products with corresponding load-bearing levels.- Operating speed and distance: Consider the operating speed and total travel distance of the chain on the equipment to ensure that the chain can maintain stable performance under high-speed or long-distance operation.3. Connection and assembly:- Installation method: Confirm the connection method of the chain (such as quick couplings, docking links, etc.) to ensure that the installation is convenient and firm.- Driving and guiding mechanism: Ensure that the chain matches the drive wheel and guiding device of the mechanical equipment, including parameters such as chain pitch and width.4. Durability and maintenance:- Material quality: Choose plastic materials that are of high quality, wear-resistant, anti-aging, and have excellent fatigue fracture performance.- Easy maintenance: Consider whether the chain is easy to disassemble, clean, and replace, and whether there are vulnerable parts.5. Manufacturer and service support:- Brand reputation: Choose a brand with good market reputation and product quality assurance.- Technical support: Confirm whether the supplier provides detailed technical parameters, installation guidance, and after-sales technical support services.- Warranty policy: Understand the warranty period and scope of the product.6. Cost-effectiveness:- Evaluate the overall cost-effectiveness of the chain based on the expected service life, maintenance costs, and replacement frequency.

Matching Sprockets:

Raydafon also provides matching sprockets for Plastic Multiflex Chain. The relationship between the chain and the sprocket is crucial for the stable operation of the equipment. Please see the following images for the sprockets that match with System Plast 1775 and 1700:
