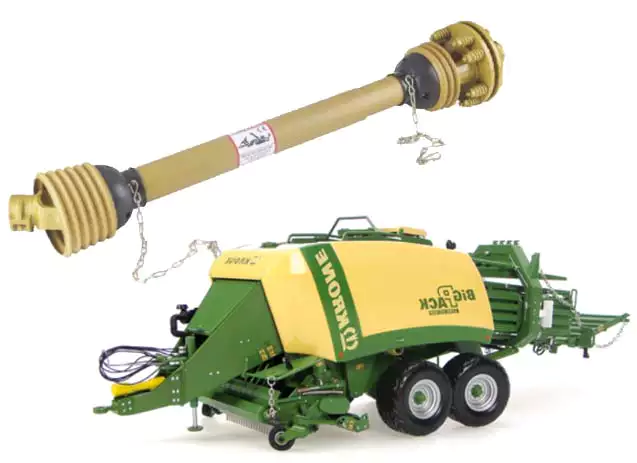

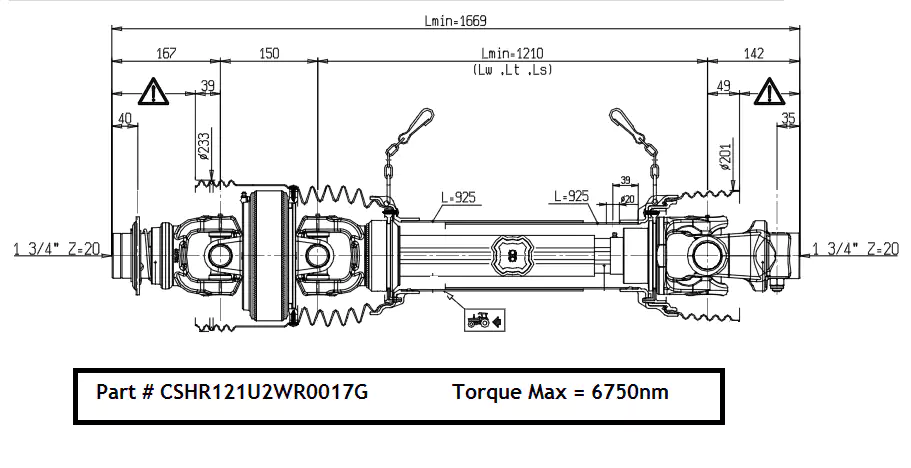

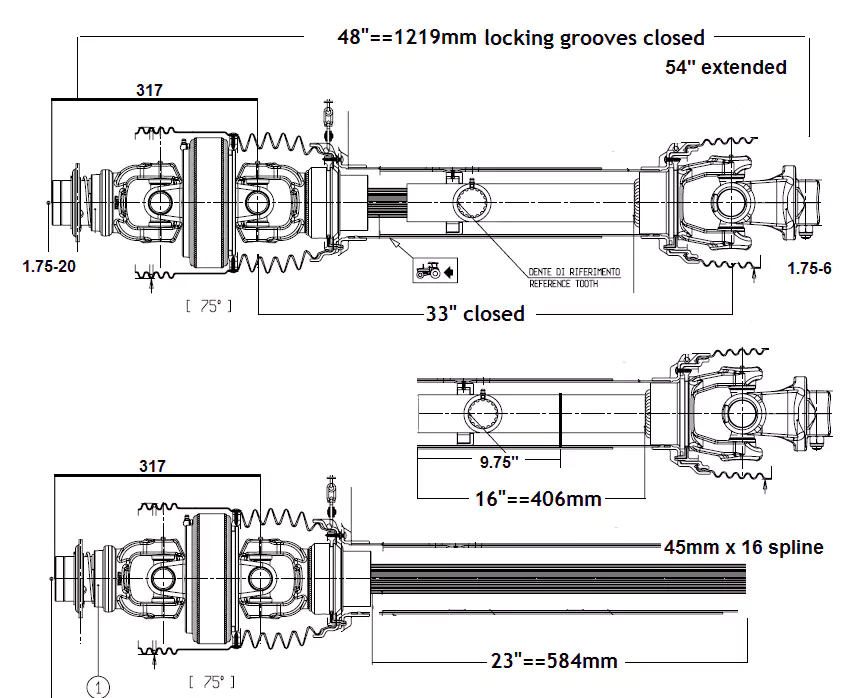

PTO Shaft for Krone BIGpack Square Balers 1290 1290HDP 1290XC 12130XC

▍How to Measure a PTO Shaft for Large Square Balers?

When it comes to measuring a PTO shaft for your large square baler, there are a few steps you can take to ensure you get the correct size:Identify the tractor PTO size: The first step is to determine the size of the PTO output shaft on your tractor. This can typically be found in the tractor's manual or by measuring the diameter of the output shaft.Determine the length: The PTO shaft should be long enough to connect the tractor to the baler with some room for movement. Measure the distance between the PTO output shaft on the tractor and the input shaft on the baler, including any variations in height and angle.Determine the spline count: The PTO shaft's spline count must match the spline count of the tractor and the baler. The spline count refers to the number of splines (grooves) on the shaft.Determine the safety features: PTO shafts may feature safety devices like shear pins or slip clutches. Ensure that any safety features on the PTO shaft match with the tractor and baler.

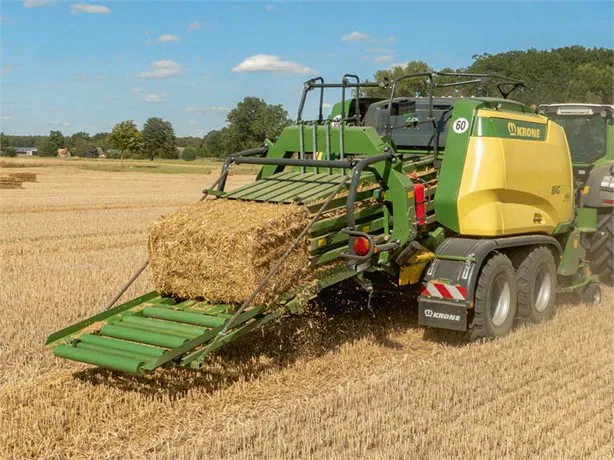

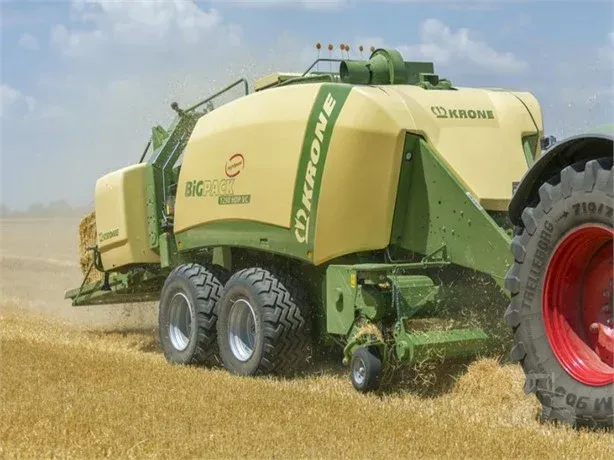

▍Large Square Baler PTO Shaft Usage Scenarios

The PTO (power take-off) shaft is used in large square balers to transfer power from the tractor to the baling machine, enabling it to function correctly. Here are some specific tasks in the hay and forage industry where the PTO shaft is used:Cutting hay: The PTO shaft is used to transfer power from the tractor's engine to mowers or cutters used to harvest hay.Conditioning hay: After the hay is cut, it needs to be conditioned to make it dry and ready for baling. The PTO shaft may also be used to power hay conditioners to prepare the hay for baling.Raking and tedding: Once the hay is conditioned, rakes and tedders are used to gather and spread the hay for drying. PTO shafts can power these machines, making the process faster and more efficient.Baling hay: Large square balers need significant power to compress and bale hay for storage and transport. The PTO shaft powers the baler's compression chamber, providing the force required to compress the hay into squares or bales.In summary, the PTO shaft in large square balers is used to power various farm machinery used in hay and forage operations, including mowers, rakes, tedders, and the baler itself. Power is transferred from the tractor to the machinery via the PTO shaft.

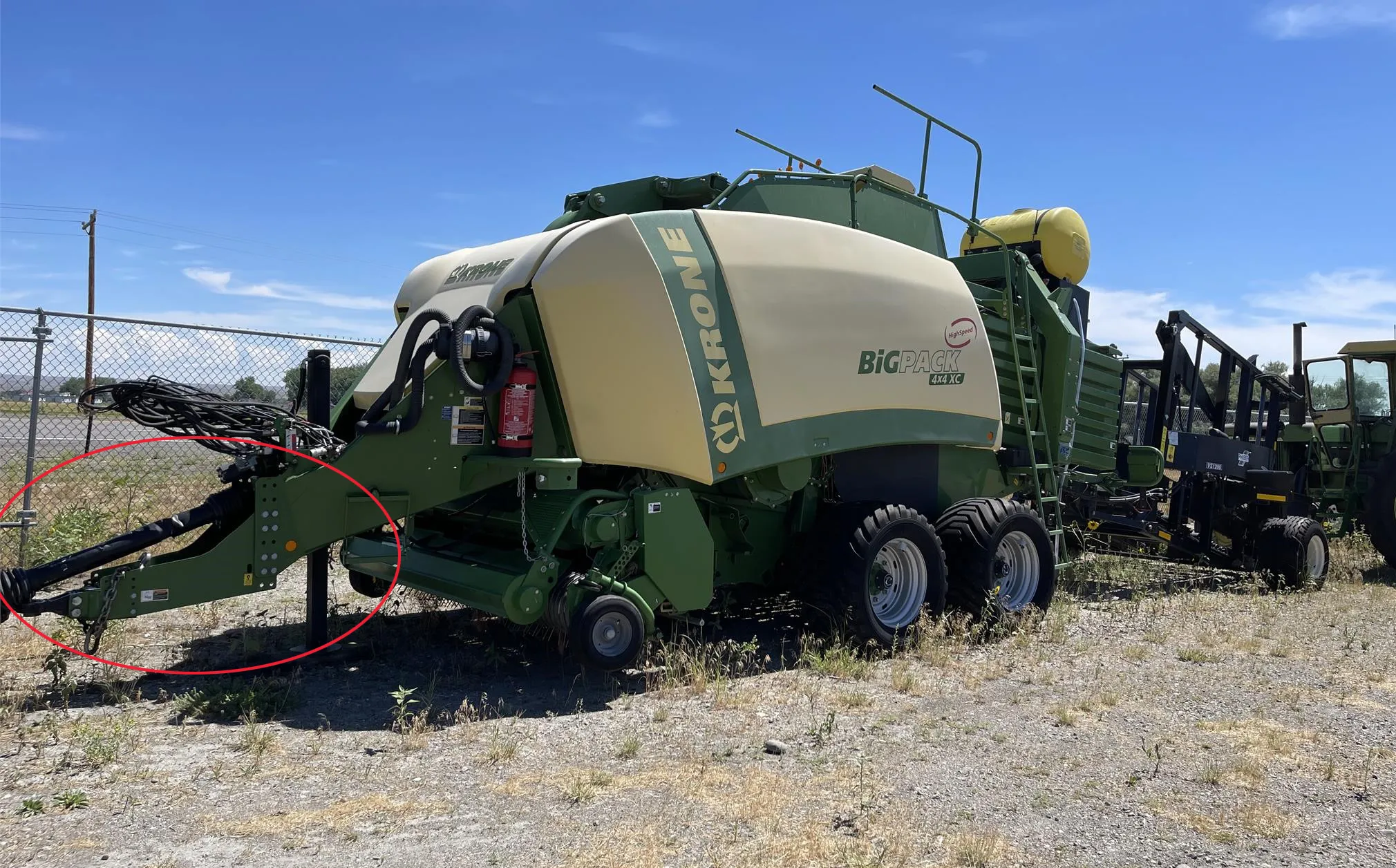

▍How to Attach a PTO Shaft to Large Square Balers?

Attaching a PTO (power take-off) shaft to a large square baler involves a few steps:Align the PTO shaft: Make sure that both the tractor and the baler are parked on level ground and are safely secured in position. Straighten the PTO shaft and align it with the PTO output shaft on the tractor.Connect the PTO shaft: Slide the female end of the PTO shaft onto the PTO output shaft of the tractor. Rotate the shaft slightly and align the splines to ensure a perfect fit.Attach the locking mechanism: Secure the PTO shaft in place using the locking collar. Make sure that the collar is securely fastened and won't come loose during use.Connect the other end of the PTO shaft: Slide the other end of the PTO shaft onto the input shaft of the large square baler. Align the splines to ensure a perfect fit.Attach the locking mechanism: Secure the PTO shaft in place on the baler using the locking mechanism.Test the PTO shaft: Start the tractor and engage the baler PTO. Observe the PTO shaft for any vibrations or wobbling. If there's any vibration or wobbling, it may indicate that the PTO shaft is not properly attached. In that case, turn off the tractor immediately and investigate the issue.By following these steps, you'll be able to attach the PTO shaft to your large square baler safely and efficiently. Make sure to always follow any safety precautions and recommendations provided by the manufacturer or dealer.

▍How to Choose the Right PTO Shaft for Large Square Balers?

Choosing the right PTO (power take-off) shaft for your large square baler is critical to ensure the equipment operates optimally and efficiently. Here are some factors to consider when selecting a PTO shaft:1. Power rating: You need to match the PTO shaft's power rating with your tractor and baler's horsepower requirement. Ensure that the PTO can transfer enough power from the tractor to the baler without overloading or breaking the equipment.2. Length: The PTO shaft's length should match your baler's input shaft-to-tractor PTO shaft distance to permit a smooth and worry-free connection. Use the correct length to avoid overextending the driveshaft, which can cause unnecessary vibration, damage or even breakages.3. PTO shaft size: The PTO shaft size is another essential consideration when choosing the correct one for a large square baler. Choose a PTO shaft with the correct splines, diameter and length to match the baler and tractor's PTO shaft. It is also best to consult your baler's manufacturer’s manual to see the recommended PTO size.4. Safety features: Always choose PTO shafts equipped with features such as shields and guards to reduce the risk of accidents that can occur during the operation. The shield and guard must meet the manufacturer's standard for the shaft and baler.In conclusion, choosing the right PTO shaft for your large square baler is crucial. It enables a smooth and efficient transfer of power and prevents equipment damage and potential accidents during operations. Ensure that you buy quality shafts that match your baler and follow the manufacturer's recommendations for installation and maintenance.

▍Agricultural PTO Shaft and Agricultural Gearbox

An agricultural PTO (power take-off) shaft is a mechanical component that connects the tractor engine to the equipment or implements, such as a baler, mower, or cultivator, to transmit power from the engine to the equipment. The PTO shaft is usually made up of three separate pieces - two yokes and a metal shaft. It works by engaging with a spline coupler on the engine's output shaft, thereby transferring the engine's power to the attached equipment.An agricultural gearbox, on the other hand, is a device that helps to transmit power from the tractor engine to the implements, which enables farmers to work on the fields with ease. The agricultural gearbox is essentially a set of gears placed inside a casing, which works by being driven by the PTO shaft. The gearbox then transmits power to the agricultural implements, which are powered by shafts on the gearboxes.Both the PTO shaft and the agricultural gearbox play a very important role in agriculture because they enable farmers to work efficiently in the fields. The PTO shaft essentially provides power to the equipment, while the agricultural gearbox enables the farmer to select the desired speed output. The transmission of power from the tractor engine to the implements through the PTO shaft and agricultural gearbox is essential for many agricultural processes such as harvesting, tilling, plowing, and many more.
