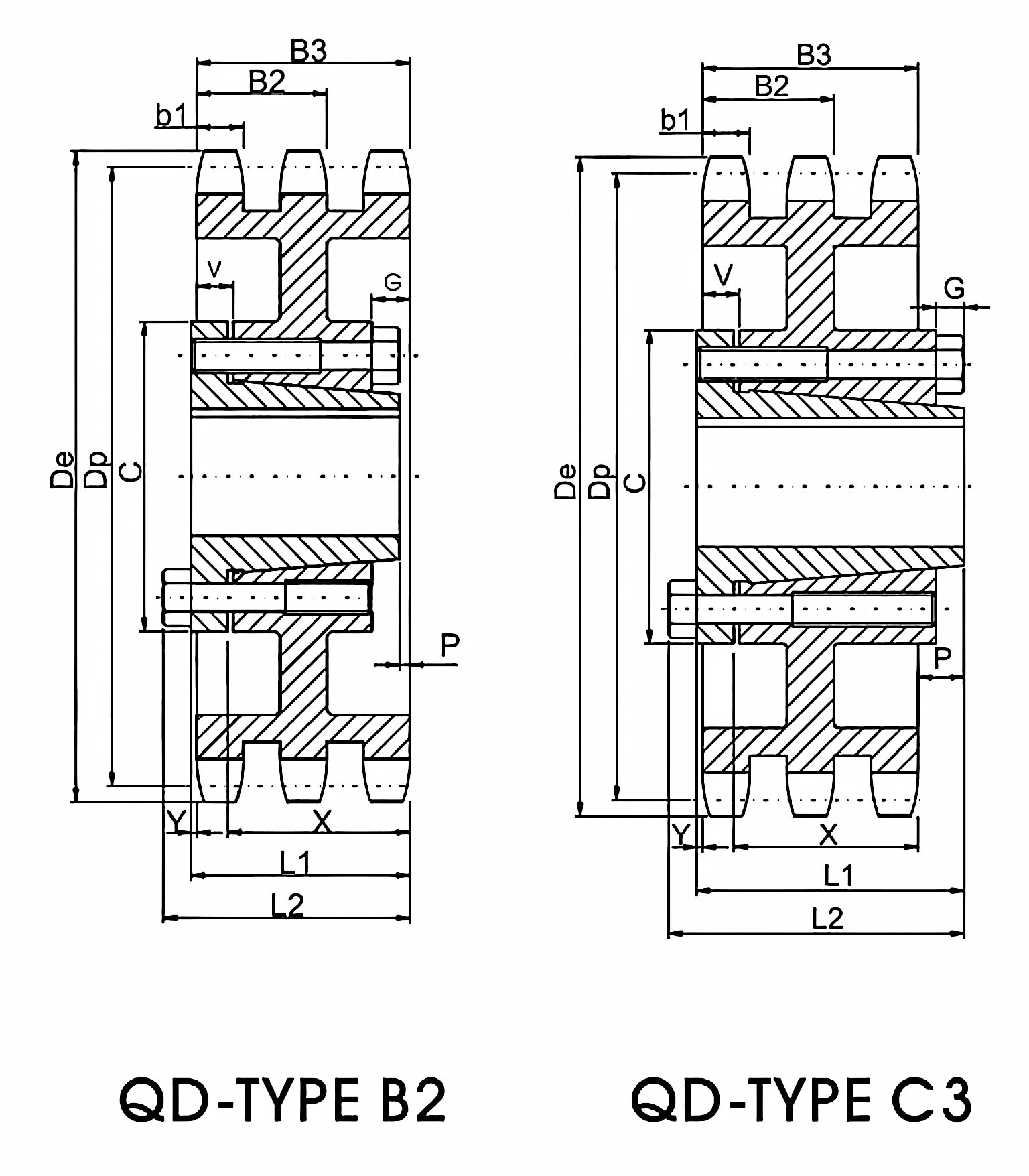

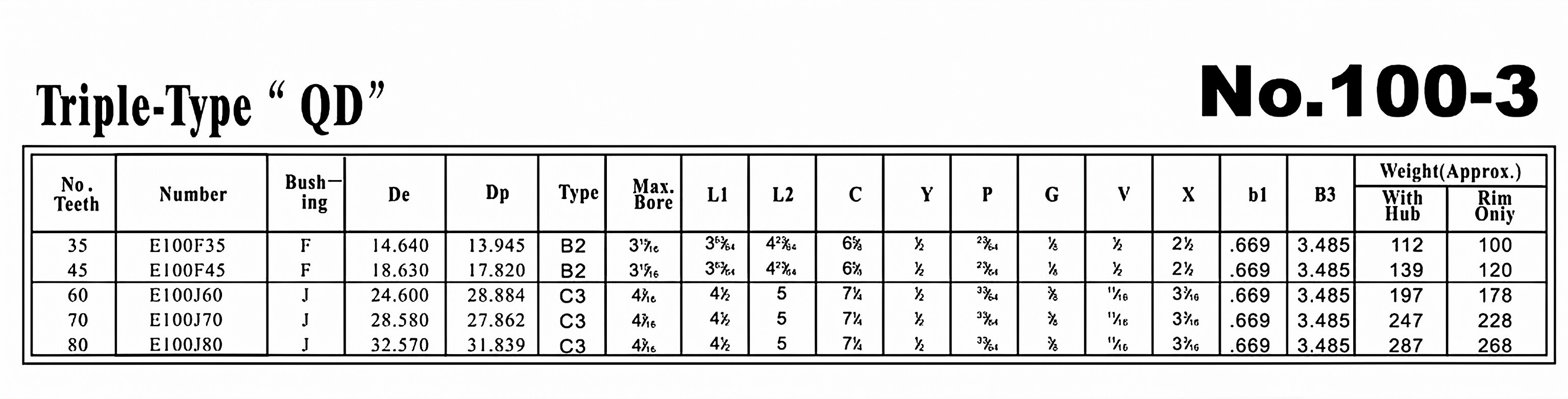

QD Sprocket No.100-3 Triple Type

Introduction to QD Sprocket No.100-3 Triple Type

QD Sprocket No.100-3 Triple Type is a type of sprocket that is widely used in transmission systems. It is designed to provide efficient power transfer and precise control in various industrial applications.

Definition and Basic Structure of QD Sprocket

QD Sprocket is a type of sprocket that features a quick detachable (QD) bushing, which allows for easy installation and removal. The basic structure of a QD sprocket consists of a hub, teeth, and a QD bushing.

Characteristics and Functions of QD Bushing

1. Easy Installation: The QD bushing can be quickly mounted on the shaft without any additional machining or specialized tools.
2. High Load Capacity: The QD bushing provides excellent torque transmission and can withstand heavy loads.
3. Standardized Design: QD bushings follow industry standards, ensuring compatibility with various sprockets and other power transmission components.
4. Compact Design: The compact size of QD bushings allows for space-saving installations.
5. Low Maintenance Cost: QD bushings require minimal maintenance, reducing downtime and associated costs.

One of the major advantages of QD bushings is their ease of installation and removal. This feature significantly reduces downtime during maintenance or replacement of the sprocket.

Installation and Removal Process of QD Bushing

1. Prepare Tools and Materials: Gather the necessary tools and ensure the availability of the QD bushing and sprocket.
2. Clean Shaft and Sprocket Surface: Remove any dirt or debris from the shaft and sprocket surfaces to ensure a proper fit.
3. Position the Sprocket: Align the sprocket with the shaft and slide the QD bushing onto the shaft.
4. Install QD Bushing: Tighten the screws or bolts on the QD bushing to secure it onto the shaft.
5. Fix the Sprocket: Secure the sprocket to the QD bushing by tightening the set screws or bolts.
6. Check: Verify the proper installation by ensuring that the sprocket is firmly attached to the QD bushing.

Manufacturing Process of QD Sprocket

1. Raw Material Preparation: Select high-quality materials for the sprocket, such as steel or alloy.
2. Cutting: Shape the raw material into the desired form using cutting tools.
3. Forging or Casting: Depending on the manufacturing method, the sprocket can be forged or cast to enhance its strength and durability.
4. Machining: Precision machining is performed to achieve the required dimensions and tooth profile.
5. Tooth Cutting: The teeth on the sprocket are cut using specialized machinery.
6. Heat Treatment: Heat treatment processes like quenching and tempering are applied to improve the sprocket's hardness and toughness.
7. Surface Treatment: The sprocket undergoes surface treatments like plating or coating to enhance corrosion resistance.
8. Quality Inspection: Strict quality control measures are implemented to ensure the sprocket meets the required specifications.

Frequently Asked Questions (FAQ)

1. Q: How do I choose the right QD sprocket for my application?

A: The selection of a QD sprocket depends on factors such as the power transmission requirements, shaft size, and the desired speed ratio. Consulting with a technical expert or referring to the product specifications can help in making the right choice.

2. Q: Can a QD sprocket be reused after removal?

A: Yes, QD sprockets are designed to be easily removed and reinstalled multiple times without compromising their performance. However, proper inspection and maintenance should be carried out before reusing a removed sprocket.

3. Q: Are QD bushings compatible with other types of sprockets?

A: QD bushings are designed to be compatible with a wide range of sprockets, pulleys, and other power transmission components. This allows for interchangeability and flexibility in various applications.

4. Q: What maintenance is required for QD sprockets?

A: QD sprockets generally require minimal maintenance. Regular inspection for wear, lubrication of the sprocket teeth, and proper tightening of set screws or bolts are recommended to ensure optimal performance and longevity.

5. Q: Can QD sprockets be used in high-speed applications?

A: Yes, QD sprockets are commonly used in high-speed applications where precise power transmission is required. However, it is important to select the appropriate sprocket design and ensure proper installation for safe and efficient operation.
