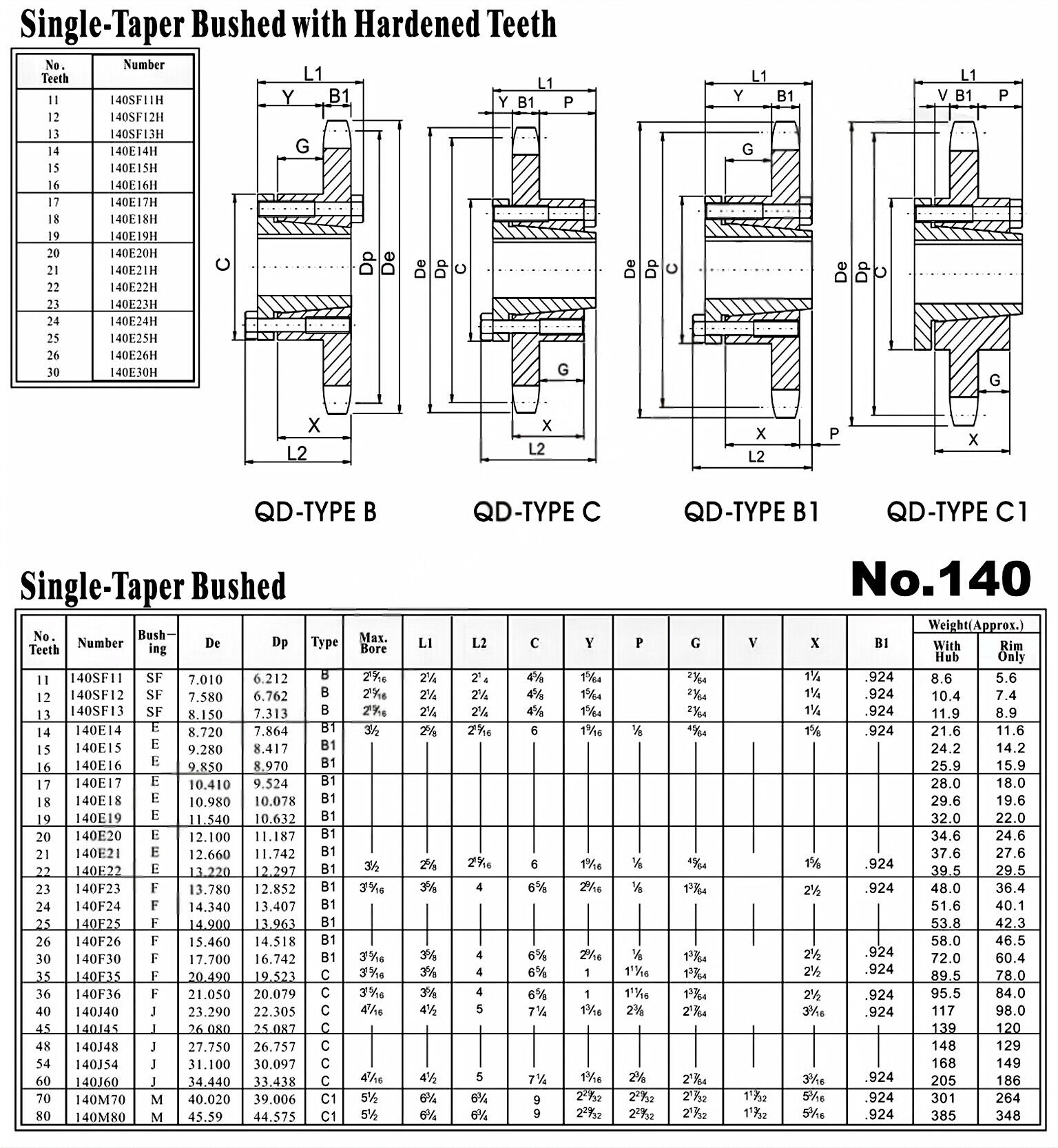

QD Sprocket No.140 Single Type

Introduction

The QD Sprocket No.140 Single Type is a type of QD sprocket used in transmission systems. QD sprockets are an essential component in power transmission systems, providing a reliable and efficient means of transferring power from one component to another.

Definition and Basic Structure

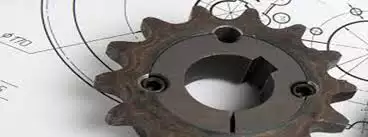

A QD sprocket is a type of sprocket that features a quick-detachable bushing, allowing for easy installation and removal. The basic structure of a QD sprocket consists of a hub, teeth, and a QD bushing.

Characteristics and Functions of QD Bushing

QD bushings have several key characteristics and functions that make them highly advantageous in power transmission systems:

• Easy installation: QD bushings can be quickly and easily mounted onto the sprocket hub, reducing installation time and effort.
• High load capacity: QD bushings are designed to handle high loads and provide reliable power transmission.
• Standardized design: QD bushings follow industry-standard dimensions, allowing for interchangeability with other components.
• Compact design: The compact size of QD bushings enables them to be used in tight spaces without compromising performance.
• Low maintenance cost: QD bushings require minimal maintenance, resulting in cost savings over the product's lifespan.

Installation and Removal Process of QD Bushing

The installation and removal process of QD bushings involves the following steps:

1. Prepare tools and materials required for the installation.
2. Clean the shaft and sprocket surfaces to ensure proper contact.
3. Position the sprocket and align it with the shaft.
4. Install the QD bushing into the sprocket hub, ensuring a secure fit.
5. Securely fasten the sprocket to the shaft.
6. Inspect the installation to ensure proper alignment and contact.

Manufacturing Process of QD Sprocket

The manufacturing process of QD sprockets involves the following steps:

1. Prepare the raw materials required for the sprocket.
2. Cut the raw materials to the desired dimensions.
3. Form the sprocket through forging or casting processes.
4. Machining the sprocket to achieve the desired tooth profile and dimensions.
5. Heat treat the sprocket to enhance its hardness and durability.
6. Apply surface treatment to improve corrosion resistance.
7. Perform quality inspections to ensure the sprocket meets specifications.

Frequently Asked Questions (FAQ)

1. Q: Are QD sprockets compatible with different types of chains?

A: Yes, QD sprockets can be used with various types of chains as long as the dimensions and tooth profiles match.

2. Q: Can QD bushings be reused after removal?

A: Yes, QD bushings can be reused as long as they are in good condition and properly maintained.

3. Q: Can QD sprockets handle high-speed applications?

A: Yes, QD sprockets are designed to withstand high rotational speeds without compromising performance.

4. Q: Are QD bushings resistant to corrosion?

A: QD bushings are typically made from corrosion-resistant materials, ensuring their durability even in harsh environments.

5. Q: Are QD sprockets suitable for heavy-duty applications?

A: Yes, QD sprockets are known for their high load-carrying capacity, making them ideal for heavy-duty applications.
