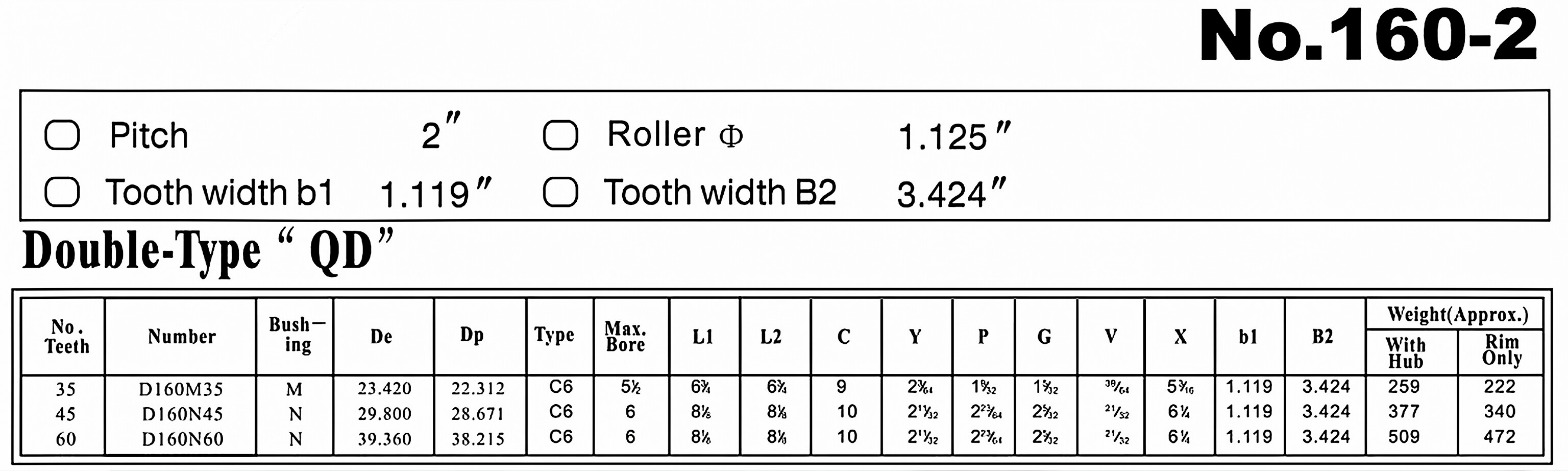

QD Sprocket No.160-2 Double Type

Introduction

QD Sprocket No.160-2 Double Type is a type of sprocket used in power transmission systems. It is designed to efficiently transfer power between a driving shaft and a driven shaft. The QD sprocket is an essential component in various industrial applications.

Definition and Basic Structure

The QD sprocket is a type of chain sprocket that features a unique quick-detachable (QD) design. It consists of a hub, teeth or cogs, and a QD bushing. The hub is the central part of the sprocket that connects to the driving shaft. The teeth or cogs engage with the chain, enabling the transfer of rotational motion. The QD bushing allows for easy installation and removal of the sprocket.

Features and Functions of QD Bushing

• Easy Installation: The QD bushing simplifies the installation process, saving time and effort.
• High Load Capacity: It can withstand heavy loads and provide reliable power transmission.
• Standardized Design: The QD bushing follows industry standards, ensuring compatibility with various sprocket sizes.
• Compact Design: Its compact size allows for space-saving installation in tight spaces.
• Low Maintenance Cost: QD bushings require minimal maintenance, reducing overall maintenance expenses.

The easy installation and removal of the QD bushing provide significant advantages. It allows for quick adjustments or replacements of the sprocket without the need for specialized tools or extensive downtime.

QD Bushing Installation and Removal Process

1. Prepare the tools and materials required for the installation or removal process.
2. Clean the surfaces of the shaft and sprocket to ensure proper attachment.
3. Position the sprocket accurately on the shaft.
4. Install the QD bushing securely into the hub of the sprocket.
5. Fasten the sprocket in place using the appropriate fastening method.
6. Inspect the installation for any misalignment or issues.

Manufacturing Process of QD Sprocket

1. Prepare the raw materials required for manufacturing.
2. Cut the materials into the desired shape or size.
3. Forge or cast the sprocket to enhance its strength and durability.
4. Machine the sprocket to achieve the precise dimensions and tooth profile.
5. Roll the teeth to ensure smooth engagement with the chain.
6. Apply heat treatment to enhance the sprocket's hardness and wear resistance.
7. Perform surface treatment, such as plating or coating, for corrosion protection.
8. Conduct quality inspections to ensure the sprocket meets the required standards.

Frequently Asked Questions (FAQ)

1. Q: How do I choose the right QD sprocket size for my application?
   A: The selection of the QD sprocket size depends on the power requirements, shaft dimensions, and chain specifications of your application. It is recommended to consult the manufacturer's guidelines or seek professional advice for proper sizing.
2. Q: Can I reuse the QD bushing after removing the sprocket?
   A: Yes, QD bushings are designed for reuse. However, it is essential to inspect the bushing for any signs of wear or damage before reinstalling.
3. Q: What maintenance is required for QD sprockets?
   A: QD sprockets generally require minimal maintenance. Regular inspection for wear, proper lubrication, and timely replacement of worn-out components are recommended to ensure optimal performance.
4. Q: Can the QD sprocket be used in corrosive environments?
   A: Yes, QD sprockets can be used in corrosive environments. However, proper surface treatment or coating may be necessary to enhance corrosion resistance.
5. Q: Can I install a QD sprocket without a QD bushing?
   A: No, the QD bushing is an integral part of the QD sprocket assembly. It provides the necessary grip and secure attachment to the shaft.
