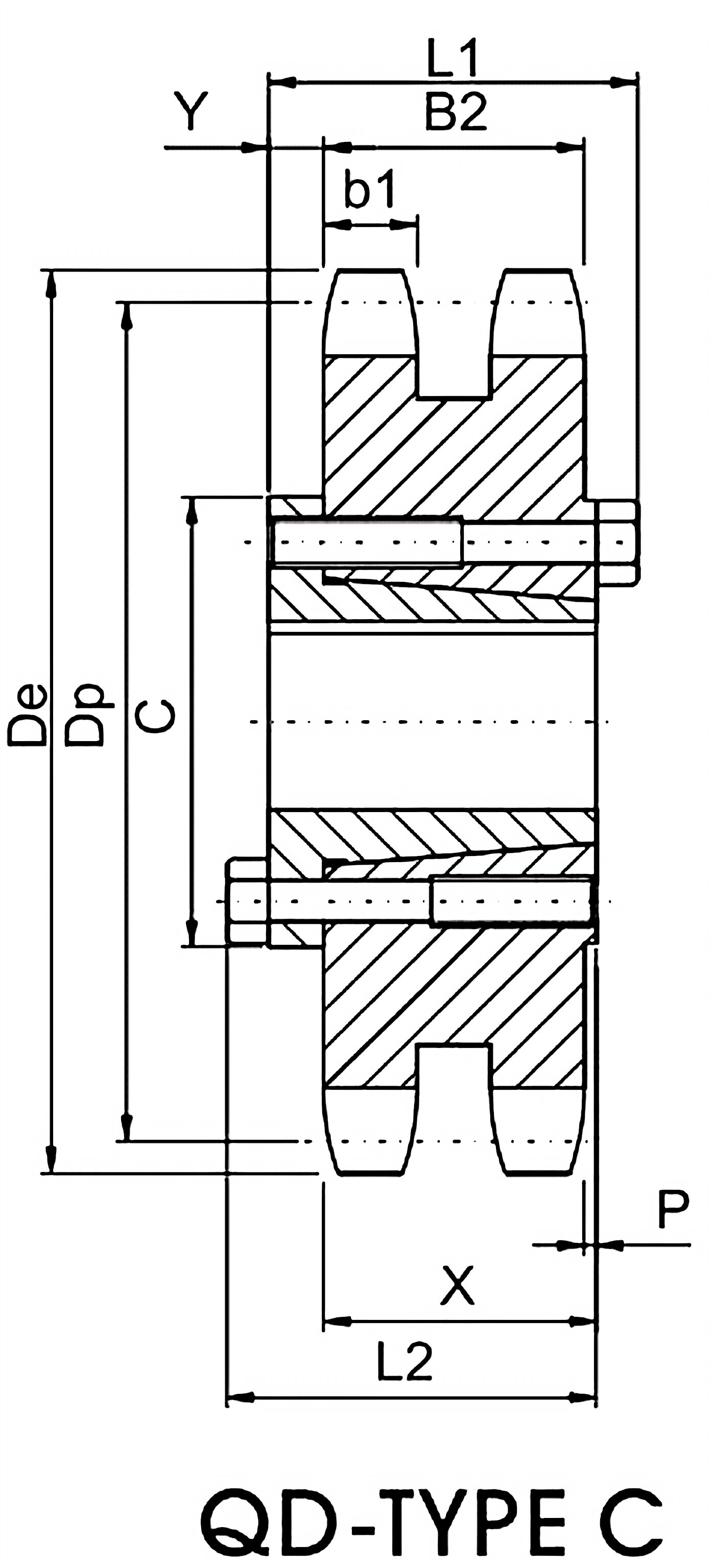

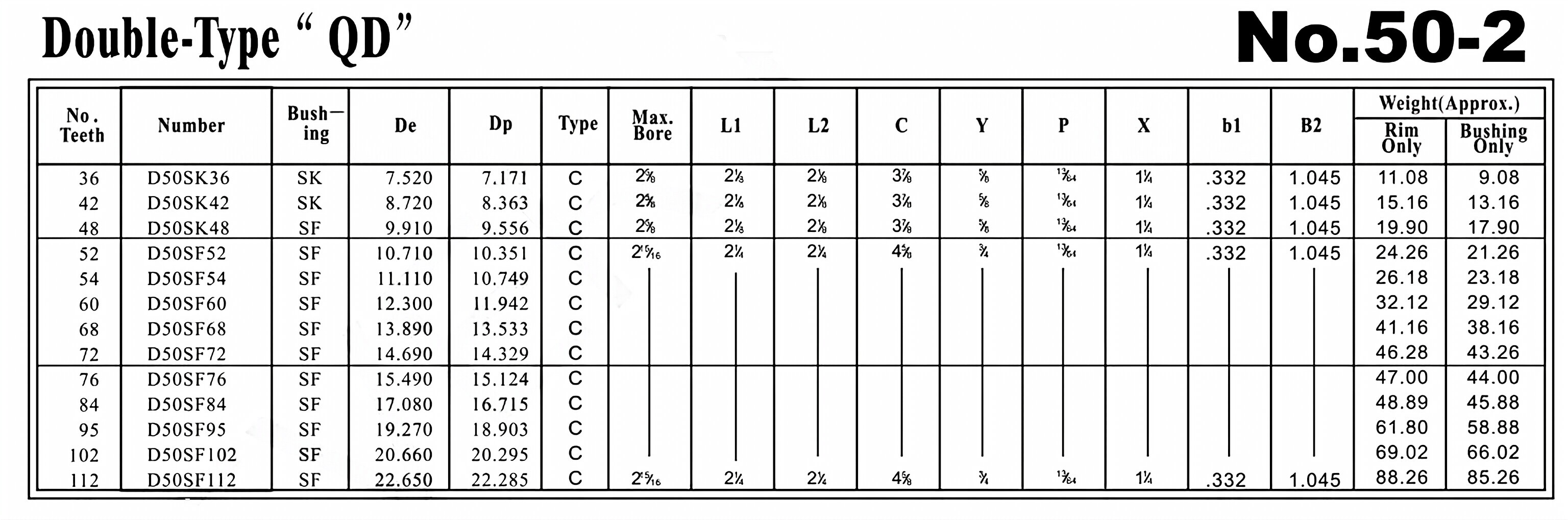

QD Sprocket No.50-2 Double Type

Introduction to QD Sprocket No.50-2 Double Type

QD Sprocket No.50-2 Double Type is a type of sprocket used in transmission systems. It provides a reliable and efficient method of power transmission.

Definition and Basic Structure of QD Sprocket

A QD sprocket, short for Quick Detachable sprocket, is a type of sprocket that can be easily installed and removed from a shaft without the need for extensive disassembly. It consists of a toothed wheel with a central bore and a bushing that fits inside the bore.

Characteristics and Functions of QD Bushing

• Easy Installation: QD bushings can be quickly installed onto a shaft without the need for specialized tools.
• High Load Capacity: QD bushings are designed to handle heavy loads and provide a secure connection.
• Standardized Design: QD bushings follow industry standards, ensuring compatibility with various sprocket sizes.
• Compact Design: QD bushings are compact in size, allowing for efficient use of space in transmission systems.
• Low Maintenance Cost: QD bushings require minimal maintenance, resulting in cost savings over time.

One of the major advantages of QD bushings is their ease of installation and removal. This feature simplifies maintenance and reduces downtime in transmission systems.

Installation and Removal Process of QD Bushing

1. Prepare Tools and Materials: Gather the necessary tools and materials for the installation or removal process.
2. Clean Shaft and Sprocket Surface: Ensure that the shaft and sprocket surfaces are clean and free from debris.
3. Position the Sprocket: Align the QD bushing with the sprocket and slide it onto the shaft.
4. Install QD Bushing: Use a suitable installation tool to tighten the QD bushing onto the shaft, ensuring a secure fit.
5. Secure the Sprocket: Attach the sprocket to the QD bushing, ensuring proper alignment and engagement of the teeth.
6. Check for Proper Installation: Verify that the QD bushing and sprocket are securely installed and aligned.

Manufacturing Process of QD Sprocket

1. Raw Material Preparation: Select and prepare the appropriate raw materials for the manufacturing process.
2. Cutting: Cut the raw material into the desired shape for the sprocket.
3. Forging or Casting: Use forging or casting methods to shape the sprocket and enhance its strength.
4. Machining: Use precision machining techniques to refine the shape and dimensions of the sprocket.
5. Tooth Rolling: Form the teeth of the sprocket using a tooth rolling process to ensure accurate and durable tooth profiles.
6. Heat Treatment: Apply heat treatment to the sprocket to improve its hardness and strength.
7. Surface Treatment: Apply surface treatments such as coating or plating to enhance the sprocket's corrosion resistance.
8. Quality Inspection: Perform thorough quality inspections to ensure the sprocket meets the required standards.

FAQ (Frequently Asked Questions)

1. Q: How do I choose the right size of QD sprocket for my application?

A: The size of the QD sprocket depends on various factors such as the power requirements, speed, and torque of the system. It is recommended to consult the manufacturer or refer to the product specifications for guidance in selecting the appropriate size.

2. Q: Can QD sprockets be used in high-temperature environments?

A: Yes, QD sprockets can be designed and manufactured to withstand high-temperature environments. It is important to consider the material and heat treatment options to ensure proper performance.

3. Q: Are QD bushings compatible with different shaft materials?

A: Yes, QD bushings are designed to be compatible with various shaft materials such as steel, stainless steel, and cast iron. However, it is recommended to verify compatibility with the manufacturer's guidelines.

4. Q: How often should QD bushings be inspected for wear and replaced?

A: The frequency of inspection and replacement depends on the operating conditions and the load applied to the QD bushing. Regular visual inspections and monitoring of the system's performance can help determine when replacement is necessary.

5. Q: Can QD sprockets be used in both clockwise and counter-clockwise rotation?

A: Yes, QD sprockets are designed to accommodate both clockwise and counter-clockwise rotation, providing versatility in various applications.

Author: Miya
