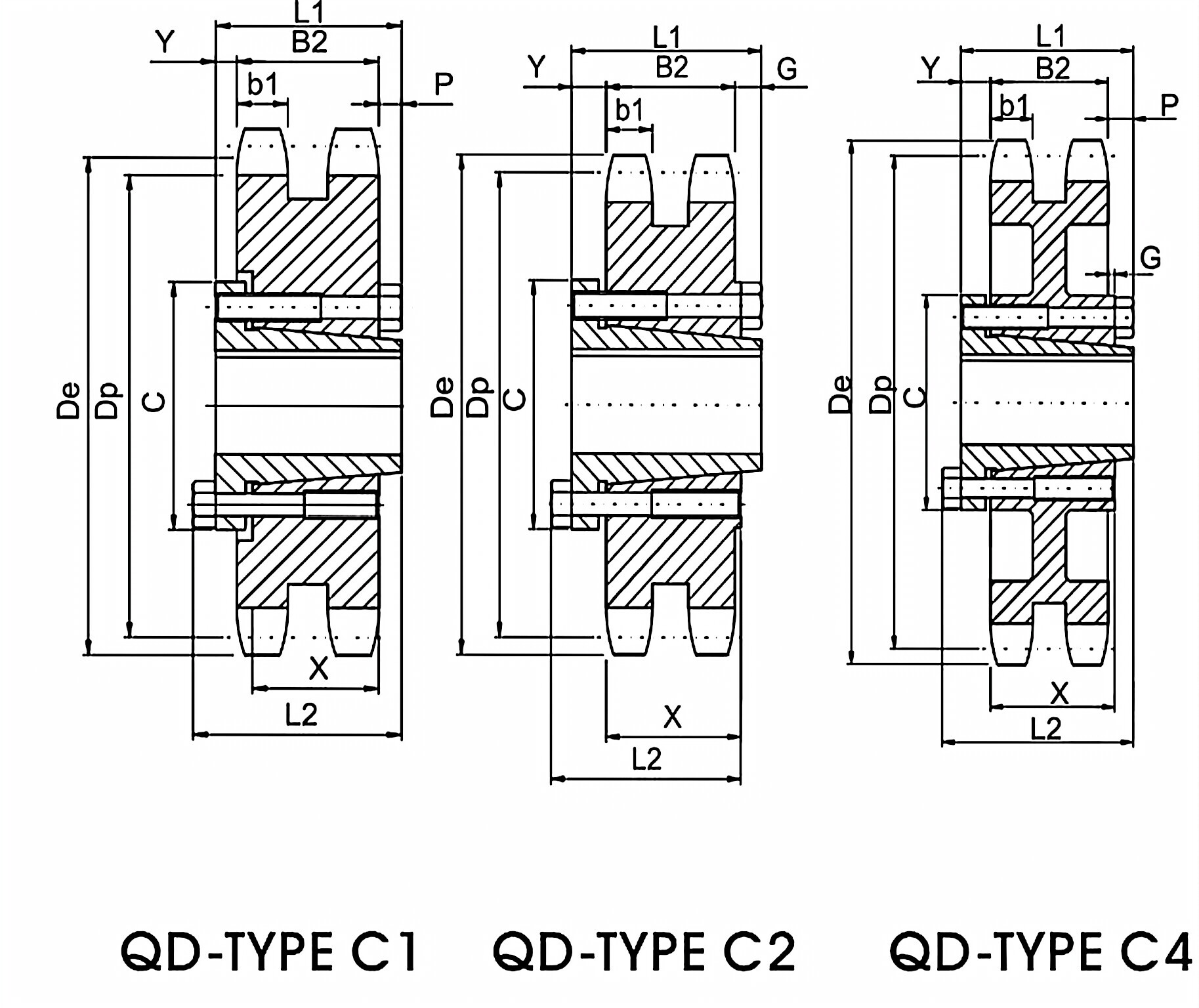

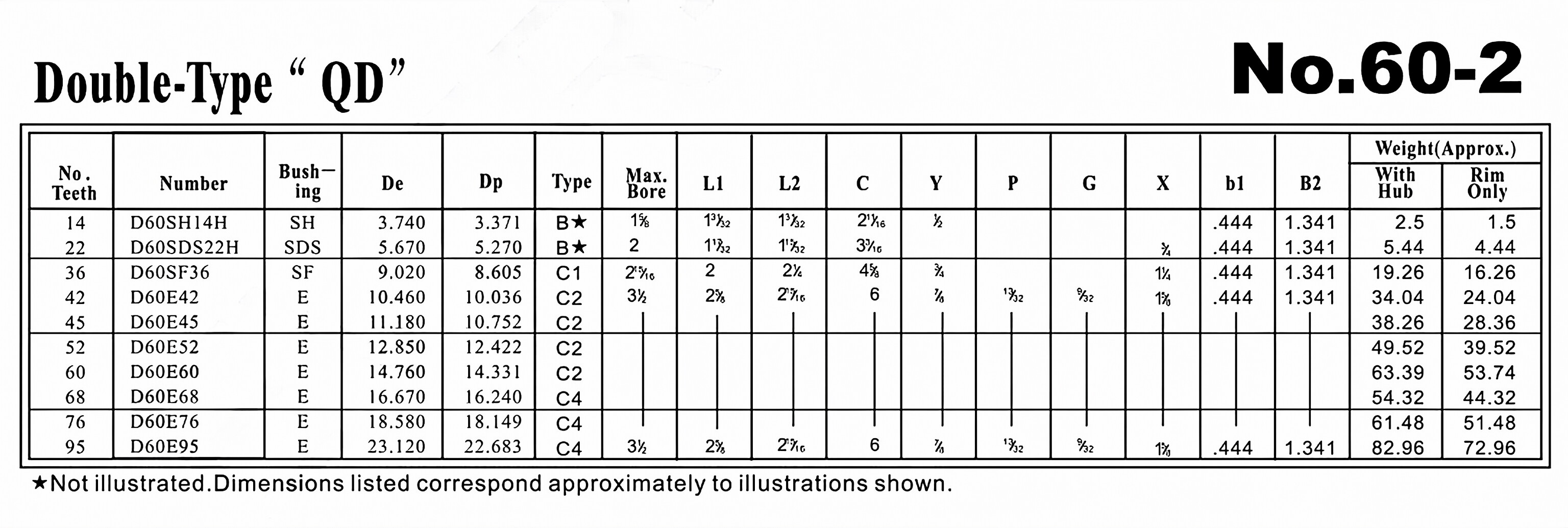

QD Sprocket No.60-2 Double Type

Introduction

QD Sprocket No.60-2 Double Type is a type of sprocket which is used in power transmission systems. It is a high-quality sprocket that is commonly used for industrial applications. The basic concept of QD sprocket and its application in the power transmission system are described below.

Definition and Basic Structure

QD sprocket is a type of sprocket that has a tapered bushing for easy installation and removal. The basic structure of a QD sprocket includes a hub, teeth, and QD bushing.

Features and Functions of QD Bushing

• Easy to install: QD bushing is designed to be easily installed and removed from the shaft without damaging it.
• High load-bearing capacity: QD bushing has a high load-bearing capacity due to its sturdy design.
• Standardized design: QD bushing has a standardized design that makes it compatible with a wide range of sprockets.
• Compact design: QD bushing has a compact design that saves space and reduces the weight of the power transmission system.
• Low maintenance cost: QD bushing requires minimal maintenance and is highly durable.

Easy to install and remove

QD bushings are designed to be easily installed and removed from the shaft without requiring any special tools. This saves time and effort during the installation and maintenance of the power transmission system.

High load-bearing capacity

QD bushings have a strong and sturdy design that allows them to withstand high loads without getting damaged. This makes them ideal for use in heavy-duty industrial applications.

Standardized design

QD bushings have a standardized design that makes them compatible with a wide range of sprockets. This eliminates the need for custom-made bushings, which can be expensive and time-consuming.

Compact design

QD bushings have a compact design that saves space and reduces the weight of the power transmission system. This makes them ideal for use in applications where space is limited.

Low maintenance cost

QD bushings require minimal maintenance and are highly durable. This reduces the maintenance cost of the power transmission system and increases its lifespan.

Installation and Removal Process of QD Bushing

The installation and removal process of QD bushing is simple and can be done quickly with the right tools and materials. The process involves the following steps:

• Prepare tools and materials: Gather all the necessary tools and materials required for the installation, such as a torque wrench, hammer, and QD bushing.
• Clean shaft and sprocket surface: Use a wire brush or sandpaper to clean the surface of the shaft and sprocket where the bushing will be mounted.
• Position the sprocket: Position the sprocket on the shaft and align it with the keyway.
• Install QD bushing: Slide the QD bushing onto the shaft and tighten the screws using a torque wrench.
• Secure the sprocket: Slide the sprocket onto the QD bushing and tighten the screws using a torque wrench.
• Check: Check the alignment of the sprocket and bushing to ensure that they are properly installed.

Manufacturing Process of QD Sprocket

The manufacturing process of QD sprocket involves the following steps:

• Raw material preparation: Raw materials such as steel or cast iron are prepared for the manufacturing process.
• Cutting: The raw material is cut into the required size and shape using a cutting machine.
• Forging or casting: The cut material is forged or cast to form the shape of the sprocket.
• Machining: The sprocket is then machined to achieve the final shape and dimensions.
• Teeth rolling: The teeth of the sprocket are rolled using a teeth rolling machine.
• Heat treatment: The sprocket is heat-treated to increase its hardness and durability.
• Surface treatment: The sprocket is treated with a surface coating to protect it from corrosion and wear.
• Quality inspection: The sprocket undergoes a quality inspection process to ensure that it meets the required standards.

FAQs

1. What is a QD sprocket?

A QD sprocket is a type of sprocket that has a tapered bushing for easy installation and removal.

2. What is the function of a QD bushing?

The function of a QD bushing is to allow for easy installation and removal of the sprocket from the shaft without damaging it.

3. What are the features of QD bushing?

The features of QD bushing include easy installation, high load-bearing capacity, standardized design, compact design, and low maintenance cost.

4. How is a QD sprocket manufactured?

A QD sprocket is manufactured through a process that involves raw material preparation, cutting, forging or casting, machining, teeth rolling, heat treatment, surface treatment, and quality inspection.

5. What is the installation process of QD bushing?

The installation process of QD bushing involves cleaning the shaft and sprocket surface, positioning the sprocket, installing the QD bushing, securing the sprocket, and checking the alignment.
