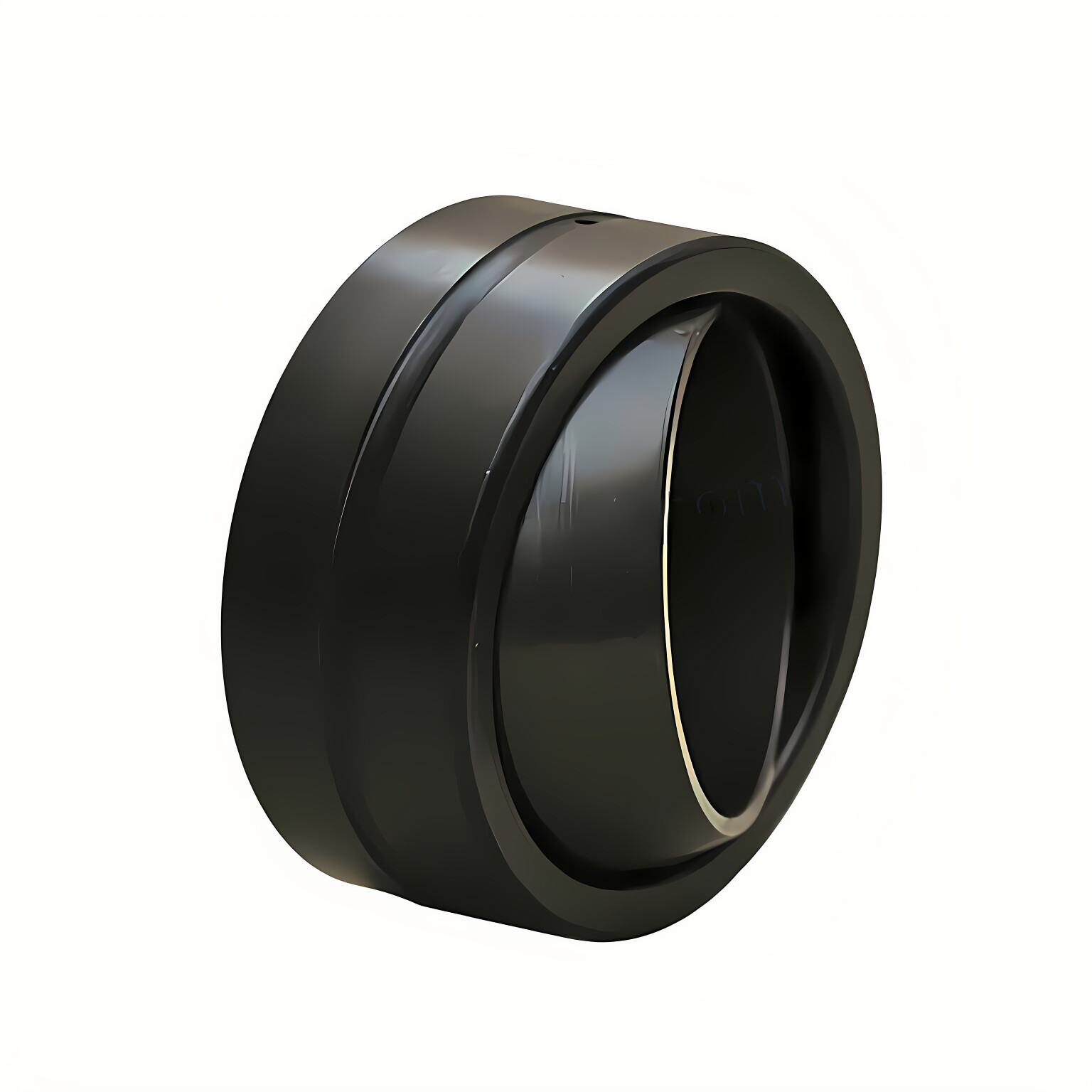

Radial Spherical Plain Bearings

Raydafon Guoup's Radial Spherical Plain Bearings deliver exceptional durability and smooth motion for heavy-duty machinery, ideal for industries like automotive and manufacturing. Our bearings, crafted from premium materials, ensure reliable performance in demanding applications, reducing wear and enhancing efficiency. Experience seamless operation and long-lasting results with Raydafon Guoup's innovative design—engineered for precision and trust.

Send Inquiry

Product Description

Radial Spherical Plain BearingsRadial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied by heavy loads.

Product parameters

Designation	Principal dimensions				Angle of tilt	Basic load ratings
Designation	Principal dimensions				Angle of tilt	dynamic	static
Bearing No	d[mm]	D[mm]	B[mm]	C[mm]	α[°]	C[kN]	C₀[kN]
GE 4 C	4	12	5	3	16	2.16	5.4
GE 4 E	4	12	5	3	16	2.04	10.2
GE 5 E	5	14	6	4	13	3.4	17
GE 6 C	6	14	6	4	13	3.6	9
GE 6 E	6	14	6	4	13	3.4	17
GE 8 C	8	16	8	5	15	5.85	14.6
GE 8 E	8	16	8	5	15	5.5	27.5
GE 10 C	10	19	9	6	12	8.65	21.6
GE 10 E	10	19	9	6	12	8.15	40.5
GEH 10 C	10	22	12	7	18	11.4	28.5
GE 12 C	12	22	10	7	10	11.4	28.5
GE 12 E	12	22	10	7	10	10.8	54
GE 12 TXGR	12	22	10	7	10	30	50
GEG 12 ESA	12	22	12	7	4	10.8	54
GEH 12 C	12	26	15	9	18	18	45
GEZ 008 ES	12.7	22.225	11.1	9.525	6	14	41.5
GE 15 C	15	26	12	9	8	18	45
GE 15 ES	15	26	12	9	8	17	85
GE 15 ES-2RS	15	26	12	9	8	17	85
GE 15 TXGR	15	26	12	9	8	47.5	80
GEH 15 C	15	30	16	10	16	22.4	56
GEZ 010 ES	15.875	26.988	13.894	11.913	6	21.5	65.5
GEG 16 ES	16	28	16	9	4	17.6	88
GE 17 C	17	30	14	10	10	22.4	56
GE 17 ES	17	30	14	10	10	21.2	106
GE 17 ES-2RS	17	30	14	10	10	21.2	106
GE 17 TXGR	17	30	14	10	10	60	100
GEH 17 C	17	35	20	12	19	31.5	78
GEZ 012 ES	19.05	31.75	16.662	14.275	6	31.5	93
GEZ 012 ES-2RS	19.05	31.75	16.662	14.275	6
