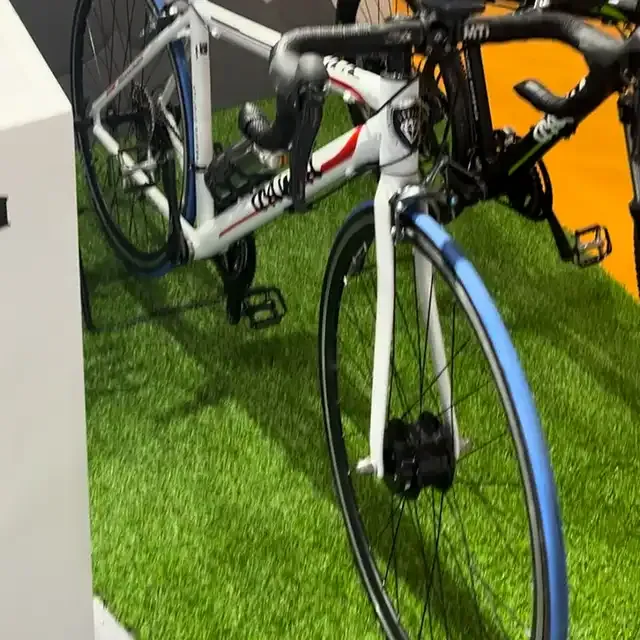

Raydafon Front Intelligent Brushless Hub Wheel Motor Electric Bike Conversion Kit Bicycle Hub Motor

Transform your bicycle into an electric powerhouse with the Raydafon Front Intelligent Brushless Hub Wheel Motor Electric Bike Conversion Kit. This advanced kit comes loaded with features, including a brushless hub wheel motor, a built-in controller, a wireless pedal sensor, and an easy installation process. Available in both black and silver, this kit is compatible with a variety of bicycles.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Advantages of the Raydafon Front Hub Motor

There are numerous advantages to using this front hub motor for your electric bike conversion. Here are six key benefits:

1. 1. Built-in Controller: The motor comes with an integrated controller, eliminating the need for an external one. This design simplifies the installation process and reduces the risk of connection errors that may affect the motor's performance.
   2. Wireless Pedal Sensor: The motor features a wireless pedal sensor, which detects the rider's pedaling force and adjusts the motor assistance accordingly. This ensures a smooth, comfortable ride.

1. Easy to Install and Disassemble: The motor is designed for easy installation and disassembly, making it convenient for maintenance and upgrades.
2. High Power and Torque: With a maximum power output of 750W and torque exceeding 40N??m, the motor delivers robust performance, making it suitable for various terrains and riding conditions.
3. High Efficiency: The motor operates at an efficiency of over 90%, ensuring optimal power conversion and extending the battery life of your e-bike.

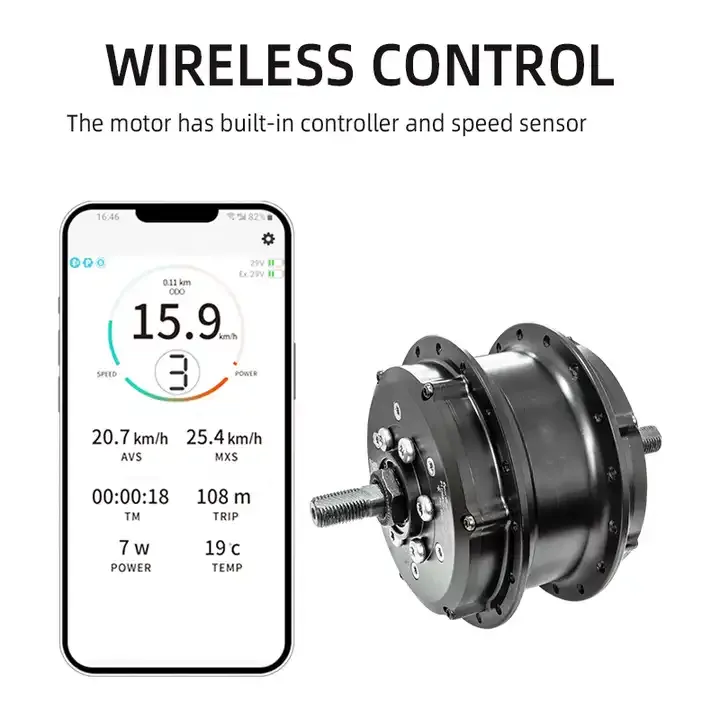

4. Wireless Control: The motor supports wireless control, allowing for easy adjustments of motor assistance levels and other settings.

At Raydafon, we take pride in our ability to manufacture high-quality electric bike conversion kits, like the Raydafon Front Hub Motor. Our commitment to quality and innovation ensures that our products meet the highest standards of performance and reliability.

Applications of P100/P110 Front Hub Motors

The P100/P110 front hub motors are versatile and adapt to various e-bike applications. Here are six common uses:

1. Commuting: E-bikes fitted with these front hub motors are great for daily commuting. The motor assistance makes it easier to cover long distances and tackle steep hills.
2. Urban Riding: The smooth acceleration and control provided by these motors make them perfect for navigating through busy city streets and traffic.
3. Recreation and Leisure: Whether it's trail exploration, cruising scenic routes, or outdoor adventures, these motors add an extra boost to your recreational rides.
4. Delivery Services: E-bikes with these motors are often used by food delivery services and courier companies for their efficiency and maneuverability in urban environments.
5. Tourism and Sightseeing: E-bikes equipped with these motors enable tourists to explore cities, landmarks, and attractions with ease and comfort.
6. Electric Bike Sharing Programs: Bike-sharing programs often use e-bikes with these motors for their convenience and ease of use.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor forms a key part of the e-bike system. Here is a step-by-step overview of how it works:

1. Power Source: The battery pack powers the e-bike system. It supplies electrical energy to the motor.
2. Motor Controller: This component manages the flow of electricity from the battery to the motor. It interprets the input from the rider's controls, such as the throttle or pedal-assist sensor, and adjusts the motor power accordingly.
3. Torque Sensor or Throttle: The e-bike system may include a torque sensor or a throttle. The former measures the force applied to the pedals, while the latter allows the rider to control motor power directly.
4. Motor Assistance: When the rider pedals or activates the throttle, the controller interprets the input and supplies the appropriate power to the motor.
5. Front Hub Motor: Located in the front wheel hub, the motor comprises a brushless electric motor, gears, and a sensor system. The motor generates rotational force (torque), propelling the e-bike forward.
6. Power Transmission: The motor's torque is transmitted to the wheel via the integrated gears. These gears increase torque and adapt it to the desired speed, enabling acceleration or maintaining a consistent speed.
7. Regenerative Braking: Some e-bike systems, including those with P100/P110 motors, offer regenerative braking. When the brakes are applied, the motor acts as a generator, converting the kinetic energy back into electricity and storing it in the battery.
8. Display and Control Unit: Mounted on the handlebars, this unit provides information such as speed, battery level, and assistance level. It enables the rider to adjust settings and control the motor's assistance level.

Choose the Right P100/P110 Front Hub Motor for Your Ebike System

When selecting the right front hub motor for your e-bike system, consider the following factors:

1. Power and Torque: The level of motor assistance depends on the power and torque outputs. If your rides involve steep hills or require more power, consider a higher power or torque motor. However, such a motor may consume more battery energy.
2. Efficiency: A highly efficient motor converts a greater portion of electrical energy into mechanical power. This results in longer battery life and an improved riding experience.
3. Compatibility: Ensure that the motor is compatible with your e-bike system. Compare the motor's specifications with those of your battery and motor controller to avoid compatibility issues.
4. Wheel Size: The motor should fit the wheel size of your e-bike. Common sizes include 26, 27.5, and 29 inches.
5. Weight and Size: The weight and size of the motor can affect your e-bike's weight distribution and handling. A lighter motor enhances maneuverability, while a bulkier one may impact the bike's aesthetics and balance.

Maintenance Tips for P100/P110 Front Hub Motor

Here are some maintenance tips to help ensure the longevity and optimal performance of your front hub motor:

1. Regular Cleaning: Keep the motor clean by regularly wiping it with a damp cloth. This removes dirt, dust, and debris that could affect its performance.
2. Inspection: Regularly inspect the motor for signs of damage, loose connections, or wear. Address any issues promptly.
3. Lubrication: Some motors may require lubrication for smooth operation. Refer to the manufacturer's guidelines for information on the necessary lubricant and application frequency.
4. Battery Maintenance: Regularly check the battery's charge level and ensure it's properly connected to the motor.
5. Wheel Maintenance: Regularly inspect the wheel for proper alignment, trueness, and spoke tension. If you notice any issues, consult a qualified bike mechanic.
6. Water and Moisture Protection: Avoid excessive moisture and do not submerge the motor in water. Use fenders and avoid deep puddles when riding in wet conditions.

Why Choose Raydafon's P100/P110 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is a leading provider of high-end electric bicycle parts. We develop all our products in-house, protected by a number of domestic and international intellectual property rights. We've introduced professional production and testing equipment, advanced production lines, and established a complete quality management system. We adhere to the spirit of "Technology Drives Healthy Life" and the business philosophy of "Credit First, Quality First," constantly developing new products to meet customer needs and market changes. All our products are CE-certified and renowned for their reliable quality, exquisite craftsmanship, and stylish design. We look forward to working with you to promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
