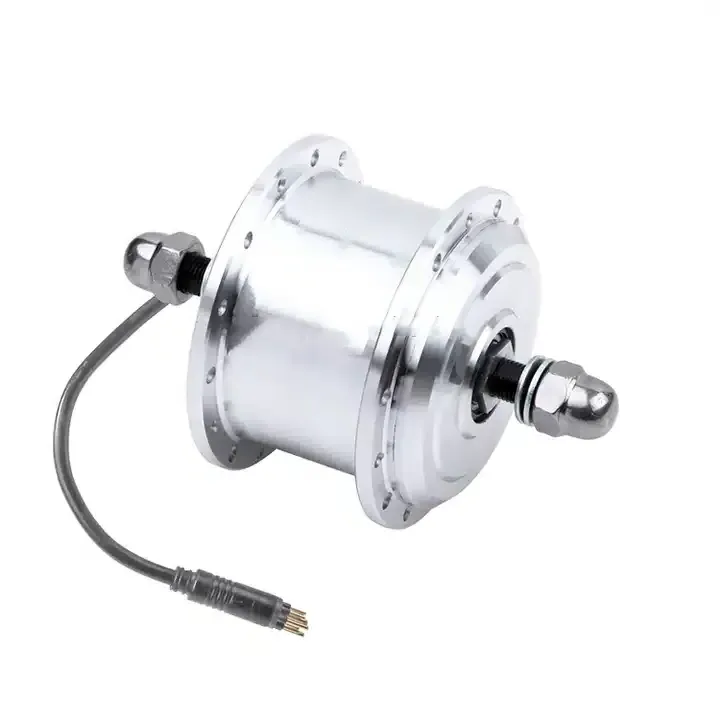

Raydafon Hub Motor Brushless P110 36V 750W Front and Rear eBike Conversion Kit Silver Motor

The Raydafon hub motor brushless P110 36V 750W front and rear ebike conversion kit silver motor is an innovative product designed for the e-bike market. With a motor power of 750W, and operating at a voltage of 36V, this brushless motor offers an efficiency of over 90%. The motor weighs only 2.4kg, has a diameter of 112mm, and is suitable for wheels ranging from 14'' to 29''. This product comes with a built-in controller and is produced by Raydafon, a brand renowned for its quality and reliability.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Advantages of Raydafon Hub Motor Brushless P110 36V 750W

This advanced e-bike conversion kit offers numerous advantages:

1. Built-in Controller: The motor comes with a built-in controller, eliminating the need for external controllers and simplifying the installation process.
2. Wireless Pedal Sensor: This feature provides a seamless and intuitive ride, allowing the motor to adjust to the rider's pedaling effort.
3. Easy to Install & Disassemble: The hub motor is designed for easy installation and disassembly, making maintenance and upgrades hassle-free.
4. Max. Power 750W, Torque Exceeds 40N??m: This powerful motor provides ample torque to tackle steep climbs and demanding terrain, ensuring a smooth and comfortable ride.
5. Efficiency ??90%: Such high efficiency ensures longer battery life and better performance, offering you a longer, uninterrupted ride.
6. Wireless Control: The wireless control feature brings convenience at your fingertips, enabling easy control and adjustments while riding.

Our company can produce this high-quality product that guarantees top performance and reliability.

Applications of Raydafon Hub Motor Brushless P110 36V 750W

The P100/P110 front hub motors are versatile and can be used in a wide range of applications:

1. 1. Commuting: Ideal for daily commuting, helping riders cover long distances and overcome challenging terrains.
   2. Urban Riding: Perfect for navigating through busy city streets and congested traffic.
   3. Recreation and Leisure: Enhances outdoor adventures by providing an extra boost, making it perfect for trail exploration and scenic routes.
   4. Delivery Services: The efficiency and speed of these motors make them great for delivery services, enabling quick and efficient deliveries.
   5. Tourism and Sightseeing: Tourists can explore cities, landmarks, and attractions with ease, enhancing the sightseeing experience.
   6. Electric Bike Sharing Programs: These motors are commonly used in bike-sharing programs, offering convenient transportation options in urban areas.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is an integral part of the e-bike system. Here's a breakdown of how it works:

1. Power Source: The e-bike system operates on a rechargeable battery pack that powers the motor.
2. Motor Controller: The built-in controller manages the flow of electricity from the battery to the motor, interpreting input from the rider.
3. Torque Sensor or Throttle: The system can include a torque sensor, which measures the force applied to the pedals, or a throttle for direct control of the motor's power output.
4. Motor Assistance: The motor controller sends the appropriate amount of power to the front hub motor based on the rider's input.
5. Front Hub Motor: The motor generates rotational force (torque) that propels the e-bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel, driving the e-bike forward.
7. Regenerative Braking (optional): Some e-bike systems have regenerative braking capabilities, which recharge the battery when the brakes are applied.
8. Display and Control Unit: A display on the handlebars provides information like speed, battery level, and selected assistance level, and allows the rider to adjust settings.

Choose the Right P100/P110 Front Hub Motor for Your Ebike System

When choosing the right P100/P110 front hub motor for your e-bike system, consider the following factors:

1. Power and Torque: Consider your riding needs and terrain. Higher power or torque may be needed for steep hills or more demanding rides.
2. Efficiency: A high-efficiency motor offers longer battery life and better performance.
3. Compatibility: Ensure the motor's specifications are compatible with your battery and motor controller.
4. Wheel Size: The motor should fit the specific wheel size of your e-bike.
5. Weight and Size: Consider the weight and dimensions of the motor as they can affect the overall weight distribution and handling of your e-bike.

Maintenance of P100/P110 Front Hub Motor

Maintaining your P100/P110 front hub motor ensures its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Wipe the motor regularly with a damp cloth to remove dirt and debris.
2. Inspection: Regularly inspect the motor for damage, loose connections, or wear.
3. Lubrication: Some motors may require lubrication. Refer to the manufacturer's guidelines for details.
4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance to ensure a consistent power supply to the motor.
5. Wheel Maintenance: Regularly inspect the wheel for proper alignment, trueness, and spoke tension.
6. Water and Moisture Protection: Avoid excessive moisture and do not submerge the motor in water.
