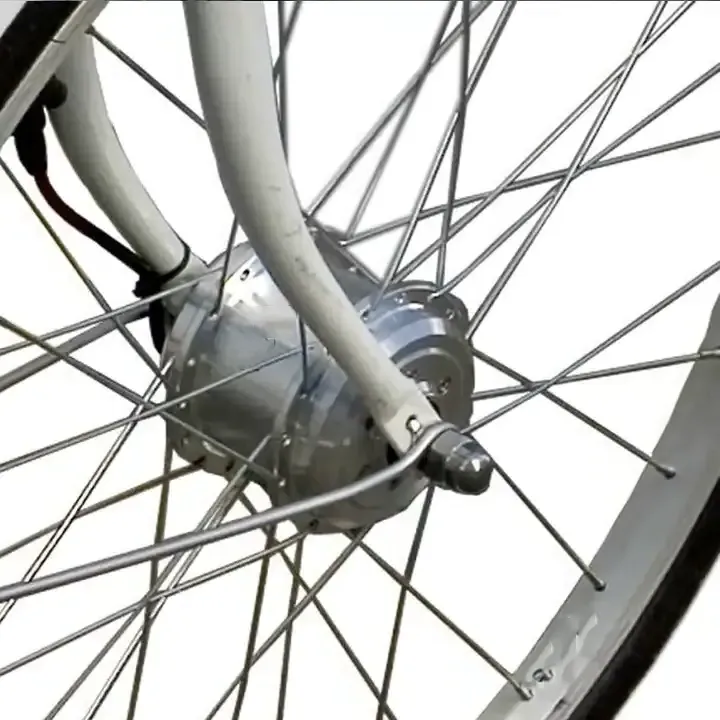

Raydafon P110 Brushless Non-gear Hub Motor with controller e bike motor

Boasting a powerful and efficient design, the Raydafon P110 Brushless Non-gear Hub Motor with controller is an ideal choice for e-bike enthusiasts. With a rated output power of 250W and an efficiency of ??90%, this motor offers impressive performance and reliability. The P110 model is designed with a brushless mechanism, ensuring a smooth and quiet ride, and comes in a sleek black or silver color. The motor has a diameter of 112??1mm, a width of 100??2mm, and a weight of 2.3kg. It operates at voltages of 24V, 33V, or 36V, with rated currents of 6.25A, 6.74A, or 9.16A. The motor is packaged securely in a carton box with bubble wrap, and shipping options include ports in Shanghai, Ningbo, and Shenzhen.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Product Advantages

The P110 front hub motor offers several distinct advantages which have been listed below:

1. Built-in controller
2. Wireless pedal sensor
3. Easy to install & disassemble
4. Max. power 750W, torque exceeds 40N??m
5. Efficiency ??90%
6. Wireless control

These features make the P110 front hub motor an exceptional choice for e-bike users seeking convenience, powerful performance, and easy installation.

Applications of P100/P110 Front Hub Motor

The P100/P110 front hub motor is incredibly versatile and is commonly used in electric bicycles (e-bikes) for a wide range of applications:

1. Commuting: E-bikes equipped with P100/P110 front hub motors are commonly used for commuting purposes. They provide assistance to riders, making it easier to cover longer distances and overcome steep hills during daily commutes.
2. Urban Riding: E-bikes with front hub motors are popular for urban riding. They offer smooth acceleration and assist riders in navigating through busy city streets and congested traffic.
3. Recreation and Leisure: These hub motors are also used in e-bikes designed for recreational purposes. Whether it's exploring trails, cruising along scenic routes, or enjoying outdoor adventures, the motors provide an extra boost to riders, enhancing their overall experience.
4. Delivery Services: Many food delivery services and courier companies use e-bikes with front hub motors due to their efficiency and ability to navigate through urban environments. The motors help delivery riders cover distances quickly and efficiently.
5. Tourism and Sightseeing: E-bikes equipped with P100/P110 front hub motors are often used in tourism and sightseeing applications. They allow tourists to explore cities, landmarks, and tourist attractions with ease, providing a more enjoyable and efficient way to sightsee.
6. Electric Bike Sharing Programs: Front hub motors like the P100/P110 are commonly found in e-bikes used in bike-sharing programs. These programs provide convenient transportation options in urban areas, allowing users to rent e-bikes for short periods.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is an integral part of the e-bike system. Here's a general overview of how it works:

1. Power Source: The e-bike system usually includes a rechargeable battery pack that provides electrical energy to the motor.
2. Motor Controller: This crucial component manages the flow of electricity from the battery to the motor. It interprets input from the rider through controls such as a throttle or pedal-assist sensor.
3. Torque Sensor or Throttle: The e-bike system can include a torque sensor, which measures the force applied to the pedals, or a throttle, which allows the rider to control the motor's power output directly.
4. Motor Assistance: When the rider applies force to the pedals or activates the throttle, the motor controller interprets the input and sends the suitable amount of power to the P100/P110 front hub motor.
5. Front Hub Motor: The P100/P110 front hub motor is located in the front wheel hub of the e-bike. It consists of a brushless electric motor, a set of gears, and a sensor system. The motor generates rotational force (torque) that propels the e-bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel through the gears incorporated into the hub motor. These gears increase the torque and adapt it to the desired speed, enabling the e-bike to accelerate or maintain a consistent speed.
7. Regenerative Braking (optional): Some e-bike systems with P100/P110 front hub motors may have regenerative braking capabilities. When the rider applies the brakes, the motor can act as a generator, converting the kinetic energy of the moving e-bike back into electricity and storing it in the battery for later use.
8. Display and Control Unit: The e-bike system often includes a display and control unit mounted on the handlebars. This provides the rider with information such as speed, battery level, and selected assistance level, and allows the rider to adjust settings and control the motor's assistance level.

Choosing the Right P100/P110 Front Hub Motor for Your Ebike System

When selecting a P100/P110 front hub motor for your e-bike system, consider these key factors:

1. Power and Torque: The power and torque output of the motor will determine the level of assistance it provides. Consider your riding needs and the terrain you'll be traversing. Higher power motors might consume more battery energy but provide more power and torque.
2. Efficiency: A highly efficient motor will have a significant impact on the range and overall performance of your e-bike. Efficient motors convert a larger portion of the electrical energy into mechanical power, resulting in longer battery life and a more effective riding experience.
3. Compatibility: Ensure the P100/P110 front hub motor you choose is compatible with your e-bike system. Check the motor's specifications, including voltage and wattage requirements, and compare them with your battery and motor controller specifications.
4. Wheel Size: Consider the wheel size of your e-bike when selecting a front hub motor. The motor should fit the specific wheel size of your e-bike to ensure optimal performance and a proper fit.
5. Weight and Size: Front hub motors vary in weight and size. Consider the weight and size of the motor as it can affect the overall weight distribution and handling of your e-bike.

Maintenance of P100/P110 Front Hub Motor

Proper maintenance of the P100/P110 front hub motor is essential for its longevity and performance:

1. Regular Cleaning: Wipe down the front hub motor regularly with a damp cloth to remove dirt, dust, and other debris that can affect its performance.
2. Inspection: Periodically inspect the front hub motor for any signs of damage, loose connections, or wear. If any issues are found, address them promptly.
3. Lubrication: Some front hub motors may require lubrication for smooth operation. Refer to the manufacturer's guidelines or user manual for information about lubrication.
4. Battery Maintenance: Regularly check the battery's charge level and ensure it is properly connected to the front hub motor. Follow the manufacturer's instructions for battery maintenance, such as proper charging procedures and storage guidelines.
5. Wheel Maintenance: Since the front hub motor is integrated into the front wheel, maintain the wheel's condition by regularly inspecting it for proper alignment, trueness, and spoke tension.
6. Water and Moisture Protection: Although the P100/P110 front hub motor may be designed to withstand some level of water exposure, avoid excessive moisture and submerging the motor in water.

Why Choose Raydafon's P100/P110 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. Our products are designed and developed in-house, protected by a number of domestic and international intellectual property rights. We've introduced professional production and testing equipment, advanced production lines, and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. We provide ODM & OEM services as per your request. Whether you're seeking high-end electrical components for electric bicycles, looking for a solution to traffic jams, or want to contribute to environmental protection, Raydafon is your ideal choice.Check out this video to learn more about the P100/P110 Front Hub Motor:Author: Yjx
