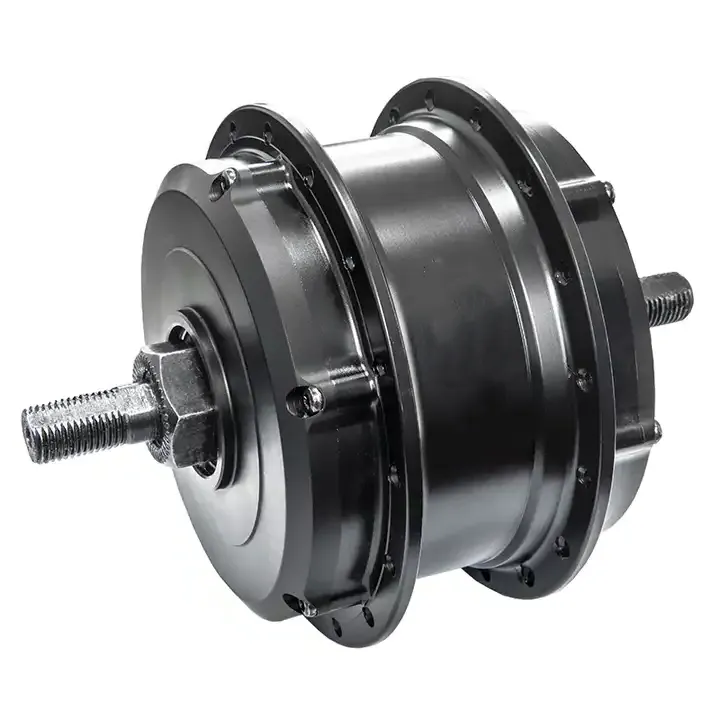

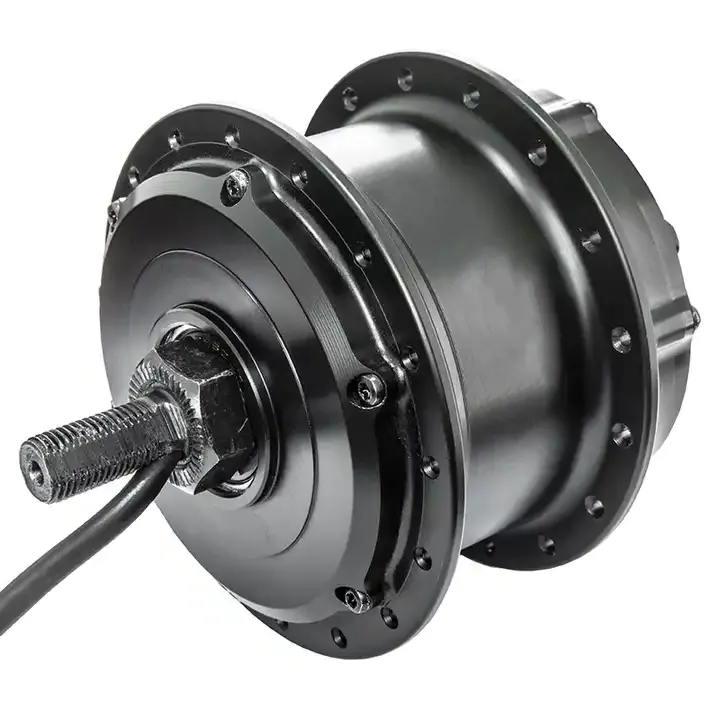

Raydafon P110 E-bike Front Motor with Controller Bicycle Conversion Kit for Ebike

[embed]https://youtu.be/Z3rT9dG_4wI[/embed]Upgrade your traditional bicycle into an electric one with the Raydafon P110 E-bike front motor with controller bicycle conversion kit. This kit includes a powerful front hub motor designed for ebikes, providing a smooth and efficient ride. The motor operates on a 36V voltage and its brushless design ensures a long lifespan and low maintenance. Available in both black and silver, the P110 front hub motor boasts a diameter of 113mm±1mm and a width of 135±2mm. It also offers a rated output power of 250W and an efficiency of >90%. The motor's rated revolution is between 160-260r/min and it weighs only 2.3kg. The kit also comes with a carton box with bubble wrap for secure packaging and can be shipped from Shanghai, Ningbo, or Shenzhen.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

The Advantages of the Raydafon P110 E-bike Front Motor

The Raydafon P110 E-bike front motor offers several advantages that make it an excellent choice for your e-bike conversion. These advantages include:

• Built-in controller: The built-in controller provides smooth and precise control over your e-bike's performance.
• Wireless Pedal Sensor: This feature allows the motor to respond to your pedaling effort, providing a natural and intuitive e-bike riding experience.
• Easy to Install & Disassemble: The front hub motor can be easily installed and removed, making maintenance and repairs more convenient.
• Max Power 750W, Torque Exceeds 40N·m: The motor offers a max power of 750W and a torque that exceeds 40N·m, ensuring a powerful performance for your e-bike.
• Efficiency >90%: With an efficiency of >90%, the motor ensures optimal usage of electrical power, providing you with a longer riding range.
• Wireless Control: The wireless control feature allows for a clean and clutter-free setup, enhancing your e-bike's aesthetics and ease of use.

With these features and more, it's clear why the Raydafon P110 E-bike front motor is a popular choice for e-bike conversions.

Applications of the Raydafon P110 E-bike Front Motor

The Raydafon P110 front hub motors are versatile and can be used in a variety of applications. Here are some common uses for these motors:

1. Commuting: E-bikes equipped with P110 front hub motors are ideal for commuting, providing assistance to cover longer distances and climb steep hills with ease.
2. Urban Riding: For city dwellers, these motors offer smooth acceleration and help navigate through busy city streets and traffic.
3. Recreation and Leisure: Whether you're exploring trails, cruising scenic routes, or enjoying outdoor adventures, these motors enhance the overall experience by providing an extra boost.
4. Delivery Services: E-bikes with these motors are used by food delivery services and courier companies for their efficiency and ability to navigate urban environments.
5. Tourism and Sightseeing: Tourists can explore cities, landmarks, and attractions with ease using e-bikes equipped with P110 front hub motors.
6. Electric Bike Sharing Programs: These motors are often found in e-bikes used in bike-sharing programs, providing convenient transportation options in urban areas.

How Does the E-bike System with P110 Front Hub Motor Work?

The P110 front hub motor is a vital component of the e-bike system. Here's a general overview of how it works:

1. Power Source: The system includes a rechargeable battery pack that provides electrical energy to the motor.
2. Motor Controller: This component manages the flow of electricity from the battery to the motor, interpreting input from the rider via controls like a throttle or pedal-assist sensor.
3. Torque Sensor or Throttle: The system can include a torque sensor that measures the force applied to the pedals, or a throttle for direct motor power control.
4. Motor Assistance: When the rider applies force to the pedals or activates the throttle, the motor controller sends the appropriate amount of power to the motor.
5. Front Hub Motor: Located in the front wheel hub, this motor generates rotational force transmitted to the wheel, propelling the e-bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel via gears integrated into the hub motor, allowing for acceleration or consistent speed.
7. Regenerative Braking: Some systems with P110 hub motors have regenerative braking capabilities, converting kinetic energy back into electricity for later use when the brakes are applied.
8. Display and Control Unit: Often mounted on the handlebars, this unit provides information like speed, battery level, and assistance level, and allows for adjustment of settings and control of the motor's assistance level.

Choosing the Right P110 Front Hub Motor for Your E-bike System

When selecting a P110 front hub motor for your e-bike system, consider the following factors:

• Power and Torque: Consider your riding needs and terrain. A higher power or torque motor may be beneficial if you frequently encounter steep hills or require more power.
• Efficiency: An efficient motor converts more electrical energy into mechanical power, offering a longer battery life and a more effective riding experience.
• Compatibility: Ensure the motor's specifications are compatible with your battery and motor controller specifications to avoid issues or damage.
• Wheel Size: Consider your e-bike's wheel size when selecting a front hub motor. Choosing the right motor size ensures optimal performance and a proper fit.
• Weight and Size: Consider the weight and dimensions of the motor, as it can influence the overall weight distribution and handling of your e-bike.

How to Maintain Your P110 Front Hub Motor

Proper maintenance of your P110 front hub motor is essential for its longevity and optimal performance. Here are some maintenance tips to keep in mind:

1. Regular Cleaning: Keep the motor clean by wiping it down regularly with a damp cloth to remove dirt, dust, and debris.
2. Inspection: Periodically inspect the motor for any signs of damage, loose connections, or wear. Address any issues promptly.
3. Lubrication: Some motors may require lubrication for smooth operation. Follow the manufacturer's guidelines and apply lubrication as recommended.
4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, such as proper charging procedures and storage guidelines. Regularly check the battery's charge level and ensure it is properly connected to the motor.
5. Wheel Maintenance: Regularly inspect the wheel for proper alignment, trueness, and spoke tension. If any issues are detected, have them addressed by a qualified bike mechanic.
6. Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water. Use precautions like fenders when riding in wet conditions.

Why Choose Raydafon's P110 Front Hub Motor for Your E-bike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the research, development, manufacturing, and global marketing of high-end electric bicycle parts. Our products, including the P100/P110 front hub motor, are designed and developed in-house and protected by numerous domestic and international intellectual property rights. We've introduced professional production and testing equipment, advanced production lines, and a complete quality management system to ensure the production of high-quality and reliable products.We adhere to the enterprise spirit of "Technology Drives Healthy Life" and the business philosophy of "Credit First, Quality First," continuously developing new products to meet customer needs and market changes. All our products are CE-certified and renowned for their reliable quality, exquisite craftsmanship, and stylish design. Our product range is suitable for all types of bikes, providing electric power support while maximizing the bikes' original appearance and characteristics.If you're seeking high-end electrical components for electric bicycles, or if you're tired of traffic jams and want to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
