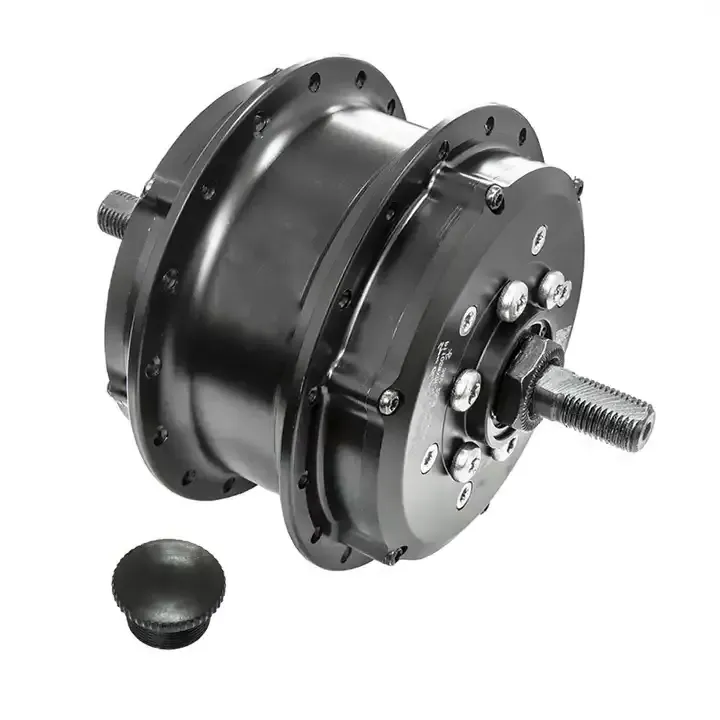

Raydafon P110 Front Hub Motor with Controller: A Quick Conversion Kit for E-Bike Hub DC Motor

The Raydafon P110 front hub motor with controller is a quick conversion kit designed for e-bike hub DC motors. This product comes with a variety of features and specifications, such as a brushless design, a rated output power of 250W, a rated voltage of 24V/33V/36V, and a rated current of 6.25A/6.74A/9.16A. It also boasts a high efficiency of ??90%, a rated revolution of 160-260r/min, and a lightweight design weighing just 2.3kg.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65

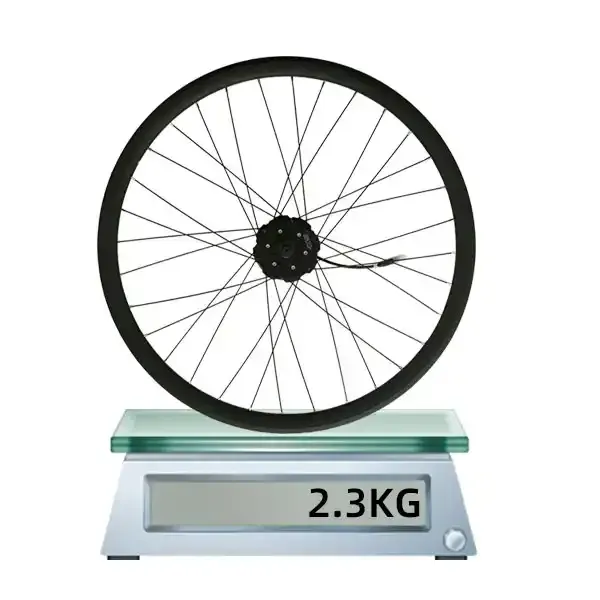

Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Advantages of the Raydafon P110 Front Hub Motor with Controller

The Raydafon P110 front hub motor with controller comes with numerous benefits. These advantages include:

1. 1. Built-in controller: This feature allows for seamless operation and control of the motor.
   2. Wireless pedal sensor: This advanced feature ensures smooth and effortless riding.

1. Easy to install & disassemble: The kit is designed for quick and simple installation and disassembly, ensuring convenience for the user.
2. Max power 750W, torque exceeds 40N??m: These specifications ensure powerful and efficient performance on various terrains.
3. Efficiency ??90%: The high efficiency of the motor contributes to the overall performance and battery life of the e-bike.
4. Wireless control: The wireless control feature offers convenient and intuitive control over the e-bike.

With our advanced production capabilities, we can produce this high-quality front hub motor to meet your e-bike needs.

Applications of the P100/P110 Front Hub Motor with Controller

The P100/P110 front hub motors are versatile and can be used in a variety of applications. These include:

1. Commuting: E-bikes equipped with P100/P110 front hub motors provide assistance to riders, making commuting easier and more efficient.
2. Urban Riding: These motors are perfect for navigating through busy city streets and congested traffic.
3. Recreation and Leisure: Whether you're exploring trails, cruising along scenic routes, or enjoying outdoor adventures, these motors enhance the overall experience.
4. Delivery Services: Many food delivery services and courier companies use e-bikes with front hub motors due to their efficiency and ability to navigate through urban environments.
5. Tourism and Sightseeing: E-bikes equipped with P100/P110 front hub motors provide a more enjoyable and efficient way to explore cities, landmarks, and tourist attractions.
6. Electric Bike Sharing Programs: These motors are commonly found in e-bikes used in bike-sharing programs, providing convenient transportation options in urban areas.

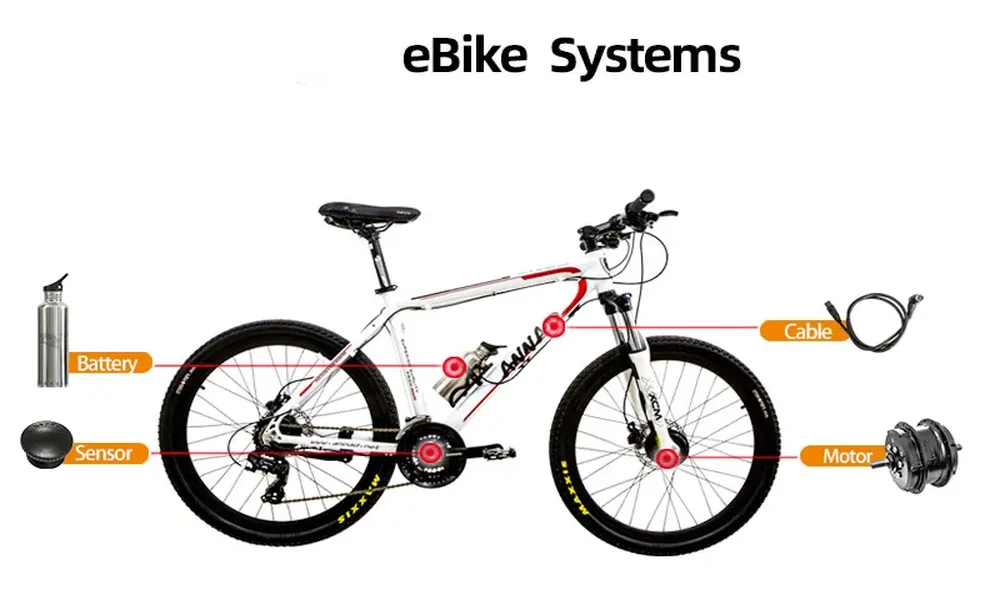

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is an integral part of the e-bike system. Here's how it works:

1. Power Source: The e-bike system includes a rechargeable battery pack that provides electrical energy to the motor.
2. Motor Controller: This component manages the flow of electricity from the battery to the motor, interpreting input from the rider through controls such as a throttle or pedal-assist sensor.
3. Torque Sensor or Throttle: The e-bike system may include a torque sensor, which measures the force applied to the pedals, or a throttle, which allows the rider to control the power output of the motor directly.
4. Motor Assistance: When the rider applies force to the pedals or activates the throttle, the motor controller sends the appropriate amount of power to the P100/P110 front hub motor.
5. Front Hub Motor: The motor generates rotational force (torque) that is transmitted to the wheel, propelling the e-bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel through the gears integrated into the hub motor, allowing the e-bike to accelerate or maintain a consistent speed.
7. Regenerative Braking: Some e-bike systems may have regenerative braking capabilities, converting the kinetic energy of the moving e-bike back into electricity and storing it in the battery for later use.
8. Display and Control Unit: This unit provides information such as speed, battery level, and selected assistance level, and allows the rider to adjust settings and control the motor's assistance level.

Choose the Right P100/P110 Front Hub Motor for Your E-Bike System

When choosing the right P100/P110 front hub motor for your e-bike system, consider the following factors:

1. Power and Torque: Consider your riding needs and terrain. Higher power or torque motors might be necessary if you frequently encounter steep hills or require more power.
2. Efficiency: High efficiency can impact the range and overall performance of your e-bike, resulting in longer battery life and a more effective riding experience.
3. Compatibility: Ensure the motor you choose is compatible with your e-bike system. Check the motor's specifications, including voltage and wattage requirements, and compare them with your battery and motor controller specifications.
4. Wheel Size: The motor should fit the specific wheel size of your e-bike. Common sizes include 26 inches, 27.5 inches, and 29 inches.
5. Weight and Size: Consider the weight and dimensions of the motor, as it can affect the overall weight distribution and handling of your e-bike. A lighter motor can contribute to better maneuverability, while a larger motor may impact the aesthetics and balance of the bike.

Maintenance Tips for the P100/P110 Front Hub Motor

Proper maintenance of the P100/P110 front hub motor is crucial to ensure its longevity and optimal performance. Here are some maintenance tips:

1. Regular Cleaning: Keep the motor clean by wiping it down regularly with a damp cloth.
2. Inspection: Periodically inspect the motor for any signs of damage, loose connections, or wear.
3. Lubrication: Some motors may require lubrication for smooth operation. Refer to the manufacturer's guidelines or user manual to determine if lubrication is necessary.
4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, such as proper charging procedures and storage guidelines.
5. Wheel Maintenance: Regularly inspect the wheel for proper alignment, trueness, and spoke tension.
6. Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water. If riding in wet conditions, take precautions like using fenders and avoiding deep puddles.

Why Choose Raydafon's P100/P110 Front Hub Motor for Your E-Bike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life," adhere to the business philosophy of "Credit First, Quality First," and constantly develop new products to meet customer needs and market changes. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design.At present, our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. We provide ODM & OEM services as per your requests. Welcome to our company.Author: Yjx
