| Item No. | P130SWXDC30/P130SWXC30 |
| Diameter | 143mm??1mm |
| Width | 100??2mm |
| Brake types | Disc brake/ V brake |
| Outlet position | No cable |
| Spoke no. | 20H??24H??28H??32H??36H |
| Spoke types | 14g |
| Controller | Internal |
| Sensor | Wireless pedal sensor |
| Battery | 7Ah |
| Rated power | 250W |
| Max. power | 300W |
| Max. torque | 30N??m |
| Rated voltage | 30V |
| Rated input current | 8.3A |
| Reduction ratio | 1 : 13.5 |
| Grade-ability | ??20% |
| Efficiency | ??90% |
| Revolution | 160-260RPM |
| Applicable wheel diameter | 14-29inch |
| Color | Black/Silver |
| Noise | ??50dB |
| Operation temperature | -20-45?? |
| Storage temperature | -20-45?? |
| Waterproof & Dust-proof | IP65 |
| Weight | 2.6KGS |

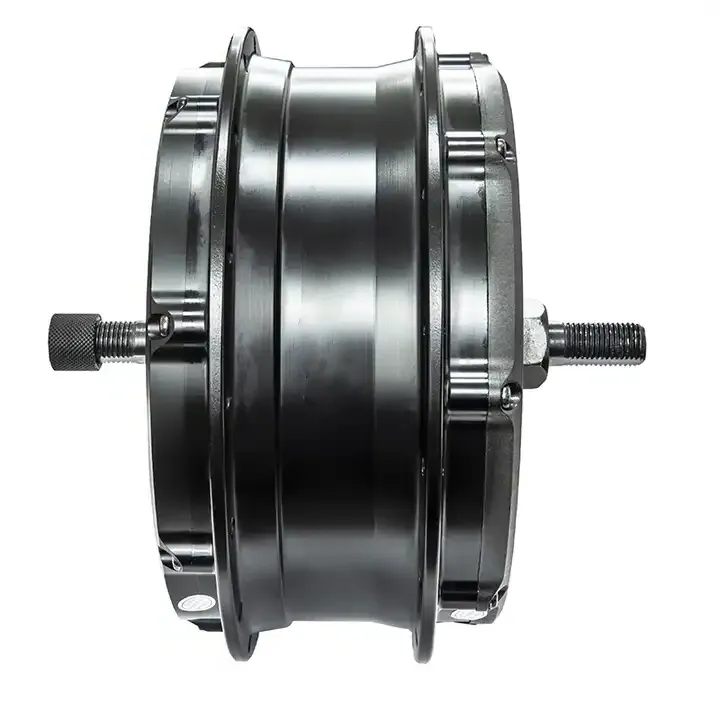

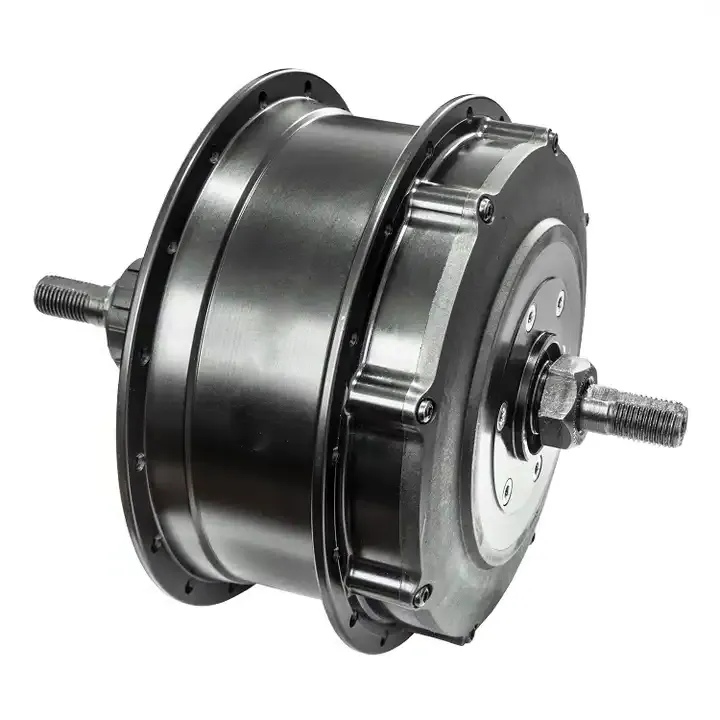

The Raydafon P130 front hub motor boasts a host of advantages that set it apart from other e-bike motors in the market. Here are six standout features:1. Built-in 7Ah battery and controller: The compact design integrates the battery and controller into the motor, eliminating the need for external parts and wiring. This results in a cleaner look and reduced weight.2. Wireless pedal sensor: The motor includes a wireless pedal sensor that provides seamless control and optimizes the riding experience.3. Support for extended-range battery: The motor supports the use of an additional battery to extend the range, making it ideal for long-distance rides.4. Lightweight: The motor's compact design and integrated components significantly reduce its weight, improving the overall balance and handling of the e-bike.5. Wireless control: The motor features Bluetooth connectivity for wireless control, allowing riders to easily adjust settings and monitor performance.6. Easy to install & disassemble: The all-in-one design simplifies the installation process, making it easy to fit on any bike. It's also easy to remove for maintenance or replacement.Our team of skilled engineers and technicians are capable of producing this top-tier product, ensuring it meets the highest standards of performance and reliability.
The ALL-IN-ONE Front Hub Motor system for e-bikes is versatile and can be used in various scenarios. Here are some key applications:1. Commuting: It's perfect for commuters, offering effortless navigation through traffic and easy tackling of hills. The compact design makes it a convenient choice for converting existing bicycles into e-bikes.2. Urban Transportation: This motor system provides an eco-friendly alternative to traditional transportation modes in the city. It enables efficient navigation of city streets and helps reduce congestion.3. Recreation and Leisure: The system enhances recreational biking, making it easier to explore scenic trails, embark on off-road adventures, or enjoy a leisurely ride.4. Delivery Services: It's a popular choice for last-mile deliveries due to its efficiency and sustainability. It reduces physical strain on riders, enabling quicker deliveries.5. Bike-Sharing Programs: The user-friendly nature of the motor system makes it suitable for bike-sharing programs, reducing traffic congestion and promoting a healthier lifestyle.
The ALL-IN-ONE front hub motor system combines several components into one unit for smooth operation:1. Motor: The motor located in the front wheel hub generates torque to propel the bicycle.
2. Battery: The battery supplies power to the motor and can be removed for charging or replaced when necessary.3. Controller: The controller manages the flow of electricity and adjusts the motor's power output according to the rider's input.4. Power delivery: The controller sends the appropriate amount of current from the battery to the motor when the rider activates the electric assistance.5. Propulsion: The current flow into the motor generates a magnetic field that propels the bicycle forward.6. Control settings: The system offers different control settings to suit the rider's preferences, including throttle-only mode and pedal-assist mode.
When selecting the right front hub motor for your e-bike, consider factors such as power and torque, battery capacity, voltage and current, wheel size, weight and balance, and installation compatibility.
Established in 1993, Raydafon Electric Technology Co Ltd. has been at the forefront of electric bicycle parts manufacturing and marketing. We have a dedicated team of experts who strive to create high-quality, innovative products that cater to the evolving needs of our customers.We have professional production and testing facilities, ensuring every product meets the highest international standards. Additionally, we offer customized services, enabling us to tailor our products to your specific needs.With our products, you can enjoy a reliable, eco-friendly, and convenient riding experience. With Raydafon, you're not just getting a product, but a partner dedicated to providing you with the best e-bike solutions.
