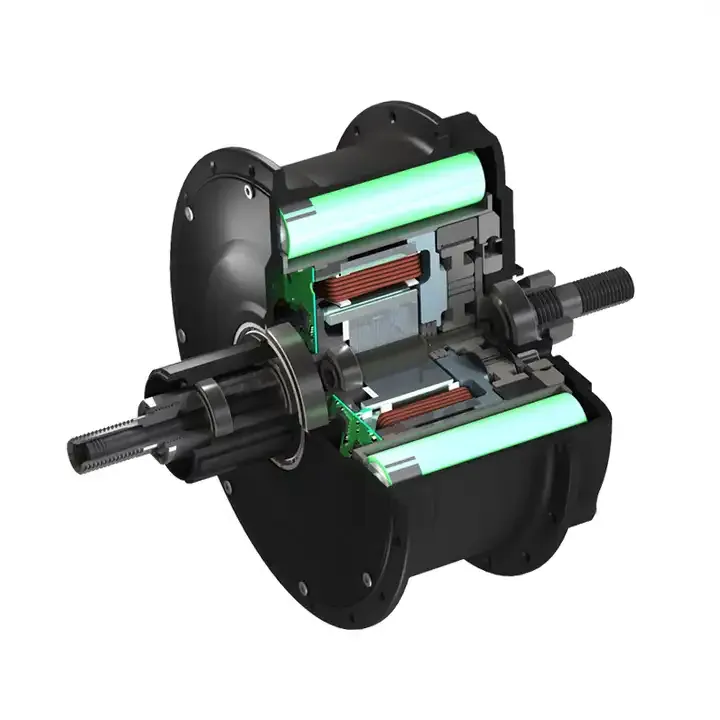

High Quality Ebike System 250w Environmental Friendly Brushless ALL-IN-ONE Front Hub Motor For Electric Bicycle Part Motor

Introducing the P160 ALL-IN-ONE Front Hub Motor, a high-quality, eco-friendly solution for e-bike systems that delivers top-notch performance. This 250W brushless motor is designed to be an all-in-one solution with a built-in battery and controller. With a voltage of 36V and an efficiency of over 90%, it provides reliable, efficient power for your electric bicycle. Choose between sleek black or silver to match the style of your bike. The motor is also lightweight at just 3.7kg, and it features a Bluetooth button/display for easy control.

P160 ALL-IN-ONE Front Hub Motor Specification:

Item No.	P160SWXDC30/P160SWXC30
Diameter	162mm??1mm
Width	100??2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Spoke no.	20H??24H??28H??32H??36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Battery	10Ah
Rated power	250W
Max. power	300W
Max. torque	30N??m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	??20%
Efficiency	??90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	??50dB
Operation temperature	-20-45??
Storage temperature	-20-45??
Waterproof & Dust-proof	IP65
Weight	3.7KGS

P160 ALL-IN-ONE Front Hub Motor Dimension:

Key Features of the ALL-IN-ONE Front Hub Motor

This front hub motor comes packed with several efficient features designed to enhance your e-biking experience. These include:

1. Built-in 7Ah battery and controller, making the system compact and easy to manage.
2. Wireless pedal sensor for responsive and intuitive control.
3. Support for an extended-range battery, allowing for longer rides.
4. Lightweight design, contributing to the overall maneuverability of the bike.
5. Wireless control for convenient and easy adjustment of settings.
6. Easy installation and disassembly, making it user-friendly and suitable for various types of bicycles.

With our expertise and advanced manufacturing technology, we can produce this high-quality, custom e-bike system to cater to your specific needs.

Applications of the ALL-IN-ONE Front Hub Motor

The ALL-IN-ONE Front Hub Motor system for e-bikes has a wide range of applications:

1. Commuting: With the power of this motor, commuters can effortlessly navigate through traffic, tackle hills, and cover longer distances without fatigue.
2. Urban Transportation: The motor provides an eco-friendly alternative to traditional modes of transportation, enabling efficient navigation around city streets and faster travel times.
3. Recreation and Leisure: Whether for trail exploration, off-road adventures, or leisurely rides, the electric assistance provided by the system enhances the overall experience.
4. Delivery Services: The motor is a popular choice for last-mile deliveries, providing efficient and sustainable service.
5. Bike-Sharing Programs: The compact and user-friendly nature of the motor system makes it suitable for bike-sharing programs, offering an efficient and sustainable transportation option for the public.

How Does the Ebike System ALL-IN-ONE Front Hub Motor Work?

This front hub motor system for e-bikes combines several components into a single unit:

1. Motor: The front hub motor is located in the front wheel hub. It consists of a brushless electric motor that generates torque to propel the bicycle forward.
2. Battery: The battery supplies power to the motor and is responsible for storing and providing the electrical energy needed for propulsion. It is rechargeable and can be removed for charging or replaced when necessary.
3. Controller: The controller manages the flow of electricity between the battery and the motor. It receives input from the rider and adjusts the motor's power output accordingly.
4. Power delivery: When the rider activates the electric assistance, a signal is sent to the controller, which then determines the level of assistance required and sends the appropriate amount of current from the battery to the motor.
5. Propulsion: As the current flows into the motor, it creates a magnetic field that interacts with the magnets in the motor, generating rotational force (torque), which propels the bicycle forward.
6. Control settings: The system offers different control settings to suit the rider's preferences, including throttle-only mode or pedal-assist mode.

Choosing the Right ALL-IN-ONE Front Hub Motor for Your Ebike System

Here are several factors to consider when choosing the right front hub motor for your e-bike system:

1. Power and torque: Consider your riding needs and terrain. If you plan to tackle hilly or steep terrain, you may require a motor with higher power and torque.
2. Battery capacity: Consider the distance you typically ride and choose a battery capacity that meets your requirements. A larger capacity battery will provide a longer range.
3. Voltage and current: Ensure that the motor and battery voltage and current specifications match to ensure proper operation and avoid damage to the components.
4. Wheel size: Check the compatibility of the front hub motor with your e-bike's wheel size.
5. Weight and balance: Consider the weight of the front hub motor system. A lighter system will have less impact on the overall weight of your e-bike and help maintain good balance and handling.
6. Installation compatibility: Check the compatibility of the front hub motor system with your bike's frame and fork design.

Maintenance of the ALL-IN-ONE Front Hub Motor

Proper maintenance of the front hub motor is essential for its longevity and optimal performance:

1. 1. Regular cleaning: Clean the front hub motor and the surrounding area regularly to prevent the buildup of dirt, dust, and debris.
   2. Battery maintenance: Keep the battery charged within the recommended voltage range and avoid overcharging or deep discharging.
   3. Check electrical connections: Periodically inspect the electrical connections between the motor, controller, and battery.
   4. Tire pressure and wheel alignment: Maintain the appropriate tire pressure and check the wheel alignment to ensure that the front wheel spins freely.
   5. Brake system maintenance: Regularly inspect and adjust the brakes to ensure they are functioning properly.
   6. Lubrication: Apply lubricant to the moving parts of the front hub motor system, such as the bearings and gears, as recommended by the manufacturer.
   7. Protect from moisture: Avoid exposing the front hub motor and electrical components to excessive moisture.

Why Choose Raydafon's ALL-IN-ONE Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life," adhere to the business philosophy of "Credit First, Quality First," and constantly develop new products to meet customer needs and market changes. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Written by: Yjx
