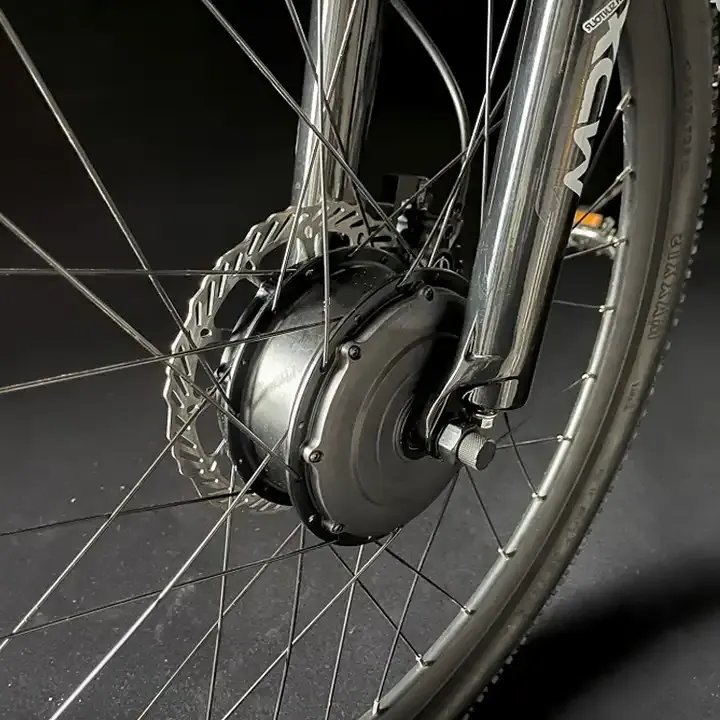

Raydafon P130 ALL-IN-ONE Brushless 36V 250W Intelligent Ebike Front Hub Motor Electric Bicycle Kit With Battery

In the realm of electric bicycle components, a standout product is the Raydafon P130 ALL-IN-ONE Brushless 36V 250W Intelligent Ebike Front Hub Motor Electric Bicycle Kit with Battery. This high-end kit is designed with a brushless style and comes in either a sleek black or silver color. It has dimensions of 143??1mm in diameter and 100??1mm in width, making it a compact option that packs a punch. It operates on a rated power of 250W, with a maximum power of 350W, and boasts an efficiency of ??90%. Weighing in at only 2.6 kg, it also includes a battery built into the motor and a Bluetooth button/display controller. Each kit comes packaged in a sturdy carton box with bubble wrap for protection, ready to be shipped from Shanghai, Ningbo, or Shenzhen.

P130 ALL-IN-ONE Front Hub Motor Specification:

Item No.	P130SWXDC30/P130SWXC30
Diameter	143mm??1mm
Width	100??2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Spoke no.	20H??24H??28H??32H??36H
Spoke types	14g
Controller	Internal
Sensor	Wireless pedal sensor
Battery	7Ah
Rated power	250W
Max. power	300W
Max. torque	30N??m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	??20%
Efficiency	??90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	??50dB
Operation temperature	-20-45??
Storage temperature	-20-45??
Waterproof & Dust-proof	IP65
Weight	2.6KGS

P130 ALL-IN-ONE Front Hub Motor Dimension:

Distinct Advantages of the Raydafon P130 ALL-IN-ONE Front Hub Motor Electric Bicycle Kit

The Raydafon P130 ALL-IN-ONE Front Hub Motor Electric Bicycle Kit is an exceptional product with a multitude of advantages. These include:

1. 1. A built-in 7Ah battery and controller, providing a seamless and integrated power source and control system.
   2. A wireless pedal sensor, allowing for easy and efficient operation.
   3. A support for extended-range batteries, offering longer ride times and greater distances.
   4. A light weight design, ensuring easier handling and maneuverability.
   5. Wireless control, providing convenient and efficient operation.

1. Easy installation and disassembly, making maintenance and repairs straightforward and hassle-free.

With all these benefits, it's clear that our product is an excellent choice for those seeking a high-quality, reliable, and efficient e-bike solution.

Applications of the ALL-IN-ONE Front Hub Motor System

The ALL-IN-ONE Front Hub Motor system for e-bikes has a wide range of applications and can be beneficial in various scenarios. Here are some of the key areas where this system is commonly utilized:

1. Commuting: The system is popular among commuters who want to incorporate the benefits of electric assistance into their daily travels. It allows riders to effortlessly navigate through traffic, tackle hills, and cover longer distances without getting fatigued.
2. Urban Transportation: E-bikes equipped with ALL-IN-ONE Front Hub Motors are well-suited for urban transportation. They provide an eco-friendly alternative to traditional modes of transportation like cars or motorcycles.
3. Recreation and Leisure: The system is also widely used in e-bikes designed for recreational purposes. Whether it's exploring scenic trails, going on off-road adventures, or simply enjoying a leisurely ride, the electric assistance provided by the system enhances the overall experience.
4. Delivery Services: With the growing demand for efficient and sustainable delivery services, e-bikes equipped with ALL-IN-ONE Front Hub Motors have become a popular choice for last-mile deliveries.
5. Bike-Sharing Programs: The compact and user-friendly nature of the ALL-IN-ONE Front Hub Motor system makes it suitable for bike-sharing programs.

How Does the Ebike System ALL-IN-ONE Front Hub Motor Work?

The ALL-IN-ONE front hub motor system for e-bikes combines several components into a single unit, including the motor, battery, and controller. Here's a general overview of how it works:

1. Motor: The front hub motor is located in the front wheel hub. It consists of a brushless electric motor that generates torque to propel the bicycle forward.
2. Battery: The battery is typically integrated into the system and is often located in the downtube of the bicycle frame.
3. Controller: The controller acts as the brain of the system, managing the flow of electricity between the battery and the motor.
4. Power delivery: When the rider activates the electric assistance, either through a throttle or pedal-assist sensor, a signal is sent to the controller.
5. Propulsion: As the current flows into the motor, it creates a magnetic field that interacts with the magnets in the motor.
6. Control settings: The ALL-IN-ONE front hub motor system often offers different control settings to suit the rider's preferences.

Choosing the Right ALL-IN-ONE Front Hub Motor for Your E-bike System

When choosing the right ALL-IN-ONE front hub motor for your e-bike system, there are several factors to consider:

1. Power and torque: The power and torque of the front hub motor will determine the level of assistance and performance it provides.
2. Battery capacity: The battery capacity directly affects the range of your e-bike.
3. Voltage and current: The voltage and current rating of the motor and battery should be compatible.
4. Wheel size: Check the compatibility of the front hub motor with your e-bike's wheel size.
5. Weight and balance: Consider the weight of the front hub motor system.
6. Installation compatibility: Check the compatibility of the front hub motor system with your bike's fork and dropout spacing.

Maintaining Your ALL-IN-ONE Front Hub Motor

Proper maintenance of your ALL-IN-ONE front hub motor is essential to ensure its longevity and optimal performance. Here are some maintenance tips:

1. 1. Regular cleaning: Clean the front hub motor and the surrounding area regularly to prevent the buildup of dirt, dust, and debris.
   2. Battery maintenance: Take care of the e-bike's battery according to the manufacturer's instructions.
   3. Check electrical connections: Periodically inspect the electrical connections between the motor, controller, and battery.
   4. Tire pressure and wheel alignment: Maintain the appropriate tire pressure as recommended by the tire manufacturer.
   5. Brake system maintenance: Regularly inspect and adjust the brakes to ensure they are functioning properly.
   6. Lubrication: Apply lubricant to the moving parts of the front hub motor system, such as the bearings and gears, as recommended by the manufacturer.
   7. Protect from moisture: Avoid exposing the front hub motor and electrical components to excessive moisture.

Why Choose Raydafon's ALL-IN-ONE Front Hub Motor for Your E-bike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. We adhere to the enterprise spirit of "Technology Drives Healthy Life," adhere to the business philosophy of "Credit First, Quality First," and constantly develop new products to meet customer needs and market changes. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design. At present, our main products include super-mini wireless motors, super-mini intelligent motors, All-IN-ONE motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly. If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
