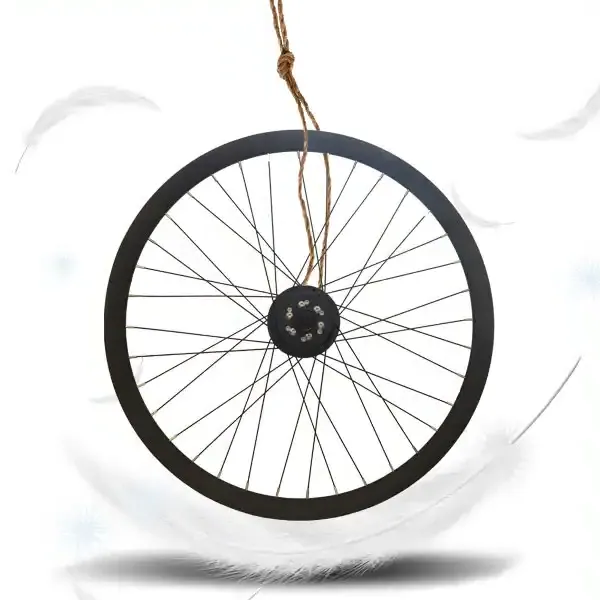

Raydafon P110 Environmental Friendly Ebike Conversion Kit 36V 250w Electric Bicycle Part Front Hub Motor

Introducing the Raydafon P110, an environmentally-friendly ebike conversion kit designed to transform your bicycle into an efficient and powerful electric bike. This kit includes a 36V 250W front hub motor, offering a smooth and powerful ride. The Raydafon P110 boasts a brushless design and comes in a sleek black or silver color. It features a diameter of 113mm±1mm and a width of 135±2mm, along with a rated voltage of 24V/33V/36V. The P110 is known for its high efficiency, with a rating of >90% and a weight of just 2.3kg.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

P110 E-bike Front Hub Motor Dimension

Benefits of the Raydafon P110 Front Hub Motor

With the Raydafon P110 Front Hub Motor, you get a multitude of benefits that make it a standout choice for your e-bike conversion.

1. Built-in controller: The P110 features an integrated controller, providing a streamlined and efficient system.
2. Wireless pedal sensor: The wireless pedal sensor offers seamless and intuitive control over your e-bike.
3. Easy to install & disassemble: The P110 is designed for user-friendly installation and disassembly, reducing the time and effort needed.
4. Max. power 750W, torque exceeds 40N??m: With a maximum power of 750W and a torque exceeding 40N??m, the P110 delivers powerful and consistent performance.
5. Efficiency ??90%: The P110 boasts a high efficiency of ??90%, ensuring optimal power usage and extending your e-bike's battery life.
6. Wireless control: The P110 offers wireless control for convenient and effortless operation.

At Raydafon, we can produce this high-performance front hub motor, ensuring quality and reliability.

Applications of the P100/P110 Front Hub Motors

The P100/P110 front hub motors are versatile and can be used in a variety of applications, including:

1. Commuting: These motors are ideal for daily commutes, providing assistance for long distances and steep hills.
2. Urban Riding: The P100/P110 motors offer smooth acceleration, perfect for navigating city streets and traffic.
3. Recreation and Leisure: These motors enhance recreational rides, whether exploring trails or cruising scenic routes.
4. Delivery Services: Many delivery services use e-bikes with these motors for their efficiency and navigational abilities.
5. Tourism and Sightseeing: These motors are often used in tourism, allowing tourists to explore attractions with ease.
6. Electric Bike Sharing Programs: Bike-sharing programs often use e-bikes with these motors for their convenience and efficiency.

How Does the Ebike System P100/P110 Front Hub Motor Work?

The P100/P110 front hub motor is specifically designed for electric bicycles (e-bikes). Here's a general overview of how the e-bike system works:

1. Power Source: The system includes a rechargeable battery pack that provides electrical energy to the motor.
2. Motor Controller: The motor controller manages the flow of electricity from the battery to the motor.
3. Torque Sensor or Throttle: The system may include a torque sensor, which measures the force applied to the pedals, or a throttle for direct control over the motor's power output.
4. Motor Assistance: When force is applied to the pedals or the throttle is activated, the motor controller interprets the input and sends power to the front hub motor.
5. Front Hub Motor: The front hub motor generates rotational force (torque) that propels the e-bike forward.
6. Power Transmission: The motor's rotational force is transmitted to the wheel through integrated gears, enabling acceleration and speed control.
7. Regenerative Braking (optional): Some systems have regenerative braking, converting kinetic energy back into electricity for later use when the brakes are applied.
8. Display and Control Unit: The system typically includes a display and control unit, providing the rider with information and control over the motor's assistance level.

Choose the Right P100/P110 Front Hub Motor for Your Ebike System

When choosing the right P100/P110 front hub motor for your e-bike system, consider the following factors:

1. Power and Torque: Consider your riding needs and terrain to choose the right power and torque output.
2. Efficiency: Look for a motor with high efficiency to extend battery life and enhance performance.
3. Compatibility: Ensure the motor is compatible with your e-bike system, checking voltage and wattage requirements.
4. Wheel Size: Consider the wheel size of your e-bike when selecting a front hub motor.
5. Weight and Size: Consider the weight and dimensions of the motor as it can affect the overall weight distribution and handling of your e-bike.

Maintaining Your P100/P110 Front Hub Motor

Proper maintenance of your P100/P110 front hub motor ensures its longevity and optimal performance:

1. Regular Cleaning: Keep the front hub motor clean by wiping it down regularly.
2. Inspection: Periodically inspect the front hub motor for any signs of damage, loose connections, or wear.
3. Lubrication: Some motors may require lubrication for smooth operation.
4. Battery Maintenance: Regularly check the battery's charge level and ensure it is properly connected.
5. Wheel Maintenance: Regularly inspect the wheel for proper alignment, trueness, and spoke tension.
6. Water and Moisture Protection: Avoid excessive moisture and submerging the motor in water.

Why Choose Raydafon's P100/P110 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is a pioneer in the industry, dedicated to the R&D, manufacturing, and global marketing of high-end electric bicycle parts. We are renowned for our reliable quality, exquisite craftsmanship, and stylish design.We offer a wide range of products, including super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, and more. All our products are designed in-house and protected by numerous domestic and international intellectual property rights.Our advanced production lines and comprehensive quality management system ensure the production of top-quality products. We offer both ODM & OEM services, catering to your specific requirements. With our products, you can enjoy a more convenient, easy, and environmentally-friendly riding experience.Author: Yjx
