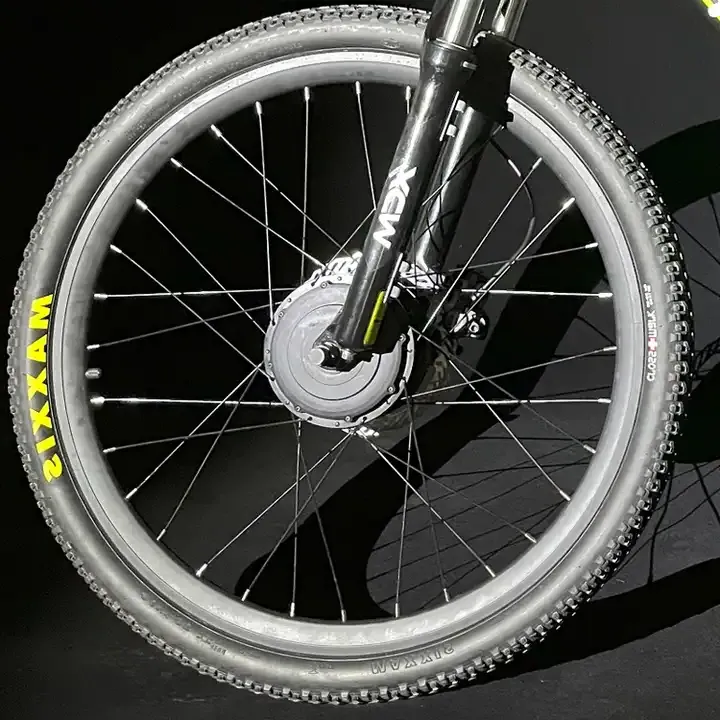

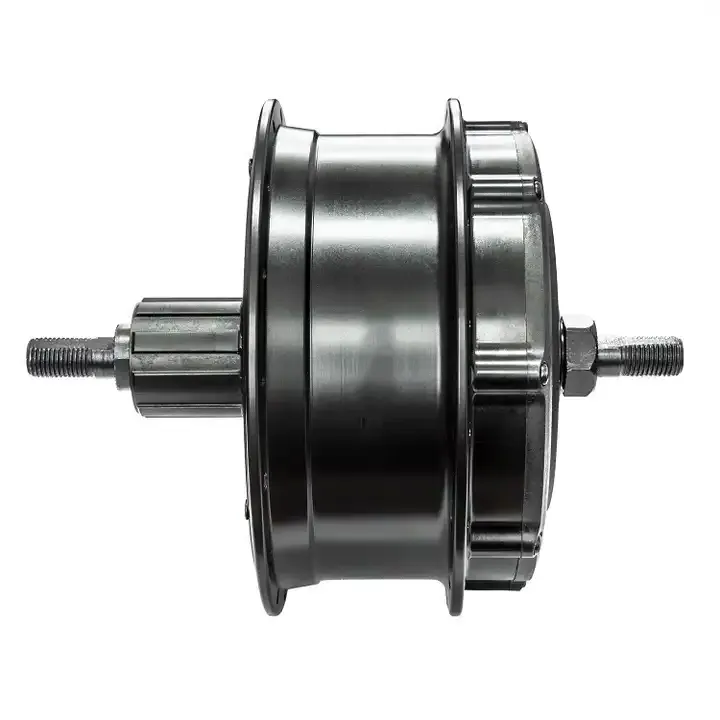

Raydafon P160 250W 400W Electric Bike Intelligent Engine Motor Set Up For Bicycle Wireless Front Hub Motor

Experience the power and efficiency of the Raydafon P160's ALL-IN-ONE Front Hub Motor. This high-end motor setup combines a 250W rated power, 400W peak power, and a brushless non-gear hub motor design. Its sleek and compact design makes it an ideal choice for e-bikes, offering an effective solution to power your bicycle. Available in both black and silver, the P160's motor also houses the battery, ensuring a neat, wireless setup.

P160 ALL-IN-ONE Front Hub Motor Specification:

Item No.	P160SWXDC30/P160SWXC30
Diameter	162mm??1mm
Width	100??2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Spoke no.	20H??24H??28H??32H??36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Battery	10Ah
Rated power	250W
Max. power	300W
Max. torque	30N??m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	??20%
Efficiency	??90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	??50dB
Operation temperature	-20-45??
Storage temperature	-20-45??
Waterproof & Dust-proof	IP65
Weight	3.7KGS

P160 ALL-IN-ONE Front Hub Motor Dimension:

Advantages of the Raydafon P160 ALL-IN-ONE Front Hub Motor

The Raydafon P160 ALL-IN-ONE Front Hub Motor offers several key features:

1. 1. Built-in 7Ah battery and controller: This integrated setup simplifies the installation process and reduces the number of separate components you need to manage.

1. Wireless pedal sense: This feature enhances your riding experience by providing smooth and intuitive control over the power assistance level.
2. Support extended-range battery: You can extend your riding range by using an additional battery.
3. Lightweight design: Weighing just 3.7kg, this front hub motor won't add significant weight to your bike, keeping it agile and easy to handle.
4. Wireless control: Adjust power levels and monitor your bike's performance via a Bluetooth button/display.
5. Easy to install and disassemble: Whether you're an experienced mechanic or a DIY enthusiast, you'll find this motor easy to install on your bike.

We can produce this product in large quantities, ensuring a reliable supply for your business needs.

Applications of the Raydafon P160 ALL-IN-ONE Front Hub Motor

The ALL-IN-ONE Front Hub Motor system for e-bikes from Raydafon P160 can be used in various scenarios:

1. Commuting: Easily navigate through traffic, tackle hills, and cover longer distances without fatigue.
2. Urban Transportation: Navigate city streets efficiently, reach destinations faster, and reduce congestion.
3. Recreation and Leisure: Explore scenic trails, go on off-road adventures, or enjoy a leisurely ride with ease.
4. Delivery Services: Cover more ground, navigate through congested areas quickly, and make multiple deliveries in a shorter time.
5. Bike-Sharing Programs: Deploy in urban areas to offer an efficient and sustainable transportation option for the public.

How Does the Ebike System ALL-IN-ONE Front Hub Motor Work?

The ALL-IN-ONE front hub motor system for e-bikes combines several components into a single unit to provide a seamless riding experience.

1. 1. Motor: The front hub motor is located in the front wheel hub. It generates torque to propel the bicycle forward.
   2. Battery: The battery supplies power to the motor and stores the electrical energy needed for propulsion.
   3. Controller: The controller manages the flow of electricity between the battery and the motor. It receives input from the rider and adjusts the motor's power output accordingly.
   4. Power delivery: When the rider activates the electric assistance, a signal is sent to the controller. The controller then determines the level of assistance required and sends the appropriate amount of current from the battery to the motor.
   5. Propulsion: As the current flows into the motor, it creates a magnetic field that generates rotational force (torque), propelling the bicycle forward.

1. Control settings: The system offers different control settings to suit the rider's preferences. These can include throttle-only mode or pedal-assist mode.

Choosing the Right ALL-IN-ONE Front Hub Motor for Your Ebike System

When choosing the right ALL-IN-ONE front hub motor for your e-bike system, consider the following factors:

1. Power and torque: The power and torque of the front hub motor will determine the level of assistance and performance it provides.
2. Battery capacity: The battery capacity directly affects the range of your e-bike. Choose a battery capacity that meets your requirements.
3. Voltage and current: Ensure that the motor and battery voltage and current specifications match to ensure proper operation.
4. Wheel size: Check the compatibility of the front hub motor with your e-bike's wheel size.
5. Weight and balance: Consider the weight of the front hub motor system. A lighter system will have less impact on the overall weight of your e-bike and help maintain good balance and handling.
6. Installation compatibility: Check the compatibility of the front hub motor system with your bike's fork and dropout spacing.

Maintaining Your ALL-IN-ONE Front Hub Motor

To ensure the longevity and optimal performance of your Raydafon P160 ALL-IN-ONE Front Hub Motor, remember to:

1. Regularly clean: Prevent the buildup of dirt, dust, and debris by cleaning the front hub motor and the surrounding area regularly.
2. Maintain the battery: Follow the manufacturer's instructions to keep the battery in good condition.
3. Check electrical connections: Inspect the connections between the motor, controller, and battery to ensure they are clean, secure, and free from corrosion.
4. Ensure correct tire pressure and wheel alignment: Proper tire pressure and wheel alignment ensure optimal performance and handling of the e-bike.
5. Inspect the brake system: Regularly check and adjust the brakes to ensure they are functioning properly.
6. Apply lubricant: Lubricate moving parts, such as the bearings and gears, to reduce friction and ensure smooth operation.
7. Protect from moisture: Avoid exposing the front hub motor and electrical components to excessive moisture.

Why Choose Raydafon's ALL-IN-ONE Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights.We have introduced professional production and testing equipment and advanced production lines, and established a complete quality management system. This allows us to provide high-quality, reliable products that meet the needs of our customers.We provide customized services, allowing us to tailor our products to your specific requirements. Our after-sales service is available in both Germany and China, ensuring prompt and efficient support wherever you are located.All our products are CE-certified and protected by independent intellectual property rights. Our brand is renowned for its reliable quality, exquisite craftsmanship, and stylish design. If you're seeking high-end electrical components for electric bicycles, look no further than Raydafon.Author: Yjx
