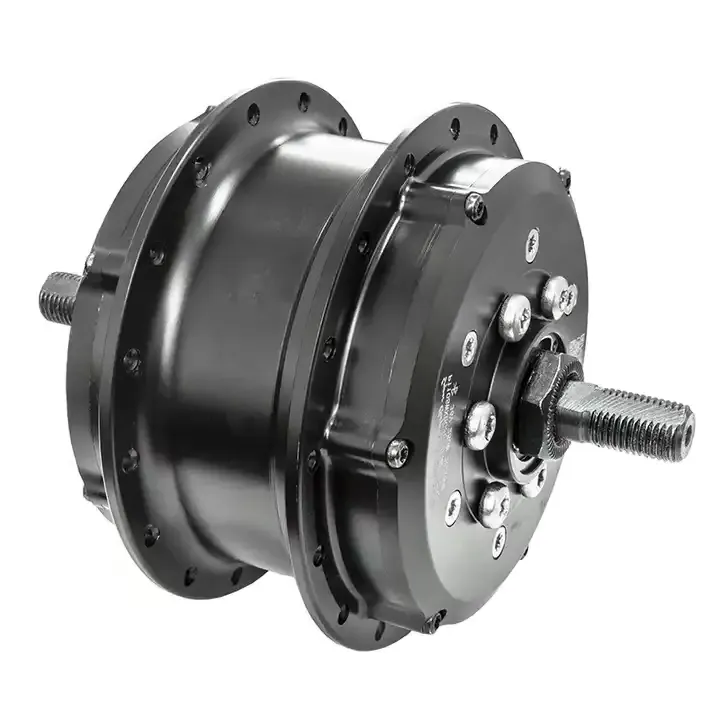

Raydafon P110 Front Motor Wheel with Controller Bicycle Conversion Kit

Introducing the Raydafon P110 front motor wheel with controller bicycle conversion kit, a product that boasts of high efficiency, power and innovation. This kit includes a powerful front hub motor with a built-in controller and significant specifications that set it apart. The P110 front hub motor comes in black and silver colors, with a diameter of 113mm±1mm and a width of 135±2mm. With a rated output power of 250W and efficiency of over 90%, this product guarantees top performance. It operates at a rated revolution of 160-260r/min and weighs only 2.3kg.

Specifications of P110 Front Hub Motor for E-bike

Item No.	P110SWXDC36/P110SWXC36
Diameter	113mm±1mm
Width	135±2mm
Brake types	Disc brake / V brake / Roller brake
Outlet position	Under the shaft on the right side
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Solar pedal sensor
Rated power	250W
Max. power	750W
Max. torque	50N·m
Rated voltage	36V
Rated input current	7.8A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	2.3KG

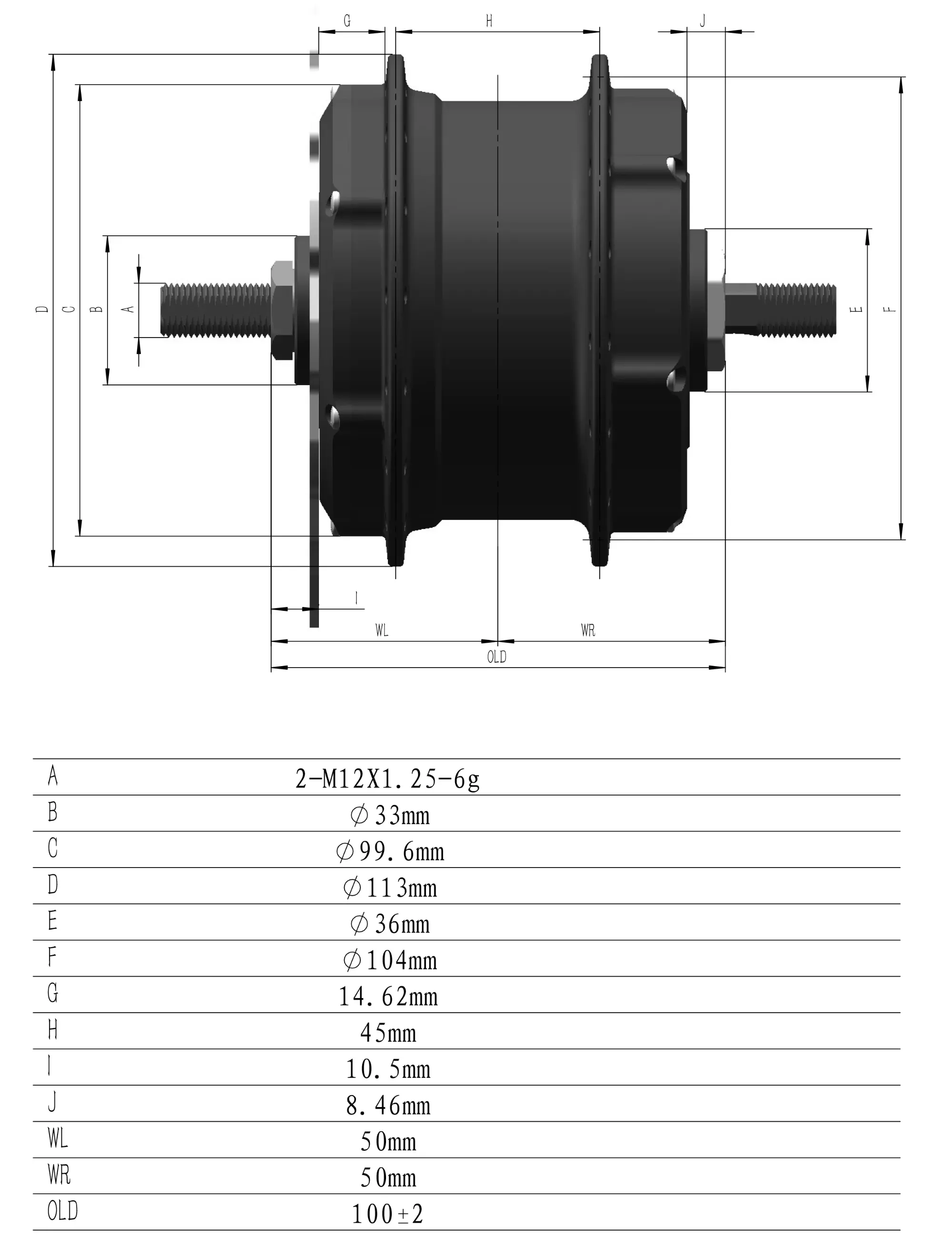

P110 E-bike Front Hub Motor Dimension

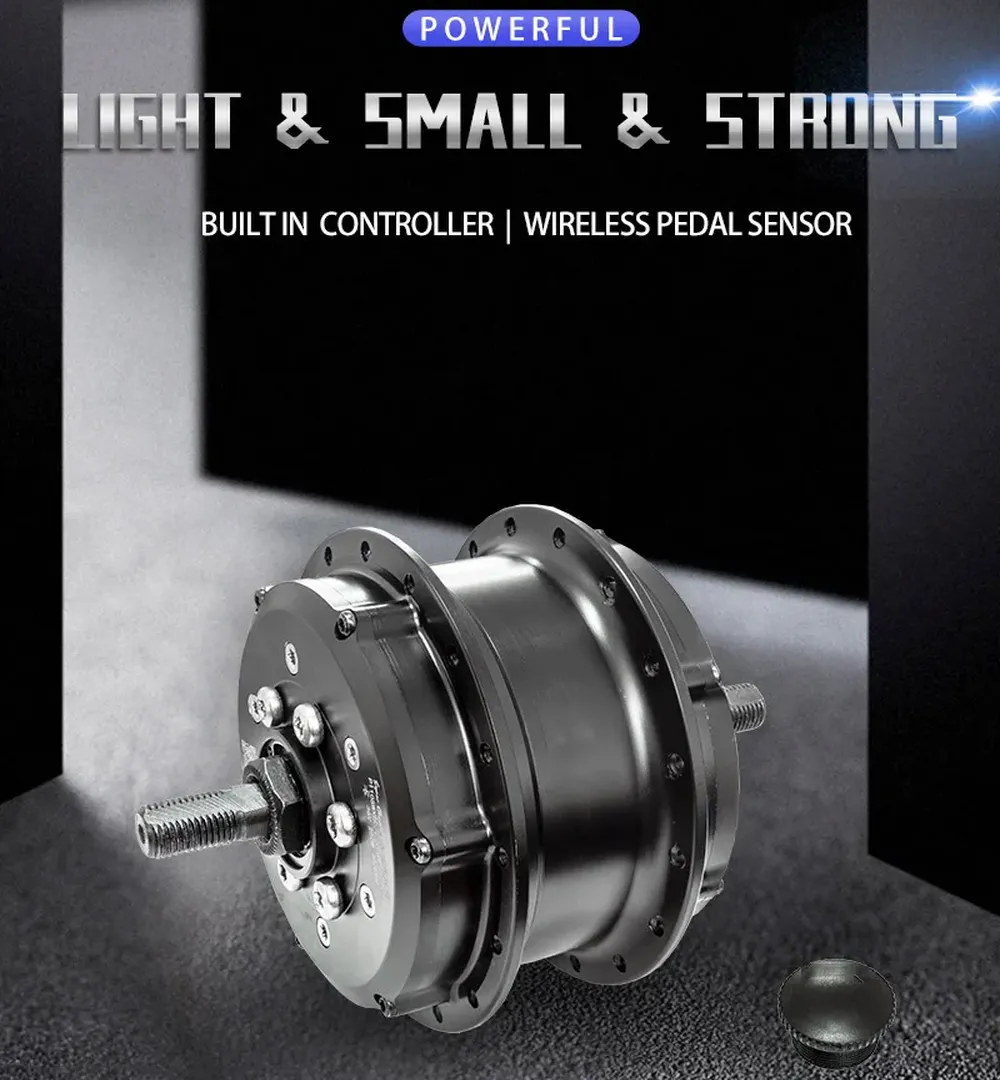

Advantages of the P110 Front Hub Motor

The P110 front hub motor comes with a plethora of advantages that make it stand out in the market.1. Built-in Controller: This feature reduces the need for a separate controller, simplifying the installation process and reducing the overall weight of the bicycle.2. Wireless Pedal Sensor: This feature allows for seamless communication between the rider's pedaling effort and the motor's assistance, ensuring a smooth and natural riding experience.3. Easy to Install & Disassemble: The P110 front hub motor is designed for ease of installation, making it easy for you to convert your traditional bicycle into an e-bike.4. Max. Power 750W, Torque Exceeds 40N·m: With a maximum power of 750W and torque exceeding 40N·m, this motor is capable of providing substantial power and speed for your e-bike.5. Efficiency >90%: The high efficiency of this motor ensures that most of the battery power is converted into motion, ensuring longer rides and less frequent need for recharging.6. Wireless Control: With wireless controls, you can easily adjust the motor's settings to your preference, ensuring a comfortable and personalized riding experience.With the ability to produce this high-quality product, we offer a solution that combines power, efficiency, and convenience.

Applications of the P110 Front Hub Motor

The P110 front hub motors are versatile and can be used in a variety of applications.1. Commuting: E-bikes equipped with P110 front hub motors are perfect for daily commutes. They provide assistance to riders, making it easier to cover longer distances and tackle steep hills.2. Urban Riding: The smooth acceleration and assistance provided by these motors make them ideal for navigating through busy city streets and traffic.3. Recreation and Leisure: Whether for trail exploration, scenic cruises, or outdoor adventures, these motors provide an extra boost to enhance the rider's overall experience.4. Delivery Services: Their efficiency and ability to navigate through urban environments make them a popular choice for many food delivery and courier services.5. Tourism and Sightseeing: E-bikes with P110 front hub motors are commonly used in tourism, allowing tourists to explore cities and attractions with ease.6. Electric Bike Sharing Programs: These motors are also popular in bike-sharing programs, providing convenient transportation options in urban areas.

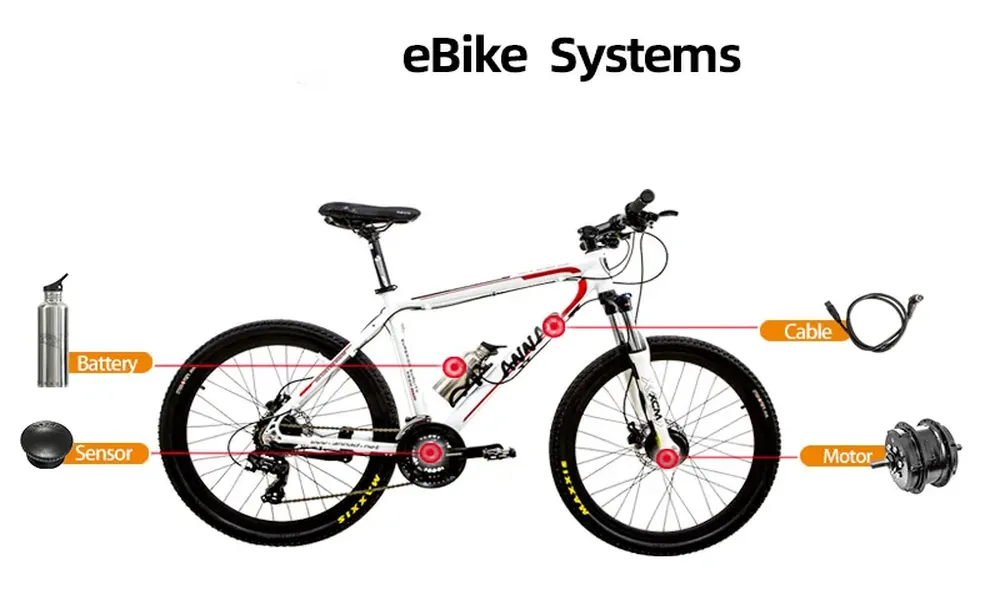

How Does the Ebike System P110 Front Hub Motor Work?

The P110 front hub motor is a vital component of an e-bike system. Here is a general overview of how it works:1. Power Source: The system includes a rechargeable battery pack that supplies electrical energy to the motor.2. Motor Controller: This component manages the flow of electricity from the battery to the motor, interpreting input from the rider and adjusting the power sent to the motor accordingly.3. Torque Sensor or Throttle: E-bike systems can include a torque sensor, which measures the force applied to the pedals, or a throttle, which allows the rider to control the motor's power output.4. Motor Assistance: The motor controller sends the appropriate amount of power to the P110 front hub motor when the rider applies force to the pedals or activates the throttle.5. Front Hub Motor: The motor generates rotational force that is transmitted to the wheel, propelling the e-bike forward.6. Power Transmission: The motor's rotational force is transmitted to the wheel through gears integrated into the hub motor, allowing for acceleration or maintenance of consistent speed.7. Regenerative Braking (optional): Some systems may have regenerative braking capabilities that convert the kinetic energy of the moving e-bike back into electricity when the brakes are applied, storing it for later use.8. Display and Control Unit: This unit provides the rider with information such as speed, battery level, and selected assistance level, and allows the rider to adjust settings and control the motor's assistance level.

Choosing the Right P110 Front Hub Motor for Your Ebike System

When choosing the right P110 front hub motor for your e-bike system, consider the following factors:1. Power and Torque: Consider your riding needs and terrain. A higher power or torque motor may be needed if you frequently encounter steep hills or require more power.2. Efficiency: A front hub motor with high efficiency can have a significant impact on the range and overall performance of your e-bike.3. Compatibility: Ensure your chosen motor is compatible with your e-bike system by checking the motor's specifications and comparing them with your battery and motor controller specifications.4. Wheel Size: The motor should fit the specific wheel size of your e-bike for optimal performance and a proper fit.5. Weight and Size: The weight and dimensions of the motor can affect the overall weight distribution and handling of your e-bike.

Maintenance Tips for the P110 Front Hub Motor

Proper maintenance of the P110 front hub motor ensures its longevity and optimal performance. Here are some maintenance tips:1. Regular Cleaning: Wipe the motor regularly with a damp cloth to remove dirt and debris.2. Inspection: Inspect the motor for any signs of damage or wear, and check the cables and wiring for security and integrity.3. Lubrication: Some motors may require lubrication for smooth operation. If necessary, apply the appropriate lubricant as recommended by the manufacturer.4. Battery Maintenance: Follow the manufacturer's instructions for battery maintenance, such as proper charging procedures and storage guidelines.5. Wheel Maintenance: Regularly inspect the wheel for proper alignment, trueness, and spoke tension. If any issues are detected, seek assistance from a qualified bike mechanic.6. Water and Moisture Protection: Although the P110 front hub motor may withstand some level of water exposure, avoid excessive moisture and submerging the motor in water.

Why Choose Raydafon's P110 Front Hub Motor for Your Ebike System?

Established in 1993, Raydafon Electric Technology Co Ltd. is dedicated to the research, development, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house, protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment, advanced production lines, and established a complete quality management system.We adhere to the enterprise spirit of "Technology Drives Healthy Life" and the business philosophy of "Credit First, Quality First." We continuously develop new products to meet customer needs and market changes. All our products are CE-certified and protected by independent intellectual property rights. Our products are renowned for their reliable quality, exquisite craftsmanship, and stylish design.Our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays, and more. They are suitable for all kinds of bikes. We provide electric power support for bicycles while maximizing their original appearance and characteristics, making riding more convenient, easy, and environmentally friendly.If you are seeking high-end electrical components for electric bicycles, or are still worried about traffic jams, or would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.[embed]https://www.youtube.com/embedZ3rT9dG_4wI[/embed]Author: Yjx.
